Wiring Schematics

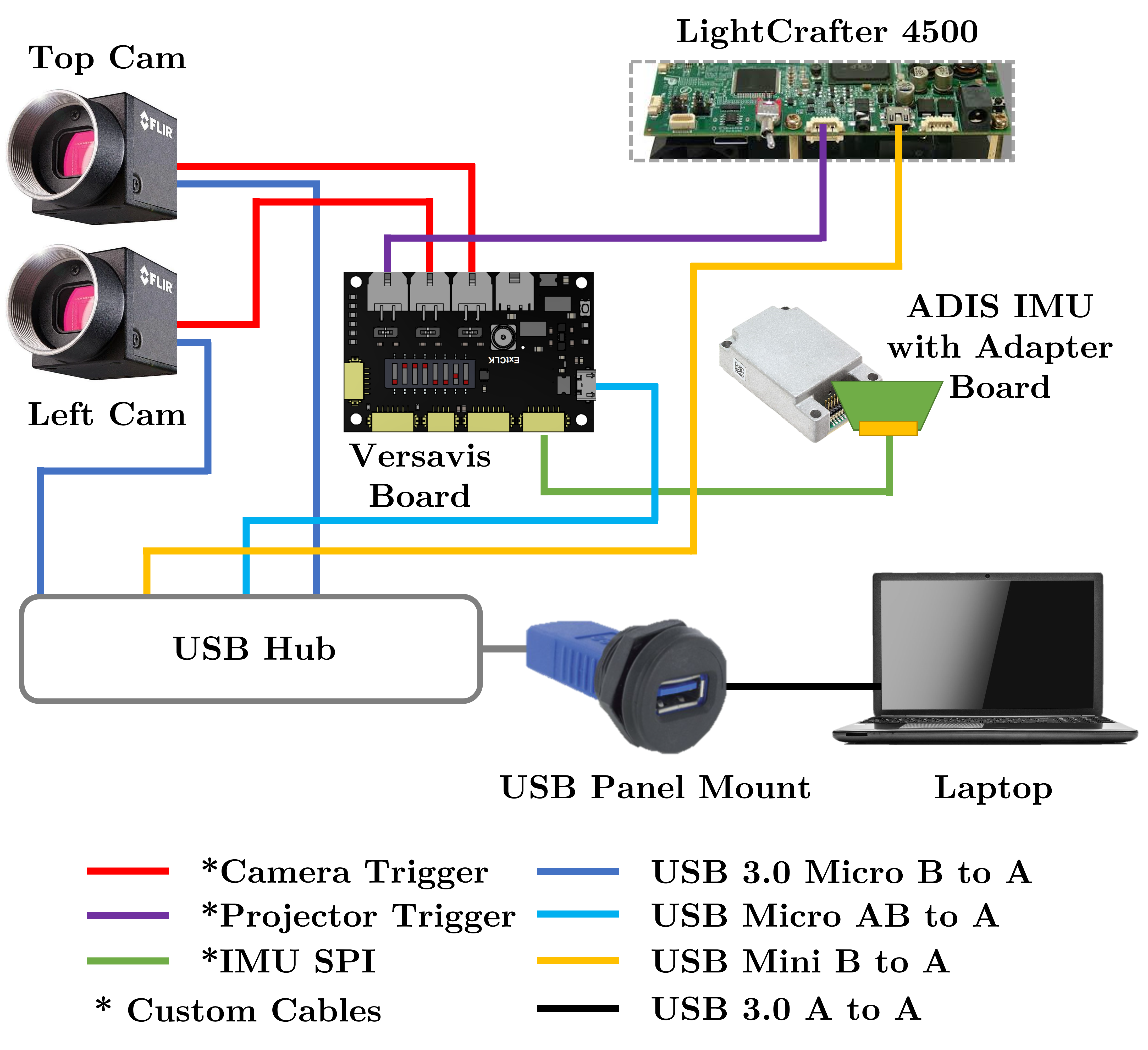

Data Wiring Diagram

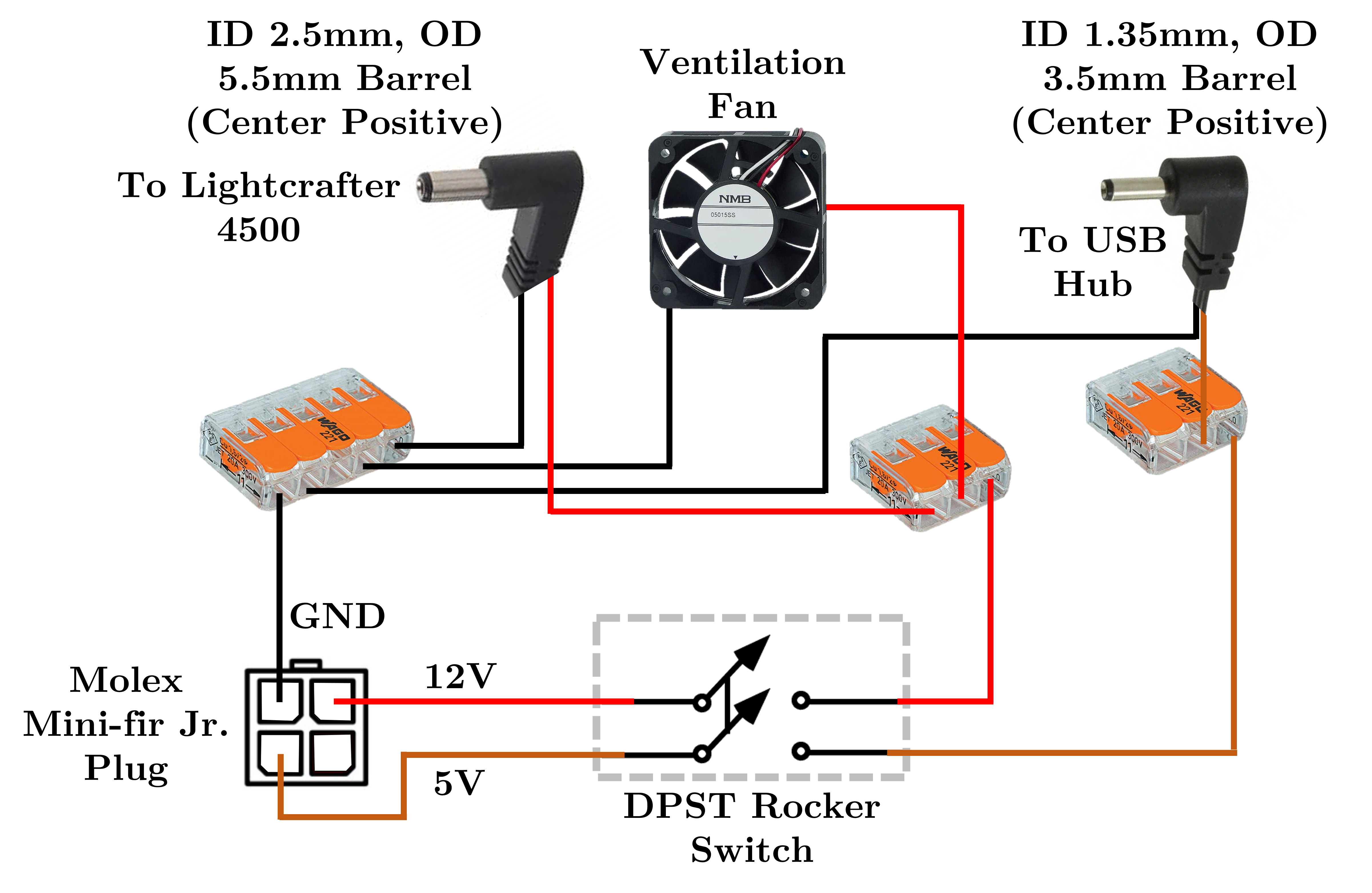

Power Wiring Diagram

Notes:

• We use WAGO splicing connectors to help distribute power so we can easily connect/disconnect components mounted on the rear acrylic panel
• You might want to add a JST connector between the ventilation fan its GND and 12V wiring for more convenient installation/removal

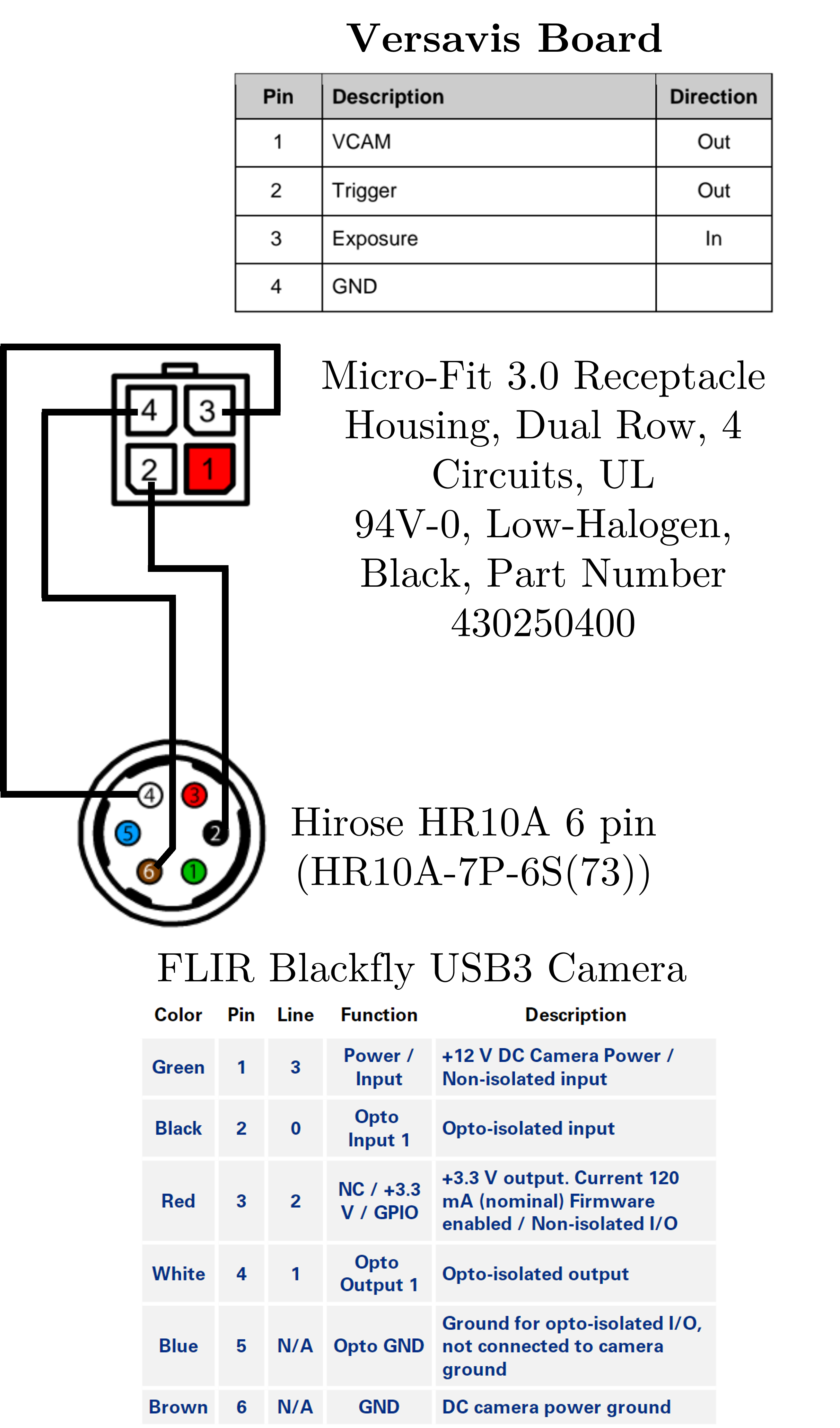

Camera Trigger Cable

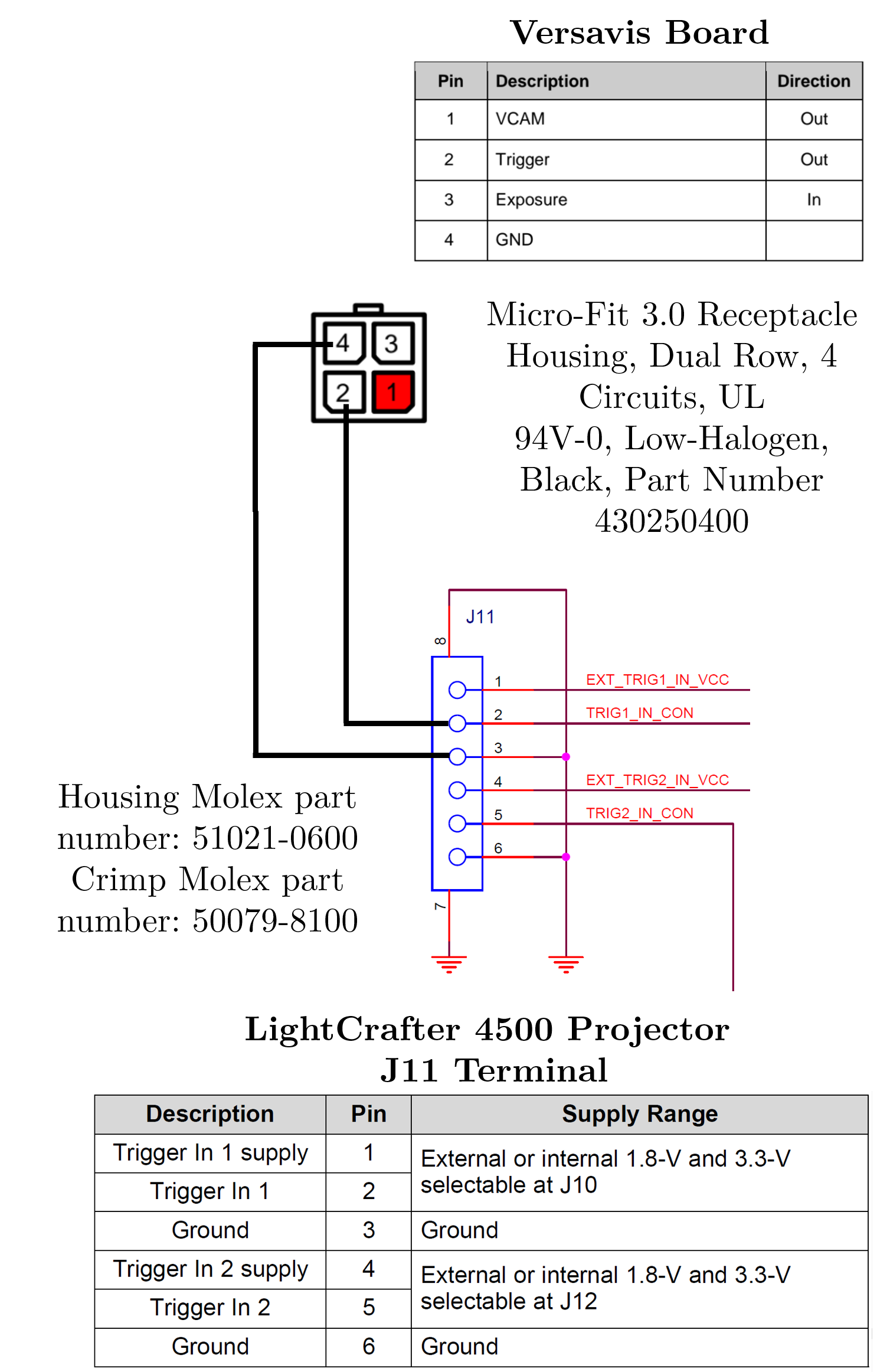

Projector Trigger Cable

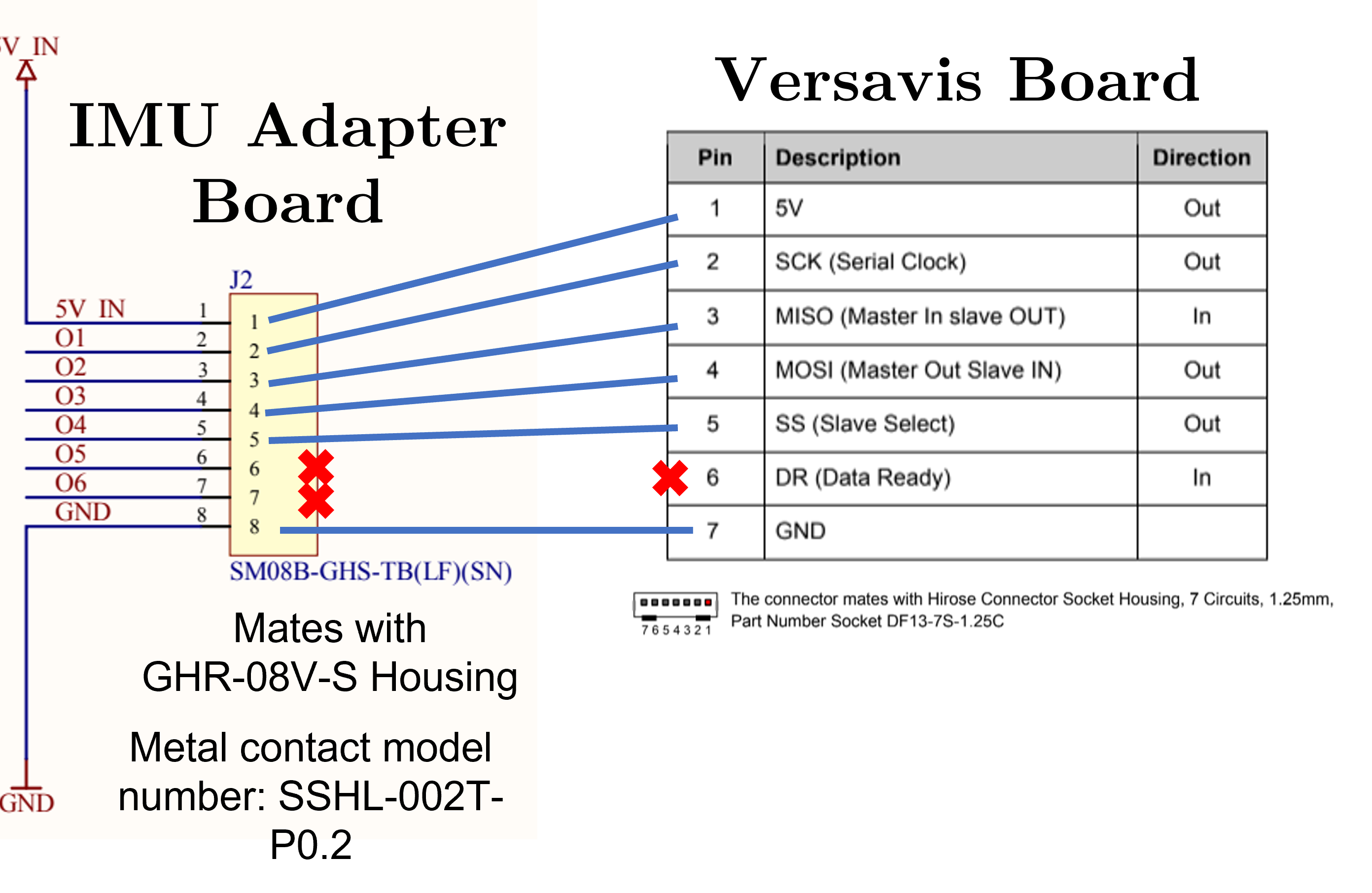

IMU SPI Cable

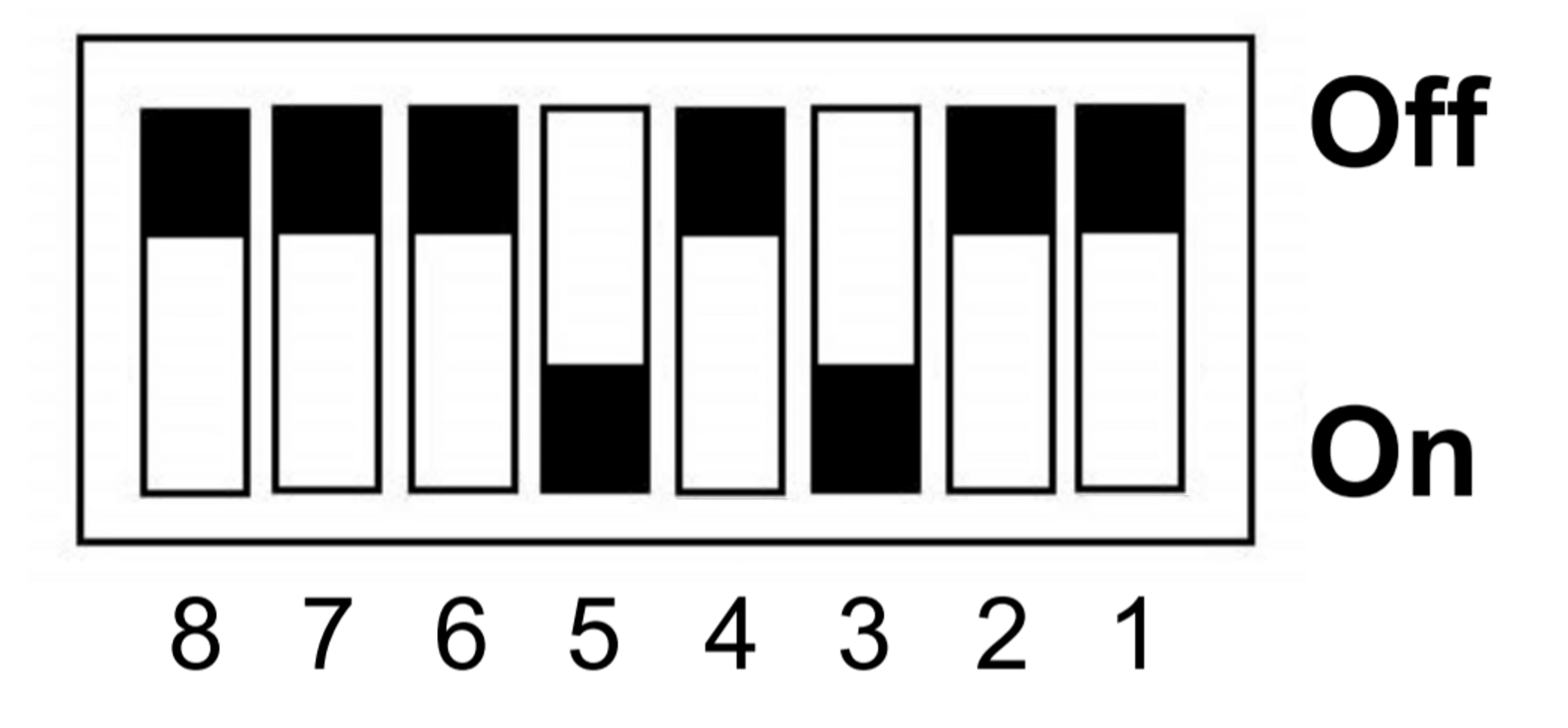

Versavis Dip Switch Configuration

DIP Switch Settings Camera Supply

For all 3 camera trigger interfaces, set to 3.3V

DIP Switch Settings Camera Mode
