Docker Birthday 3 Tutorial

Docker 三週年

Tutorial

運行 Alpine 輕量級 Linux 操作系統

先確認運行在一台 docker 主機上

$ docker-machine ls
NAME      ACTIVE   DRIVER       STATE     URL                         SWARM   DOCKER    ERRORS
default   *        virtualbox   Running   tcp://192.168.99.100:2376           v1.10.3

載入 alpine 的映像 (image)

$ docker pull alpine
Using default tag: latest
latest: Pulling from library/alpine

4d06f2521e4f: Pull complete
Digest: sha256:7739b19a213f3a0aa8dacbd5898c8bd467e6eaf71074296a3d75824e76257396
Status: Downloaded newer image for alpine:latest

查看目前系統上有那些 image

$ docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
alpine              latest              70c557e50ed6        3 weeks ago         4.798 MB
hello-world         latest              690ed74de00f        5 months ago        960 B

操作 Docker Run

如何操作 docker container

$ docker run alpine ls -l
total 48
drwxr-xr-x    2 root     root          4096 Mar  2 16:20 bin
drwxr-xr-x    5 root     root           360 Mar 25 21:09 dev
drwxr-xr-x   13 root     root          4096 Mar 25 21:09 etc
drwxr-xr-x    2 root     root          4096 Mar  2 16:20 home
drwxr-xr-x    5 root     root          4096 Mar  2 16:20 lib
lrwxrwxrwx    1 root     root            12 Mar  2 16:20 linuxrc -> /bin/busybox
drwxr-xr-x    5 root     root          4096 Mar  2 16:20 media
drwxr-xr-x    2 root     root          4096 Mar  2 16:20 mnt
dr-xr-xr-x  128 root     root             0 Mar 25 21:09 proc
drwx------    2 root     root          4096 Mar  2 16:20 root
drwxr-xr-x    2 root     root          4096 Mar  2 16:20 run
drwxr-xr-x    2 root     root          4096 Mar  2 16:20 sbin
dr-xr-xr-x   13 root     root             0 Mar 25 21:09 sys
drwxrwxrwt    2 root     root          4096 Mar  2 16:20 tmp
drwxr-xr-x    7 root     root          4096 Mar  2 16:20 usr
drwxr-xr-x   10 root     root          4096 Mar  2 16:20 var

當執行 run 時, Docker client 會尋找對應的映像 alpine, 產生 container, 運行指令 ls -l; 同樣, 在 alpine 上執行 echo 指令

$ docker run alpine echo "hello from alpine"
hello from alpine

接著再嘗試幾個指令, 目前 alpine 已運行的時間

$ docker run alpine uptime
 21:11:01 up 44 min,  load average: 0.00, 0.01, 0.04

/bin/sh 沒有反應, docker 在下完指令後即結束

$ docker run alpine /bin/sh

若不想立刻結束, 則需使用互動模式, -it 會進入終端機的互動模式, 結束離開 exit 即可

$ docker run -it alpine /bin/sh

docker ps 會列出目前尚在運行中的 container

$ docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES

因為沒有在運行的 container, 加上 -a 查看所有的容器

$ docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                      PORTS               NAMES
14d1e5c4b10a        alpine              "/bin/sh"                17 minutes ago      Exited (0) 46 seconds ago                       goofy_sammet
f5142e01ff3f        alpine              "/bin/sh"                20 minutes ago      Exited (0) 3 minutes ago                        nauseous_heisenberg
35fe31adfb4d        alpine              "uptime"                 20 minutes ago      Exited (0) 3 minutes ago                        sleepy_brahmagupta
0db7bdffc4f5        alpine              "uptime"                 20 minutes ago      Exited (0) 3 minutes ago                        condescending_almeida
c57755d32a3e        alpine              "echo 'hello from alp"   20 minutes ago      Exited (0) 4 minutes ago                        condescending_gates
2524dcbf9e90        alpine              "ls -l"                  21 minutes ago      Exited (0) 5 minutes ago                        cranky_wing
af773d7c79e0        hello-world         "/hello"                 59 minutes ago      Exited (0) 43 minutes ago                       goofy_davinci

如果你是喜歡冒險的, 你可以試試看這麼做, 運行到互動模式中的容器下, 砍掉 bin/, ls 將無法工作, 結束離開容器

$ docker run -it alpine /bin/sh
/ # ls
bin      etc      lib      media    proc     run      sys      usr
dev      home     linuxrc  mnt      root     sbin     tmp      var
/ # rm -rf bin/
/ # ls
/bin/sh: ls: not found
/ # exit

重新建立一個新的容器, ls 又會正常工作, 這是因為每次 docker 都會建立新的容器 (那如何保存舊記錄或舊操作?)

$ docker run -it alpine /bin/sh
/ # ls
bin      etc      lib      media    proc     run      sys      usr
dev      home     linuxrc  mnt      root     sbin     tmp      var
/ #

術語

Images - The Filesystem and configuration of our application which are used to create containers.
- 鏡像 - 一個已經設定好的應用或檔案系統, 用來產生容器
Containers - Created using Docker images and run the actual application.
- 由鏡像產生的應用程式
Docker client - The command line tool that allows the user to interact with the Docker daemon.
- 用來與 Docker daemon 互動的工具
Docker Hub - A registry of Docker images.
- 存放 docker 鏡像的地方

在 Docker 上運行 web 應用

static-site

範例將使用 seqvence/static-site 這個鏡像

$ docker run seqvence/static-site
Unable to find image 'seqvence/static-site:latest' locally
latest: Pulling from seqvence/static-site

fdd5d7827f33: Pull complete
a3ed95caeb02: Pull complete
716f7a5f3082: Pull complete
7b10f03a0309: Pull complete
aff3ab7e9c39: Pull complete
Digest: sha256:41b286105f913fb7a5fbdce28d48bc80f1c77e3c4ce1b8280f28129ae0e94e9e
Status: Downloaded newer image for seqvence/static-site:latest

由於我們系統上沒有 seqvence/static-site 鏡像, docker client 會自動 pull 鏡像回來並執行.

$ docker ps
CONTAINER ID        IMAGE                  COMMAND                  CREATED             STATUS              PORTS               NAMES
71aa855edc10        seqvence/static-site   "/bin/sh -c 'cd /usr/"   4 minutes ago       Up 5 seconds        80/tcp, 443/tcp     silly_engelbart

seqvence/static-site 確實已經運行, 但不曉得運行在那個 port, 也不知如何從主機存取容器中的 server, 所以接下來我們要先停掉並移除這個容器, 在令一個終端機視窗執行下列命令, 記得運行 eval $(docker-machine env default) 設定終端機的環境變數

$ docker stop 71aa855edc10
$ docker rm 71aa855edc10

命名容器名稱 --name static-site

$ docker run --name static-site -e AUTHOR="changwu" -d -P seqvence/static-site
6f66c6072b056e6f58a721b4268a127687f679cb31392a3566badfea6bd1fb4b

-d: 讓容器運行在 background, 又稱 detached mode
-P: 讓容器的 port 能公開給 host
-e: 允許傳遞環境變數給容器
--name: 指派容器新名稱

利用 docker port 查看目前容器有哪些公開的 port

$ docker port static-site
443/tcp -> 0.0.0.0:32768
80/tcp -> 0.0.0.0:32769

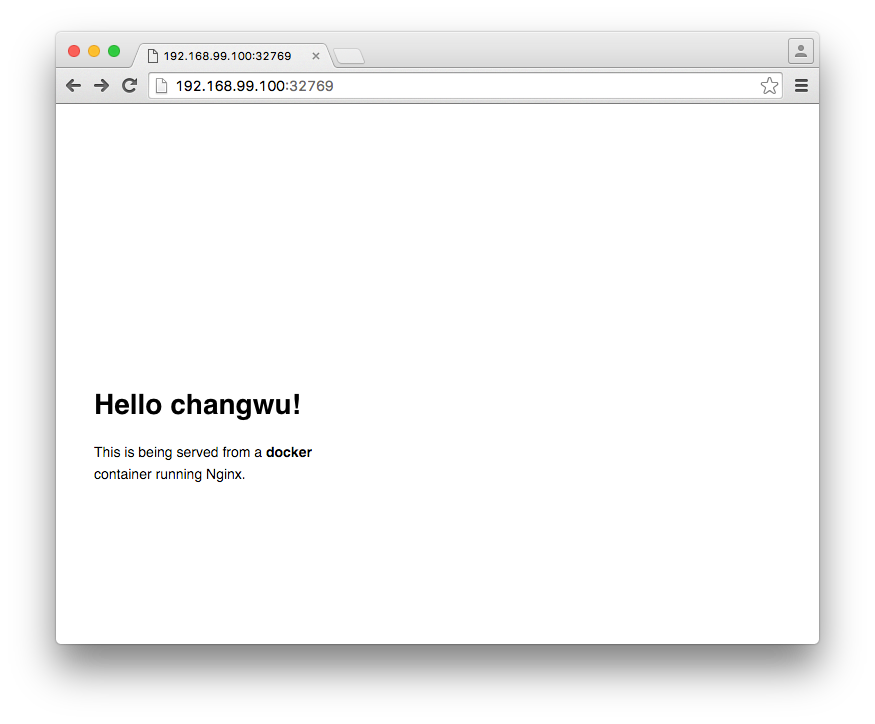

查看 docker 的 ip

$ docker-machine ip default
192.168.99.100

http://192.168.99.100:32769/

static-site

建立新容器跑第二個 server, 這次在使用 port 上, 自己指定而不靠容器隨機產生, 對應關係: 容器 80 <--> 主機 8888

-p: 設定 port 對應是用小寫的 p

$ docker run --name static-site-2 -e AUTHOR="changwu" -d -p 8888:80 seqvence/static-site
4190efe4a9b9701cec9e2caa8ccd6b39cf66c7d1b25f743ab983854f3f07e54d

移除容器

$ docker stop static-site static-site-2
$ docker rm static-site static-site-2

Docker images

這節, 我們會建立自己的 image, 並推送到 docker hub

$ docker images
REPOSITORY             TAG                 IMAGE ID            CREATED             SIZE
seqvence/static-site   latest              f589ccde7957        7 days ago          190.5 MB
alpine                 latest              70c557e50ed6        3 weeks ago         4.798 MB
hello-world            latest              690ed74de00f        5 months ago        960 B

鏡像主要分兩類:

Base images: 沒有父鏡像, 一般像是 os images
Child images: 通常是 os images + 其他的功能

目前在 Docker hub 上有許多不同的鏡像, 分屬 Base images 或 Child images

Official images
User images

第一個鏡像

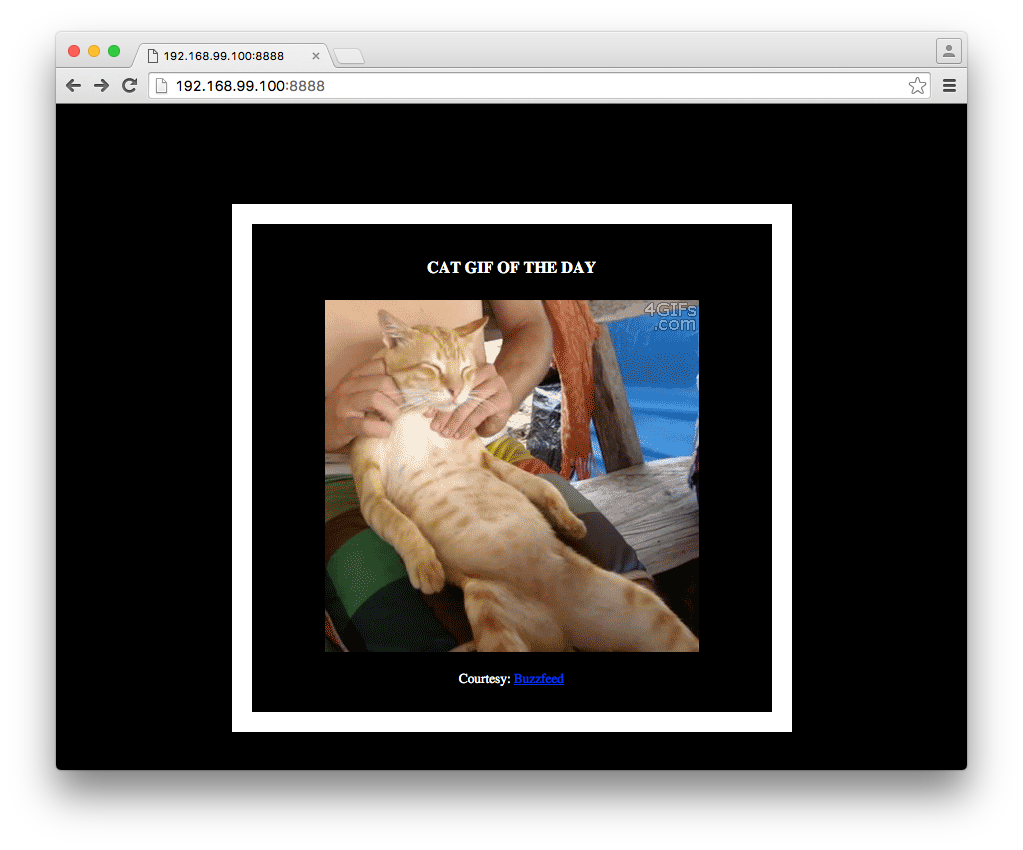

這節我們要建立一個小型的 Flask 應用, 隨機展現貓的圖片 .gif

Dockerfile

Dockerfile 是一個文字檔, 包含一系列執行的動作. 這個練習中, 將會建立一個 Docker image, 一個 Flask 的應用

建立 flask-app 資料夾, 建立以下檔案:

Dockerfile
app.py
requirements.txt
templates/index.html

app.py

from flask import Flask, render_template
import random

app = Flask(__name__)

# images
images = [
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr05/15/9/anigif_enhanced-buzz-26388-1381844103-11.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr01/15/9/anigif_enhanced-buzz-31540-1381844535-8.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr05/15/9/anigif_enhanced-buzz-26390-1381844163-18.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr06/15/10/anigif_enhanced-buzz-1376-1381846217-0.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr03/15/9/anigif_enhanced-buzz-3391-1381844336-26.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr06/15/10/anigif_enhanced-buzz-29111-1381845968-0.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr03/15/9/anigif_enhanced-buzz-3409-1381844582-13.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr02/15/9/anigif_enhanced-buzz-19667-1381844937-10.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr05/15/9/anigif_enhanced-buzz-26358-1381845043-13.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr06/15/9/anigif_enhanced-buzz-18774-1381844645-6.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr06/15/9/anigif_enhanced-buzz-25158-1381844793-0.gif",
    "http://ak-hdl.buzzfed.com/static/2013-10/enhanced/webdr03/15/10/anigif_enhanced-buzz-11980-1381846269-1.gif"
]


@app.route('/')
def index():
    url = random.choice(images)
    return render_template('index.html', url=url)


if __name__ == '__main__':
    app.run(host='0.0.0.0')

requirements.txt

Flask==0.10.1

templates/index.html

<html>
    <head>
        <style type="text/css">
            body {
                background: black;
                color: white;
            }
            div.container {
                max-width: 500px;
                margin: 100px auto;
                border: 20px solid white;
                padding: 10px;
                text-align: center;
            }
            h4 {
                text-transform: uppercase;
            }
        </style>
    </head>
    <body>
        <div class="container">
            <h4>Cat Gif of the day</h4>
            <img src="{{url}}" />
            <p><small>Courtesy: <a href="http://www.buzzfeed.com/copyranter/the-best-cat-gif-post-in-the-history-of-cat-gifs">Buzzfeed</a></small></p>
        </div>
    </body>
</html>

Dockerfile

# our base image
FROM alpine:latest

# Install python and pip
RUN apk add --update py-pip

# install Python modules needed by the Python app
COPY requirements.txt /usr/src/app/
RUN pip install --no-cache-dir -r /usr/src/app/requirements.txt

# copy files required for the app to run
COPY app.py /usr/src/app/
COPY templates/index.html /usr/src/app/templates/

# tell the port number the container should expose
EXPOSE 5000

# run the application
CMD ["python", "/usr/src/app/app.py"]

指定 base image
通常會撰寫檔案複製的相關指令或是安裝相依性的套件
複製 requirements.txt, 安裝 flask 應用需要的套件
複製應用程式的檔案
指定對應的外部 port, 由於 flask server 預設是跑在 5000, 所以在此開放 port 5000
將應用程式跑起來

接下來, 利用寫好的 Dockerfile, 來 build 我們的 image, 這時會用到 docker build 這個指令

$ cd ~/sandbox/docker-birthday/flask-app
$ docker build -t changwu/myfirstapp .
Sending build context to Docker daemon  7.68 kB
Step 1 : FROM alpine:latest
 ---> 70c557e50ed6
Step 2 : RUN apk add --update py-pip
 ---> Running in 53c4ae336186
fetch http://dl-cdn.alpinelinux.org/alpine/v3.3/main/x86_64/APKINDEX.tar.gz
fetch http://dl-cdn.alpinelinux.org/alpine/v3.3/community/x86_64/APKINDEX.tar.gz
(1/12) Installing libbz2 (1.0.6-r4)
(2/12) Installing expat (2.1.0-r2)
(3/12) Installing libffi (3.2.1-r2)
(4/12) Installing gdbm (1.11-r1)
(5/12) Installing ncurses-terminfo-base (6.0-r6)
(6/12) Installing ncurses-terminfo (6.0-r6)
(7/12) Installing ncurses-libs (6.0-r6)
(8/12) Installing readline (6.3.008-r4)
(9/12) Installing sqlite-libs (3.9.2-r0)
(10/12) Installing python (2.7.11-r3)
(11/12) Installing py-setuptools (18.8-r0)
(12/12) Installing py-pip (7.1.2-r0)
Executing busybox-1.24.1-r7.trigger
OK: 59 MiB in 23 packages
 ---> 7af9c558fce0
Removing intermediate container 53c4ae336186
Step 3 : COPY requirements.txt /usr/src/app/
 ---> cb05121de95b
Removing intermediate container 16360fe2945c
Step 4 : RUN pip install --no-cache-dir -r /usr/src/app/requirements.txt
 ---> Running in b00a71e15ca8
Collecting Flask==0.10.1 (from -r /usr/src/app/requirements.txt (line 1))
  Downloading Flask-0.10.1.tar.gz (544kB)
Collecting Werkzeug>=0.7 (from Flask==0.10.1->-r /usr/src/app/requirements.txt (line 1))
  Downloading Werkzeug-0.11.5-py2.py3-none-any.whl (305kB)
Collecting Jinja2>=2.4 (from Flask==0.10.1->-r /usr/src/app/requirements.txt (line 1))
  Downloading Jinja2-2.8-py2.py3-none-any.whl (263kB)
Collecting itsdangerous>=0.21 (from Flask==0.10.1->-r /usr/src/app/requirements.txt (line 1))
  Downloading itsdangerous-0.24.tar.gz (46kB)
Collecting MarkupSafe (from Jinja2>=2.4->Flask==0.10.1->-r /usr/src/app/requirements.txt (line 1))
  Downloading MarkupSafe-0.23.tar.gz
Installing collected packages: Werkzeug, MarkupSafe, Jinja2, itsdangerous, Flask
  Running setup.py install for MarkupSafe
  Running setup.py install for itsdangerous
  Running setup.py install for Flask
Successfully installed Flask-0.10.1 Jinja2-2.8 MarkupSafe-0.23 Werkzeug-0.11.5 itsdangerous-0.24
You are using pip version 7.1.2, however version 8.1.1 is available.
You should consider upgrading via the 'pip install --upgrade pip' command.
 ---> 525796417eeb
Removing intermediate container b00a71e15ca8
Step 5 : COPY app.py /usr/src/app/
 ---> 7e420ff1f73d
Removing intermediate container 6bd23e74a5c1
Step 6 : COPY templates/index.html /usr/src/app/templates/
 ---> 89446c3a1e32
Removing intermediate container a4c45024685f
Step 7 : EXPOSE 5000
 ---> Running in 7e3c396f02c3
 ---> 4b42d0844874
Removing intermediate container 7e3c396f02c3
Step 8 : CMD python /usr/src/app/app.py
 ---> Running in c8aafee706f1
 ---> 11db2f39c940
Removing intermediate container c8aafee706f1
Successfully built 11db2f39c940

執行 docker images 後, 可以看到 image 已經編好

$ docker images
REPOSITORY             TAG                 IMAGE ID            CREATED             SIZE
changwu/myfirstapp     latest              1bb5477538f7        3 seconds ago       55.04 MB
ubuntu                 latest              97434d46f197        7 days ago          188 MB
seqvence/static-site   latest              f589ccde7957        7 days ago          190.5 MB
alpine                 latest              70c557e50ed6        3 weeks ago         4.798 MB
hello-world            latest              690ed74de00f        5 months ago        960 B

建立新的容器

$ docker run -p 8888:5000 --name myfirstapp changwu/myfirstapp
 * Running on http://0.0.0.0:5000/ (Press CTRL+C to quit)

跟之前一樣, 連線到 docker 的 ip 以及本機對應到容器的 port

http://192.168.99.100:8888/

flask-app

移除容器

$ docker stop myfirstapp
$ docker rm myfirstapp

Docker Birthday Training

登入到 Docker Hub

$ docker login

Get the voting-app

到此, 已經學會如何建立 image, 下一步要學習如何運行多個容器, docker-compose 會是最好的操作方式.

clone docker-birthday-3 到本機, 裡面含有 voting app

app

$ git clone https://github.com/docker/docker-birthday-3.git

客製化 app

$ cd ~/sandbox/docker-birthday-3/example-voting-app

1. 修改 app.py

example-voting-app/voting-app/app.py

將這兩行改成喜歡的程式語言

option_a = os.getenv('OPTION_A', "Python")
option_b = os.getenv('OPTION_B', "Go")

2. 修改 config.json

example-voting-app/result-app/views/config.json

{
  "name":"changwu",
  "twitter":"@changwu_tw",
  "location":"Urbana, IL, USA",
  "repo":["changwu/votingapp_voting-app", "changwu/votingapp_result-app"],
  "vote":"Python"
}

3. 執行 app

我們將使用 Docker Compose 來運行 app, Docker Compose 是用來運行多個容器的工具. 需要定義 .yml 的檔案, 包含各容器的描述, 大小, 容器之間的網路設定.

docker-compose.yml

version: "2"

services:
  voting-app:
    build: ./voting-app/.
    volumes:
     - ./voting-app:/app
    ports:
      - "5000:80"
    links:
      - redis
    networks:
      - front-tier
      - back-tier

  result-app:
    build: ./result-app/.
    volumes:
      - ./result-app:/app
    ports:
      - "5001:80"
    links:
      - db
    networks:
      - front-tier
      - back-tier

  worker:
    image: manomarks/worker
    links:
      - db
      - redis
    networks:
      - back-tier

  redis:
    image: redis:alpine
    ports: ["6379"]
    networks:
      - back-tier

  db:
    image: postgres:9.4
    volumes:
      - "db-data:/var/lib/postgresql/data"
    networks:
      - back-tier

volumes:
  db-data:

networks:
  front-tier:
  back-tier:

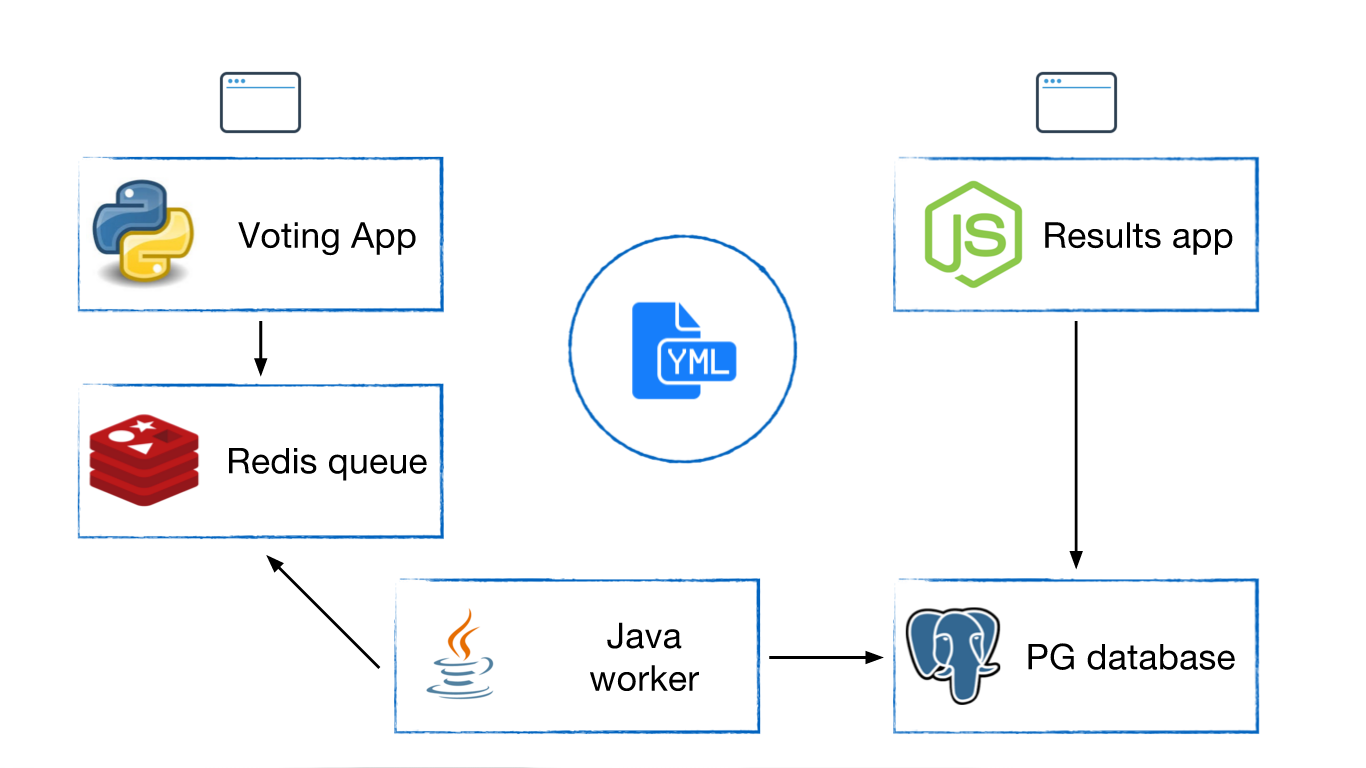

.yml 定義:

A voting-app container based on a Python image
A result-app container based on a Node.js image
A redis container based on a redis image, to temporarily store the data.
A Java based worker app based on a Java image
A Postgres container based on a postgres image

其中有兩個 image 由 Dockerfile 所建立, 其餘三個 images 則是從 docker hub 上所拉下來

有關 Compose 如何設定網路, 可參考 Networking in Compose

運行 app

$ cd ~/sandbox/docker-birthday-3/example-voting-app
$ docker-compose up -d
Creating network "examplevotingapp_front-tier" with the default driver
Creating network "examplevotingapp_back-tier" with the default driver
Creating volume "examplevotingapp_db-data" with default driver
Pulling db (postgres:9.4)...
9.4: Pulling from library/postgres
fdd5d7827f33: Already exists
a3ed95caeb02: Pull complete
beb59dc2ad34: Pull complete
f42a5322ef13: Pull complete
f6719ae287c6: Pull complete
0dc08677d778: Pull complete
5f3b03c1dd66: Pull complete
de5fec809feb: Pull complete
0a442079a5a0: Pull complete
25d527ac5d9f: Pull complete
03619154d011: Pull complete
a2d55eea3342: Pull complete
Digest: sha256:06b73423e7c8130fa02406d55fd4d2f8195ca5b1c2f26bdc59516b967252377d
Status: Downloaded newer image for postgres:9.4
Creating examplevotingapp_db_1
Pulling redis (redis:alpine)...
alpine: Pulling from library/redis
4d06f2521e4f: Already exists
a790394eb78d: Pull complete
a3ed95caeb02: Pull complete
10d0b5c4aea4: Pull complete
514036a3f472: Pull complete
7eb566aca788: Pull complete
6fedafd6ed95: Pull complete
Digest: sha256:2eede5c553be583c6c55092614806aafcfd72518081a4dda49eb57f5fa6e3ab0
Status: Downloaded newer image for redis:alpine
Creating examplevotingapp_redis_1
Pulling worker (manomarks/worker:latest)...
latest: Pulling from manomarks/worker
4d06f2521e4f: Already exists
a3ed95caeb02: Pull complete
8e87dca72717: Pull complete
e7a6fe95a169: Pull complete
df64be00c9e1: Pull complete
6d820922175d: Pull complete
719eafdcdd1a: Pull complete
4d92605c39d9: Pull complete
420d3ff48587: Pull complete
bf959999c03d: Pull complete
aedabd85e754: Pull complete
Digest: sha256:f4461d17e31fa1d19bd49d7ee907a2c7aac17020e88b1e9228f99fbcb7b307de
Status: Downloaded newer image for manomarks/worker:latest
Creating examplevotingapp_worker_1
Building voting-app
Step 1 : FROM python:2.7-alpine
2.7-alpine: Pulling from library/python
4d06f2521e4f: Already exists
a3ed95caeb02: Pull complete
5a362500325d: Pull complete
Digest: sha256:a8aad4aff88fa9c375e8df23a4e446983d3ff8bbae58927a23bca44b500c6bed
Status: Downloaded newer image for python:2.7-alpine
 ---> dd22f748f304
Step 2 : WORKDIR /app
 ---> Running in c8e588ab1cf0
 ---> f618483a9d09
Removing intermediate container c8e588ab1cf0
Step 3 : ADD requirements.txt /app/requirements.txt
 ---> 09d1e3455dbd
Removing intermediate container 0f8f5cc2c3ff
Step 4 : RUN pip install -r requirements.txt
 ---> Running in f169d1bd33e5
Collecting Flask (from -r requirements.txt (line 1))
  Downloading Flask-0.10.1.tar.gz (544kB)
Collecting Redis (from -r requirements.txt (line 2))
  Downloading redis-2.10.5-py2.py3-none-any.whl (60kB)
Collecting Werkzeug>=0.7 (from Flask->-r requirements.txt (line 1))
  Downloading Werkzeug-0.11.5-py2.py3-none-any.whl (305kB)
Collecting Jinja2>=2.4 (from Flask->-r requirements.txt (line 1))
  Downloading Jinja2-2.8-py2.py3-none-any.whl (263kB)
Collecting itsdangerous>=0.21 (from Flask->-r requirements.txt (line 1))
  Downloading itsdangerous-0.24.tar.gz (46kB)
Collecting MarkupSafe (from Jinja2>=2.4->Flask->-r requirements.txt (line 1))
  Downloading MarkupSafe-0.23.tar.gz
Building wheels for collected packages: Flask, itsdangerous, MarkupSafe
  Running setup.py bdist_wheel for Flask: started
  Running setup.py bdist_wheel for Flask: finished with status 'done'
  Stored in directory: /root/.cache/pip/wheels/d2/db/61/cb9b80526b8f3ba89248ec0a29d6da1bb6013681c930fca987
  Running setup.py bdist_wheel for itsdangerous: started
  Running setup.py bdist_wheel for itsdangerous: finished with status 'done'
  Stored in directory: /root/.cache/pip/wheels/97/c0/b8/b37c320ff57e15f993ba0ac98013eee778920b4a7b3ebae3cf
  Running setup.py bdist_wheel for MarkupSafe: started
  Running setup.py bdist_wheel for MarkupSafe: finished with status 'done'
  Stored in directory: /root/.cache/pip/wheels/94/a7/79/f79a998b64c1281cb99fa9bbd33cfc9b8b5775f438218d17a7
Successfully built Flask itsdangerous MarkupSafe
Installing collected packages: Werkzeug, MarkupSafe, Jinja2, itsdangerous, Flask, Redis
Successfully installed Flask-0.10.1 Jinja2-2.8 MarkupSafe-0.23 Redis-2.10.5 Werkzeug-0.11.5 itsdangerous-0.24
 ---> 5e120b8822b1
Removing intermediate container f169d1bd33e5
Step 5 : ADD . /app
 ---> ee1167612166
Removing intermediate container f0291e680db4
Step 6 : EXPOSE 80
 ---> Running in 5cda23061e38
 ---> 186bc9692324
Removing intermediate container 5cda23061e38
Step 7 : CMD python app.py
 ---> Running in d2c4c0a4d5ca
 ---> 12eec7b3bebb
Removing intermediate container d2c4c0a4d5ca
Successfully built 12eec7b3bebb
Creating examplevotingapp_voting-app_1
Building result-app
Step 1 : FROM mhart/alpine-node
latest: Pulling from mhart/alpine-node
4d06f2521e4f: Already exists
0165ee796274: Pull complete
Digest: sha256:fdd893f01e18abffbc574716d1e77bcdc362561ae8974d0823f0ec79ccb7fad0
Status: Downloaded newer image for mhart/alpine-node:latest
 ---> d7e82cd9fae1
Step 2 : WORKDIR /app
 ---> Running in 0d194c2ed6dc
 ---> ec60621457de
Removing intermediate container 0d194c2ed6dc
Step 3 : ADD package.json /app/package.json
 ---> a7a2f7dcc9a5
Removing intermediate container 460cd14dc1a5
Step 4 : RUN npm config set registry http://registry.npmjs.org
 ---> Running in 4dda52e7b5b1
 ---> fffebd8cc782
Removing intermediate container 4dda52e7b5b1
Step 5 : RUN npm install && npm ls
 ---> Running in b2fe9dcc657e
result-app@1.0.0 /app
+-- async@1.5.2
+-- body-parser@1.15.0
| +-- bytes@2.2.0
| +-- content-type@1.0.1
| +-- debug@2.2.0
| | `-- ms@0.7.1
| +-- depd@1.1.0
| +-- http-errors@1.4.0
| | +-- inherits@2.0.1
| | `-- statuses@1.2.1
| +-- iconv-lite@0.4.13
| +-- on-finished@2.3.0
| | `-- ee-first@1.1.1
| +-- qs@6.1.0
| +-- raw-body@2.1.6
| | +-- bytes@2.3.0
| | `-- unpipe@1.0.0
| `-- type-is@1.6.12
|   +-- media-typer@0.3.0
|   `-- mime-types@2.1.10
|     `-- mime-db@1.22.0
+-- cookie-parser@1.4.1
| +-- cookie@0.2.3
| `-- cookie-signature@1.0.6
+-- express@4.13.4
| +-- accepts@1.2.13
| | `-- negotiator@0.5.3
| +-- array-flatten@1.1.1
| +-- content-disposition@0.5.1
| +-- cookie@0.1.5
| +-- escape-html@1.0.3
| +-- etag@1.7.0
| +-- finalhandler@0.4.1
| +-- fresh@0.3.0
| +-- merge-descriptors@1.0.1
| +-- methods@1.1.2
| +-- parseurl@1.3.1
| +-- path-to-regexp@0.1.7
| +-- proxy-addr@1.0.10
| | +-- forwarded@0.1.0
| | `-- ipaddr.js@1.0.5
| +-- qs@4.0.0
| +-- range-parser@1.0.3
| +-- send@0.13.1
| | +-- destroy@1.0.4
| | +-- http-errors@1.3.1
| | `-- mime@1.3.4
| +-- serve-static@1.10.2
| +-- utils-merge@1.0.0
| `-- vary@1.0.1
+-- method-override@2.3.5
+-- pg@4.5.1
| +-- buffer-writer@1.0.1
| +-- generic-pool@2.1.1
| +-- packet-reader@0.2.0
| +-- pg-connection-string@0.1.3
| +-- pg-types@1.10.0
| | +-- ap@0.2.0
| | +-- postgres-array@1.0.0
| | +-- postgres-bytea@1.0.0
| | +-- postgres-date@1.0.1
| | `-- postgres-interval@1.0.1
| |   `-- xtend@4.0.1
| +-- pgpass@0.0.3
| | `-- split@0.3.3
| |   `-- through@2.3.8
| `-- semver@4.3.6
+-- request-json@0.5.5
| +-- depd@1.0.0
| `-- request@2.53.0
|   +-- aws-sign2@0.5.0
|   +-- bl@0.9.5
|   | `-- readable-stream@1.0.33
|   |   +-- core-util-is@1.0.2
|   |   `-- string_decoder@0.10.31
|   +-- caseless@0.9.0
|   +-- combined-stream@0.0.7
|   | `-- delayed-stream@0.0.5
|   +-- forever-agent@0.5.2
|   +-- form-data@0.2.0
|   | +-- async@0.9.2
|   | `-- mime-types@2.0.14
|   |   `-- mime-db@1.12.0
|   +-- hawk@2.3.1
|   | +-- boom@2.10.1
|   | +-- cryptiles@2.0.5
|   | +-- hoek@2.16.3
|   | `-- sntp@1.0.9
|   +-- http-signature@0.10.1
|   | +-- asn1@0.1.11
|   | +-- assert-plus@0.1.5
|   | `-- ctype@0.5.3
|   +-- isstream@0.1.2
|   +-- json-stringify-safe@5.0.1
|   +-- mime-types@2.0.14
|   | `-- mime-db@1.12.0
|   +-- node-uuid@1.4.7
|   +-- oauth-sign@0.6.0
|   +-- qs@2.3.3
|   +-- stringstream@0.0.5
|   +-- tough-cookie@2.2.2
|   `-- tunnel-agent@0.4.2
`-- socket.io@1.4.5
  +-- engine.io@1.6.8
  | +-- accepts@1.1.4
  | | +-- mime-types@2.0.14
  | | | `-- mime-db@1.12.0
  | | `-- negotiator@0.4.9
  | +-- base64id@0.1.0
  | +-- engine.io-parser@1.2.4
  | | +-- after@0.8.1
  | | +-- arraybuffer.slice@0.0.6
  | | +-- base64-arraybuffer@0.1.2
  | | +-- blob@0.0.4
  | | +-- has-binary@0.1.6
  | | `-- utf8@2.1.0
  | `-- ws@1.0.1
  |   +-- options@0.0.6
  |   `-- ultron@1.0.2
  +-- has-binary@0.1.7
  | `-- isarray@0.0.1
  +-- socket.io-adapter@0.4.0
  | `-- socket.io-parser@2.2.2
  |   +-- debug@0.7.4
  |   `-- json3@3.2.6
  +-- socket.io-client@1.4.5
  | +-- backo2@1.0.2
  | +-- component-bind@1.0.0
  | +-- component-emitter@1.2.0
  | +-- engine.io-client@1.6.8
  | | +-- component-inherit@0.0.3
  | | +-- has-cors@1.1.0
  | | +-- parsejson@0.0.1
  | | +-- parseqs@0.0.2
  | | +-- xmlhttprequest-ssl@1.5.1
  | | `-- yeast@0.1.2
  | +-- indexof@0.0.1
  | +-- object-component@0.0.3
  | +-- parseuri@0.0.4
  | | `-- better-assert@1.0.2
  | |   `-- callsite@1.0.0
  | `-- to-array@0.1.4
  `-- socket.io-parser@2.2.6
    +-- benchmark@1.0.0
    +-- component-emitter@1.1.2
    `-- json3@3.3.2

npm WARN result-app@1.0.0 No description
npm WARN result-app@1.0.0 No repository field.
result-app@1.0.0 /app
+-- async@1.5.2
+-- body-parser@1.15.0
| +-- bytes@2.2.0
| +-- content-type@1.0.1
| +-- debug@2.2.0
| | `-- ms@0.7.1
| +-- depd@1.1.0
| +-- http-errors@1.4.0
| | +-- inherits@2.0.1
| | `-- statuses@1.2.1
| +-- iconv-lite@0.4.13
| +-- on-finished@2.3.0
| | `-- ee-first@1.1.1
| +-- qs@6.1.0
| +-- raw-body@2.1.6
| | +-- bytes@2.3.0
| | `-- unpipe@1.0.0
| `-- type-is@1.6.12
|   +-- media-typer@0.3.0
|   `-- mime-types@2.1.10
|     `-- mime-db@1.22.0
+-- cookie-parser@1.4.1
| +-- cookie@0.2.3
| `-- cookie-signature@1.0.6
+-- express@4.13.4
| +-- accepts@1.2.13
| | `-- negotiator@0.5.3
| +-- array-flatten@1.1.1
| +-- content-disposition@0.5.1
| +-- cookie@0.1.5
| +-- escape-html@1.0.3
| +-- etag@1.7.0
| +-- finalhandler@0.4.1
| +-- fresh@0.3.0
| +-- merge-descriptors@1.0.1
| +-- methods@1.1.2
| +-- parseurl@1.3.1
| +-- path-to-regexp@0.1.7
| +-- proxy-addr@1.0.10
| | +-- forwarded@0.1.0
| | `-- ipaddr.js@1.0.5
| +-- qs@4.0.0
| +-- range-parser@1.0.3
| +-- send@0.13.1
| | +-- destroy@1.0.4
| | +-- http-errors@1.3.1
| | `-- mime@1.3.4
| +-- serve-static@1.10.2
| +-- utils-merge@1.0.0
| `-- vary@1.0.1
+-- method-override@2.3.5
+-- pg@4.5.1
| +-- buffer-writer@1.0.1
| +-- generic-pool@2.1.1
| +-- packet-reader@0.2.0
| +-- pg-connection-string@0.1.3
| +-- pg-types@1.10.0
| | +-- ap@0.2.0
| | +-- postgres-array@1.0.0
| | +-- postgres-bytea@1.0.0
| | +-- postgres-date@1.0.1
| | `-- postgres-interval@1.0.1
| |   `-- xtend@4.0.1
| +-- pgpass@0.0.3
| | `-- split@0.3.3
| |   `-- through@2.3.8
| `-- semver@4.3.6
+-- request-json@0.5.5
| +-- depd@1.0.0
| `-- request@2.53.0
|   +-- aws-sign2@0.5.0
|   +-- bl@0.9.5
|   | `-- readable-stream@1.0.33
|   |   +-- core-util-is@1.0.2
|   |   `-- string_decoder@0.10.31
|   +-- caseless@0.9.0
|   +-- combined-stream@0.0.7
|   | `-- delayed-stream@0.0.5
|   +-- forever-agent@0.5.2
|   +-- form-data@0.2.0
|   | +-- async@0.9.2
|   | `-- mime-types@2.0.14
|   |   `-- mime-db@1.12.0
|   +-- hawk@2.3.1
|   | +-- boom@2.10.1
|   | +-- cryptiles@2.0.5
|   | +-- hoek@2.16.3
|   | `-- sntp@1.0.9
|   +-- http-signature@0.10.1
|   | +-- asn1@0.1.11
|   | +-- assert-plus@0.1.5
|   | `-- ctype@0.5.3
|   +-- isstream@0.1.2
|   +-- json-stringify-safe@5.0.1
|   +-- mime-types@2.0.14
|   | `-- mime-db@1.12.0
|   +-- node-uuid@1.4.7
|   +-- oauth-sign@0.6.0
|   +-- qs@2.3.3
|   +-- stringstream@0.0.5
|   +-- tough-cookie@2.2.2
|   `-- tunnel-agent@0.4.2
`-- socket.io@1.4.5
  +-- engine.io@1.6.8
  | +-- accepts@1.1.4
  | | +-- mime-types@2.0.14
  | | | `-- mime-db@1.12.0
  | | `-- negotiator@0.4.9
  | +-- base64id@0.1.0
  | +-- engine.io-parser@1.2.4
  | | +-- after@0.8.1
  | | +-- arraybuffer.slice@0.0.6
  | | +-- base64-arraybuffer@0.1.2
  | | +-- blob@0.0.4
  | | +-- has-binary@0.1.6
  | | `-- utf8@2.1.0
  | `-- ws@1.0.1
  |   +-- options@0.0.6
  |   `-- ultron@1.0.2
  +-- has-binary@0.1.7
  | `-- isarray@0.0.1
  +-- socket.io-adapter@0.4.0
  | `-- socket.io-parser@2.2.2
  |   +-- debug@0.7.4
  |   `-- json3@3.2.6
  +-- socket.io-client@1.4.5
  | +-- backo2@1.0.2
  | +-- component-bind@1.0.0
  | +-- component-emitter@1.2.0
  | +-- engine.io-client@1.6.8
  | | +-- component-inherit@0.0.3
  | | +-- has-cors@1.1.0
  | | +-- parsejson@0.0.1
  | | +-- parseqs@0.0.2
  | | +-- xmlhttprequest-ssl@1.5.1
  | | `-- yeast@0.1.2
  | +-- indexof@0.0.1
  | +-- object-component@0.0.3
  | +-- parseuri@0.0.4
  | | `-- better-assert@1.0.2
  | |   `-- callsite@1.0.0
  | `-- to-array@0.1.4
  `-- socket.io-parser@2.2.6
    +-- benchmark@1.0.0
    +-- component-emitter@1.1.2
    `-- json3@3.3.2

 ---> 93c6cff999f2
Removing intermediate container b2fe9dcc657e
Step 6 : RUN mv /app/node_modules /node_modules
 ---> Running in c53787a8cb49
 ---> 8e6855e936a7
Removing intermediate container c53787a8cb49
Step 7 : ADD . /app
 ---> 841a6df0ce14
Removing intermediate container a567069d9e2d
Step 8 : ENV PORT 80
 ---> Running in 2494410c7b30
 ---> 2e3b9af387b8
Removing intermediate container 2494410c7b30
Step 9 : EXPOSE 80
 ---> Running in 6310f40ed5a4
 ---> 70d17dc7a35a
Removing intermediate container 6310f40ed5a4
Step 10 : CMD node server.js
 ---> Running in 6f6fc1714434
 ---> 776219ad0deb
Removing intermediate container 6f6fc1714434
Successfully built 776219ad0deb
Creating examplevotingapp_result-app_1

http://192.168.99.100:5000/

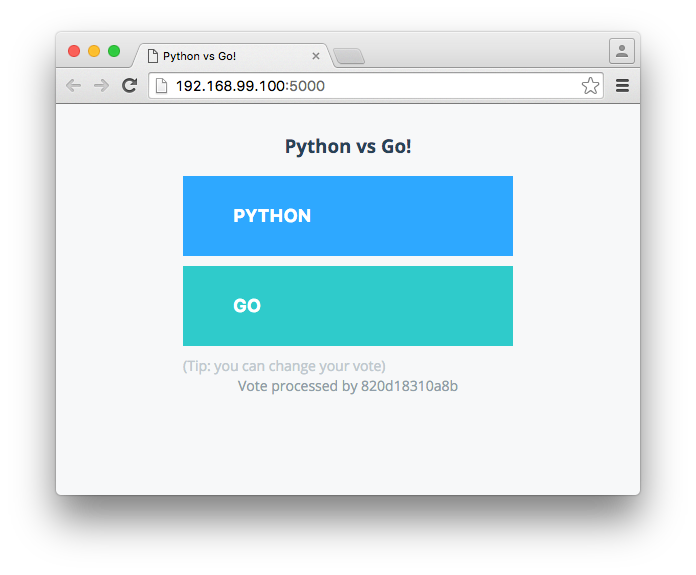

vote-app

如果你的 docker 運行在 cloud 的機器上, 可以使用命令列來觀看結果

$ ssh -L 5000:localhost:5000 @<CLOUD_INSTANCE_IP_ADDRESS>

Build and tag images

voting-app

$ cd ~/sandbox/docker-birthday-3/example-voting-app/voting-app
$ docker build --no-cache -t changwu/votingapp_voting-app .
Sending build context to Docker daemon 14.85 kB
Step 1 : FROM python:2.7-alpine
 ---> dd22f748f304
Step 2 : WORKDIR /app
 ---> Running in 51549c8315a3
 ---> 904eb7b6f351
Removing intermediate container 51549c8315a3
Step 3 : ADD requirements.txt /app/requirements.txt
 ---> 025df4aaad3c
Removing intermediate container 8c7d868d3e82
Step 4 : RUN pip install -r requirements.txt
 ---> Running in c0ec5de093bd
Collecting Flask (from -r requirements.txt (line 1))
  Downloading Flask-0.10.1.tar.gz (544kB)
Collecting Redis (from -r requirements.txt (line 2))
  Downloading redis-2.10.5-py2.py3-none-any.whl (60kB)
Collecting Werkzeug>=0.7 (from Flask->-r requirements.txt (line 1))
  Downloading Werkzeug-0.11.5-py2.py3-none-any.whl (305kB)
Collecting Jinja2>=2.4 (from Flask->-r requirements.txt (line 1))
  Downloading Jinja2-2.8-py2.py3-none-any.whl (263kB)
Collecting itsdangerous>=0.21 (from Flask->-r requirements.txt (line 1))
  Downloading itsdangerous-0.24.tar.gz (46kB)
Collecting MarkupSafe (from Jinja2>=2.4->Flask->-r requirements.txt (line 1))
  Downloading MarkupSafe-0.23.tar.gz
Building wheels for collected packages: Flask, itsdangerous, MarkupSafe
  Running setup.py bdist_wheel for Flask: started
  Running setup.py bdist_wheel for Flask: finished with status 'done'
  Stored in directory: /root/.cache/pip/wheels/d2/db/61/cb9b80526b8f3ba89248ec0a29d6da1bb6013681c930fca987
  Running setup.py bdist_wheel for itsdangerous: started
  Running setup.py bdist_wheel for itsdangerous: finished with status 'done'
  Stored in directory: /root/.cache/pip/wheels/97/c0/b8/b37c320ff57e15f993ba0ac98013eee778920b4a7b3ebae3cf
  Running setup.py bdist_wheel for MarkupSafe: started
  Running setup.py bdist_wheel for MarkupSafe: finished with status 'done'
  Stored in directory: /root/.cache/pip/wheels/94/a7/79/f79a998b64c1281cb99fa9bbd33cfc9b8b5775f438218d17a7
Successfully built Flask itsdangerous MarkupSafe
Installing collected packages: Werkzeug, MarkupSafe, Jinja2, itsdangerous, Flask, Redis
Successfully installed Flask-0.10.1 Jinja2-2.8 MarkupSafe-0.23 Redis-2.10.5 Werkzeug-0.11.5 itsdangerous-0.24
 ---> 2bdac86e9513
Removing intermediate container c0ec5de093bd
Step 5 : ADD . /app
 ---> 02f7e19a89b7
Removing intermediate container e42cd8cf002f
Step 6 : EXPOSE 80
 ---> Running in 1448e52c43d7
 ---> 27d6dc1f52a1
Removing intermediate container 1448e52c43d7
Step 7 : CMD python app.py
 ---> Running in 4ba0633b2d08
 ---> 947250abb597
Removing intermediate container 4ba0633b2d08
Successfully built 947250abb597

result-app

$ cd ~/sandbox/docker-birthday-3/example-voting-app/result-app
$ docker build --no-cache -t changwu/votingapp_result-app .
Sending build context to Docker daemon   192 kB
Step 1 : FROM mhart/alpine-node
 ---> d7e82cd9fae1
Step 2 : WORKDIR /app
 ---> Running in 909e8922388e
 ---> eaacae21f492
Removing intermediate container 909e8922388e
Step 3 : ADD package.json /app/package.json
 ---> f13d7c8caa18
Removing intermediate container 5e78c87f361f
Step 4 : RUN npm config set registry http://registry.npmjs.org
 ---> Running in 671964e413a3
 ---> 74056163c94a
Removing intermediate container 671964e413a3
Step 5 : RUN npm install && npm ls
 ---> Running in 54f3c6339e8b
result-app@1.0.0 /app
+-- async@1.5.2
+-- body-parser@1.15.0
| +-- bytes@2.2.0
| +-- content-type@1.0.1
| +-- debug@2.2.0
| | `-- ms@0.7.1
| +-- depd@1.1.0
| +-- http-errors@1.4.0
| | +-- inherits@2.0.1
| | `-- statuses@1.2.1
| +-- iconv-lite@0.4.13
| +-- on-finished@2.3.0
| | `-- ee-first@1.1.1
| +-- qs@6.1.0
| +-- raw-body@2.1.6
| | +-- bytes@2.3.0
| | `-- unpipe@1.0.0
| `-- type-is@1.6.12
|   +-- media-typer@0.3.0
|   `-- mime-types@2.1.10
|     `-- mime-db@1.22.0
+-- cookie-parser@1.4.1
| +-- cookie@0.2.3
| `-- cookie-signature@1.0.6
+-- express@4.13.4
| +-- accepts@1.2.13
| | `-- negotiator@0.5.3
| +-- array-flatten@1.1.1
| +-- content-disposition@0.5.1
| +-- cookie@0.1.5
| +-- escape-html@1.0.3
| +-- etag@1.7.0
| +-- finalhandler@0.4.1
| +-- fresh@0.3.0
| +-- merge-descriptors@1.0.1
| +-- methods@1.1.2
| +-- parseurl@1.3.1
| +-- path-to-regexp@0.1.7
| +-- proxy-addr@1.0.10
| | +-- forwarded@0.1.0
| | `-- ipaddr.js@1.0.5
| +-- qs@4.0.0
| +-- range-parser@1.0.3
| +-- send@0.13.1
| | +-- destroy@1.0.4
| | +-- http-errors@1.3.1
| | `-- mime@1.3.4
| +-- serve-static@1.10.2
| +-- utils-merge@1.0.0
| `-- vary@1.0.1
+-- method-override@2.3.5
+-- pg@4.5.1
| +-- buffer-writer@1.0.1
| +-- generic-pool@2.1.1
| +-- packet-reader@0.2.0
| +-- pg-connection-string@0.1.3
| +-- pg-types@1.10.0
| | +-- ap@0.2.0
| | +-- postgres-array@1.0.0
| | +-- postgres-bytea@1.0.0
| | +-- postgres-date@1.0.1
| | `-- postgres-interval@1.0.1
| |   `-- xtend@4.0.1
| +-- pgpass@0.0.3
| | `-- split@0.3.3
| |   `-- through@2.3.8
| `-- semver@4.3.6
+-- request-json@0.5.5
| +-- depd@1.0.0
| `-- request@2.53.0
|   +-- aws-sign2@0.5.0
|   +-- bl@0.9.5
|   | `-- readable-stream@1.0.33
|   |   +-- core-util-is@1.0.2
|   |   `-- string_decoder@0.10.31
|   +-- caseless@0.9.0
|   +-- combined-stream@0.0.7
|   | `-- delayed-stream@0.0.5
|   +-- forever-agent@0.5.2
|   +-- form-data@0.2.0
|   | +-- async@0.9.2
|   | `-- mime-types@2.0.14
|   |   `-- mime-db@1.12.0
|   +-- hawk@2.3.1
|   | +-- boom@2.10.1
|   | +-- cryptiles@2.0.5
|   | +-- hoek@2.16.3
|   | `-- sntp@1.0.9
|   +-- http-signature@0.10.1
|   | +-- asn1@0.1.11
|   | +-- assert-plus@0.1.5
|   | `-- ctype@0.5.3
|   +-- isstream@0.1.2
|   +-- json-stringify-safe@5.0.1
|   +-- mime-types@2.0.14
|   | `-- mime-db@1.12.0
|   +-- node-uuid@1.4.7
|   +-- oauth-sign@0.6.0
|   +-- qs@2.3.3
|   +-- stringstream@0.0.5
|   +-- tough-cookie@2.2.2
|   `-- tunnel-agent@0.4.2
`-- socket.io@1.4.5
  +-- engine.io@1.6.8
  | +-- accepts@1.1.4
  | | +-- mime-types@2.0.14
  | | | `-- mime-db@1.12.0
  | | `-- negotiator@0.4.9
  | +-- base64id@0.1.0
  | +-- engine.io-parser@1.2.4
  | | +-- after@0.8.1
  | | +-- arraybuffer.slice@0.0.6
  | | +-- base64-arraybuffer@0.1.2
  | | +-- blob@0.0.4
  | | +-- has-binary@0.1.6
  | | `-- utf8@2.1.0
  | `-- ws@1.0.1
  |   +-- options@0.0.6
  |   `-- ultron@1.0.2
  +-- has-binary@0.1.7
  | `-- isarray@0.0.1
  +-- socket.io-adapter@0.4.0
  | `-- socket.io-parser@2.2.2
  |   +-- debug@0.7.4
  |   `-- json3@3.2.6
  +-- socket.io-client@1.4.5
  | +-- backo2@1.0.2
  | +-- component-bind@1.0.0
  | +-- component-emitter@1.2.0
  | +-- engine.io-client@1.6.8
  | | +-- component-inherit@0.0.3
  | | +-- has-cors@1.1.0
  | | +-- parsejson@0.0.1
  | | +-- parseqs@0.0.2
  | | +-- xmlhttprequest-ssl@1.5.1
  | | `-- yeast@0.1.2
  | +-- indexof@0.0.1
  | +-- object-component@0.0.3
  | +-- parseuri@0.0.4
  | | `-- better-assert@1.0.2
  | |   `-- callsite@1.0.0
  | `-- to-array@0.1.4
  `-- socket.io-parser@2.2.6
    +-- benchmark@1.0.0
    +-- component-emitter@1.1.2
    `-- json3@3.3.2

npm WARN result-app@1.0.0 No description
npm WARN result-app@1.0.0 No repository field.
result-app@1.0.0 /app
+-- async@1.5.2
+-- body-parser@1.15.0
| +-- bytes@2.2.0
| +-- content-type@1.0.1
| +-- debug@2.2.0
| | `-- ms@0.7.1
| +-- depd@1.1.0
| +-- http-errors@1.4.0
| | +-- inherits@2.0.1
| | `-- statuses@1.2.1
| +-- iconv-lite@0.4.13
| +-- on-finished@2.3.0
| | `-- ee-first@1.1.1
| +-- qs@6.1.0
| +-- raw-body@2.1.6
| | +-- bytes@2.3.0
| | `-- unpipe@1.0.0
| `-- type-is@1.6.12
|   +-- media-typer@0.3.0
|   `-- mime-types@2.1.10
|     `-- mime-db@1.22.0
+-- cookie-parser@1.4.1
| +-- cookie@0.2.3
| `-- cookie-signature@1.0.6
+-- express@4.13.4
| +-- accepts@1.2.13
| | `-- negotiator@0.5.3
| +-- array-flatten@1.1.1
| +-- content-disposition@0.5.1
| +-- cookie@0.1.5
| +-- escape-html@1.0.3
| +-- etag@1.7.0
| +-- finalhandler@0.4.1
| +-- fresh@0.3.0
| +-- merge-descriptors@1.0.1
| +-- methods@1.1.2
| +-- parseurl@1.3.1
| +-- path-to-regexp@0.1.7
| +-- proxy-addr@1.0.10
| | +-- forwarded@0.1.0
| | `-- ipaddr.js@1.0.5
| +-- qs@4.0.0
| +-- range-parser@1.0.3
| +-- send@0.13.1
| | +-- destroy@1.0.4
| | +-- http-errors@1.3.1
| | `-- mime@1.3.4
| +-- serve-static@1.10.2
| +-- utils-merge@1.0.0
| `-- vary@1.0.1
+-- method-override@2.3.5
+-- pg@4.5.1
| +-- buffer-writer@1.0.1
| +-- generic-pool@2.1.1
| +-- packet-reader@0.2.0
| +-- pg-connection-string@0.1.3
| +-- pg-types@1.10.0
| | +-- ap@0.2.0
| | +-- postgres-array@1.0.0
| | +-- postgres-bytea@1.0.0
| | +-- postgres-date@1.0.1
| | `-- postgres-interval@1.0.1
| |   `-- xtend@4.0.1
| +-- pgpass@0.0.3
| | `-- split@0.3.3
| |   `-- through@2.3.8
| `-- semver@4.3.6
+-- request-json@0.5.5
| +-- depd@1.0.0
| `-- request@2.53.0
|   +-- aws-sign2@0.5.0
|   +-- bl@0.9.5
|   | `-- readable-stream@1.0.33
|   |   +-- core-util-is@1.0.2
|   |   `-- string_decoder@0.10.31
|   +-- caseless@0.9.0
|   +-- combined-stream@0.0.7
|   | `-- delayed-stream@0.0.5
|   +-- forever-agent@0.5.2
|   +-- form-data@0.2.0
|   | +-- async@0.9.2
|   | `-- mime-types@2.0.14
|   |   `-- mime-db@1.12.0
|   +-- hawk@2.3.1
|   | +-- boom@2.10.1
|   | +-- cryptiles@2.0.5
|   | +-- hoek@2.16.3
|   | `-- sntp@1.0.9
|   +-- http-signature@0.10.1
|   | +-- asn1@0.1.11
|   | +-- assert-plus@0.1.5
|   | `-- ctype@0.5.3
|   +-- isstream@0.1.2
|   +-- json-stringify-safe@5.0.1
|   +-- mime-types@2.0.14
|   | `-- mime-db@1.12.0
|   +-- node-uuid@1.4.7
|   +-- oauth-sign@0.6.0
|   +-- qs@2.3.3
|   +-- stringstream@0.0.5
|   +-- tough-cookie@2.2.2
|   `-- tunnel-agent@0.4.2
`-- socket.io@1.4.5
  +-- engine.io@1.6.8
  | +-- accepts@1.1.4
  | | +-- mime-types@2.0.14
  | | | `-- mime-db@1.12.0
  | | `-- negotiator@0.4.9
  | +-- base64id@0.1.0
  | +-- engine.io-parser@1.2.4
  | | +-- after@0.8.1
  | | +-- arraybuffer.slice@0.0.6
  | | +-- base64-arraybuffer@0.1.2
  | | +-- blob@0.0.4
  | | +-- has-binary@0.1.6
  | | `-- utf8@2.1.0
  | `-- ws@1.0.1
  |   +-- options@0.0.6
  |   `-- ultron@1.0.2
  +-- has-binary@0.1.7
  | `-- isarray@0.0.1
  +-- socket.io-adapter@0.4.0
  | `-- socket.io-parser@2.2.2
  |   +-- debug@0.7.4
  |   `-- json3@3.2.6
  +-- socket.io-client@1.4.5
  | +-- backo2@1.0.2
  | +-- component-bind@1.0.0
  | +-- component-emitter@1.2.0
  | +-- engine.io-client@1.6.8
  | | +-- component-inherit@0.0.3
  | | +-- has-cors@1.1.0
  | | +-- parsejson@0.0.1
  | | +-- parseqs@0.0.2
  | | +-- xmlhttprequest-ssl@1.5.1
  | | `-- yeast@0.1.2
  | +-- indexof@0.0.1
  | +-- object-component@0.0.3
  | +-- parseuri@0.0.4
  | | `-- better-assert@1.0.2
  | |   `-- callsite@1.0.0
  | `-- to-array@0.1.4
  `-- socket.io-parser@2.2.6
    +-- benchmark@1.0.0
    +-- component-emitter@1.1.2
    `-- json3@3.3.2

 ---> 257a7116f6af
Removing intermediate container 54f3c6339e8b
Step 6 : RUN mv /app/node_modules /node_modules
 ---> Running in b8539e330752
 ---> c88f91f31c20
Removing intermediate container b8539e330752
Step 7 : ADD . /app
 ---> 77ba2fcdf8a1
Removing intermediate container e67c57b5197d
Step 8 : ENV PORT 80
 ---> Running in b13d4556083a
 ---> 8485f1c767ba
Removing intermediate container b13d4556083a
Step 9 : EXPOSE 80
 ---> Running in a843981b04c1
 ---> 1e488c3a4176
Removing intermediate container a843981b04c1
Step 10 : CMD node server.js
 ---> Running in cead7a6b14c4
 ---> 8b0cd7572a78
Removing intermediate container cead7a6b14c4
Successfully built 8b0cd7572a78

Push images to Docker Hub

將 image 推送到 hub, 記得先做 docker login

voting-app

$ cd ~/sandbox/docker-birthday-3/example-voting-app/voting-app
$ docker push changwu/votingapp_voting-app
The push refers to a repository [docker.io/changwu/votingapp_voting-app]
6558fc103457: Pushed
3a7de7b8bf33: Pushed
6d50c979c9b6: Pushed
02676c845fac: Pushed
5f70bf18a086: Pushed
b2ffd636e40c: Pushed
8f045733649f: Pushed
latest: digest: sha256:65f57188da2257df6ce2ff7b384f64e259feb4c1f747bc2a399a4bd96130ac55 size: 9509

result-app

$ cd ~/sandbox/docker-birthday-3/example-voting-app/result-app
$ docker push changwu/votingapp_result-app
The push refers to a repository [docker.io/changwu/votingapp_result-app]
f221c212a279: Pushed
bc29dfb33fa8: Pushed
2fd1885f0237: Pushed
c28c918ab586: Pushed
6f85299488fd: Pushed
fd1d3a4f8206: Pushed
674f3aee7f00: Pushed
8f045733649f: Pushed
latest: digest: sha256:3d91a2cdc483d299eb621371b80d12df5cf891d42dc8db6627b456fdb193a2be size: 9144

確認完成

$ docker ps -a | grep votingapp_result-app
9e4632375993        examplevotingapp_result-app   "node server.js"         10 minutes ago      Up 10 minutes       0.0.0.0:5001->80/tcp      examplevotingapp_result-app_1

利用容器 id 存取 log 記錄

$ docker logs -f 9e4632375993
Sat, 26 Mar 2016 02:35:19 GMT body-parser deprecated bodyParser: use individual json/urlencoded middlewares at server.js:81:9
Sat, 26 Mar 2016 02:35:19 GMT body-parser deprecated undefined extended: provide extended option at ../node_modules/body-parser/index.js:105:29
App running on port 80
Connected to db
56f5f89668772f01278981dc

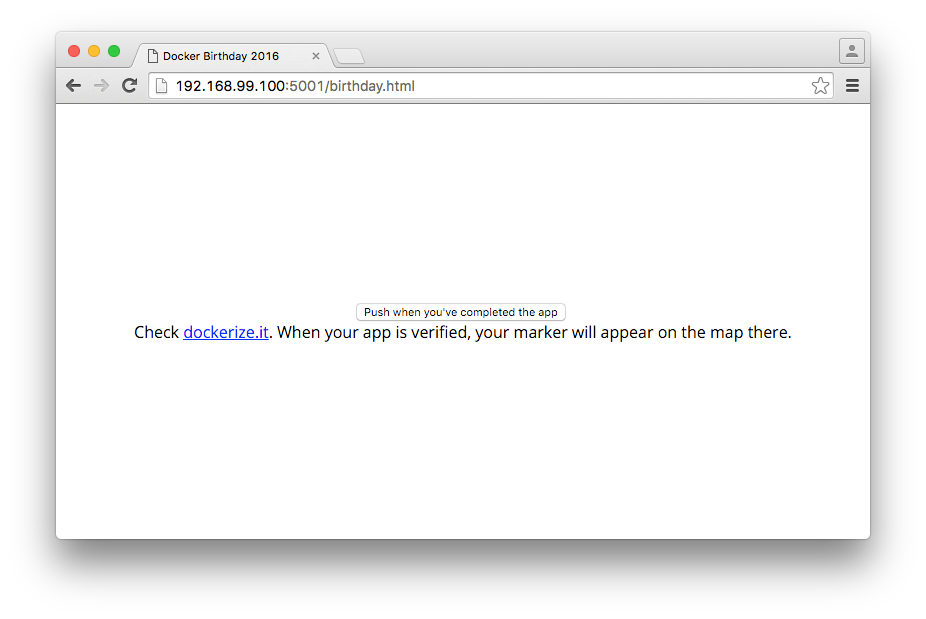

當一切都完成後, 開啟下列網頁

http://192.168.99.100:5001/birthday.html

birthday

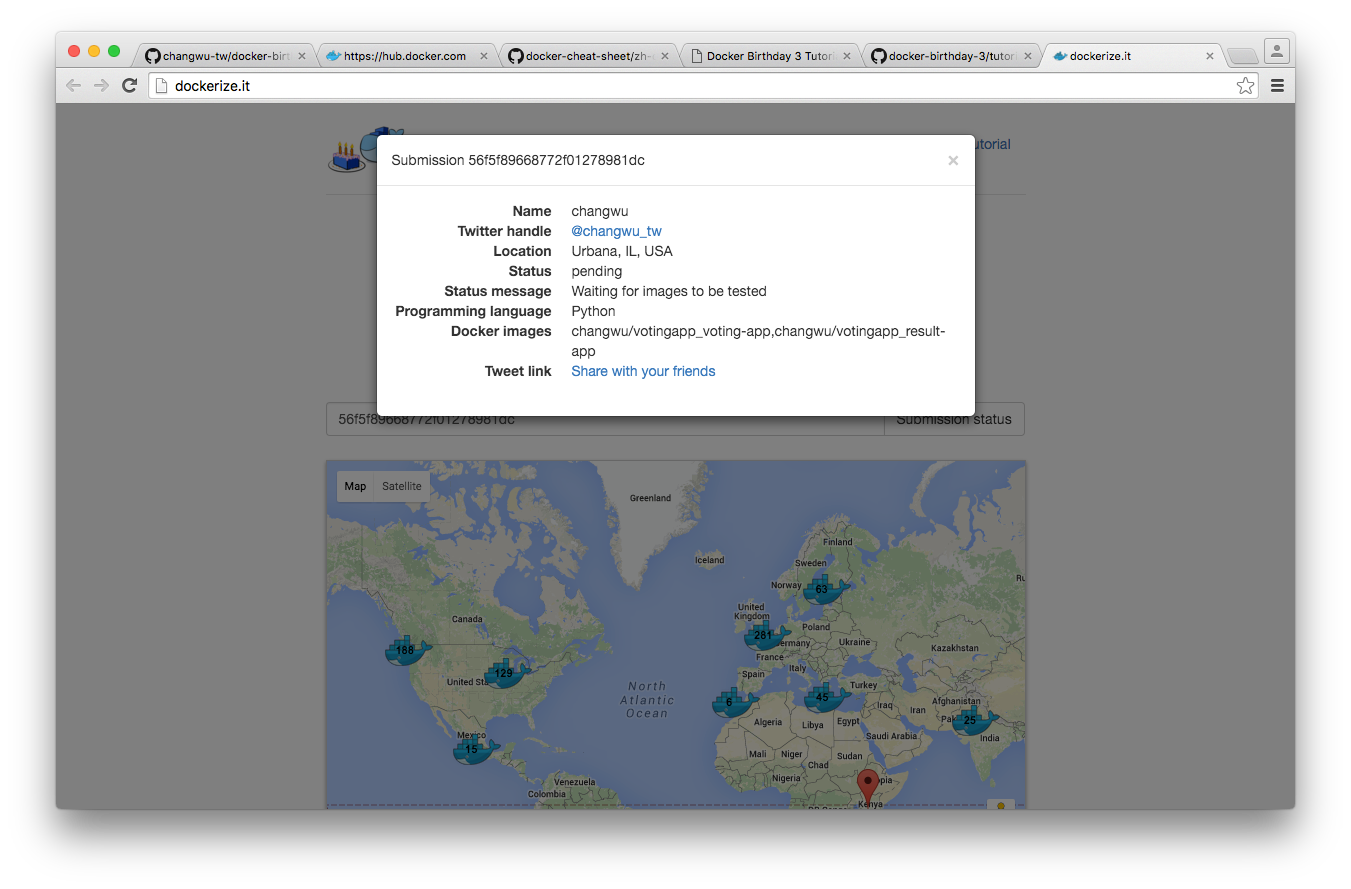

它會確認 app 是否順利完成, 並且生成一個 id 用來驗證是否完成 docker 三週年的活動, 將 id 貼到下列網站

dockerize.it

dockerize.it

其他資源

Issue

砍掉目前在運作的 process

$ docker ps -a -q | xargs -n 1 -I {} docker rm {}

birthday3

Docker Birthday 3 Tutorial

Docker 三週年

運行 Alpine 輕量級 Linux 操作系統

操作 Docker Run

術語

在 Docker 上運行 web 應用

static-site

移除容器

Docker images

第一個鏡像

Dockerfile

Docker Birthday Training

Get the voting-app

客製化 app

1. 修改 app.py

2. 修改 config.json

3. 執行 app

Build and tag images

Push images to Docker Hub

確認完成

其他資源

Issue

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!
