Collision

Collision

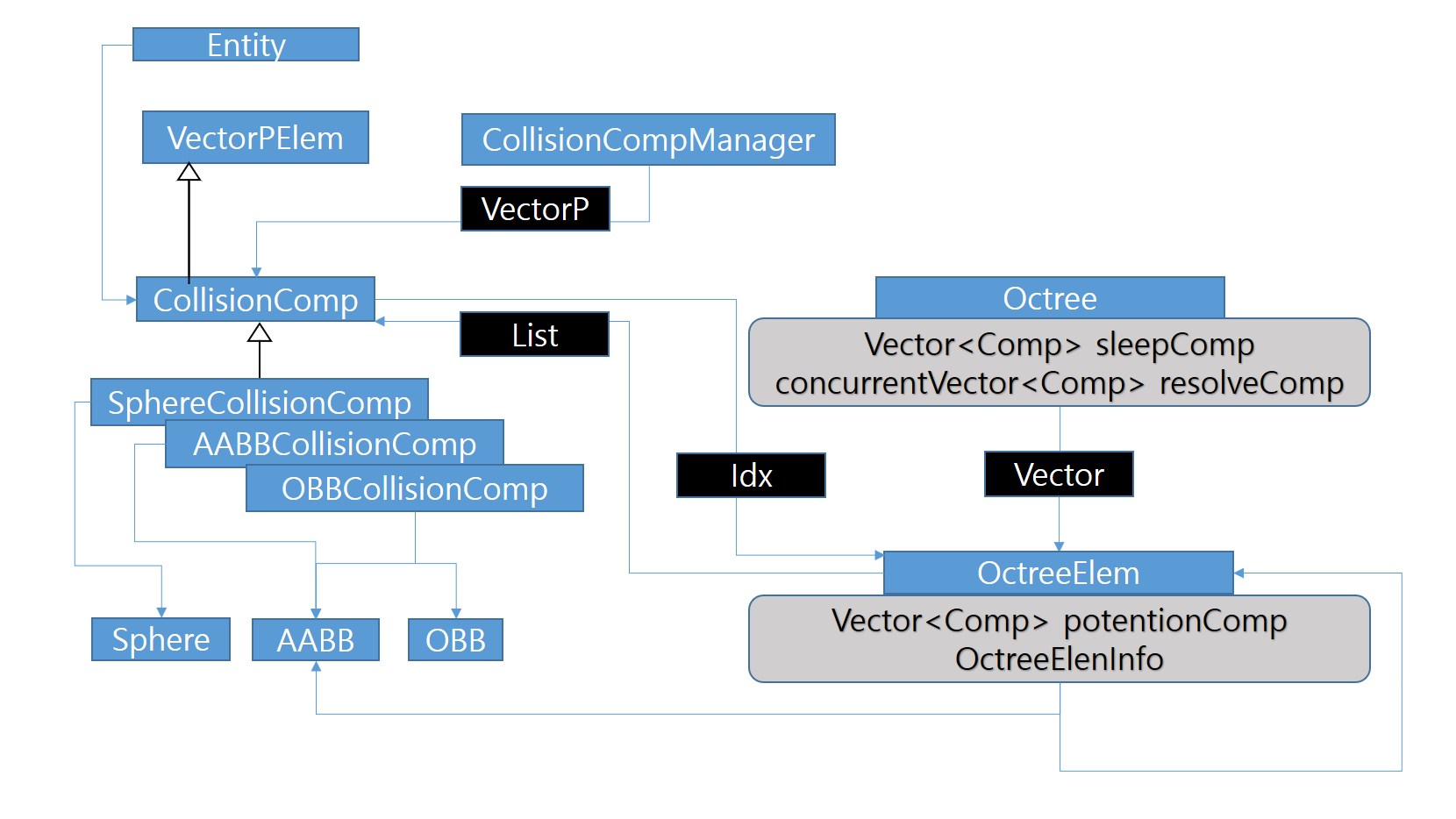

CollisionComponent

• Has ReadWrite Lock for tbb, Rigidbody, Category MaskBit

• Get Component from CollisionManager

• Parent is VectorPElem

• Has index of octreeElem vector

---

AABB, Sphere, OBB CollisionCompnent

• Has local position(OBB : mat4, other : vec3)

• Has shape class (AABB, OBB, Sphere)

Sphere : vec3 worldPos, float radius

AABB : vec3 worldPos, vec3 halfAxisLen

OBB : mat4 worldPos, vec3 halfAxisLen

---

OBBCollisionComponent

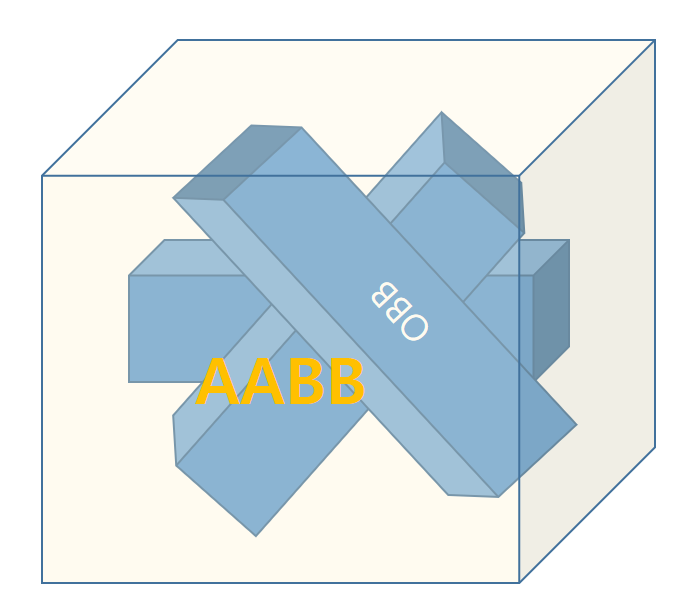

• Has AABB covers OBB with any quaternion for slight collision detection

---

Octree

• Has octree elem vector

• Update collision component in octree

Collision Component update with TBB parallel_do

Check Comp is sleep or delete and push to sleep container

Check Comp is in Same OctreeElem. If not, reinsert comp to octree root

Insert new & sleep Collision Component or remove component

If Component is in octreeElem & octreeElem has children, check comp is in children recursively.

If OctreeElem has more component than threshold, use children and propagate comps to children

---

OctreeElem

• Has 8 OctreeElem children, Collision component threshold

• Use potential collision list when check collision detection

---

Collision Detection with TBB

• Try collision detection on all OctreeElem

Find all potential components of current octreeElem & compare with current potential components

Use TBB parallel_for

Check collision category mask bit and trigger.

If collision is occurred, get TBB_writeLock & save collision component to other component for game logic

If collision reaction is needed, push to resolveCompVec(concurrentVector)

---

Collision Resolve

• Do collision resolving with rigidbody’s weight & velocity

• Reference : https://sites.google.com/site/3dgameprogram/home/physics-modeling-for-game-programming/-gibongaenyeomdajigi---mulli/-jiljeom-ui-chungdol

---

VectorP, VectorPElem

• Elem has index of vector. If removed, last elem replaces removed index.

• Cons : Used as composite not inheritance
