EON Drive

A personal cloud storage service for users to manage their files in the cloud.

You can -

• Upload files to the cloud
• Update, download, delete uploaded files
• Restore any version of files within 30 days
• Restore deleted files within 30 days
• Share files to other EON Drive users through link

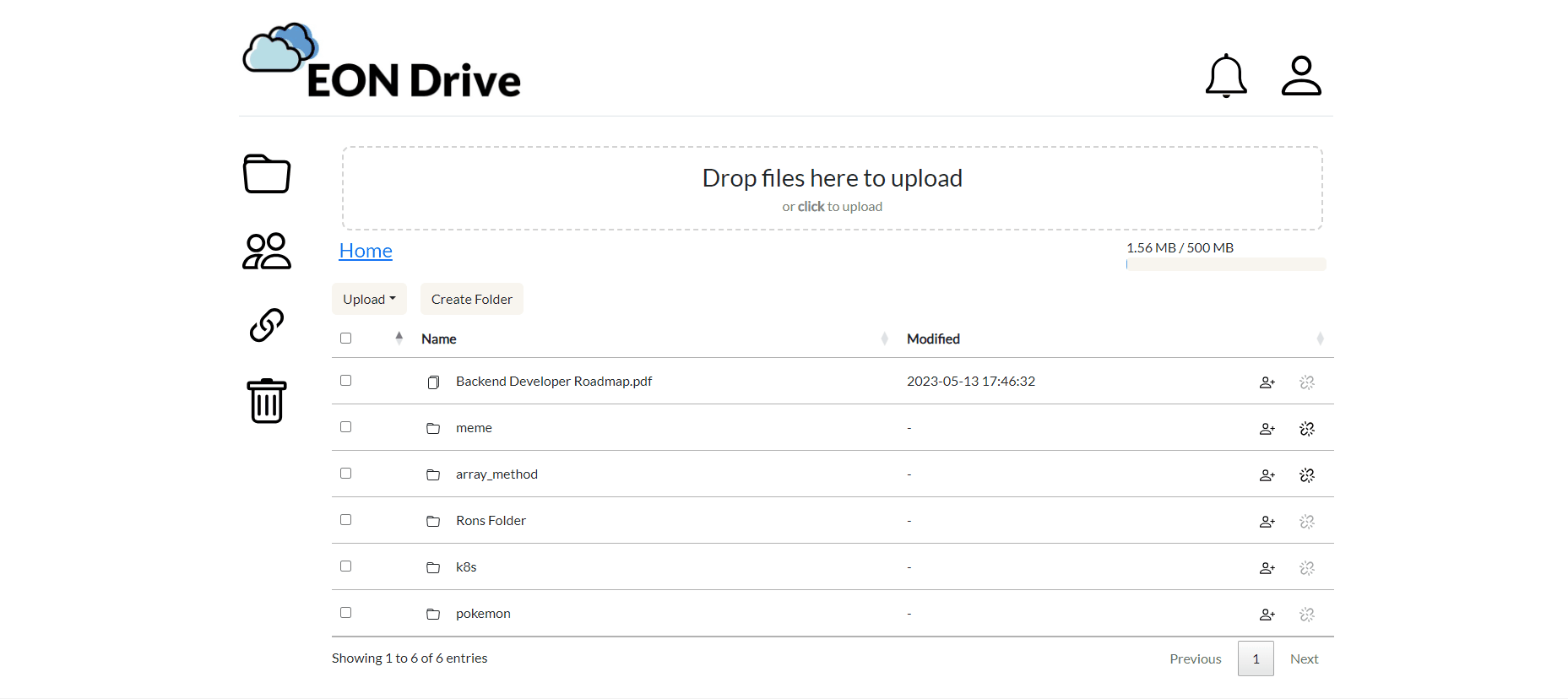

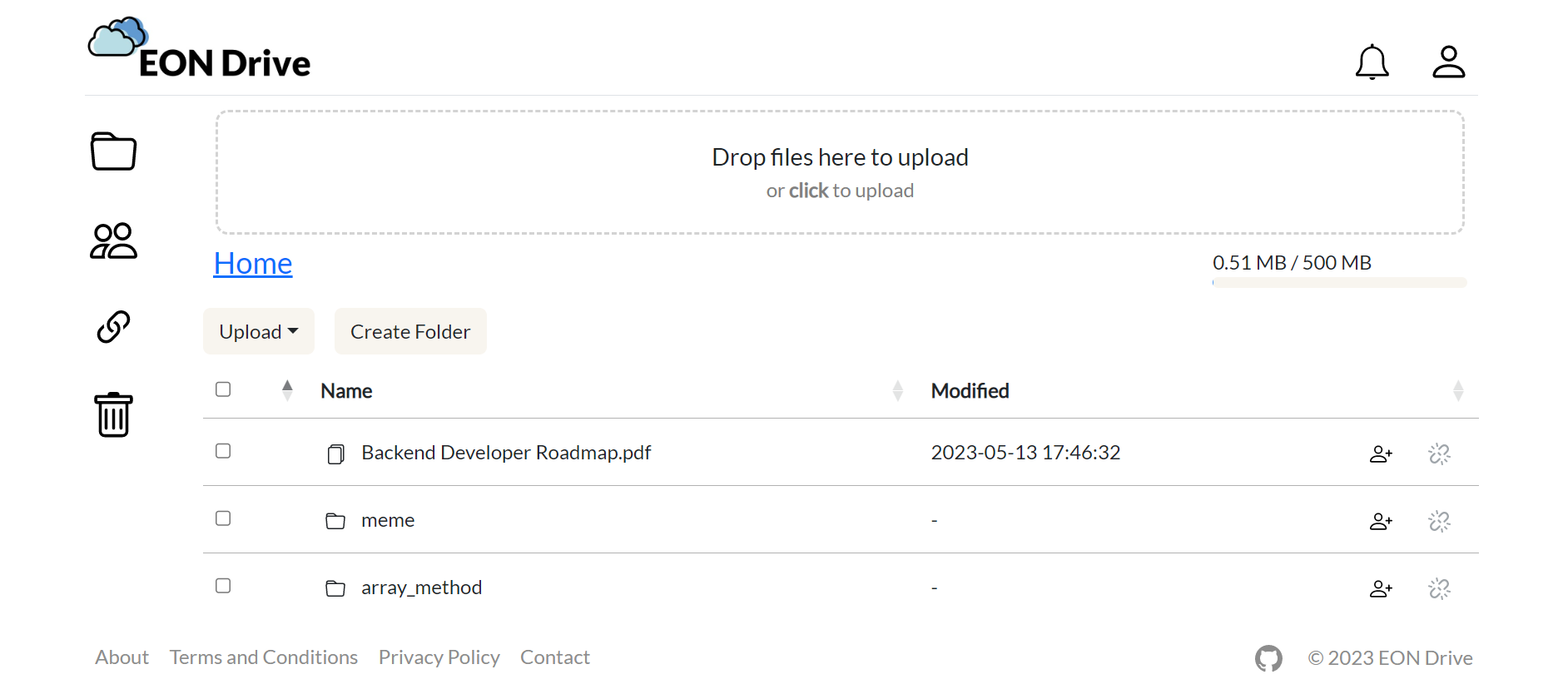

Demo

Website URL - https://www.eondrive.net

This project is developed and maintained by me as a personal initiative. Due to budget constraints, access to the site may not always be available.

Test Account
Account 1
Email - test@gmail.com
Password - 123oooOOO!

Account 2
Email - test@outlook.com
Password - 123oooOOO!

*You can try the share files feature between these two accounts. 🙂

Features and Technologies

• File operations - Extensively utilized AWS S3 storage functionality through AWS SDK to develop a user interface to manage files
• Compressed files - Employed AWS Lambda to generate the .zip files for multiple file downloads
• Versioning - Managed metadata and version information with MySQL, enabling file rollback and restoration of deleted files
• File shared link - Generated short URLs by base62 encoding scheme, allowing users to easily share files with others
• Real-time update - Displayed real-time updates with Socket.IO when new files are uploaded, files deleted, or file shared links created
• Storage limits - Checked the storage limits by each user during file upload and restoration processes
• Scaling -
  • Web Server - Hosted the Express server on AWS EC2 with Application Load Balancer to ensure scalability. PM2 logs are output to AWS CloudWatch for monitoring
  • Socket.IO Server - Utilized Redis as an adapter for Socket.IO server scaling
• Email verification - Used the third-party email delivery service for registration email verification
• Rate limiting - Implemented with Redis to control the coming requests in sign-up routes by IP address
• Authentication - Implemented session-based authentication
• Remove expired versions - Scheduled a cron job to remove expired versions of files & expired deleted files in trash and output the logs to AWS CloudWatch for monitoring
• Machine monitoring - Utilized Prometheus to monitor the performance and health of the EC2 machine hosting the application

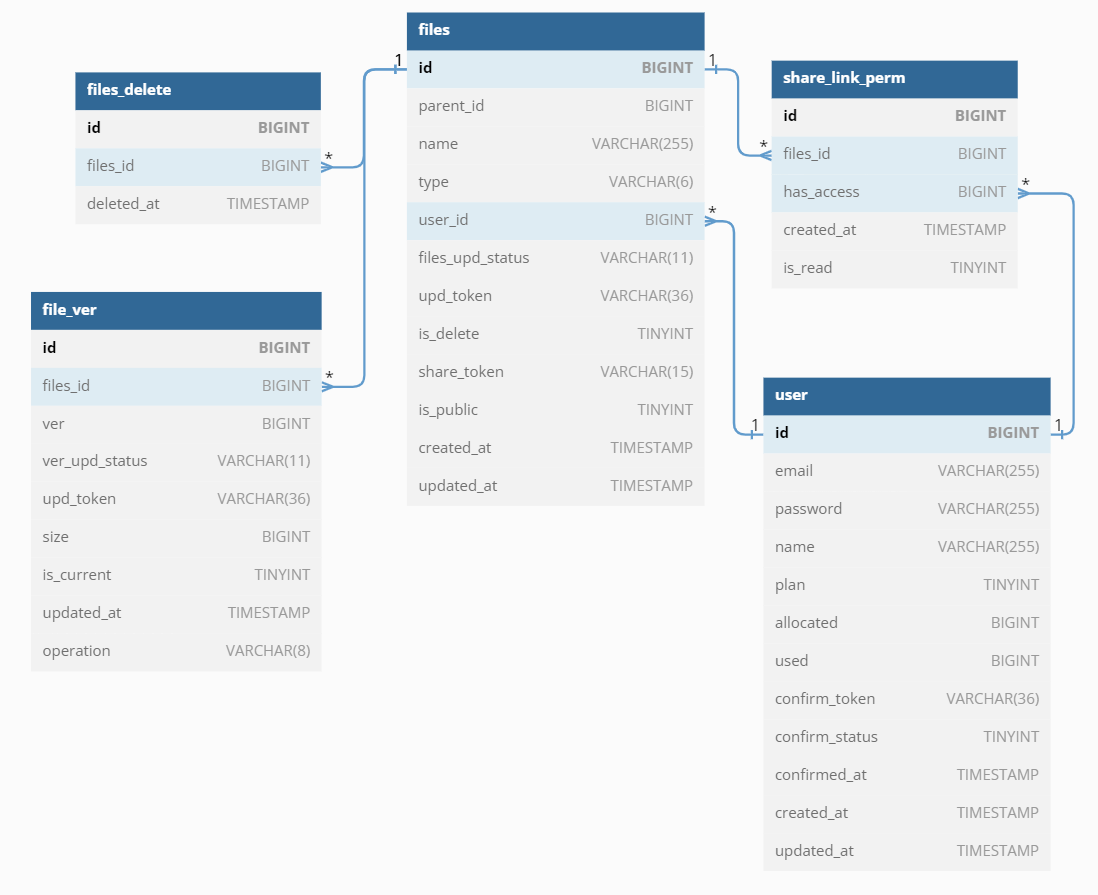

Database schema

Adjacency List is used here to manage hierarchical data in MySQL.

https://wwwxxch-personal.s3.amazonaws.com/eondrive_db_release_1_0_0.png

System Architecture

https://wwwxxch-personal.s3.amazonaws.com/eondrive_arch_release_1_0_0.png

Deployment

Node Server

git clone https://github.com/wwwxxch/eon-drive.git
cd eon-drive
npm i

AWS services

S3

1. Create two buckets
   • MAIN - storing files
   • DOWNLOAD - storing compressed files
2. IAM setup
   • EC2 server to S3
     • Create IAM policy for MAIN bucket, allowing below actions - GetObject, DeleteObject, PutObject, ListBucket
     • Create IAM user and attach above policy to the user
   • Lambda function to S3
     • Create IAM policy for MAIN bucket, allowing GetObject action
     • Create IAM policy for DOWNLOAD bucket, allowing PutObject, GetObject actions
     • Attach the above policies to the lambda function role
3. Setup Bucket policy
   • MAIN bucket
     • Allow IAM user to access the bucket with Actions - GetObject, DeleteObject, PutObject, ListBucket
     • Allow lambda service to access the bucket with Actions - GetObject
   • DOWNLOAD bucket
     • Allow lambda service to access the bucket with Actions - PutObject, GetObject
4. Setup CORS

     [
         {
             "AllowedHeaders": [
                 "*"
             ],
             "AllowedMethods": [
                 "GET",
                 "POST",
                 "PUT",
                 "DELETE",
                 "HEAD"
             ],
             "AllowedOrigins": [
                 "https://yourdomain.com"
             ],
             "ExposeHeaders": [
                 "ETag",
                 "x-amz-id-2",
                 "x-amz-request-id",
                 "x-amz-server-side-encryption"
             ]
         }
     ]


Lambda

1. Create layer with npm packge archiver installed. Setup compatible runtimes as Node.js 18.x
2. Create lambda function and update the code with programs inside /eon-drive/lambda folder
3. Setup runtime as Node.js 18.x and layers with the layer created in step 1
4. In configuration tab
   • General configuration - setup memory to be allocated (better to be 256 MB or more) and ephemeral storage
   • Environment variables - setup variables used in lambda function

Release

• 1.1.0
  • Adding Prometheus configuration and enabling monitoring through Grafana
• 1.0.0
  • Initial release

Roadmap

Here are planned features or optimization for future release -

• Rename files / folders
• Move files / folders
• Search files / folders
• Preview content of files
• Show file size of deleted file & childrens in deleted folder
• Show hierarchy folder structure for better user experience
• Suggest related users from past interactions when a user is entering emails to share files
• Caching for better performance
• Implement another model to manage hierarchical data in MySQL
• Logrotate for crontab jobs

Contact

Linkedin - https://www.linkedin.com/in/chihhui-wang

Email - chihhui.x@gmail.com

License

EON Drive is licensed under the MIT.
