cmsc389T-winter23

PACMAN by Team 3

Aaron Hetzer, Uyen Nguyen, Dan Xu, Syed Zaidi

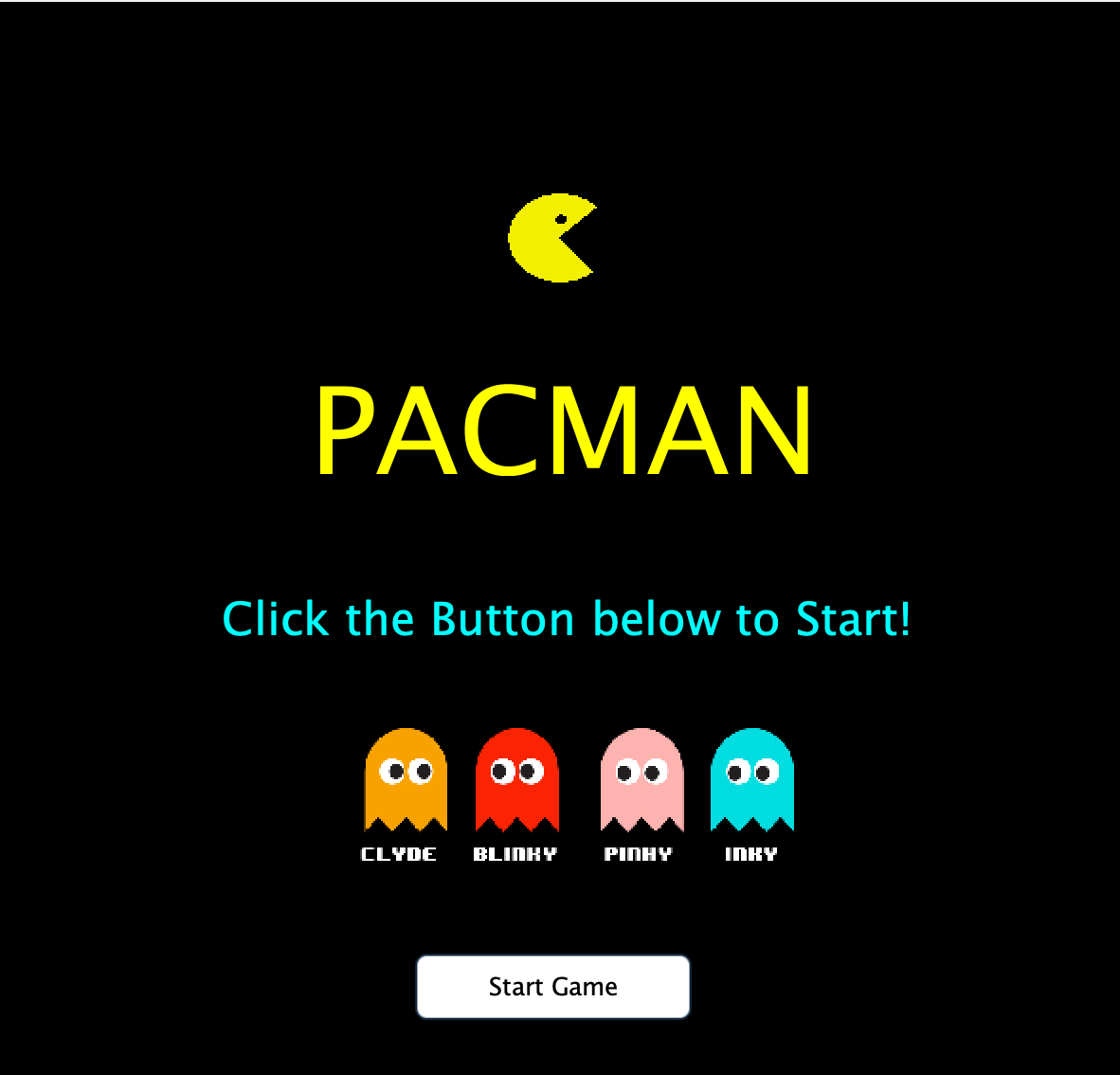

1. Image of playing PacMan

PlayingPacMan.mov

2. How to run the code from the command line

cd {path_to_P1}
javac -cp "src/" src/*.java
java -cp "src/" StartMenu

3. Functions with implementation and testing

3.1 PacMan Class

get_valid_moves():

• Author: Aaron Hetzer
• Method Summary: () -> ArrayList<Location> This method checks to see if it is valid for PacMan to move to his surrounding location. A move is considered valid if the location is not already occupied by a Map.Type.WALL object. This method returns an ArrayList of valid move locations.
• Testing: This method has two tests: testAdjacentGhost() checks if a Ghost next to the PacMan returns an incorrect ArrayList. It creates a new map. Creates a Pacman at location (5, 10). Creates an ArrayList<Location> of expected valid moves. Creates a Ghost object at location (6,10). Checks get_valid_moves() against the expected valid moves. testPacManValidMoves()() uses the same setup as testAdjacentGhost() but with no adjacent Ghost.

is_ghost_in_range():

• Author: Dan Xu
• Method Summary: () -> Bool This method checks to see if there are any ghosts within attack range of PacMan. A ghost is considered in attack range if it is within 1 space of Pacman's position.
• Testing: Creates a new map. Creates two PacMans and a new Ghost and adds these characters to the map. The is_ghost_in_range() function is called on the Pacman objects to see if the ghost is within attacking range.

move():

• Author: Uyen Nguyen
• Method Summary: () -> Bool This method implements PacMan's movements. First, it finds a set of locations where PacMan can move by using get_valid_moves. Then, it randomly chooses one of those locations, implements the move, and returns true. Otherwise, the set of location is empty, and the method returns false because PacMan cannot move.
• Testing: Create a new map. Create a Pacman at location (1, 3). Add the pacman to map at the same location. Use getLoc to check if Pacman is at (1, 3). Let it move. Use getLoc to check location (1, 3) to see whether Pacman is still there.

consume():

• Author: Syed Zaidi
• Method Summary: () -> JComponent This method first checks if there is a cookie at PacMan's current location using the getLoc method of the Map class. If there is a cookie at PacMan's current location, the method calls the eatCookie method of the Map class to consume the cookie and returns the cookie component. If there is no cookie at PacMan's current location, the method returns null. The consume method of the PacMan class allows PacMan to consume a cookie if there is one at its current location. The method returns the cookie component if a cookie was consumed, null otherwise.
• Testing: Creates a Map object and adds PacMan and a cookie to it at specific locations. It then creates a PacMan object and sets its myMap field to the Map object. The test calls the consume method of the PacMan object and verifies that it returns the expected values.

3.2 Ghost Class

get_valid_moves():

• Author: Aaron Hetzer
• Method Summary: () -> ArrayList<Location> This method checks to see if it is valid for Ghost to move to his surrounding location. A move is considered valid if the location is not already occupied by a Map.Type.WALL object. This method returns an ArrayList of valid move locations.
• Testing: This method has two tests: testGhostValidMovesPacManAdjacent() checks if a PacMan next to the Ghost returns an incorrect ArrayList. It creates a new map. Creates a Pacman at location (6, 10). Creates an ArrayList<Location> of expected valid moves. Creates a Ghost object at location (5,10). Checks get_valid_moves() against the expected valid moves. testPacManValidMoves()() uses the same setup as testGhostValidMovesNoAdjacent() but with no adjacent PacMan.

is_pacman_in_range():

• Author: Dan Xu
• Method Summary: () -> Bool This method checks to see if there PacMan is within attack range of a ghost. PacMan is considered in attack range if it is within 1 space of a ghost's position.
• Testing: Creates a new map. Creates a new Pacman and two new Ghosts and adds these characters to the map. The is_pacman_in_range() function is called on the ghosts to see if PacMan is within attacking range.

move():

• Author: Uyen Nguyen
• Method Summary: () -> Bool This method implements Ghost's movements. First, it finds a set of locations where Ghost can move by using get_valid_moves. Then, it randomly chooses one of those locations, implements the move, and returns true. Otherwise, the set of location is empty, and the method returns false because Ghost cannot move.
• Testing: Create a new map. Create a ghost at location (1, 3). Add the ghost to map at the same location. Use getLoc to check if ghost is at (1, 3). Let it move. Use getLoc to check location (1, 3) to see whether ghost is still there.

attack():

• Author: Syed Zaidi
• Method Summary: () -> Bool This method first checks if PacMan is within range using the is_pacman_in_range method. If PacMan is within range, the Ghost moves to PacMan's current location using the move method of the Map class, and returns true. If PacMan is not within range, the method returns false.
• Testing: Creates a Map object and adds PacMan and Ghost characters to it at specific locations. It then creates a Ghost object and sets its myMap field to the Map object. The test calls the attack method of the Ghost object and verifies that it returns the expected values. This test ensures that the attack method correctly determines if PacMan is within range and attacks PacMan if it is, and that it returns the appropriate values. It also serves as an example of how the attack method can be used in a game.

3.3 Map Class

move():

• Author: Aaron Hetzer
• Method Summary: (String name, Location loc, Type type) -> Bool This method takes in the name, and type of a Ghost or PacMan object on the Map, and a existing location to move that object to. If the name doesn't exist in components, the loc doesn't exist in locations or the type is not PACMAN or GHOST, then the method returns false. Otherwise, the method updates the locations, field, and components HashMaps to reflect this move, updates the JComponent based on the type, and returns true.
• Testing: This method has six tests. Each of them have the same setup: Initialize a set of variables, a Map, Ghost, and PacMan objects. The tests then use this set up to check if a valid PacMan move returns true, an invalid location PacMan move returns false, a valid Ghost move returns true, and a Wall move, an Empty move, and an invalid name move all return false

attack():

• Author: Dan Xu
• Method Summary: () -> Bool This method checks to see if the provided ghost is able to attack PacMan.
• Testing: Creates a new map. Creates a PacMan and two new Ghosts and adds these characters to the map. The attack() function is called on the ghoststo see if the they are able to attack PacMan.

getLoc(Location loc):

• Author: Uyen Nguyen
• Method Summary: (Location loc) -> HashSet<Type> This method returns the type of object (Empty, Pacman, Cookie, Ghost, Wall) at a given location.
• Testing: To test this method, create a map, and a Pacman at location (2, 4). Then use assertTrue to to check if getLoc returns a HashSet contains a PacMan at that location.

eatCookie(String Name):

• Author: Syed Zaidi
• Method Summary: (String name) -> JComponent This method first gets PacMan's current location and checks if there is a cookie at that location using the getLoc method. If there is a cookie at PacMan's current location, the method removes the cookie from the game state, returns the cookie component, and updates the cookie count. If there is no cookie at PacMan's current location, the method returns null.
• Testing: Creates a Map object and adds PacMan and a cookie to it at specific locations. The test calls the eatCookie method of the Map object and verifies that it returns the expected values and updates the internal state of the Map object correctly. This test ensures that the eatCookie method correctly consumes a cookie at PacMan's current location, and that it returns the appropriate values and updates the game state correctly. It also
