Automated test suites to test (two) COVID contact-tracing apps

This respository contains two automated test suites to test the following two COVID contact-tracing apps: (1) NHS Covid-19 app and (2) Protect Scotland.

The test suites were developed using the Model-based testing (MBT) tool, GraphWalker, using the Appium Framwork.

The test suites were developed during Spring 2021, as part of a Final-Year capstone engineering project in Queen's University Belfast, UK.

Development team

• (Supervisor): Dr. Vahid Garousi, Professor of Software Engineering, Queen's University Belfast; and Managing Consultant, Bahar Software Engineering Consulting Corporation, UK
• Mark Lee: Mark worked on the project as his Final-Year capstone engineering project in Queen's University Belfast, UK

Demo videos

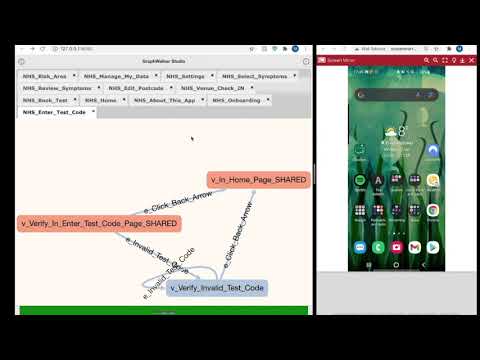

An overview of the features and code-base of the test suites

Documentation

Here is a detailed 52-page technical report (PDF file) which documents the important design aspects of the test suites.

Usge and installation steps:

Prerequisites

1. Appium is a driver to interact with mobile app.
2. Android SDK Command-Line Tools

To build it, you will need to download and unpack the latest (or recent) version of Maven (https://maven.apache.org/download.cgi) and put the mvn command on your path. Then, you will need to install a Java 1.8 (or higher) JDK, and make sure you can run java from the command line. Now you can run mvn clean install and Maven will compile your project, an put the results it in a jar file in the target directory.

The SUTs are (tested in Android Version 11):

1. Protect Scotland
2. NHS Covid-19

Device Setup

Android 11 device required:

1. Development options enabled (Guide)
2. USB debugging mode turned on when your test device is connected via USB

The test will open the app on the USB connected Android device, and start running the test:

Test Configuration

The code that implements the abstract test suites is located at:

src/test/java/qub/vg05/systemui/protectscotlandmodels/
src/test/java/qub/vg05/systemui/nhsmodels/

The java classes implements the java interfaces. That interfaces are automatically generated by GraphWalker from JSON file (produced by GraphWalker) by running this command:

mvn graphwalker:generate-sources

Worth noting in the code is the line with GraphWalker annotation (apps separated by group parameter):

//Example of Protect Scotland
@GraphWalker(value = CoverageValue.RandomEdgeCoverage100, groups= "protectScotland")

//Example of NHS Covid-19
@GraphWalker(value = CoverageValue.RandomEdgeCoverage100, groups= "nhs")

It does 2 things:

1. value = "weighted_random(edge_coverage(100))"
   It sets the generator and the stop condition of the of the path generation of the test. weighted_random(edge_coverage(100)) means the the path generator is the random path generator, and the stop condition is when all edges of the graph has been visited.
2. start = "v_Start" Tells GraphWalker where to start the execution. v_Start will be the first graph element to be executed.

Config file

src/main/resources/config.properties

Updated test configurations here

Runing the MBT test suites

via Junit

with GraphWalker WebSocket server to visualise live playback on GraphWalker Studio

NHS Covid-19 MBT test suites

//path
src/test/java/qub/vg05/systemui/tests/GraphWalkerNHSCovid19Test.java

   @Test
    public void nhsAppAll() throws IOException {

        Executor executor = new TestExecutor(OnboardingModel.class,
                EnterTestCodeModel.class,
                SelectSymptomsModel.class,
                ManageMyDataModel.class,
                SettingsModel.class,
                qub.vg05.systemui.nhsmodels.AboutThisAppModel.class,
                qub.vg05.systemui.nhsmodels.HomeModel.class,
                RiskAreaModel.class,
                EditPostCodeModel.class,
                VenueCheckInModel.class,
                ReviewSymptomsModel.class,
                BookTestModel.class
        );
        WebSocketServer server = new WebSocketServer(webSocketPortNumber, executor.getMachine());
        server.start();

        setExcel(executor);
        result = executor.execute(true);
        errorControl();

    }

Protect Scotland MBT test suites

//path
src/test/java/qub/vg05/systemui/tests/GraphWalkerProtectScotlandTest.java

 @Test
    public void protectScotlandAppAll() throws IOException {

        Executor executor = new TestExecutor(ShareAndProtectModel.class,
                HomeModel.class,
                HomeTourModel.class,
                qub.vg05.systemui.protectscotlandmodels.OnboardingModel.class,
                qub.vg05.systemui.protectscotlandmodels.SettingsModel.class,
                AgeConfirmationModel.class,
                LocationConfirmationModel.class,
                AboutThisAppModel.class,
                AddTestCodeModel.class,
                qub.vg05.systemui.protectscotlandmodels.EnterTestCodeModel.class,
                TracingModel.class
        );
        WebSocketServer server = new WebSocketServer(webSocketPortNumber, executor.getMachine());
        server.start();

        setExcel(executor);
        result = executor.execute(true);
        errorControl();

    }

via Maven

NHS Covid-19 MBT test suites

mvn graphwalker:test -Dgroups=nhs

Protect Scotland MBT test suites

mvn graphwalker:test -Dgroups=protectScotland
