🎯 Overview

A production-grade, autonomous AI traffic surveillance system that detects and records vehicles running red lights in real time. Using dual YOLO models for traffic signal classification and vehicle detection, combined with DeepSort multi-object tracking, the system assigns persistent unique IDs to every vehicle — and auto-saves timestamped screenshot evidence the moment a violation is detected.

No human operator needed — the AI watches, tracks, and records every violation automatically.

Feature	Detail
🚦 Signal Detection	Custom YOLO — Red, Green, RedRight signals
🚗 Vehicle Tracking	DeepSort with MobileNet embeddings — robust across occlusions
📐 ROI Zone	User-defined polygon (zebra crossing) via mouse click
📸 Auto Evidence	Screenshot saved per unique violating vehicle
🛣️ Multi-Lane	All vehicles across all lanes tracked simultaneously
⚡ Real-Time	Frame-by-frame processing on live or recorded video

---

🖥️ Live Detection Screenshot

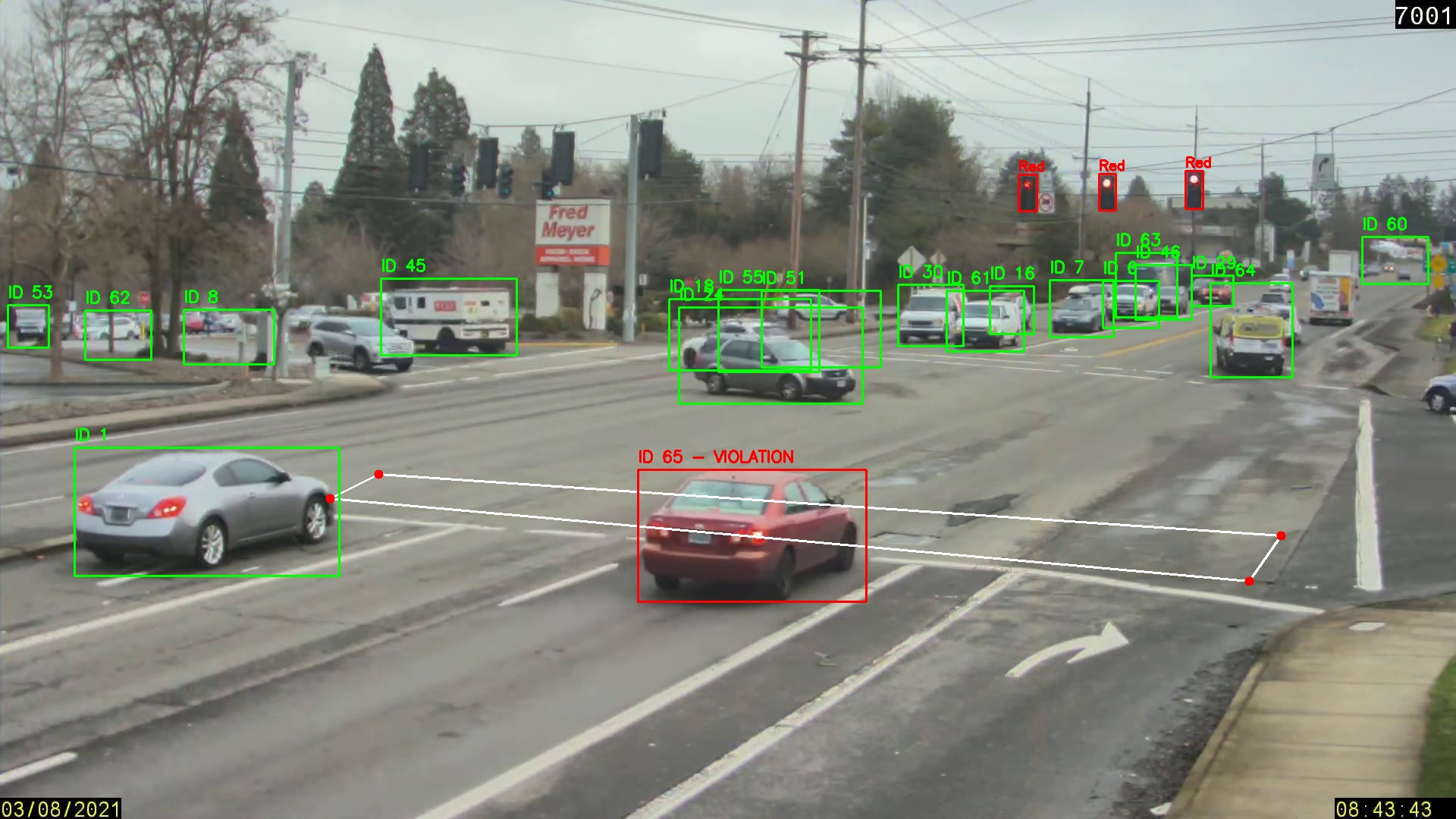

What the system looks like in real time — vehicles at a red light, with bounding boxes, violation labels, and the zebra crossing ROI polygon drawn on screen:

![My Real Output](assets/Violation_ScreenShots/violation_vehicle_65_frame158.jpg)

Color coding on screen:

• 🔴 Red bounding box → Confirmed violation: vehicle crossed the zebra zone on red
• 🟢 Green bounding box → Tracked vehicle: not in violation zone
• 🟩 Green polygon → User-defined zebra crossing ROI
• 🔴 Top-left HUD → Live violator list + signal state + frame counter

---

🏗️ System Pipeline

📹 Video Input
     │
     ├──► 🚦 Traffic Light YOLO (conf=0.5)
     │         │
     │    Red Light? ──NO──► Skip Frame
     │         │ YES
     │         ▼
     │    🚗 Vehicle YOLO (conf=0.15)
     │         │
     │         ▼
     │    🔁 DeepSort Tracker ──► Persistent Track IDs
     │         │
     │         ▼
     │    📐 pointPolygonTest ──► Inside Zone?
     │         │ YES (new ID)
     │         ▼
     │    📸 Save violation_{id}.jpg
     │         │
     └──► 🖥️ Display Live Overlay

---

⚙️ How It Works

Step 1 — Select the Zebra Crossing Zone

On launch, the first video frame opens. The user clicks 4 points to define the violation zone (stop line / zebra crossing). The polygon is drawn in real time and confirmed with C. Press A to reset and redraw.

Click point 1  →  Click point 2  →  Click point 3  →  Click point 4
                                                              ↓
                                                    Press 'C' to confirm

Step 2 — Traffic Signal Monitoring (Every Frame)

The Traffic Light YOLO model (conf=0.5) classifies the signal state:

Signal Detected	System Behavior
Red	🔴 Violation monitoring ACTIVE — vehicle detection starts
RedRight	🔴 Violation monitoring ACTIVE
Green	🟢 Vehicle tracking PAUSED — no violations possible

Step 3 — Vehicle Detection + Persistent Tracking

When red light is confirmed → Vehicle YOLO (conf=0.15) detects all vehicles → passed to DeepSort which assigns persistent Track IDs maintained across frames.

Step 4 — Polygon Intersection Test

For each tracked vehicle, the center point is tested against the polygon:

• Inside polygon during red = VIOLATION → screenshot saved, ID flagged red
• Outside polygon = normal tracking (green box)

Step 5 — Auto Evidence Generation

First-time violators (each unique ID captured only once) trigger:

• Screenshot saved: Violation_ScreenShots/violation_{id}.jpg
• ID permanently added to violated_ids set
• Red overlay + label on live feed
• Violator list updated in top-left HUD

---

✨ Features

Feature	Description
🎯 Dual YOLO Models	Separate specialized models for signal and vehicle detection
📍 Interactive ROI	Click-to-define zone — adapts to any camera angle or intersection
🔢 Persistent IDs	Same vehicle keeps same ID across frames, even through occlusion
📸 Auto Evidence	Each unique violator photographed exactly once — no duplicates
🔴 State-Aware	Tracking only activates on red — zero false positives on green
🛣️ Multi-Lane	Simultaneous monitoring across all lanes
🖥️ Live Overlay	Bounding boxes, Track IDs, signal state, violator list in real time
🔄 Occlusion Handling	max_age=70 — track survives up to 70 frames without detection

---

📸 Evidence Screenshots

The system auto-saves evidence like this for every detected violation:

Violation_ScreenShots/
├── violation_100.jpg                    ← Vehicle ID 100 — caught crossing on red
├── violation_vehicle_65_frame158.jpg    ← Vehicle ID 65  — caught at frame 158
└── ...

Each screenshot contains:

• Full frame at the exact moment of violation
• Red bounding box drawn around the violating vehicle
• Text overlay: "ID {track_id} - VIOLATED"
• All surrounding vehicles visible for context

---

🚨 Captured Violations

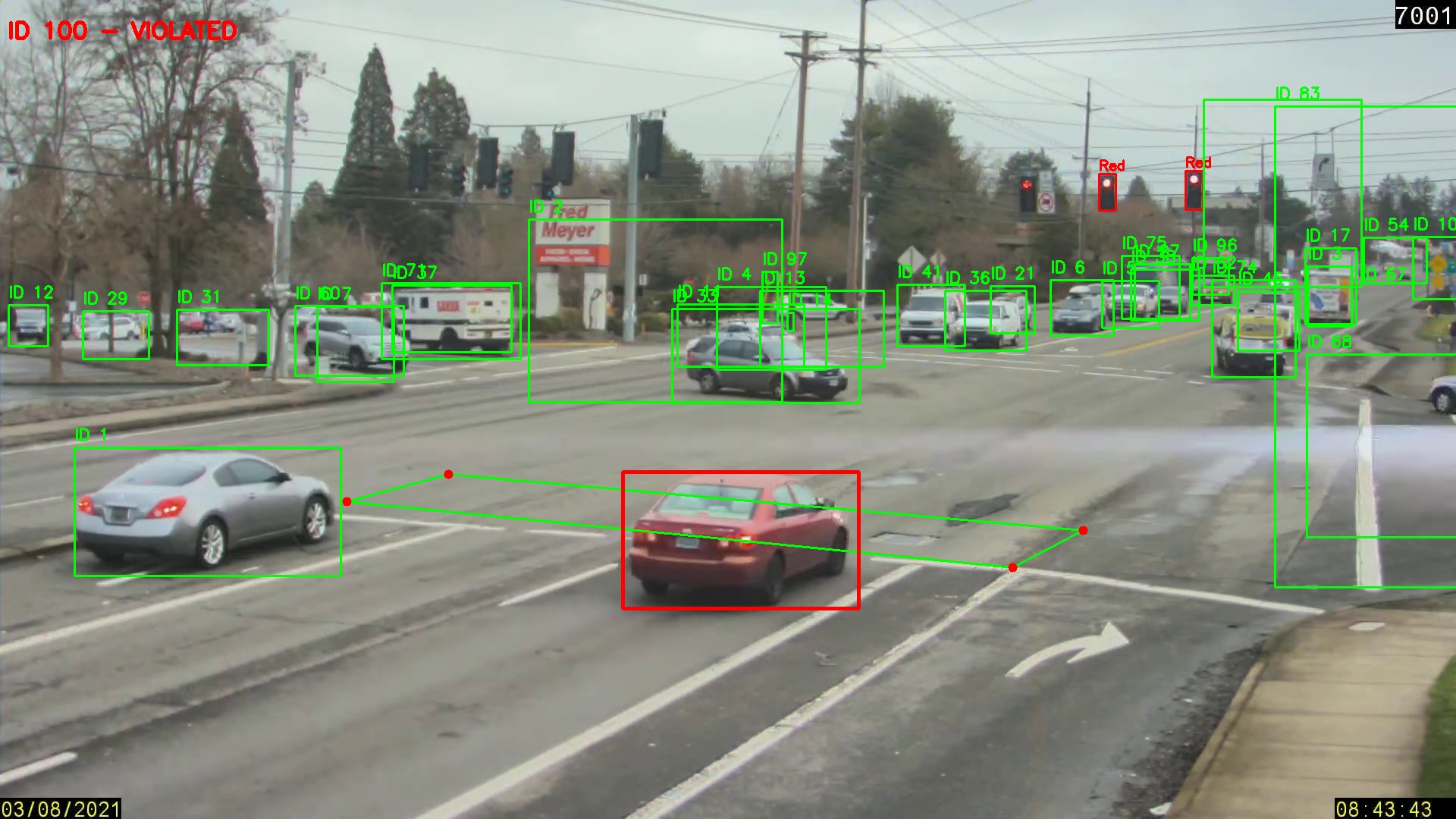

🚗 Violation — ID 100	🚗 Violation — Vehicle 65, Frame 158

---

🔬 Pipeline Breakdown

Zebra Crossing ROI (Mouse-Click Polygon)

def zebra_crossing_roi(video_path, display_width=1280, display_height=720):
    # Shows first frame at display resolution
    # User clicks 4 points → mapped back to original video coordinates
    scale_x = display_width / orig_width
    scale_y = display_height / orig_height

    # On every click — reverse the scaling
    orig_x = int(x / scale_x)
    orig_y = int(y / scale_y)
    # Press 'c' to confirm | 'a' to reset | 'q' to quit
    return np.array(points)     # Shape: (4, 2)

Traffic Light Detection

traffic_results = traffic_light_model.predict(frame, conf=0.5, verbose=False)

for r in traffic_results:
    for box_obj in r.boxes:
        label = r.names[int(box_obj.cls[0])]
        if label in ['Red', 'RedRight']:
            red_light = True    # Activate violation monitoring

Vehicle Detection + DeepSort Tracking

# Format YOLO detections for DeepSort: [x, y, w, h]
detections.append(([x1, y1, x2-x1, y2-y1], conf, "vehicle"))

# DeepSort assigns and maintains persistent Track IDs
tracks = tracker.update_tracks(detections, frame=frame)

DeepSort Configuration:

tracker = DeepSort(
    max_age=70,             # Keep track alive 70 frames without detection
    n_init=5,               # Confirm track after 5 consecutive detections
    max_iou_distance=0.5,   # IoU threshold for track association
    embedder="mobilenet"    # MobileNet appearance embeddings for re-id
)

Violation Detection & Evidence

def is_vehicle_crossing(box, polygon_points):
    x_center = int((box[0] + box[2]) / 2)
    y_center = int((box[1] + box[3]) / 2)
    # >= 0 → inside or on border = VIOLATION
    return cv2.pointPolygonTest(polygon_points, (x_center, y_center), False) >= 0

# In main loop:
if is_vehicle_crossing([x1,y1,x2,y2], polygon_points):
    if track_id not in violated_ids:
        violated_ids.add(track_id)                    # Permanent — capture once only
        ss = frame.copy()
        cv2.rectangle(ss, (x1,y1),(x2,y2),(0,0,255),3)
        cv2.putText(ss, f"ID {track_id} - VIOLATED", (10,50),
                    cv2.FONT_HERSHEY_SIMPLEX, 1, (0,0,255), 3)
        cv2.imwrite(f"Violation_ScreenShots/violation_{track_id}.jpg", ss)

---

📁 Project Structure

Traffic_Signal_Violation_Detection/
│
├── 📂 NoteBook/
│   └── main.py                           # Main detection pipeline
│
├── 📂 Models/
│   ├── vehicle_detection.pt              # Custom YOLO vehicle model
│   └── Traffic_Light_Detection.pt        # Custom YOLO traffic light model
│
├── 📂 Violation_ScreenShots/             # Auto-generated evidence folder
│   ├── violation_100.jpg
│   ├── violation_vehicle_65_frame158.jpg
│   └── ...
│
├── 📂 assets/                            # README images & diagrams
│   ├── violation_demo.svg                # Live detection demo screenshot
│   └── pipeline_diagram.svg             # System architecture diagram
│
└── README.md

---

🛠️ Installation & Setup

Prerequisites

• Python 3.9+
• GPU recommended (NVIDIA CUDA) for real-time performance
• Video file (CCTV footage / MP4)

1. Clone the Repository

git clone https://github.com/uqasha524/Traffic_Signal_Violation_Detection.git
cd Traffic_Signal_Violation_Detection

2. Create Virtual Environment

python -m venv venv

# Windows
venv\Scripts\activate

# Linux / macOS
source venv/bin/activate

3. Install Dependencies

pip install ultralytics deep-sort-realtime opencv-python numpy

4. Add Model Files

Models/
├── vehicle_detection.pt          ← Trained YOLO vehicle detection model
└── Traffic_Light_Detection.pt    ← Trained YOLO traffic light model

⚠️ Model weights are not included due to file size. Train using YOLO or contact the author.

---

🚀 How to Run

Update the Video Path

Open NoteBook/main.py and update:

video_path = r"path/to/your/video.mp4"

Run

cd NoteBook
python main.py

Runtime Controls

Key	Action
Left Click × 4	Define zebra crossing polygon on first frame
C	Confirm drawn zone — start processing
A	Reset polygon — redraw from scratch
Q	Quit at any time

Expected Console Output

Screenshot saved: .\Violation_ScreenShots\violation_100.jpg
Screenshot saved: .\Violation_ScreenShots\violation_vehicle_65_frame158.jpg

---

🔧 Technical Details

Why conf=0.15 for Vehicle Detection?

Dense urban traffic has many partially occluded vehicles. Lower confidence ensures:

• Partially visible vehicles detected early
• Vehicles at frame edges are captured
• No missed violations due to partial visibility

The n_init=5 DeepSort parameter acts as the quality filter — only vehicles confirmed across 5 consecutive frames get a stable Track ID.

Why DeepSort + MobileNet Embeddings?

DeepSort uses visual appearance features alongside IoU matching:

• Vehicles that disappear temporarily are re-identified visually — same ID maintained
• Critical for multi-lane scenarios where vehicles cross each other's paths
• max_age=70 means a vehicle can be hidden for ~2.3 seconds (30fps) and still recover its ID

Center-Point Polygon Test

# Uses VEHICLE CENTER POINT — not corners
# Prevents false triggers from adjacent vehicles
x_center = (x1 + x2) / 2
y_center = (y1 + y2) / 2
cv2.pointPolygonTest(polygon, (x_center, y_center), False)  # >= 0 = inside

Scale-Aware Interactive ROI

Display resolution ≠ video resolution. All clicks are mapped back accurately:

scale_x = display_width / orig_width    # e.g., 1280/1920 = 0.667
scale_y = display_height / orig_height  # e.g.,  720/1080 = 0.667

orig_x = int(click_x / scale_x)        # Reverse scale on click
orig_y = int(click_y / scale_y)        # Polygon accurate at any display size

---

📦 Requirements

ultralytics>=8.0
deep-sort-realtime>=1.3
opencv-python>=4.8
numpy>=1.24

---

🔮 Future Improvements

• License plate OCR for vehicle registration identification
• Timestamp + GPS overlay on violation screenshots
• Violation report export as CSV / PDF
• Live RTSP IP camera stream support
• Speed estimation alongside red-light detection
• Multi-camera intersection coverage
• Web dashboard for reviewing all violations

---
