Welcome to the mastercam-setup-sheet wiki!

Installation

Here is a short tutorial on installation and usage:

1. click the download ZIP button the github page
2. extract zip to %wherever_you_keep_your%\shared mcamx9\common\reports
3. Go to Settings > Configuration > Toolpaths
4. Make sure Setup Sheet program is set to ActiveReports
5. Go to Reports
6. On the right hand side click the file cabinet icon next to File name:
7. Navigate to %wherever_you_keep_your%/\shared mcamx9\common\reports\mastercam-setup-sheet-master
8. Select "sample-setup-sheet.rpx"
9. Click the green check mark

Configuration

Find tips for customizing the sheet in this section.

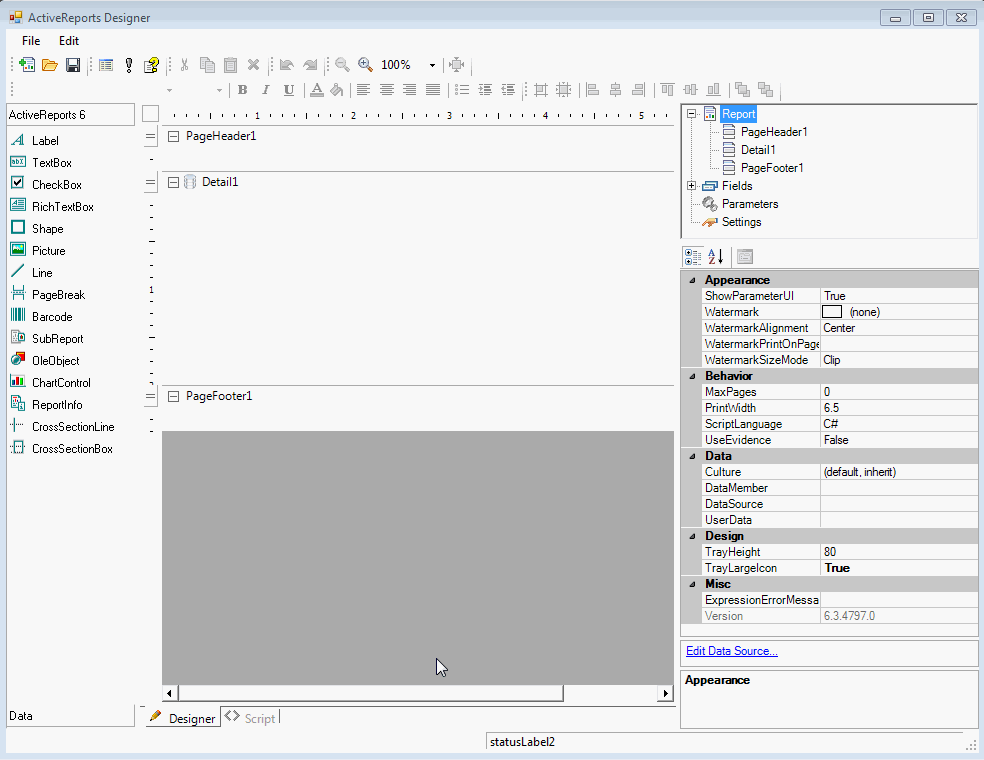

Changing the logo

1. Click on the logo
2. Find the Image property under the Data header
3. Click the ellipsis button [...]
4. Select a new file using the dialog
