Project Cicero

Local Setup

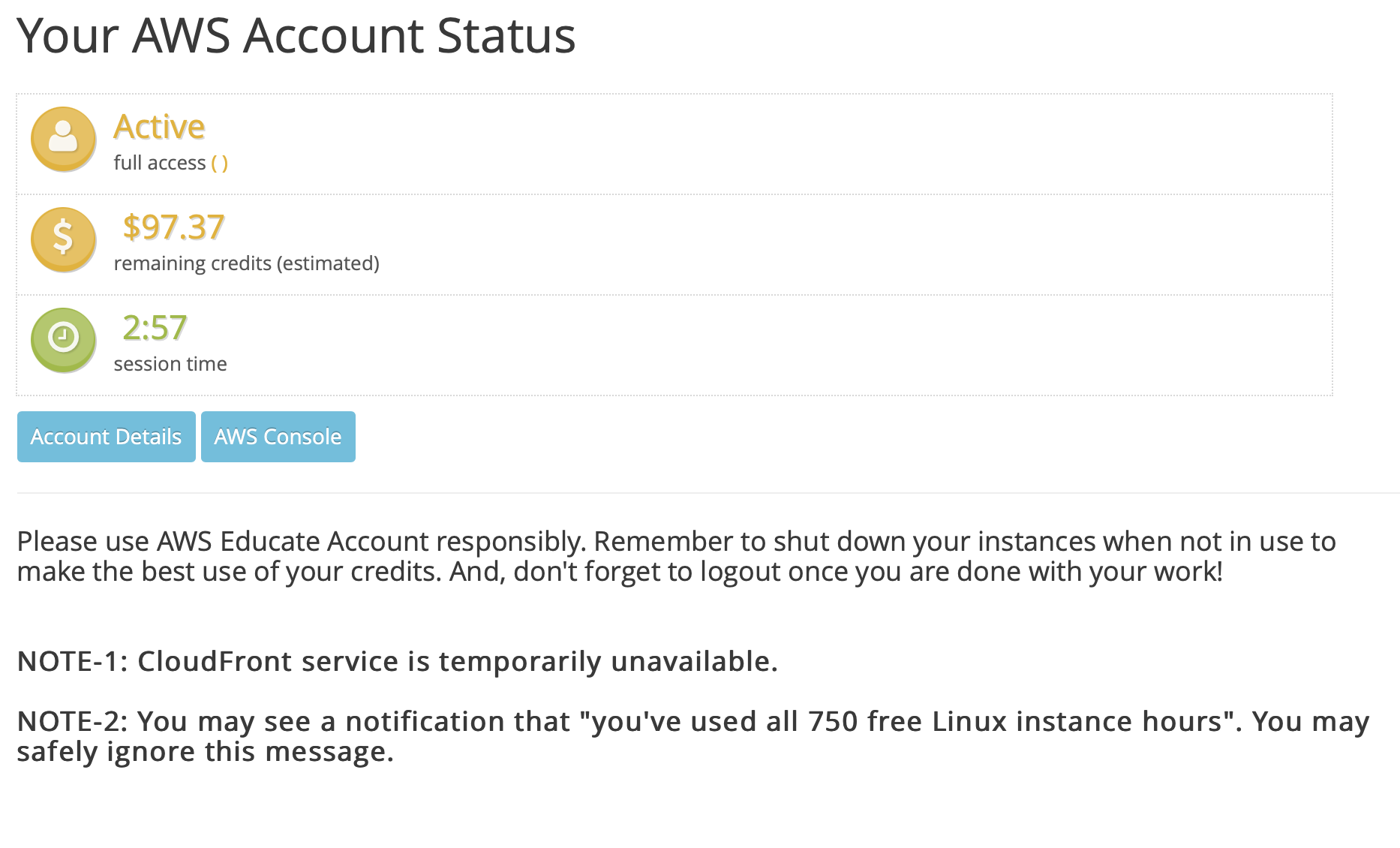

1. Ensure NodeJS is installed and the AWS CDK toolkit is set up correctly. To get your AWS credentials with your educate account click the account details button before signing in and copy and paste the CLI details into the .aws folder.

2. If you run into errors this project was successfully deployed with version 1.94.1 of the Node aws_cdk library. To explicitly install it run:

   > npm install -g aws-cdk@1.94.1

3. Install the CDK toolkit version > vim ~/.aws/credentials

4. Make sure Python 3.6 or higher is installed along with pip and virtualenv packages.

5. Source virtual environment for Python packages.

   > source .venv/bin/activate

6. Install packages.

   > pip install -r requirements.txt

7. Verify an email to use for SNS service You can also verify email using boto3

   def verify_email_identity():
    ses_client = boto3.client("ses", region_name="us-east-2")
    response = ses_client.verify_email_identity(
        EmailAddress="abc1234@rit.edu"
    )
    print(response)


   This MUST be done for the sender email. The recipient email must also be verified if you are using SES in sandbox mode. Note: SES does not work on AWS Educate. Use a regular or free tier.

8. Make sure that Docker is running locally

9. Profit

For more information on how to add modules and documentation on modules check out the AWS docs. Make sure any new modules are added to requirements.txt with correct versioning.

Supported Language Codes

Language	Input Language Code	Target Language Code
Arabic (Gulf / Modern)	ar-AE / ar-SA	arb
Chinese (Mandarin)	zh-CN	cmn-CN
Danish	Input not supported	da-DK
Dutch	nl-NL	nl-NL
English (Australian)	en-AU	en-AU
English (British)	en-GB	en-GB
English (Indian)	en-IN	Output not supported
English (US)	en-US	en-US
Farsi Persian	fa-IR	Output not supported
French	fr-FR	fr-FR
French (Canadian)	fr-CA	fr-CA
German (Standard / Swiss)	de-DE / de-CH	de-DE
Hebrew	he-IL	Output not supported
Hindi	hi-IN	hi-IN
Icelandic	Input not supported	is-IS
Indonesian	id-ID	Output not supported
Italian	it-IT	it-IT
Japanese	ja - JP	ja-JP
Korean	ko-KR	ko-KR
Malaysian	ms-MY	Output not supported
Norwegian	Input not supported	nb-NO
Polish	Input not supported	pl-PL
Portugese (Brazilian)	pt-BR	pt-BR
Portugese (European)	pt-PT	pt-PT
Romanian	Input not supported	ro-RO
Russian	ru-RU	ru-RU
Spanish (European)	es-ES	es-ES
Spanish (Mexican)	Input not supported	es-MX
Spanish (US)	es-US	es-US
Swedish	Input not supported	sv-SE
Tamil	ta-IN	Output not supported
Telugu	te-IN	Output not supported
Turkish	tr-TR	tr-TR
Welsh	Input not supported	cy-GB

Synthesize and Deploy

Stacks can be simply synthesized into Cloudformation templates or directly deployed from the command line.

Bootstrap (do this first)

> cdk bootstrap

Synthesize

> cdk synth

Deploy

> cdk deploy

Destroy

> cdk destroy

Actually using it

1. Deploy the stack using the steps above.

2. Find the location of the static site's S3 URL. When the bucket is made it is automatically public and available for static usage.

3. Once on the website fill in the required information. This includes the API URL from the gateway. This was necessary due to the order in which the resources are created. The URL was not known at the time of creating the static site. The language codes can be found in a section above. As a disclaimer we have run into some transient issues with large video files. So if that is an issue try with a smaller video.

4. Once submitted the video should begin processing. You may look at the individual buckets to see the flow of data. Once the video is finished it is placed in the finished video bucket. If your email address was verified you should also receive an email with a link to your finished video.
