03. Planning

Lucy Stringer edited this page Feb 23, 2021 · 1 revision

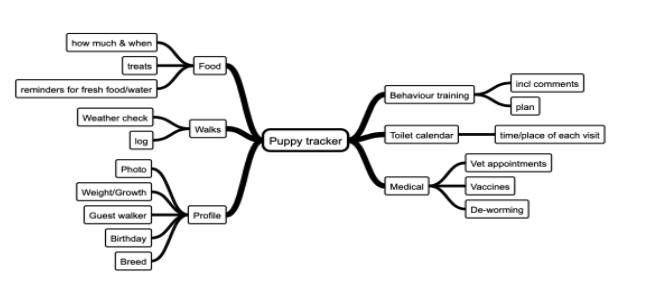

Mind map

Our initial brainstorming session, covering all of the things that we thought a pet tracker might cover.

Screenshot 2021-01-28 at 20 17 58

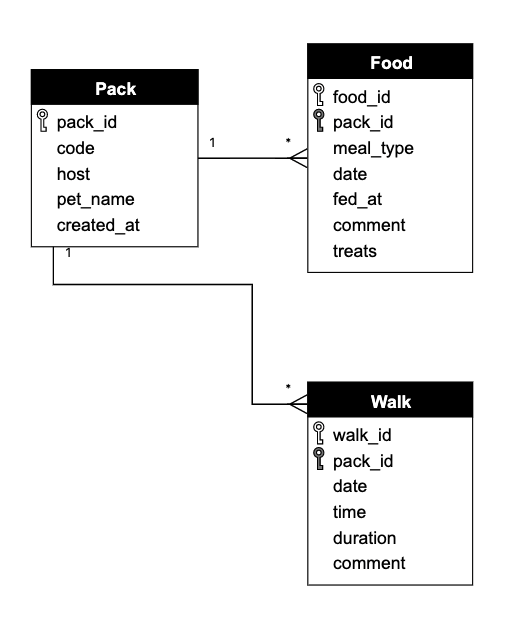

Entity Relationship Diagram

Diagram showing the final database tables, and their relationships to each other.

Screenshot 2021-01-28 at 17 56 14
