mlfe : Modeling Learnable Feature Extractor

Why do I develop this repo?

Just curious.

Roadmap for the future.

(1) Neural Architecture Search

• New search space including low-bit quantization and sparsity.

Index

1. Basic Example
2. Simple neural network for MNIST dataset
3. Auto Encoder
4. Convolutional neural network
5. Deep CNN for CIFAR10
6. The easiest way to build a model
7. How to compile
8. Supported operators

Basic Example

You can create a variable using create_variable function.
The first parameter of the function is shape.
Also you can create a variable filled with constant value using constant function.
You can modify the variable's contents by using standard c++ function std::fill or can acceess variable's data address pointer.
If you access the address pointer using mutable_data, the variable synchronizes with the device memory.
The device means GPU device, but if you compiled with CPU, it does not synchronized.

using namespace mlfe;
namespace fn = functional;

auto x = fn::create_variable({2, 2});
auto two = Tensor::from_vector<float>({2, 2, 2, 2}, {2, 2});
std::fill(x.begin<float>(), x.end<float>(), 1);
// same result with std::fill, accessing address pointer directly.
for(int n = 0; n < x.size(); ++n){
    x.mutable_data<float>()[n] = 1;
}

Here, we build simple operations that is 3 * (x + 2)^2 and then we apply mean function.

auto y = one + two;
y = 3 * (y * y);
y = fn::reduce_mean(y); // result is 27

A gradient of variable can calculate by calling backprop function.
You can access the gradient by calling grad function.
The gradient of one is 4.5.

result.backprop();
x.grad(); // its gradients are {{4.5, 4.5}, {4.5, 4.5}}

Simple neural network for MNIST dataset

To train mnist data, we build a simple neural network.
This code is in example/mnist.

mnist data -> fully connected NN -> softmax.

First step is to including headers.

#include <mlfe/core/tensor.h>
#include <mlfe/operators/reduce_mean.h>
#include <mlfe/operators/softmax_cross_entropy.h>
#include <mlfe/operators/matmul.h>

For convenience, we use namespace abbreviation.

using namespace mlfe;
namespace fn = functional;
namespace op = operators;

1. Define forward function.
2. Define criterion function for training loss.
3. Define weights update function.

struct mnist_simple_net
{
    Tensor weights;
    Tensor biases;

    mnist_simple_net(int input_size, int out_size)
    {
        weights = fn::create_variable({input_size, out_size});
        biases = fn::create_variable({out_size});
        std::fill(weights.begin<float>(), weights.end<float>(), 0.f);
        std::fill(biases.begin<float>(), biases.end<float>(), 0.1f);
    }

    Tensor forward(Tensor x)
    {
        auto logits = op::matmul(x, weights);
        return logits + biases;
    }

    Tensor criterion(Tensor y_true, Tensor y_pred)
    {
        auto loss = op::softmax_cross_entropy(y_true, y_pred);
        loss = op::reduce_mean(loss);
        return loss;
    }

    void update_weights(float lr)
    {
        weights -= lr * weights.grad();
        biases -= 2.f * lr * biases.grad();
    }

    void zero_grad()
    {
        weights.grad().zero();
        biases.grad().zero();
    }
};

1. Define your training loop.
2. Call the functinos :
   (zero_grad -> forward -> criterion -> backprop -> update_weights)

Gradients are accumulated if you not make the gradient zero.

void train_simplenet(
    dataset::mnist_gen train_set,
    dataset::mnist_gen valid_set)
{
    const int BATCH = 32;
    const int EPOCH = 1;
    const int INPUT_SIZE = 28 * 28;
    const int OUTPUT_SIZE = 10;
    const int NUM_ITER = train_set.size() / BATCH;

    auto model = models::simple_net(INPUT_SIZE, OUTPUT_SIZE);
    auto images = std::vector<float>(BATCH*INPUT_SIZE);
    auto labels = std::vector<float>(BATCH*OUTPUT_SIZE);
    for(int e = 0; e < EPOCH; ++e){
        float mean = 0.f;
        for(int i = 0; i < NUM_ITER; ++i){
            fill_batch(train_set, images, labels, BATCH, i);
            model.zero_grad();
            auto x = Tensor::from_vector(images, {BATCH, INPUT_SIZE});
            auto y_true = Tensor::from_vector(labels, {BATCH, OUTPUT_SIZE});
            auto y_pred = model.forward(x);
            auto loss = model.criterion(y_true, y_pred);
            loss.backprop();
            model.update_weights(1e-1);
            mean += loss.data<float>()[0];
        }
        std::cout<<"EPOCH "<<e + 1<<" : "<<mean / NUM_ITER<<std::endl;
    }
}

After 1000 iterations are finished, the variables will close to the optimal solution.
This model performs about 90% acccuracy on MNIST 10K test images.

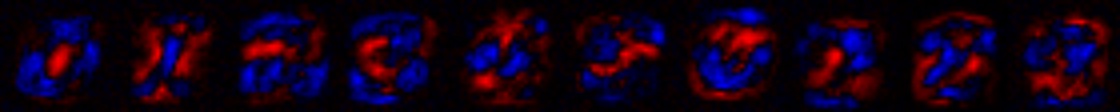

The following figure shows visualization of the w variable, the Red colour represents negative value, the Blue colour represents positive value.

Auto Encoder

#include <mlfe/core/tensor.h>
#include <mlfe/operators/reduce_mean.h>
#include <mlfe/operators/squared_difference.h>
#include <mlfe/operators/sigmoid.h>
#include <mlfe/nn/layers/linear.h>
#include <mlfe/nn/module.h>
using namespace mlfe;
namespace op = mlfe::operators;

struct encoder : nn::module{
    nn::linear fc1;
    nn::linear fc2;
    nn::linear fc3;
    nn::linear fc4;

    encoder(){
        fc1 = trainable(nn::linear(28*28, 300));
        fc2 = trainable(nn::linear(300, 150));
        fc3 = trainable(nn::linear(150, 50));
        fc4 = trainable(nn::linear(50, 10));
    }

    Tensor forward(Tensor x){
        x = fc1(x);
        x = op::sigmoid(x);
        x = fc2(x);
        x = op::sigmoid(x);
        x = fc3(x);
        x = op::sigmoid(x);
        x = fc4(x);
        x = op::sigmoid(x);
        return x;
    }
};

struct decoder : nn::module{
    nn::linear fc1;
    nn::linear fc2;
    nn::linear fc3;
    nn::linear fc4;

    decoder(){
        fc1 = trainable(nn::linear(10, 50));
        fc2 = trainable(nn::linear(50, 150));
        fc3 = trainable(nn::linear(150, 300));
        fc4 = trainable(nn::linear(300, 28*28));
    }

    Tensor forward(Tensor x){
        x = fc1(x);
        x = op::sigmoid(x);
        x = fc2(x);
        x = op::sigmoid(x);
        x = fc3(x);
        x = op::sigmoid(x);
        x = fc4(x);
        x = op::sigmoid(x);
        return x;
    }
};

struct autoencoder : nn::module{
    encoder encode;
    decoder decode;

    autoencoder()
    {
        encode = trainable(encoder());
        decode = trainable(decoder());
    }

    Tensor forward(Tensor x)
    {
        x = encode.forward(x);
        x = decode.forward(x);
        return x;
    }

    Tensor criterion(Tensor y_true, Tensor y_pred)
    {
        auto loss = op::squared_difference(y_true, y_pred);
        return op::reduce_mean(loss);
    }
};

Convolutional neural network

1. Inherit the nn::module.
2. Create layers in your class.
3. Notify trainable variables to nn::module by enclosing a layer with trainable function.

The trainable function finds trainables in a layer and collects it.
See mnist example.
The accuracy of this model on mnist dataset is about 98% at 2 epoch.

using namespace mlfe;
namespace op = mlfe::operators;

struct mnist_conv_net : nn::module{
    nn::conv2d conv1;
    nn::conv2d conv2;
    nn::linear fc1;
    nn::linear fc2;

    mnist_conv_net(){
        conv1 = trainable(nn::conv2d(/*input channel=*/1,
                                     /*output channel=*/16,
                                     /*kernel size=*/{3, 3},
                                     /*stride size=*/{1, 1},
                                     /*output size same with inputs=*/true));
        conv2 = trainable(nn::conv2d(16, 32, {3, 3}, {1, 1}, true));
        fc1 = trainable(nn::linear(
                                   /*input channel=*/7*7*32,
                                   /*output channel=*/256));
        fc2 = trainable(nn::linear(256, 10));
    }

    tensor forward(tensor x, bool is_training=false){
        x = conv1(x);
        x = op::maxpool2d(x, /*pool size=*/{2, 2}, /*stride size=*/{2, 2});
        x = op::relu(x);
        x = conv2(x);
        x = op::maxpool2d(x, {2, 2}, {2, 2});
        x = op::relu(x);
        x = op::dropout(x, 0.5, is_training);
        x = x.view({x.shape()[0], 7 * 7 * 32});
        x = fc1(x);
        x = op::relu(x);
        x = fc2(x);
        return x;
    }
};

You can access the trainable variables of your module.

mnist_conv_module model;
model.trainable_variables(); // returns std::vector<tensor>

Deep CNN for CIFAR10

We build a conv block module:
input -> conv_bn_relu -> dropout -> conv_bn_relu -> maxpool -> dropout.
Then use it to build deep conv net.
input -> conv_block -> conv_block -> conv_block -> global avg pool -> fc1 -> fc2.
See cifar10 example.
The accuracy of this model on cifar10 dataset is about 86% at 30 epoch.

struct conv_block : nn::module{
    nn::conv2d conv1;
    nn::batch_norm2d bn1;
    nn::conv2d conv2;
    nn::batch_norm2d bn2;

    conv_block(){}

    conv_block(int32_t in_chann, int32_t out_chann){
        conv1 = trainable(nn::conv2d(in_chann, out_chann,
            /*kernel_size=*/{3, 3}, /*strides=*/{1, 1},
            /*same_out=*/true, /*use_bias=*/false));
        bn1 = trainable(nn::batch_norm2d(out_chann));
        conv2 = trainable(nn::conv2d(out_chann, out_chann,{3, 3}, {1, 1}, true, false));
        bn2 = trainable(nn::batch_norm2d(out_chann));
    }

    Tensor operator()(Tensor x, float drop_rate, bool is_training=false){
        x = conv1(x);
        x = bn1(x, is_training);
        x = op::relu(x);
        x = conv2(x);
        x = bn2(x, is_training);
        x = op::relu(x);
        x = op::maxpool2d(x, {2, 2}, {2, 2});
        x = op::dropout(x, drop_rate, is_training);
        return x;
    }
};

struct cifar10_convnet : nn::module{
    conv_block block1;
    conv_block block2;
    conv_block block3;
    nn::linear fc1;
    nn::batch_norm1d bn1;
    nn::linear fc2;

    cifar10_convnet(){
        block1 = trainable(conv_block(3, 64));
        block2 = trainable(conv_block(64, 128));
        block3 = trainable(conv_block(128, 256));
        fc1 = trainable(nn::linear(4*4*256, 512, /*use_bias=*/false));
        bn1 = trainable(nn::batch_norm1d(512));
        fc2 = trainable(nn::linear(512, 10));
    }

    Tensor forward(Tensor x, bool is_training=false){
        x = block1(x, 0.3, is_training);
        x = block2(x, 0.4, is_training);
        x = block3(x, 0.5, is_training);
        x = x.view({x.shape()[0], 4*4*256});
        x = fc1(x);
        x = bn1(x, is_training);
        x = op::relu(x);
        x = op::dropout(x, 0.5, is_training);
        x = fc2(x);
        return x;
    }

    Tensor criterion(Tensor y_true, Tensor y_pred)
    {
        auto loss = op::softmax_cross_entropy(y_true, y_pred);
        loss = op::reduce_mean(loss);
        return loss;
    }
};

The easiest way to build a model

You don't have to specify the input size of each layer.
Just stack layers using only output specification using operator<<().
After stacking sequence layers, call the member function build with preferred input shape.
See example/imagenet/vgg16.h.

#include <mlfe/nn/module.h>
#include <mlfe/nn/sequences/batch_norm.h>
#include <mlfe/nn/sequences/conv2d.h>
#include <mlfe/nn/sequences/flatten.h>
#include <mlfe/nn/sequences/maxpool2d.h>
#include <mlfe/nn/sequences/linear.h>
#include <mlfe/nn/sequences/relu.h>

using namespace mlfe;
namespace seq = mlfe::nn::seq;

struct vgg16 : nn::module{
    nn::module net_block;

    template <int C>
    nn::module conv_block(){
        nn::module m;
        return m
            << seq::conv2d<C, size<3, 3>, size<1, 1>, true>()
            << seq::batch_norm2d<>() << seq::relu<>();
    }

    vgg16(){
        net_block
            << conv_block<64>() << conv_block<64>()
            << seq::maxpool2d<size<2, 2>, size<2, 2>>()

            << conv_block<128>() << conv_block<128>()
            << seq::maxpool2d<size<2, 2>, size<2, 2>>()

            << conv_block<256>() << conv_block<256>()
            << seq::maxpool2d<size<2, 2>, size<2, 2>>()

            << conv_block<512>() << conv_block<512>()
            << seq::maxpool2d<size<2, 2>, size<2, 2>>()

            << conv_block<512>() << conv_block<512>()
            << seq::maxpool2d<size<2, 2>, size<2, 2>>()

            << seq::flatten<>()

            << seq::linear<4096>() << seq::batch_norm1d<>() << seq::relu<>()
            << seq::linear<4096>() << seq::batch_norm1d<>() << seq::relu<>()
            << seq::linear<1000>();
        net_block.build({224, 224, 3});
        net_block = trainable(net_block);
    }

    Tensor forward(Tensor x, bool is_train){
        x = net_block(x, is_train);
        return x;
    }
};

How to compile

git clone https://github.com/shi510/mlfe
git submodule update --init --recursive
mkdir build
cd build

We recomannd to use CUDNN v7.
See docker/cudnn_v7_ubuntu18/Dockerfile.

cmake -D BUILD_TEST=ON -D BUILD_EXAMPLE=ON -D USE_CUDNN=ON -D CMAKE_BUILD_TYPE=Release ..
make -j
./unit_test/unit_test

There are another possible options and it is not recommanded.

-D USE_CUDA=ON # only use cuda kernel not cudnn
-D USE_XNNPACK=ON # currently for experiment
-D USE_INTEL_MKLDNN=ON # currently for experiment

It is compiled with host reference codes, if it has no option.
See mlfe/operators/impl/cpu.

Supported operators

All operators that didn't marked with 'o' (not implemented yet) will be supported as soon as possible.

	CUDA(CUDNN)
Add (with broadcast)	o
Sub (with broadcast)	o
Mul (with broadcast)	o
Div (with broadcast)	o
GlobalAveragePool2D	o
BatchNorm2D	o
Conv2D	o
Dense	o
Dropout	o
MaxPool2D	o
Resize
ReLU	o
Sigmoid	o
Softmax Cross Entropy	o
Sigmoid Cross Entropy	o
Squared Difference	o
Transpose
SGD Optimizer	o
Adam Optimizaer	o
