Minecraft HDR Mod

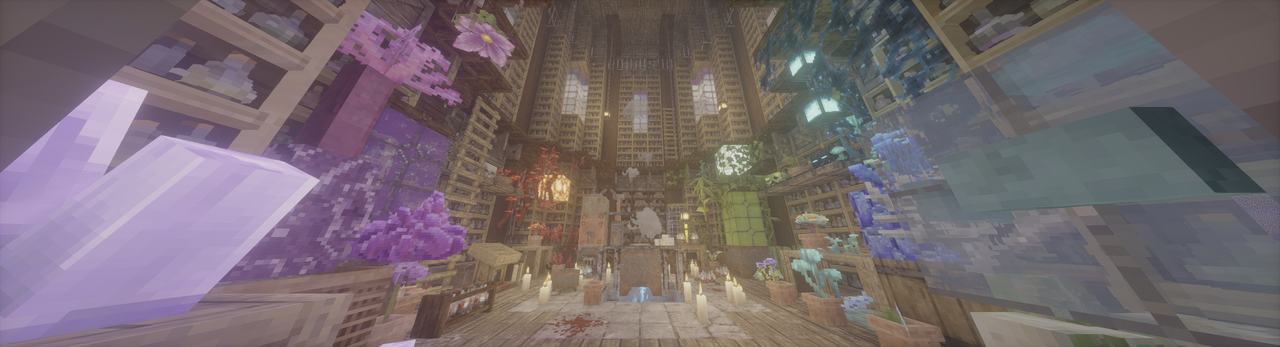

A minecraft mod that enables native HDR on Windows/Linux with Iris shaders. Currently, in early development. (Photon patched to HDR w/ Patrix, taken by mod's screenshot feature.)

What the mod have achieved

• Native HDR, both for Windows scRGB and HDR10/PQ.
• UI color correction by a BEFORE_BLIT pass.
• Ingame config using Cloth Config API.
• Ingame HDR screenshot.

For Users

• See XgarhontX's temporary patches for HDR output and tonemapping on select shaderpacks with support for this mod: Google Sheets
• Adjust HDR Brightness values (Paper White, UI, Peak) with config menu. (Default keybind: F9)
• Take a HDR screenshot ingame. (Default keybind: F10)
• Troubleshooting: ReShade is currently not compatible, failing to load and breaking sky.
• Troubleshooting: If your game is too bright/dark, try to adjust the custom brightness values yourself.
• Troubleshooting: If you're on Windows, don't forget to install the latest Visual C++ Redistributable.
• Troubleshooting: If your game crashes on NeoForge, disable earlyWindowControl in <game folder>/config/fml.toml
• Troubleshooting: Clean temp file if your game doesn't start (path can be found in log, %TEMP%/glfw on Windows and /tmp/glfw on Linux).

For Shader Packs

Wiki Tutorial

• For Shaderpack Devs

Macros

• HDR_MOD_INSTALLED
• HDR_ENABLED
• CURRENT_PRIMARIES: One of PRIMARIES_SRGB, PRIMARIES_PAL_M, PRIMARIES_PAL, PRIMARIES_NTSC, PRIMARIES_GENERIC_FILM, PRIMARIES_BT2020, PRIMARIES_CIE1931_XYZ, PRIMARIES_DCI_P3, PRIMARIES_DISPLAY_P3, PRIMARIES_ADOBE_RGB;
• CURRENT_TRANSFER_FUNCTION: One of TRANSFER_FUNCTION_BT1886, TRANSFER_FUNCTION_GAMMA22, TRANSFER_FUNCTION_GAMMA28, TRANSFER_FUNCTION_ST240, TRANSFER_FUNCTION_EXT_LINEAR, TRANSFER_FUNCTION_LOG_100, TRANSFER_FUNCTION_LOG_316, TRANSFER_FUNCTION_XVYCC, TRANSFER_FUNCTION_SRGB, TRANSFER_FUNCTION_EXT_SRGB, TRANSFER_FUNCTION_ST2084_PQ, TRANSFER_FUNCTION_ST428, TRANSFER_FUNCTION_HLG.

Uniforms

• float HdrGameMinimumBrightness;
• float HdrGamePeakBrightness;
• float HdrGamePaperWhiteBrightness;
• float HdrUIBrightness;

Use these uniforms inside #if HDR_MOD_INSTALLED block.

Output

the output of the shader(aka. what is written to main render target in final pass) should have scRGB-nl encoding(Rec.709 primaries, sRGB (for negative numbers use −f(−x)) transfer function), and you should not use RGBA8F for scene color.

• Wiki Section

Known Issue

• Xaero Map may cause black screen on startup, but recover to normal before you see title screen.

Credits

• Tom94, for glfw fork with color management;
• IMS212, for Iris shaders and original glfw patch idea;
• XgarhontX and some other fellows, for working on RenoDX Minecraft HDR and shader patches, and helping me to make color transform correct.

Copyright

The main HDR Mod repo is licensed under MIT. Bundled GLFW from Tom94's/mine fork is licensed under the zlib/libpng license.
