mradar

Reengineered original GTA:SA radar for MTA:SA

Features

• default blips and radar areas are supported
• default blips coloring
• artificial horizon and altimeter
• original textures set format
• modify-friendly
• no scaling-bugs
• optional rectangle radar
• new F11 map
• waypoint by click (by Southland-FR)
• map legend
• map cursor moving

Settings

You can configure radar with predefined global Lua variables. See mradar_main_client.lua script file. Some of important setting see below

• RADAR_BLIP_COLOR_ENABLED (default is false) - enables blips painting (usually blips have red or black color, u should always define blips color when this feature is enabled)
• RADAR_RECTANGLE (default is false) - enables rectangle radar (instead of circle)
• BIGMAP_ENABLED (default is true) - enables new big map (F11)
• BIGMAP_CURSOR_SWITCHABLE (default is true) - enables cursor switching when big map (F11) is visible
• BIGMAP_SWITCH_CURSOR_KEY (default is mouse3) - cursor switching key
• BIGMAP_CURSOR_ENABLED (default is false) - enables cursor by default when big map (F11) is visible
• BIGMAP_WAYPOINT_ENABLED (default is true - depends on enabled cursor) - enables waypoint blip by click
• BIGMAP_POST_GUI (defaults is false) - enables big map "post-gui" drawing
• BIGMAP_SOUND_ENABLED (defaults is false) - enables big map sounds

Exported client-side functions

• getMRadarVisible()
• setMRadarVisible(bool visible)

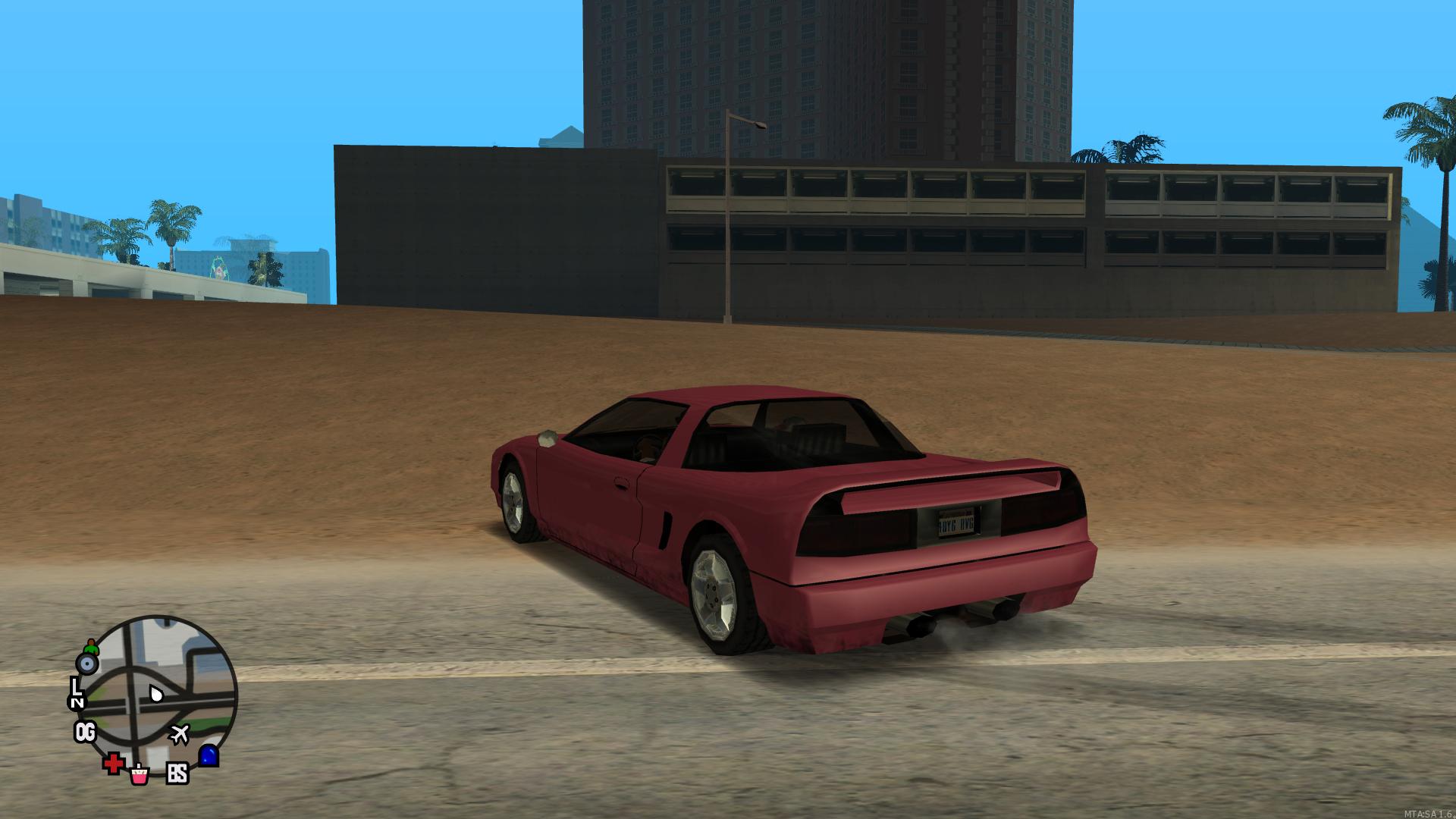

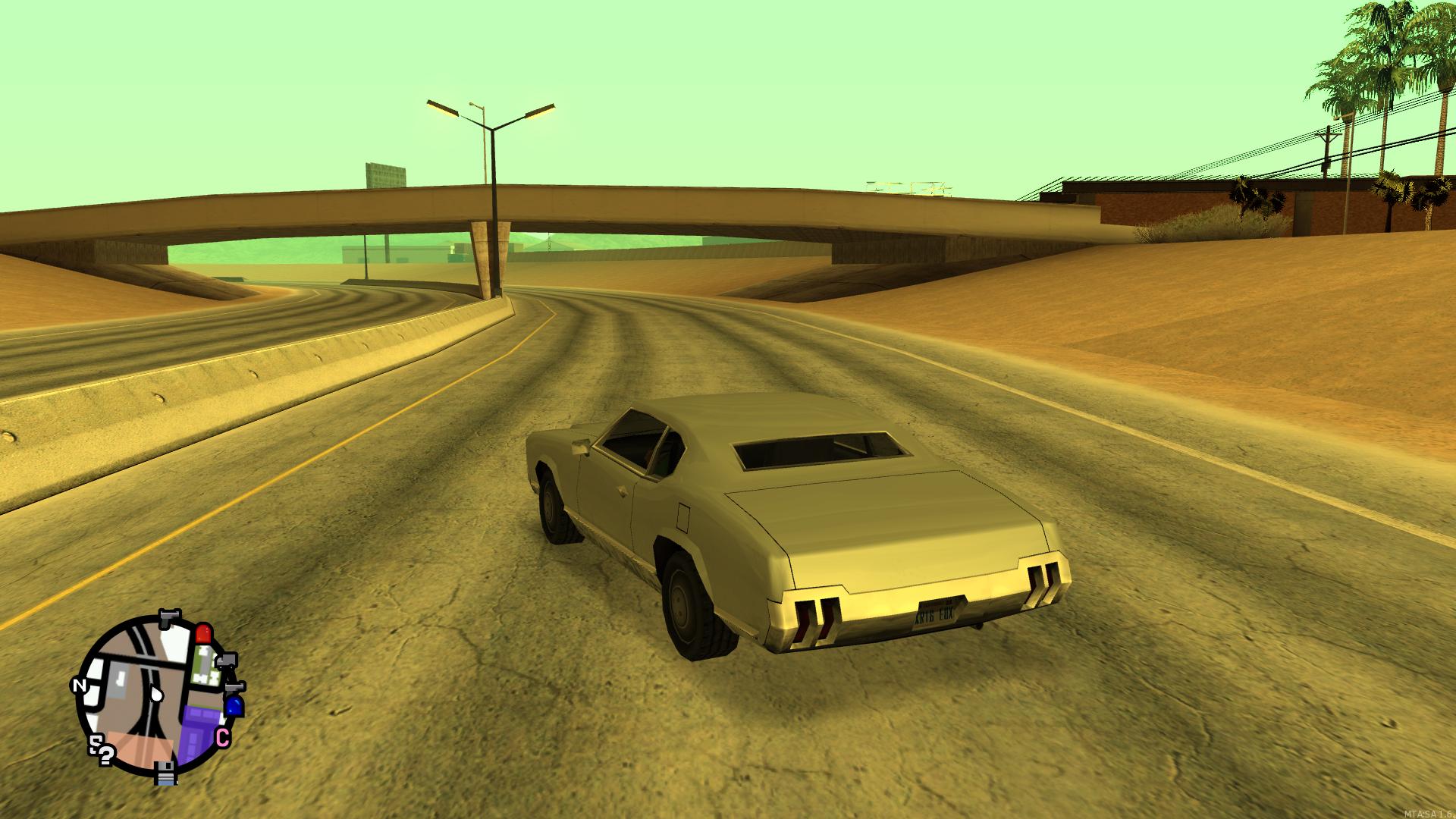

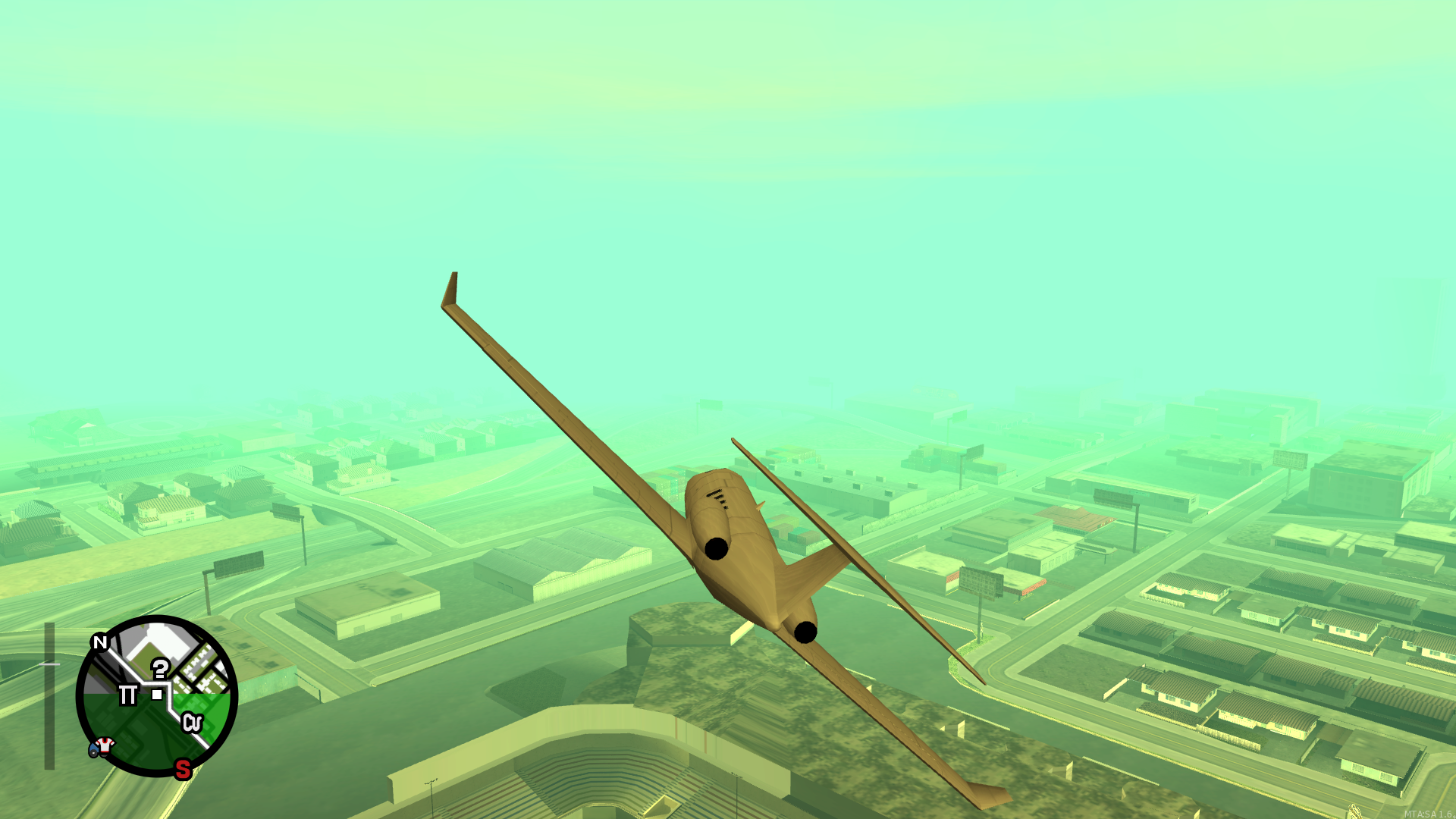

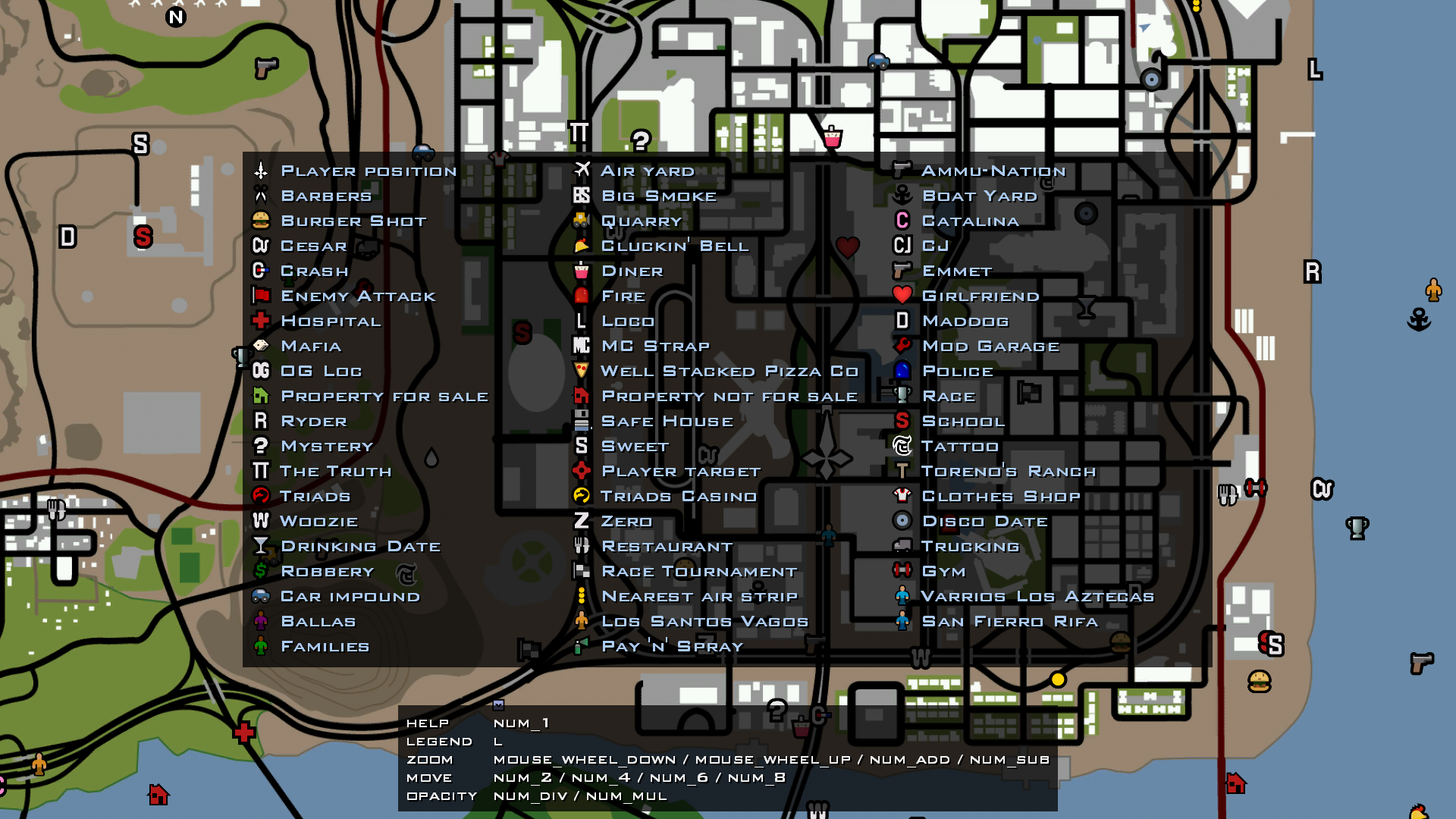

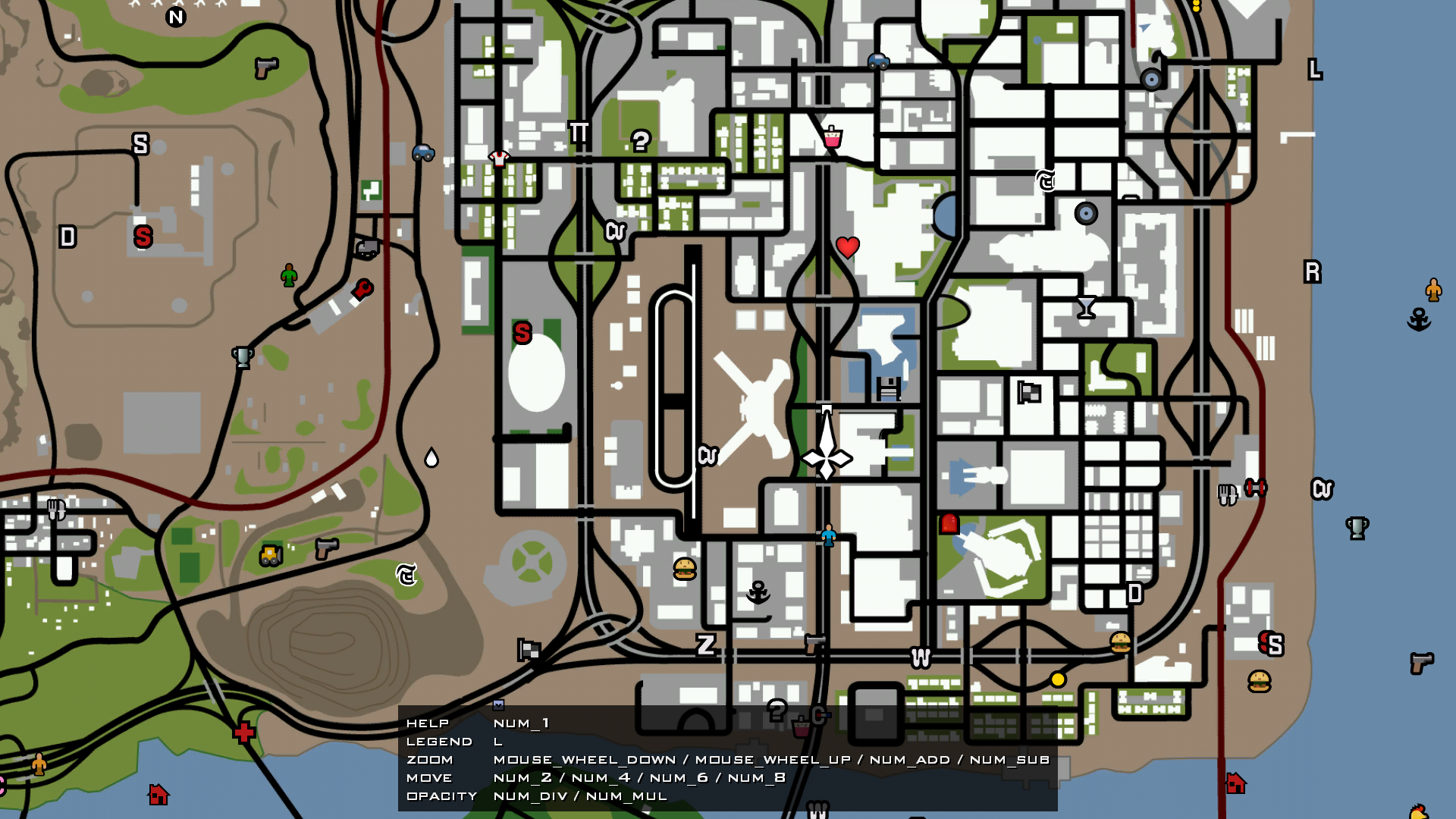

Screenshots
