Signature Pad Integration Suite - Demo & Form Integration

A comprehensive signature pad integration project providing both a simple demo for testing and a complete business form integration. Choose the right implementation for your needs: simple signature testing or full CRM/business workflow integration.

🚀 Features

• Multiple Signature Methods: Draw signatures or type names
• Multiple Export Formats: PNG, JPG, SVG support
• Complete Form Integration: Ready-to-use form with validation
• Database Storage: Secure data storage with PDO
• File Management: Automatic file naming and organization
• Responsive Design: Works on desktop and mobile devices
• Security Features: Input validation, SQL injection prevention, file validation
• Error Handling: Comprehensive error logging and user feedback

📂 Project Structure & Use Cases

This project is organized into three main directories for different use cases:

/demo/ - Signature Pad Testing & Development

Use this for: Testing signature functionality, proof of concepts, integrating into existing applications

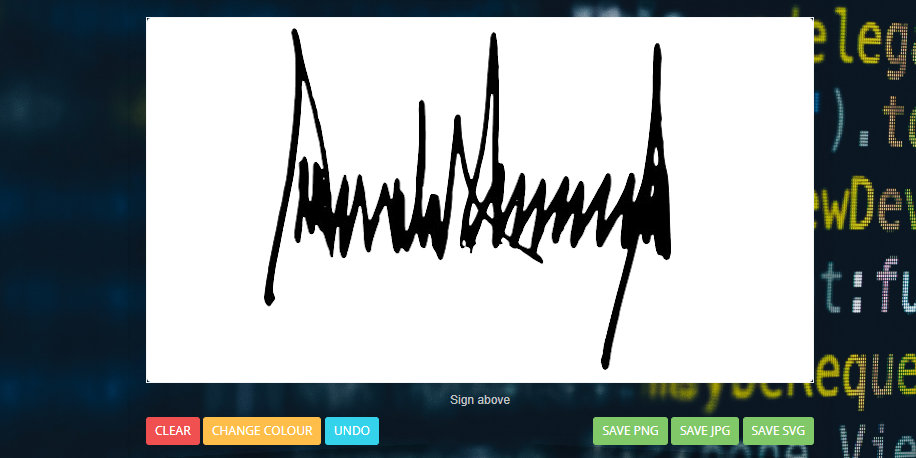

• signature-pad-demo.html - Interactive canvas with drawing tools
• css/ and js/ - Required assets for the demo
• Features: Draw, clear, undo, color change, save as PNG/JPG/SVG files

/form-integration/ - Complete Business Form

Use this for: CRM integration, business workflows, standalone deployments

• business-form.html - Complete form with signature integration (self-contained)
• Includes: User details, signature options (draw/type), form validation
• Ready for production deployment with minimal configuration

/backend/ - PHP Server Processing

Use this for: Processing form submissions, storing signatures and data

• submit-agreement.php - Form processing script (PHP 8.1+ compatible)
• uploads/signatures/ - File storage directory
• Handles: Database operations, file conversions, validation, logging

📋 Requirements

• PHP 8.1+ with PDO MySQL extension (updated for modern PHP features)
• MySQL 5.7+ or MariaDB 10.2+
• Web server (Apache, Nginx, or similar)
• Modern web browser with HTML5 Canvas support

🛠️ Installation & Setup

Step 1: Download Files

Clone or download this repository to your web directory. The project structure is organized as follows:

your-website/
├── demo/
│   ├── signature-pad-demo.html    # Simple signature testing
│   ├── css/                       # Demo styling
│   └── js/                        # Demo JavaScript
├── form-integration/
│   └── business-form.html          # Complete business form (self-contained)
├── backend/
│   ├── submit-agreement.php        # Form processing (PHP 8.1+)
│   └── uploads/signatures/         # File storage (needs write permissions)
└── README.md

Step 2: Database Setup

2.1 Create Database

Create a new MySQL database for your application:

CREATE DATABASE signature_forms CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;

2.2 Create Database User (Optional but Recommended)

CREATE USER 'signature_user'@'localhost' IDENTIFIED BY 'your_secure_password';
GRANT ALL PRIVILEGES ON signature_forms.* TO 'signature_user'@'localhost';
FLUSH PRIVILEGES;

2.3 Create Table (Optional - Auto-Created by Script)

The PHP script will automatically create the table, but you can create it manually if preferred:

USE signature_forms;

CREATE TABLE form_submissions (
    id INT AUTO_INCREMENT PRIMARY KEY,
    full_name VARCHAR(255) NOT NULL,
    email VARCHAR(255) NOT NULL,
    company VARCHAR(255),
    signature_method ENUM('drawn', 'typed') NOT NULL,
    signature_data TEXT,
    signature_file_png VARCHAR(255),
    signature_file_jpg VARCHAR(255),
    signature_file_svg VARCHAR(255),
    agree_terms BOOLEAN NOT NULL DEFAULT 0,
    ip_address VARCHAR(45),
    user_agent TEXT,
    submitted_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    INDEX idx_email (email),
    INDEX idx_submitted_at (submitted_at)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;

Step 3: Configure PHP Script

3.1 Edit Database Connection

Open backend/submit-agreement.php and update the database configuration (lines 25-30):

// Database Configuration
$db_host = 'localhost';                    // Your database host
$db_name = 'signature_forms';              // Your database name
$db_user = 'signature_user';               // Your database username
$db_pass = 'your_secure_password';         // Your database password
$db_charset = 'utf8mb4';                   // Keep as utf8mb4

3.2 Configure File Upload Settings

Update the file upload configuration (lines 32-37):

// File Upload Configuration
$upload_path = 'uploads/signatures/';      // Relative path from PHP script
$max_file_size = 5 * 1024 * 1024;         // 5MB max file size
$allowed_formats = ['png', 'webp', 'svg']; // Optimal formats for signatures
$default_format = 'png';                   // Default format for form submissions
$save_multiple_formats = false;            // Set true to save all formats

3.3 Configure Application Settings

Adjust application behavior (lines 39-42):

// Application Settings
$require_signature = true;        // Make signature mandatory
$log_submissions = true;          // Enable logging
$debug_mode = false;              // Set true for development only

Step 4: Set Up File Permissions

4.1 Create Directory Structure (if not using Git)

# Navigate to your web directory
cd /path/to/your/website

# Create upload directories (if they don't exist)
mkdir -p backend/uploads/signatures

# Set proper permissions
chmod 755 backend/uploads
chmod 755 backend/uploads/signatures

4.2 Alternative: Create via PHP

If you can't use command line, create this PHP script temporarily:

<?php
$upload_dir = 'backend/uploads/signatures';
if (!file_exists($upload_dir)) {
    if (mkdir($upload_dir, 0755, true)) {
        echo "Upload directory created successfully!";
    } else {
        echo "Failed to create upload directory.";
    }
} else {
    echo "Upload directory already exists.";
}
?>

Step 5: Choose Your Implementation

5.1 For Simple Testing (Demo)

1. Open demo/signature-pad-demo.html in your browser
2. Test signature drawing, color picker, undo, clear functions
3. Use save buttons to download PNG, WebP, or SVG files
4. No backend configuration needed for demo

5.2 For Business Form Integration

1. Edit Form Submission Path In form-integration/business-form.html, uncomment and update the fetch URL (around line 596):

   fetch('../backend/submit-agreement.php', {  // Path is already correct for new structure
       method: 'POST',
       body: formData
   })

2. Test the Form

   • Open form-integration/business-form.html in your browser
   • Fill out all required fields
   • Test both drawing and typing signature modes

5.2 Customize Form Fields (Optional)

Modify the form fields in the HTML to match your requirements:

<!-- Add, remove, or modify these fields as needed -->
<div class="form-group">
    <label for="fullName">Full Name *</label>
    <input type="text" class="form-control" id="fullName" name="fullName" required>
</div>
<!-- Add your custom fields here -->

Step 6: Security Configuration

6.1 Web Server Security (Apache)

Create a .htaccess file in the backend/uploads directory:

# backend/uploads/.htaccess
# Prevent direct access to uploaded files
<Files "*">
    Order Deny,Allow
    Deny from all
</Files>

# Allow only signature image files to be accessed
<FilesMatch "\.(png|webp|svg)$">
    Order Allow,Deny
    Allow from all
</FilesMatch>

# Prevent PHP execution in uploads directory
php_flag engine off

6.2 Web Server Security (Nginx)

Add to your Nginx configuration:

# Prevent access to uploads directory
location /backend/uploads/ {
    location ~* \.(png|webp|svg)$ {
        # Allow signature image files
    }
    location ~* \.(php|php5|phtml)$ {
        deny all;
    }
}

Step 7: Testing

7.1 Test Database Connection

Create a temporary test file:

<?php
// test-db.php
$db_host = 'localhost';
$db_name = 'signature_forms';
$db_user = 'signature_user';
$db_pass = 'your_secure_password';

try {
    $pdo = new PDO("mysql:host={$db_host};dbname={$db_name}", $db_user, $db_pass);
    echo "Database connection successful!";
} catch (PDOException $e) {
    echo "Connection failed: " . $e->getMessage();
}
?>

7.2 Test Form Submission

1. Open your HTML form in a web browser
2. Fill out all required fields
3. Either draw a signature or type your name
4. Submit the form
5. Check for success message
6. Verify data in database and uploaded files

7.3 Check Error Logs

Monitor these files for any issues:

# Check PHP error log
tail -f /var/log/php_errors.log

# Check custom application logs
tail -f signature_form_errors.log
tail -f signature_form_success.log

🔧 Customization Options

Signature Pad Settings

Modify the signature pad behavior in the HTML JavaScript:

window.signaturePad = new SignaturePad(canvas, {
    backgroundColor: 'rgb(255, 255, 255)',  // Background color
    penColor: 'rgb(0, 0, 0)',              // Pen color
    minWidth: 1,                            // Minimum stroke width
    maxWidth: 3,                            // Maximum stroke width
    velocityFilterWeight: 0.7,              // Stroke smoothing
    minDistance: 5                          // Minimum distance between points
});

Canvas Size

Adjust the signature canvas size in the CSS:

.signature-pad canvas {
    height: 200px; /* Change this value */
    width: 100%;
}

File Format Selection

Enable multiple format saving:

// In submit-agreement.php
$save_multiple_formats = true;  // Saves PNG, WebP, and SVG

Form Validation

Add custom validation to the PHP script:

// Add to validateInput() function
if (empty($data['company']) && $require_company) {
    $errors[] = "Company name is required.";
}

📁 File Structure

Your final directory structure should look like:

your-website/
├── demo/                                    # Demo & Testing
│   ├── signature-pad-demo.html            # Simple signature demo
│   ├── css/
│   │   ├── signature-pad.css
│   │   └── bootstrap-custom.css
│   └── js/
│       ├── app.js
│       └── signature_pad.umd.js
├── form-integration/                        # Business Integration
│   └── business-form.html                  # Complete form (self-contained)
├── backend/                                 # Server Processing
│   ├── submit-agreement.php                # Form processor (PHP 8.1+)
│   ├── uploads/
│   │   ├── .htaccess                      # Security config
│   │   └── signatures/                     # Signature files
│   │       ├── signature_1_20240101123456.png
│   │       ├── signature_1_20240101123456.webp
│   │       └── signature_1_20240101123456.svg
│   ├── signature_form_errors.log          # Error log (auto-created)
│   └── signature_form_success.log         # Success log (auto-created)
├── CLAUDE.md                               # Development guidance
└── README.md                              # This file

🗄️ Database Schema

The form submissions table structure:

Field	Type	Description
id	INT (PK)	Auto-incrementing primary key
full_name	VARCHAR(255)	User's full name
email	VARCHAR(255)	User's email address
company	VARCHAR(255)	Company name (optional)
signature_method	ENUM	'drawn' or 'typed'
signature_data	TEXT	Text signature data
signature_file_png	VARCHAR(255)	PNG filename
signature_file_webp	VARCHAR(255)	WebP filename
signature_file_svg	VARCHAR(255)	SVG filename
agree_terms	BOOLEAN	Terms agreement status
ip_address	VARCHAR(45)	User's IP address
user_agent	TEXT	Browser user agent
submitted_at	TIMESTAMP	Submission timestamp

🔒 Security Considerations

File Upload Security

• File type validation: Only allows PNG, WebP, SVG formats (optimal for signatures)
• File size limits: Configurable maximum file size
• Unique filenames: Prevents file conflicts and overwrites
• Directory protection: Prevents direct file access
• No script execution: PHP execution disabled in uploads directory

Database Security

• Prepared statements: Prevents SQL injection
• Input validation: Validates all user input
• Error handling: Doesn't expose sensitive information

Additional Recommendations

1. Use HTTPS: Always serve forms over HTTPS
2. Rate limiting: Implement rate limiting for form submissions
3. CSRF protection: Add CSRF tokens to forms
4. File scanning: Consider virus scanning for uploaded files
5. Backup strategy: Regular database and file backups

🐛 Troubleshooting

Common Issues

"Database connection error"

• Check database credentials in PHP script
• Verify database server is running
• Ensure PHP PDO MySQL extension is installed

"Upload directory setup failed"

• Check directory permissions (should be 755)
• Verify web server has write access
• Check available disk space

"SignaturePad not loaded"

• Check internet connection (CDN dependency)
• Verify JavaScript console for errors
• Try the local fallback option

Signature not saving

• Check upload directory permissions
• Verify file size limits
• Check error logs for detailed messages

Debug Mode

Enable debug mode for detailed error information:

$debug_mode = true;  // In submit-agreement.php

⚠️ Warning: Never enable debug mode in production!

Log Files

Check these log files for troubleshooting:

• signature_form_errors.log - Application errors
• signature_form_success.log - Successful submissions
• Server error logs (location varies by setup)

📚 Advanced Usage

Custom Email Notifications

Add email functionality to the PHP script:

// After successful submission
$to = $email;
$subject = "Form Submission Confirmation";
$message = "Thank you for your submission, {$full_name}!";
$headers = "From: noreply@yoursite.com\r\n";
mail($to, $subject, $message, $headers);

File Download Feature

Create a download script for accessing signature files:

// download-signature.php
$submission_id = $_GET['id'];
$format = $_GET['format']; // png, jpg, or svg

$paths = getSignatureFilePaths($submission_id);
if (isset($paths[$format])) {
    $file_path = $paths[$format];
    header('Content-Type: application/octet-stream');
    header('Content-Disposition: attachment; filename="signature.' . $format . '"');
    readfile($file_path);
}

Integration with Popular CMSs

WordPress Integration

• Place files in active theme directory
• Use WordPress database functions instead of direct PDO
• Add proper nonces for CSRF protection

Custom Framework Integration

• Adapt database configuration to your framework's ORM
• Use framework's validation and error handling
• Integrate with existing user authentication

📄 License

This example builds upon the MIT-licensed signature_pad library. The integration code provided here is also available under the MIT license.

🤝 Contributing

Feel free to submit issues, fork the repository, and create pull requests for any improvements.

📞 Support

For issues related to:

• Signature Pad Library: Visit the original repository
• Integration Code: Check the troubleshooting section above or create an issue

---

Happy coding! 🎨✍️
