- this project is part of Introduction to AI Course , our mission is to Classify the data collected for the drivers into 3 classes ( aggrissive , normal , conservative) by using K-means Algorithm in Python the added value of this project is to use the output model to in the Automation Driving Process to help the Agent Predict the Actions of the Drivers based on the predicted class .
All the mentioned code and data in the "README.md" file can be found in the "Development" branch. Each team member's contribution to the code can also be found in the commits merged to the "Development" branch. The main will be used/merged to when reaching the final submission of this project.
- The "Data" class handles the combination of data and converting it to a dataframe (for the purpose of calculating the Volatilaty Measures). Using the join functionality we take all the files named "_tracks.csv" and place them onto a list using the glob method. Then we read each element in that list as a csv and convert it to a dataframe using the dataframe concat and map methods (The "tracksMeta" fiiles follow the same concept).
self.tracks = self.get_tracks_paths()
self.metas = self.get_tracks_meta_paths()
self.tracks = glob.glob(self.tracks)
self.metas = glob.glob(self.metas)
self.tracks_df = self.init_tracks_df()
self.metas_df = self.init_tracks_meta_df()
def get_tracks_paths(self):
return os.path.join("data/", "*_tracks.csv")
def get_tracks_meta_paths(self):
return os.path.join("data/", "*_tracksMeta.csv")
def init_tracks_df(self):
return pd.concat(map(pd.read_csv, self.tracks), ignore_index = True)
def init_tracks_meta_df(self):
return pd.concat(map(pd.read_csv, self.metas), ignore_index = True)- The "featureEngineering" class contains a the "dataFrameInitialize" method which takes the original dataframe and uses the "trackId" and "recordingId" from the "tracksMeta.csv" files as keys.
def data_frame_init(self):
self.volatility_df["trackId"] = self.data.metas_df["trackId"]
self.volatility_df["recordingId"] = self.data.metas_df["recordingId"]- Using the row passed through the "apply" method we compared the "TrackId" and the "recordingId" of the "result" dataframe, which only contains unique drivers, and original dataframe, which contains every frame recorded for each driver. Then took the required column for the matching volatility measure. Calculation for Acceleration/Deceleration follows the same concept.
def calculate_speed_deviation(self,row):
track_id = int(row['trackId'])
recording_id = int(row['recordingId'])
condition = (self.data.tracks_df["trackId"] == track_id) & (self.data.tracks_df["recordingId"] == recording_id)
filtered_df = (self.data.tracks_df[condition]["xVelocity"])
sd = filtered_df.std()
return sd- Using the row passed through the "apply" method we compared the "TrackId" and the "recordingId" of the "result" dataframe, which only contains unique drivers, and original dataframe, which contains every frame recorded for each driver. Then took the needed column to calculate the mean/average of that column to then calculate the coefficients using the standard deviation for the respective column (Standard Deviation from the previously calculated Volatility Measure was not used because all the functions run in parallel to speed up the calculation process) and the given volatility measure formula.
def calculate_speed_variation(self, row):
track_id = int(row["trackId"])
recording_id = int(row['recordingId'])
condition = (self.data.tracks_df["trackId"] == track_id) & (self.data.tracks_df["recordingId"] == recording_id)
ff = (self.data.tracks_df[condition]["xVelocity"])
dv1 = ff.std()
mean = self.data.tracks_df[condition]["xVelocity"].mean()
if(mean == 0):
return 0
return 100*(dv1/mean)- Using the row passed through the "apply" method we compared the "TrackId" and the "recordingId" of the "result" dataframe, which only contains unique drivers, and original dataframe, which contains every frame recorded for each driver. Then took the required column for each given Volatility Measure forumla. Finally, using the "mad" predefined method from Pandas, we calculated the absolute value for each row.
def calculate_abs_speed_deviation(self,row):
track_id = int(row["trackId"])
recording_id = int(row["recordingId"])
condition = (self.data.tracks_df["trackId"]==track_id) & (self.data.tracks_df["recordingId"]==recording_id)
calculated_df = (self.data.tracks_df[condition]["xVelocity"])
return calculated_df.mad()- Using the row passed through the "apply" method we compared the "TrackId" and the "recordingId" of the "result" dataframe, which only contains unique drivers, and original dataframe, which contains every frame recorded for each driver. Then, using the "quantile" predefined functionality, we passed the percentile needed (25th & 75th), then checked if any calculated value equals 0 to avoid inputting "Not a Number (NaN)" values into the dataframe. Finally, we returned the result based on the given formula from the Volatility Measures paper.
def calculate_quantile_co_speed(self,row):
track_id = int(row["trackId"])
recording_id = int(row["recordingId"])
condition = (self.data.tracks_df["trackId"]==track_id) & (self.data.tracks_df["recordingId"]==recording_id)
Q1 = ((self.data.tracks_df[condition]["xVelocity"]).quantile(0.25))
Q3 = ((self.data.tracks_df[condition]["xVelocity"]).quantile(0.75))
if Q1 + Q3 == 0 or math.isnan(Q1) or math.isnan(Q3):
return 0
result = 100*((Q3-Q1)/(Q3+Q1))
return resultPercentage of Time Mean Exceeds Mean Plus Two Standard Deviations (Speed, Acceleration, Deceleration)
- Using the row passed through the "apply" method we compared the "TrackId" and the "recordingId" of the "result" dataframe, which only contains unique drivers, and original dataframe, which contains every frame recorded for each driver. Then calculated the mean for the retrieved values and the count of times that column exceeded the calculated mean plus two standard deviation (The standard deviation is the one previously-calculated for the matching column). Finally, we returned the result using the formula given in the Volatility Measure paper.
def calculate_percentage_time_speed(self, row):
track_id = int(row["trackId"])
recording_id = int(row['recordingId'])
condition = (self.data.tracks_df["trackId"] == track_id) & (self.data.tracks_df["recordingId"] == recording_id)
ff = (self.data.tracks_df[condition]["xVelocity"])
dv1 = ff.std()
double_velocity_std = 2*dv1
filtered_df = (self.data.tracks_df[condition])
mean = filtered_df["xVelocity"].mean()
size_of_filtered_df = (filtered_df["xVelocity"]).shape[0]
number_of_speeds_exceeds_mean = (filtered_df[filtered_df["xVelocity"] >= (mean + double_velocity_std)]).shape[0]
return (100*(number_of_speeds_exceeds_mean/size_of_filtered_df))- The "apply" method uses the predefined "apply" functionality from the Pandas library to iterate through each row of the dataframe and applying the above mentioned method to every row. The resulting dataframe contains "recordingId", "trackId" (As keys) as well as all the calculated (13) Volatility Measures.
def apply_dv1(self):
self.volatility_df["DV1"] = self.volatility_df.apply(self.calculate_speed_deviation, axis = 1)- Finally, all the "apply" methods for the Volatility Measures are called in the "dv_application" method that runs each needed Measures in a thread, which allows all of them to run in parallel.
def dv_application(self):
threads = [
Thread(target = self.apply_dv1),
Thread(target = self.apply_dv2),
Thread(target = self.apply_dv3),
Thread(target = self.apply_dv4),
Thread(target = self.apply_dv5),
Thread(target = self.apply_dv6),
Thread(target = self.apply_dv7),
Thread(target = self.apply_dv8),
Thread(target = self.apply_dv9),
Thread(target = self.apply_dv10),
Thread(target = self.apply_dv11),
Thread(target = self.apply_dv12),
Thread(target = self.apply_dv13)
]
for thread in threads:
thread.start()
for thread in threads:
thread.join()1. Data Cleaning
- before start using clustering algorithm we need to check that the data don't contains NaN values
new_df = self.df.copy(deep=True) new_df= new_df.replace([np.inf, -np.inf], np.nan) new_df = new_df.dropna() new_df = new_df.reset_index()
- Normalization
- to get more accurate result we need to change the data range to be from 0 to 1 using MinMaxScaler Algorithm
scaler = MinMaxScaler() scaler.fit(self.cleaned_data) return scaler.transform(self.cleaned_data)
- To be able to detect and find the optimal number of clusters, we have to run the K-Means Clustering algorithm with a random amount of clusters (1 to 10 in our case) to find the sum of squared distances to their closest cluster center for each cluster number's run and save that result to a list called "inertia". Then, using a plot, we represented the inertia of each run in comparison to its cluster number's run. Finally, we used the "KneeLocator" package to observe where the graph begings to flatten out so we could find the elbow point.
inertia = []
k_range = range(1, 11)
for k in k_range:
kmeans_model = KMeans(n_clusters=k)
kmeans_model.fit(X)
inertia.append(kmeans_model.inertia_)
plt.figure(figsize=(16, 8))
plt.plot(k_range, inertia, 'bx-')
plt.xlabel('Number of Clusters')
plt.ylabel('Inertia')
plt.xticks(k_range)
x = range(1, len(inertia) + 1)
kn = KneeLocator(x, inertia, curve='convex', direction='decreasing')
plt.annotate("Elbow Point", va='center', ha='right', xy=(kn.knee, inertia[kn.knee - 1]),
xytext=(kn.knee + 0.5, inertia[4] + 200),
arrowprops={'arrowstyle': '-|>', 'lw': 1, 'color': 'black'})
plt.annotate("Chosen K", va='center', ha='right', xy=(3, inertia[2]),
xytext=(3.5, inertia[2] + 200),
arrowprops={'arrowstyle': '-|>', 'lw': 1, 'color': 'black'})
plt.title('Elbow Method Showing The Optimal K')
plt.show()- The plot shows that the optimal number of clusters is 5, but we ended up using the 3 for the number of clusters (because we're interested only in 3 classifications to the drivers which are conservative, normal, and aggressive)
- we will use Kmeans algorithm to predict results
- create the instans from kmeans class with the optimal k
kmeans = KMeans(n_clusters=self.optimal_K)
- fit the data to the model to predict results
kmeans.fit(self.scaled_data)
- create new dataFrame with the predicted results
clusters=pd.DataFrame(self.cleaned_data,columns=self.df.drop(["trackId","recordingId"],axis=1).columns) clusters['label']=kmeans.labels_

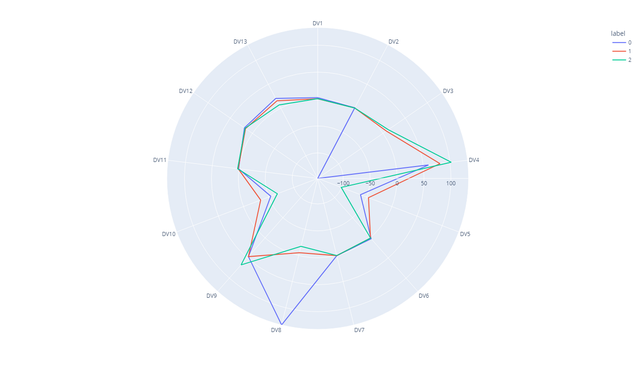

line polar graph to show the effect of each attribute in clustering
using DV1 , DV2 , DV3 and DV4 we can start figuring out each label's category
label0 = self.clusters[self.clusters["label"]==0]
label1 = self.clusters[self.clusters["label"]==1]
label2 = self.clusters[self.clusters["label"]==2]
#DV1
print(f"mean for label 0 {label0['DV1'].mean()} ")
print(f"mean for label 1 {label1['DV1'].mean()} ")
print(f"mean for label 2 {label2['DV1'].mean()} ")
#the aggressive mean for DV1 should be the largest one between the rest of the labels
#the conservative mean for DV1 should be the smallest one between the rest of the labels
#DV3
print(f"Coefficient for label 0 {label0['DV3'].mean()} ")
print(f"Coefficient for label 1 {label1['DV3'].mean()} ")
print(f"Coefficient for label 2 {label2['DV3'].mean()} ")
#the aggressive mean for DV3 should be the largest one between the rest of the labels
#the conservative mean for DV3 should be the smallest one between the rest of the labels
#DV2
print(f"mean2 for label 0 {label0['DV2'].mean()} ")
print(f"mean2 for label 1 {label1['DV2'].mean()} ")
print(f"mean2 for label 2 {label2['DV2'].mean()} ")
#the aggressive mean for DV3 should be the largest one between the rest of the labels
#the conservative and the normal in this case will be closely valued
#DV4
print(f"Coefficient2 for label 0 {label0['DV4'].mean()} ")
print(f"Coefficient2 for label 1 {label1['DV4'].mean()} ")
print(f"Coefficient2 for label 2 {label2['DV4'].mean()} ")
#the aggressive mean for DV3 should be the smallest one between the rest of the labels
#the conservative mean for DV3 should be the largest one between the rest of the labels
