I am excited to write this that I just completed my first-ever AI project in the course of "Introduction to Artificial Intelligence" in my 6th semester of my Bachelor of Computer Science. This project provided me great experience and knowledge about how AI actually worked and I got hands-on experience in AI. I have learned a lot about various AI algorithms and techniques such as supervised learning, unsupervised learning, reinforcement learning, deep learning, and many more. Additionally, I have learned how to implement AI algorithms in Python, and also how to prepare data for machine learning models. Hope to continue adding new things to my learning.

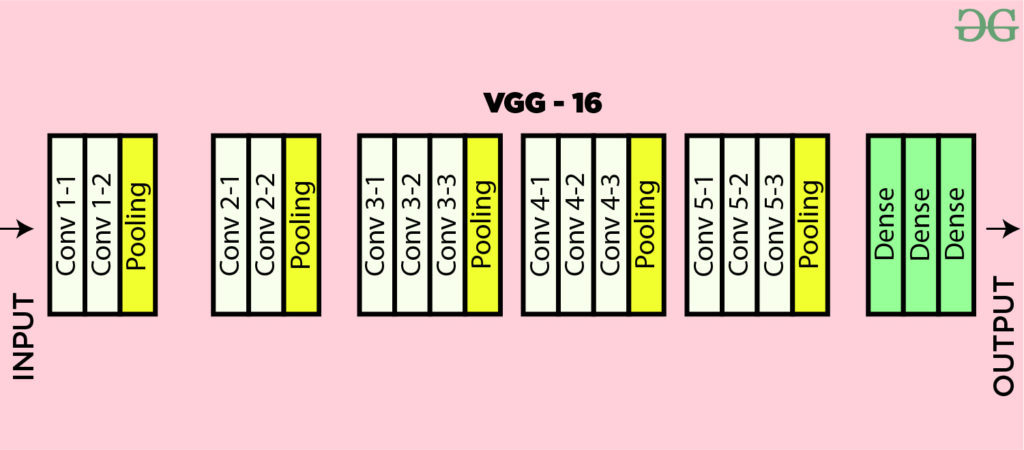

VGG16 is a convolution neural net (CNN ) architecture which was used to win ILSVR(Imagenet) competition in 2014. It is considered to be one of the excellent vision model architecture till date. Most unique thing about VGG16 is that instead of having a large number of hyper-parameter they focused on having convolution layers of 3x3 filter with a stride 1 and always used same padding and maxpool layer of 2x2 filter of stride 2. It follows this arrangement of convolution and max pool layers consistently throughout the whole architecture. In the end it has 2 FC(fully connected layers) followed by a softmax for output. The 16 in VGG16 refers to it has 16 layers that have weights. This network is a pretty large network and it has about 138 million (approx) parameters.
The input to the network is image of dimensions (224, 224, 3). The first two layers have 64 channels of 33 filter size and same padding. Then after a max pool layer of stride (2, 2), two layers which have convolution layers of 256 filter size and filter size (3, 3). This followed by a max pooling layer of stride (2, 2) which is same as previous layer. Then there are 2 convolution layers of filter size (3, 3) and 256 filter. After that there are 2 sets of 3 convolution layer and a max pool layer. Each have 512 filters of (3, 3) size with same padding.This image is then passed to the stack of two convolution layers. In these convolution and max pooling layers, the filters we use is of the size 33 instead of 1111 in AlexNet and 77 in ZF-Net. In some of the layers, it also uses 1*1 pixel which is used to manipulate the number of input channels. There is a padding of 1-pixel (same padding) done after each convolution layer to prevent the spatial feature of the image.
After the stack of convolution and max-pooling layer, we got a (7, 7, 512) feature map. We flatten this output to make it a (1, 25088) feature vector.After this there are 3 fully connected layer, the first layer takes input from the last feature vector and outputs a (1, 4096) vector, second layer also outputs a vector of size (1, 4096) but the third layer output a 1000 channels for 1000 classes of ILSVRC challenge, then after the output of 3rd fully connected layer is passed to softmax layer in order to normalize the classification vector. After the output of classification vector top-5 categories for evaluation. All the hidden layers use ReLU as its activation function. ReLU is more computationally efficient because it results in faster learning and it also decreases the likelihood of vanishing gradient problem.
CIFAR-10 is an established computer-vision dataset used for object recognition. It is a subset of the 80 million tiny images dataset and consists of 60,000 32x32 color images containing one of 10 object classes, with 6000 images per class. It was collected by Alex Krizhevsky, Vinod Nair, and Geoffrey Hinton. The dataset is divided into five training batches and one test batch, each with 10000 images. The test batch contains exactly 1000 randomly-selected images from each class. The training batches contain the remaining images in random order, but some training batches may contain more images from one class than another. Between them, the training batches contain exactly 5000 images from each class.
