Cursed Furby

All hail the long Furby

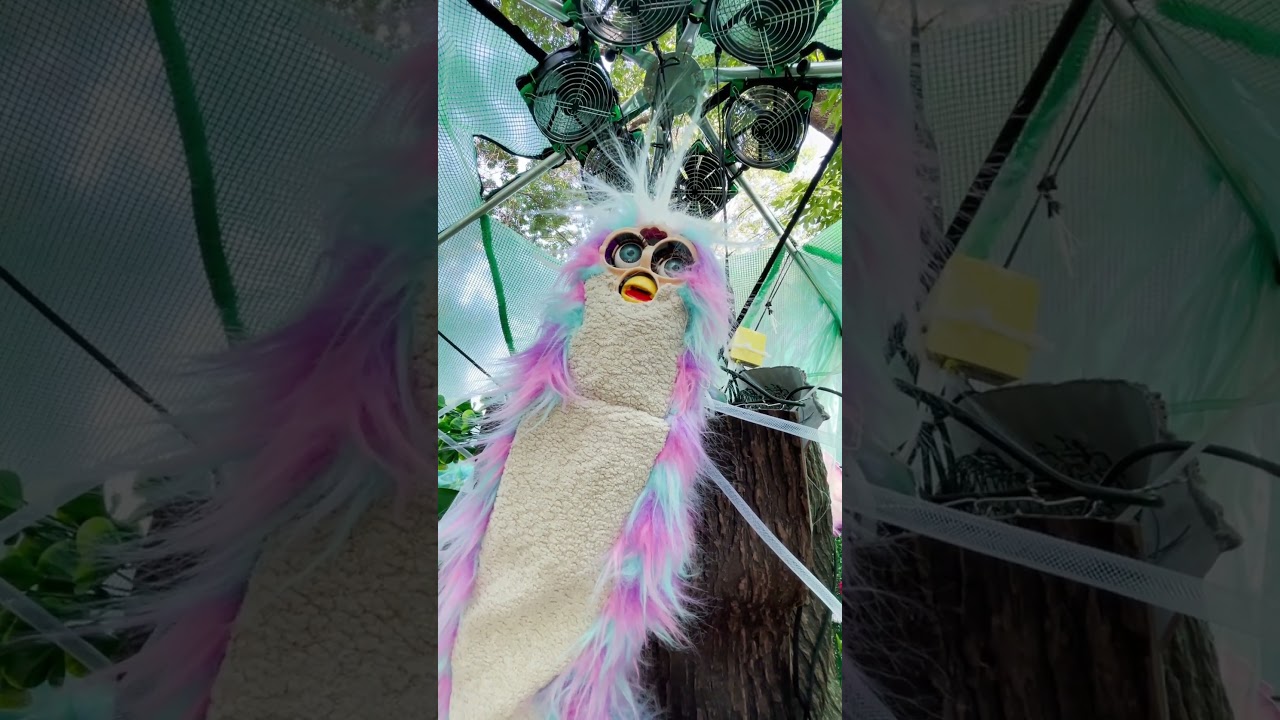

Demo video: The Furby Queen responds to puny mortal:

---

The Furby Queen was part of the Cursed Odditree, an animatronic art installation created by HA and MA. Shown at Firefly Arts Festival 2025 and FIGMENT 2025.

Read below on how to create your own version, which involves: building the local LLM stack, including Retrieval-Augmented Generation (RAG), training your own voice model, and deploying everything on Jetson hardware. It is compatible with the latest Jetson Orin Nano Super Dev Kit.

1 Overview

Cursed Furby combines

• Real-time speech recognition (Whisper) and Local LLM dialog (llama.cpp) on an NVIDIA Jetson Orin Nano,
• Expressive speech synthesis (Piper) with a custom-trained Furby voice (see voice_piper_finetune),
• Biometric sensing (MR60BHA2 radar) and motor control handled by a Raspberry Pi Zero W, and
• MQTT messaging to glue everything together

The result is a long fluffy mildly ominous Furby Queen that listens and responds and even reacts to your heart/breathing rate, and distance.

2 Hardware Bill of Materials

Qty	Part	Purpose
1	NVIDIA Jetson Orin Nano 8 GB	Runs Whisper, llama.cpp and Piper TTS
1	Raspberry Pi Zero W	Drives motors & reads sensors
1	MR60BHA2 mm-wave radar	Heart-rate / breath / distance sensing
1	L298N motor driver	Controls Furby motor
1	USB microphone array (ReSpeaker 4-Mic)	Audio input
1	USB speaker / DAC	Audio output

Repository Layout

├─ furby_queen.py         # Main app on Jetson – STT/LLM/TTS + beak sync
├─ jetson_mqtt/           # Jetson-side helpers (motor_context, vitals cache, .service)
├─ pi_mqtt/               # Pi-side MQTT agent (sensor + motor)
├─ utils/                 # Misc one-off scripts
├─ config.yaml            # Central configuration (MQTT, vitals)
└─ hardware/              # Wiring diagrams & test scripts

Getting Started

Jetson Orin Nano

1. Flash JetPack ≥ 5 and enable the Ubuntu 22.04 container runtime.
2. sudo apt install git build-essential python3-venv python3-pip ffmpeg.
3. Clone the repo:

   git clone https://github.com/malbu/cursed_furby.git
   cd cursed_furby

4. Create a venv and install Python deps:

   python3 -m venv furby_env
   source furby_env/bin/activate


5. Build llama.cpp:

    cd ~
   git clone https://github.com/ggerganov/llama.cpp.git
   cd llama.cpp && mkdir build && cd build


Jetson Orin Nano is compute capability 8.7

cmake .. -DLLAMA_CUBLAS=ON -DGGML_CUDA_ARCHS="87"
-DCMAKE_BUILD_TYPE=Release make -j$(nproc)

6. Copy your quantised *Gemma-2B-IT* GGUF model to `~/llama.cpp/models/` and the fine-tuned
`furby_finetuned.onnx` model to `/usr/local/share/piper/models/`.
7. Test locally: `python furby_queen.py`.

### 5.2  Raspberry Pi Zero W
1. **Flash Raspberry Pi OS Lite (64-bit)** and enable SSH + Wi-Fi.
2. `sudo apt install git python3-venv python3-pip pigpio` and enable `pigpiod` at boot.
3. Clone the same repo and create a venv:
```bash
git clone https://github.com/yourname/cursed_furby.git
cd cursed_furby
python3 -m venv furby_controls-env
source furby_controls-env/bin/activate

4. Wire the MR60BHA2 to /dev/ttyACM0 (USB-UART) and L298N to BCM 27/22/13.
5. Start manually with python -m pi_mqtt

6 Configuration

Edit config.yaml to point to your MQTT broker IP or leave the default when the Jetson is broker which was my default

mqtt:
  broker_host: 192.168.8.234
  broker_port: 1883
vitals:
  ttl_seconds: 5

Both Jetson and Pi read the same file, so keep it in sync.

7 Running as a Service

Jetson

sudo cp jetson_mqtt/the_furby.service /etc/systemd/system/
sudo systemctl daemon-reload
sudo systemctl enable --now the_furby.service

Pi

sudo cp pi_mqtt/pi_mqtt.service /etc/systemd/system/
sudo systemctl daemon-reload
sudo systemctl enable --now pi_mqtt.service

Logs are available with journalctl -u the_furby -f and journalctl -u pi_mqtt -f.

8 MQTT Topics

Topic	Direction	Payload
furby/motor/cmd	Jetson -> Pi	start / stop
sensor/biometrics	Pi -> Jetson	JSON {heart, breath, dist_cm} or string [UNLOCK] …
pi/status	Pi -> Broker	online / offline (LWT)

9 Development Tips

• USE_EMBEDDINGS can be toggled in furby_queen.py to enable RAG via sentence-transformers.
• Edit jetson_mqtt/vitals.py probabilities to make the Queen mention biometrics more or less often.

---

License: MIT © 2025 Mihai Albu. Have fun, stay cursed!
