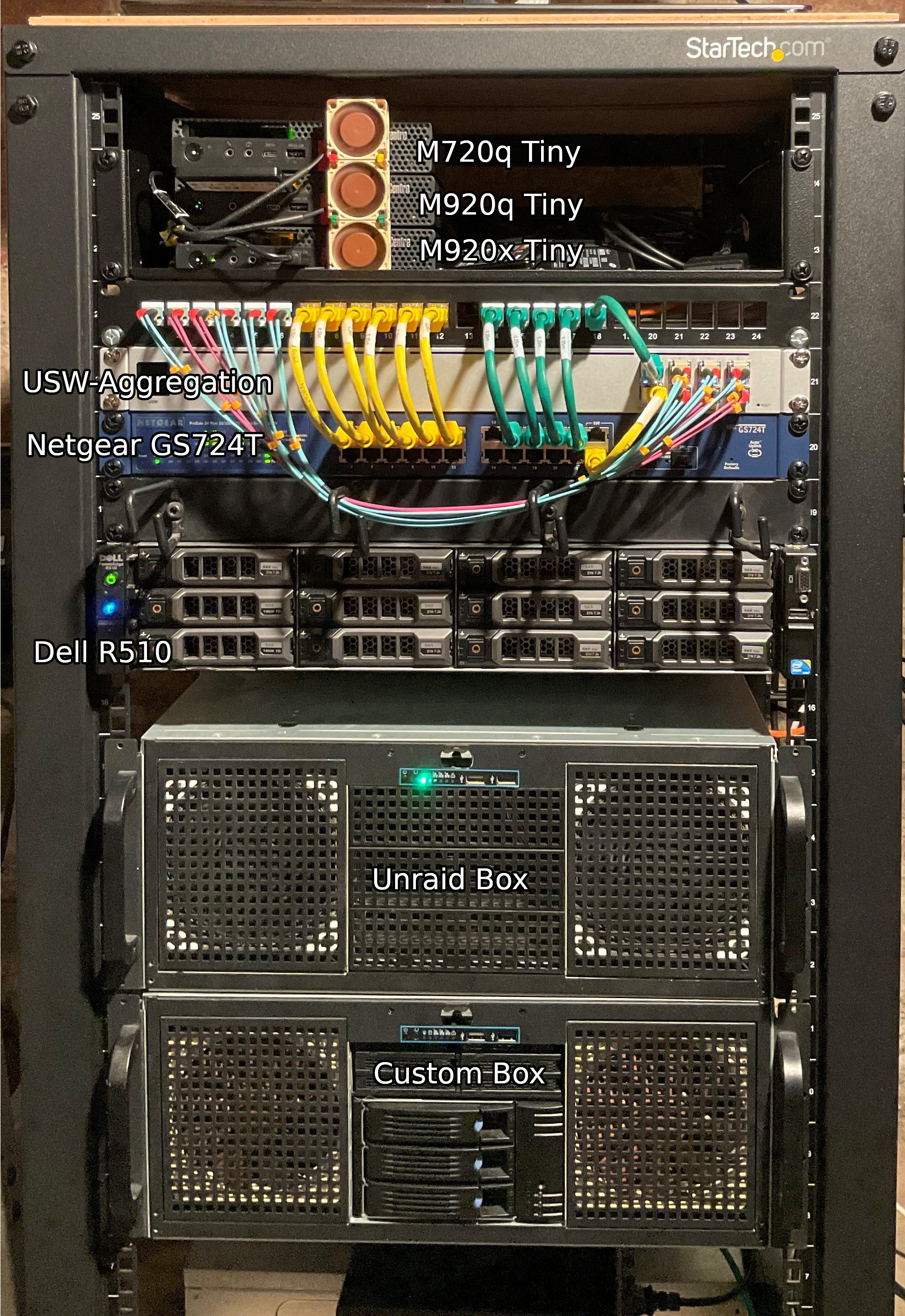

This repository has a collection of notes, configs and the likes I use to run my homelab.
Runs most services in the homelab. All services run in docker containers inside of LXC containers. A Ceph cluster allows for redundant and easily migratable storage of all services. A 10 gbit/s connection allows for a high cluster performance. See the lxc folder for templates of the different services.
OS: Proxmox VE 7
CEPH: 16.2
CPUs: 18c/18t
RAM: 96 GB @ 2133 MHz
Storage:
boot: 1,25 TB
ceph: 3 TB (1 TB usable because of three way replication)
NET: 10 gbit SFP+
CPU: Intel i5-8400 - 6c/6t @ 2,8/4,0 GHz - 65 W
RAM: 64 GB @ 2133 MHz
Storage:
boot: 256 GB Samsung (nvme)
ceph: 1 TB Kioxia Excercia Plus (nvme)
NIC: Mellanox ConnectX-3 - 1 SFP+ Port
CPU: Intel i5-8500T - 6c/6t @ 2,1/3,5 GHz - 35 W
RAM: 16GB @ 2133 MHz
Storage:
boot: 500 GB Samsung 840 EVO (SATA)
ceph: 1 TB Kioxia Excercia Plus (nvme)
NIC: Mellanox ConnectX-3 - 1 SFP+ Port
CPU: Intel i5-8500T - 6c/6t @ 2,1/3,5 GHz - 35 W
RAM: 16 GB @ 2133 MHz
Storage:
boot: 500 GB Samsung 840 EVO (SATA)
ceph: 1 TB Kioxia Excercia Plus (nvme)
NIC: Mellanox ConnectX-3 - 1 SFP+ Port
Current backup solution and mass storage device. Connected via a 10 gbit/s link for fast backup speeds. Due to Unraids storage architecture the link is not fully utilized as the max speed achieved by the array is the max speed of a given hard disk drive.
OS: Unraid 6.9
CPU: AMD FX-8350 - 8c/8t @4,0 GHz
RAM: 16 GB @ 1600 MHz
Storage:
boot: 32 GB Flash Drive
mass storage: 4 x 8 TB WD HDD (24 TB usable)
NIC: Mellanox ConnectX-2 - 1 SFP+ Port
GPU: NVIDIA GT 1030
Case: 4U Inter Tech Rack case
CPU: 2 x Intel X5660 - 6c/12t @ 2,8/3,2 GHz - 95 W
RAM: 96 GB @ 1033 MHz
Storage:
boot: 120 GB Samsung SSD (SATA)
mass storage: 8 x 2 TB HDD
NIC: Mellanox ConnectX-2
CPU: 2 x Intel X5660 - 6c/12t @ 2,8/3,2 GHz - 95 W
RAM: 96 GB @ 1033 MHz
Storage:
boot: none
NIC: HP 2 x SFP+ card
Case: 4U Inter Tech Rack case
A Raspberry Pi 3 B+ running dnsmasq to provide the whole home network with DNS services. See the dnsmasq folder for the dnsmasq config and hosts file.
4 Raspberrry Pi 3 B+ running a assortment of sensors to measure room temperature, humidity, etc. See the smarthome folders for the prometheus exporters running of the Raspis. Prometheus is used to scrape the exporters and Grafana to visualize the data.
10 G backbone with 8 SFP+ ports.
24 Port Gigabit switch for general connectivity.
Just a FritzBox
