A Valentine's Installation That Plays Music When You Show It Flowers

Botanical Music — hear the melody of every bloom. For Valentine's, we built an interactive installation that combines computer vision, floriography (the language of flowers), and hardware. Show a rose and the speaker plays one tune; show a bouquet and it plays another. A pulsing heart, driven by an op-amp, grows and shrinks with the moment.

• Submitted to MakeUofT 2026

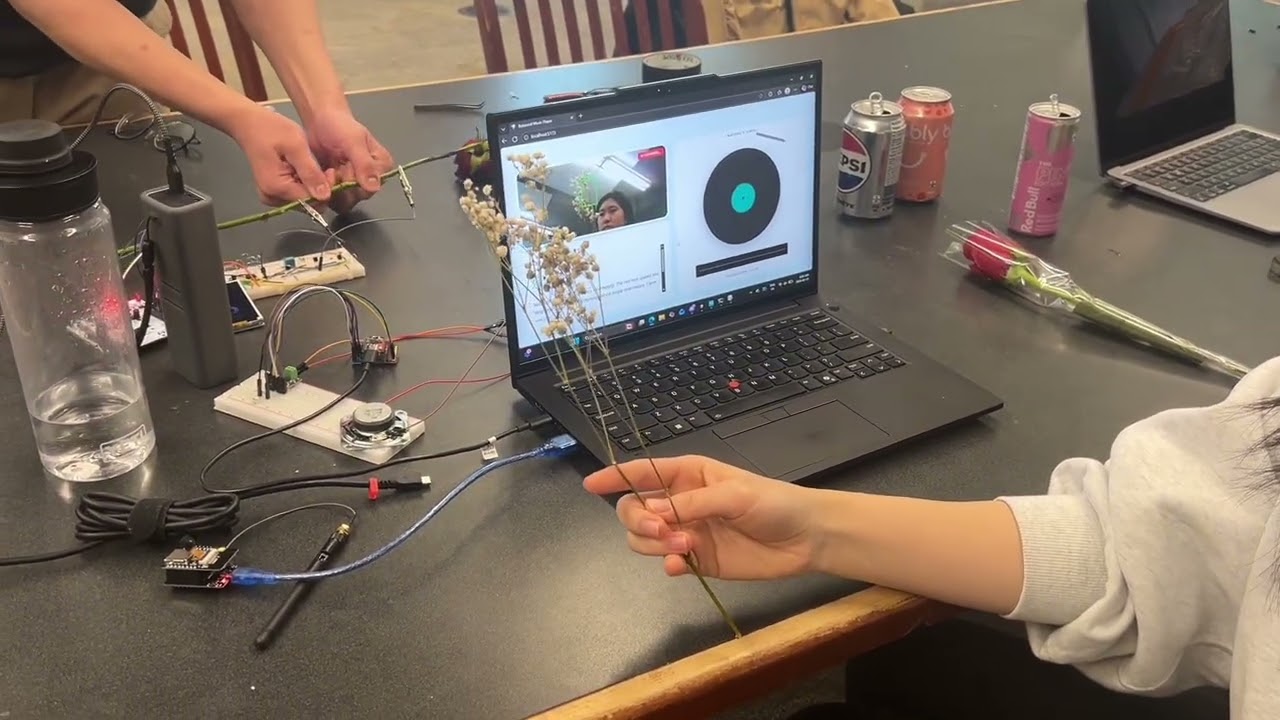

Demo

▶ Watch on YouTube

---

Gallery

Make_Flora op amp demo	Botanical Music Player app

---

Concept

We wanted something romantic and playful for Valentine's — an experience that feels like flowers talking through music. Walk up with a rose, and the system recognizes it and plays a song. A separate ESP32 drives an I2S speaker, and an op-amp circuit controls a heart that pulses — bigger when there's a flower in view, smaller when there isn't.

---

Flow

1. Point the ESP32-CAM at a flower or bouquet
2. PC pulls frames and sends them to Roboflow, receiving bounding boxes
3. Server returns { "name": "Rose" } or { "name": "Flower Cluster" } via /detection
4. Speaker ESP32 polls that endpoint: Rose → song 1, Flower Cluster → song 2, no detection → silence
5. Frontend displays live video with bounding boxes and floriography text
6. Op-amp heart grows or shrinks based on detection intensity

---

Floriography

Flower	Language
Rose	Roses symbolize love, passion, and beauty. The red rose speaks the language of the heart. In floriography, a single rose means "I love you still."
Flower Cluster	A gathering of blooms speaks of abundance, joy, and the beauty of nature in full expression.

---

Tech Stack

Layer	Tech
Camera	ESP32-CAM, MJPEG stream
Detection	Roboflow serverless workflows (find-roses, find-cluster-of-flowers), YOLO
Backend	Python, Flask, OpenCV, MjpegStreamReader
Frontend	React, Vite, ReactPlayer
Speaker	ESP32, I2S DAC/amp, sine-wave synthesis
Heart	Op-amp circuit (Miller compensation), PWM/analog envelope, MOSFET, STM32

Built with: C++, ESP32, MOSFET, Op-amp, Python, Roboflow, Speaker, STM32, YOLO

---

Setup

1. Clone the repo

git clone https://github.com/lee-cheng-han/Make_Flora.git
cd Make_Flora

2. Install Python dependencies

pip install -r requirements.txt

3. Run detection (standalone)

$env:CAMERA_SOURCE = "http://YOUR_ESP32_IP/stream"
.\run_rose_detect.ps1

4. Run the full web app

Terminal 1 – detection server

$env:CAMERA_SOURCE = "http://YOUR_ESP32_IP/stream"
python detect_stream_server.py --api

Terminal 2 – frontend

cd v1_plant_music_player/frontend
npm install && npm run dev

Open http://localhost:5173

5. ESP32-CAM setup

1. Open ESP32_CAM_Stream/ESP32_CAM_Stream.ino in Arduino IDE
2. Set WiFi credentials (ssid, password)
3. Board: AI Thinker ESP32-CAM
4. Upload → Serial Monitor (115200) shows the IP

6. Speaker ESP32 setup

1. Open MakeUofT_2.3/MakeUofT_2.3.ino
2. Set DETECTION_SERVER to your PC's IP: http://YOUR_PC_IP:5000/detection
3. Upload to the speaker ESP32

---

Challenges & Learnings

• Speaker static — HTTP polling blocked the main loop. Moving detection polling to a FreeRTOS task on another core kept the audio loop smooth.
• IP addresses — ESP32-CAM, PC, and speaker ESP32 must share the same subnet. Set DETECTION_SERVER and CAMERA_SOURCE to the correct IPs.
• MJPEG on Windows — cv2.VideoCapture was unreliable with ESP32 streams. A custom MjpegStreamReader that parses multipart boundaries worked better.

---

Project Structure

Path	Description
detect_stream_server.py	Flask server: detection + MJPEG stream with boxes
webcam_rose_detect.py	Main detection script (Roboflow API or local best.pt)
MakeUofT_2.3/	Speaker ESP32 sketch (I2S audio, HTTP polling)
ESP32_CAM_Stream/	ESP32-CAM streaming sketch
v1_plant_music_player/frontend/	React frontend (Floriography, Nature's Vinyl)

---

Team

• Cheng Han Lee
• Kaixuan Jin
• Maggie Ma
• Shiheng Wang

---

Valentine's Twist

The heart circuit — driven by an op-amp and wired to grow or shrink with detection — turns the installation into a Valentine's piece. The heart pulses when flowers are in view and settles when they're gone. It's a small analog detail that ties the whole experience together.

Built for Valentine's — flowers, music, and a heart that listens.
