GeoJSON API

Simple rest API that allows the user to CRUD providers and service areas. This project was deployed to AWS using ECS - Elastic Container Service (link to deployed app).

Technologies

• Python
• Django
• Django Rest Framework
• Pytest
• AWS ECS
• AWS ECR
• Docker
• CircleCI
• PostGIS
• Caddy
• gunicorn

About the project

The django project has three main apps:

• users: Deals with the user sign up and api token request;
  • POST /api/v1/users/signup/: Sign up of new users;
  • POST /api/v1/users/token/: Endpoint for requesting auth tokens;
  • PUT/PATCH/GET: /api/v1/users/me/: Manage logged user data;
• providers: CRUD of providers. Each provider has an owner user, only this user can edit/delete the provider.
  • POST /api/v1/providers/: Create a new provider;
  • GET /api/v1/providers/: List providers;
  • GET /api/v1/providers/{id}: Retrieve provider;
  • PUT/PATCH /api/v1/providers/{id}: Update provider;
• serviceareas: CRUD of service areas.
  • GET /api/v1/serviceareas/?lat=x&lng=y: Query service areas that contains specific latitude and longitude;
  • POST /api/v1/serviceareas/: Create a new service area;
    • Example payload:

    {
        "name": "service area name",
        "price": 10.50,
        "provider": 1,
        "polygon": [
        {"lat": 1, "lng": 1},
        {"lat": 1, "lng": -1},
        {"lat": -1, "lng": -1},
        {"lat": -1, "lng": 1},
        {"lat": 1, "lng": 1}
        ]
    }


  • GET /api/v1/serviceareas/: List service areas;
  • GET /api/v1/serviceareas/{id}: Retrieve service area;
  • PUT/PATCH /api/v1/serviceareas/{id}: Update service area.

About PostGIS

The application database PostGIS is a spatial database extender for PostgreSQL object-relational database. It adds support for geographic objects allowing location queries to be run in SQL.

Deploy

This application was deployed using AWS ECS (link to deployed app). The project docker images were built and pushed to ECR. The ECS task has three containers:

• Django app: Runs gunicorn server;
• Caddy: Serves the static files, reverse proxy the django application and provides automatic https;
• PostGIS: Application database.

API docs (swagger)

Available swagger documentation at https://geojson.18.204.47.205.sslip.io/api/swagger/

Running the project

Requirements: Docker and docker-compose.

Most of the project settings comes from environment variables. You need to create a .env file similar to the .env-example at the repository root. Then you can start the local development server using the docker-compose command:

 docker-compose up --build

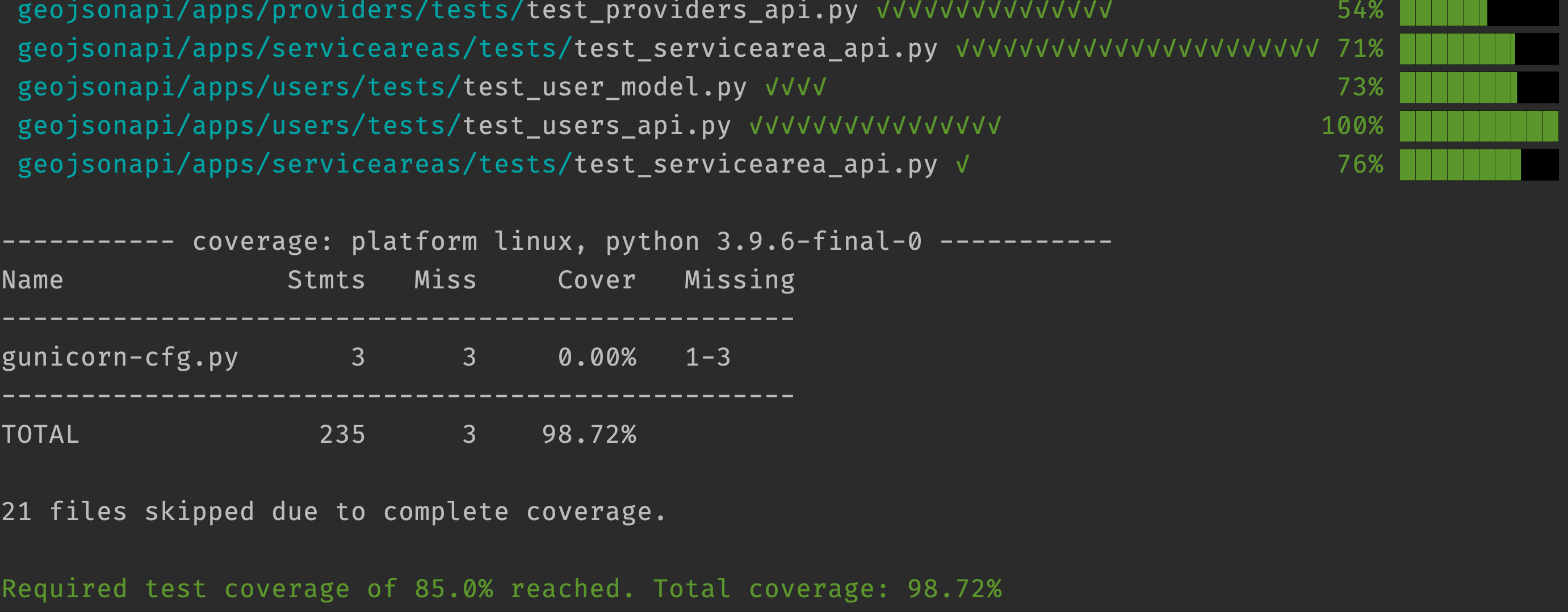

Running tests

The tests were written using the pytest framework. They can be run using the following command:

docker-compose run app bash -c "pytest geojsonapi/apps --cov . -n 8"
