My first keyboard DIY kit!

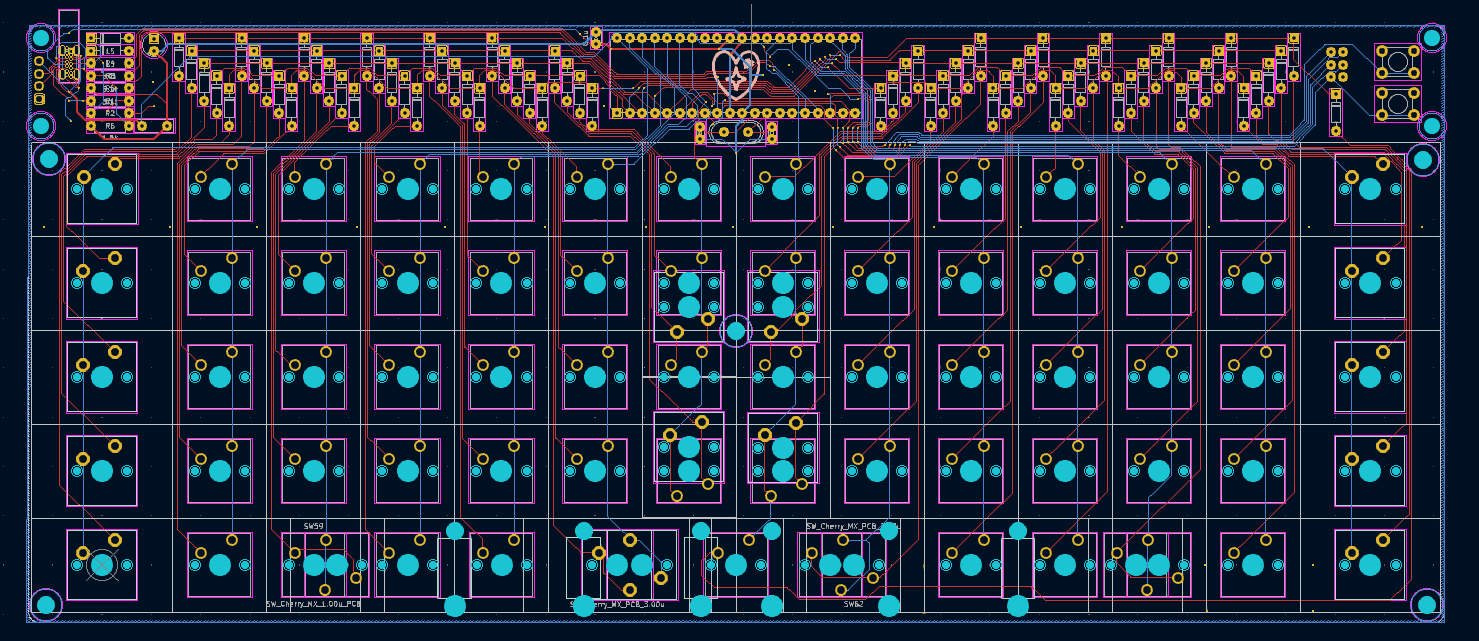

This is a 69 key (nice) keyboard assembled with only through hole components, including usb type-c.
This board is useing the ATmega32A MCU and running QMK Custom firmware.

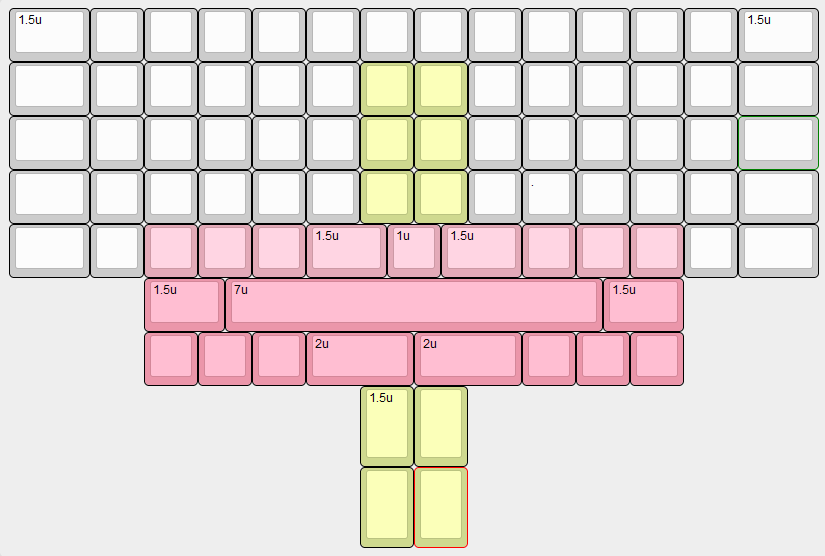

The basic layout of the board is a copy of the Boardwalk Ortho 5x14 with some extra configurations that can be swapped out.
This board was heavly inspaird by the Discipline 65% by and the
for the layout.
Everything for this project was done in the free viersons of KiCad 7 and Fusion 360.
