Restaurant-Recommendations

Table of Contents

1. Overview
2. Product Spec
3. Wireframes
4. Schema

Overview

Description

Restaurant recommendation app for friends, family, and couples who have a hard time deciding where to eat.

App Evaluation

• Category: Social Networking / Restaurants / Food
• Mobile: This app would be primarily developed for mobile but in the future could be easily converted to a website.
• Story: Users add restaurants they would like to dine at. Then they can add friends and get recommendations based on restaurants in both user's list.
• Market: Any individual who needs help deciding where to dine at.
• Habit: This app would be used whenever a user needs to figure out where to eat. I am asumming this app won't be used daily by a user but weekly or monthly.
• Scope: In the beginning this app would be among friends. But in the future it can evolve into a app that can just give you recommendations not needing another user's list. Also in the future this app can grow into a app that can give recommendations for a group of people and not just a single friend.

Product Spec

1. User Stories (Required and Optional)

Required Must-have Stories

• User login
• User register
• Search restaurants
• Add restaurants to favorites
• Add friends
• See friend's favorited restaurants
• Restaurant recomendtions based on both user's restaurant list.

Optional Nice-to-have Stories

• Texting a friend within the app to look at a restaurant.

2. Screen Archetypes

• Login / Register Screen

• User Profile Screen

  • See total amount of friends.
  • See favorited restaurants in a collectionView.
  • Add a new friend.
  • Go to search screen.
  • Go to friends sceen.
  • Log out user.

• Search Screen

  • Provides restaurants based on user's text entered.
  • Show results in a tableView.
  • When clicking cell go to restaurant detail page.

• Restaurant Detail Screen

  • Shows details of the restaurant.
  • Can add this restaurnt to your favorites.

• Friends screen

  • See all friends in a tableView.
  • When clicking a cell go to recommendation page.

• Recommendation Screen

  • TableView with two sections.
  • First section is recommended restaurants.
  • Second section is friend's other restaurants.

3. Navigation

Tab Navigation (Tab to Screen)

• Won't be using tabs.

Flow Navigation (Screen to Screen)

• Login page
  • Login -> Homepage
• HomePage
  • Homepage -> Login page, when sign out is clicked.
  • Homepage -> Search screen, when seach button is clicked.
  • Homepage -> Friend screen, when friend label is tapped.
• Seach Screen
  • Seach Screen -> restaurant detail, when cell is tapped.
  • Seach screen -> Home page, when back button on navigation bar is clicked.
• Restaurant Detail Screen
  • Restaurant Detail -> Home page, when add to favorites button is tapped.
  • Restaurant Detail -> Seach screen, when back button on navigation bar is tapped.
• Friend Screen
  • Friend Screen -> Recommendation screen, when tableView cell is clicked.
  • Friend Screen -> Home page, when back button on navigation bar is clicked.
• Restaurant Recommendatoin Screen
  • Restaurant Recommendatoin Screen -> Restaurant detail screen, when tableView cell is clicked.

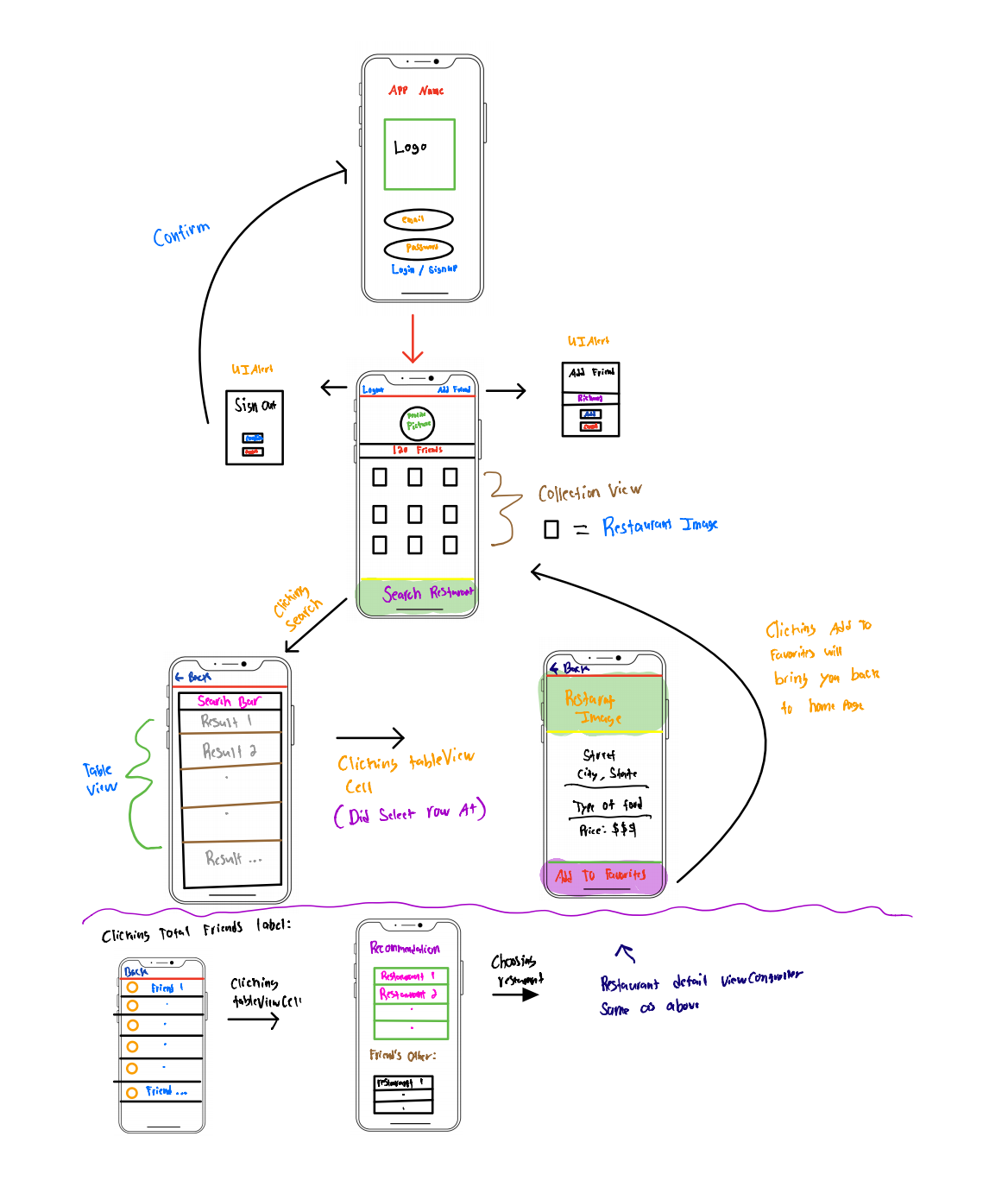

Wireframes

Schema

Models

Users

Property	Type	Description
email	String	Email of user
friends	Array of Strings	emails of user's friends
favoriteRestaurants	Array of Strings	id's of restaurants from the yelp api
profilePicture	String	user's profile picture image url

Networking

All network calls are broken down into three helper classes: FirebaseHelper, Search, & UserInformation. Just intialize class and call functions written ex: let firebase = FirebaseHelper() firebase.signInUser or .signUpUser or .addFriend or .addRestaurant ...

Example of a function inside one of the classes:

func signUpUser(userEmail: String, userPassword: String){

    Auth.auth().createUser(withEmail: userEmail, password: userPassword) { (results, error) in

        if let e = error {
            self.delegate?.error(error: e)
        }
        else {
            self.delegate?.signUpSuccessful()
        }
    }
}

• LoginViewController:

  • (Read/GET) Check to see if user exist's

    • let firebase = FirebaseHelper()
    • firebase.signInUser(userEmail: String, password: String)

  • (Create/POST) Authenticate a new user. Add user email to database.

    • firebase.signUpUser(userEmail: String, password: String)

• HomeViewController:

  • (Read/GET) Get all of user's friends.
    • let user = UserInformation()
    • user.getUserFriends(email: String)
  • (Read/GET) Get all of user's favorite restaurants.
    • user.getUserRestaurants(email: String)
  • (Create/POST) Add a new friend
    • firebase.addFriend(friendName: String)
  • (Create/POST) Upload profile picture
    • firebase.uploadProfilePicture(email: String, image: UIImage)
  • (Read/GET) Get all of user's favorite restaurant details from yelp
    • search.getSingleRestaurant(restaurantID: String)

• SearchViewController:

  • (Read/GET) Get restaurants from user entered text.
    • let search = Search()
    • search.performSearchApiRequest(lattitude: String, longtitude: String, restaurantName: String)

• RestaurantDetailViewController:

  • (Create/POST) Add a restaurnt id to user's favorite restaurants list
    • firebase.addFavoriteRestaurant(theID: String)

• FriendsTableViewController:

  • (Read/GET) Get friends profile pictures
    • user.getProfilePicture(email: String)

• RecommendationTableViewController:

  • (Read/GET)Get selected friend's favorite restaurants to compare with current user
    • friend.getUserRestaurants(email: String)

API Endpoints

Yelp Api

• Base URL: https://api.yelp.com/v3/businesses/search

HTTP Verb	Endpoint	Description
GET	/term	Search term, for example "food" or "restaurants". The term may also be business names, such as "Starbucks".
GET	/term="Restaurant"/categories=restaurants	Only get business that are restaurants.

• Base URL: https://api.yelp.com/v3/businesses/{id}
  • Get business details of a specific business.

Build Progress

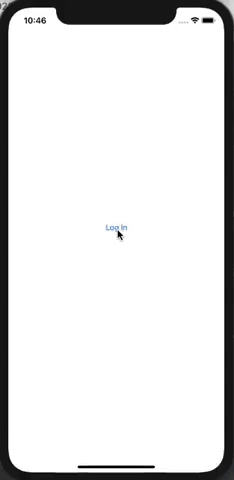

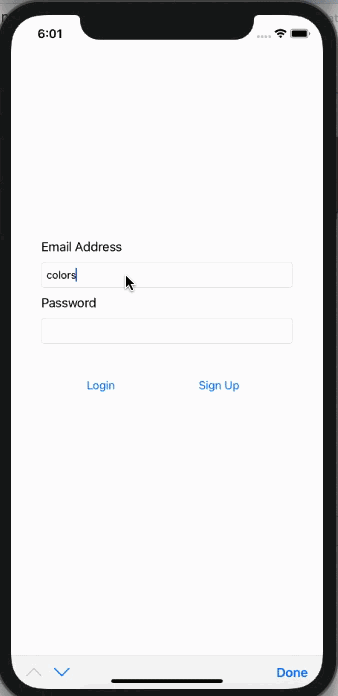

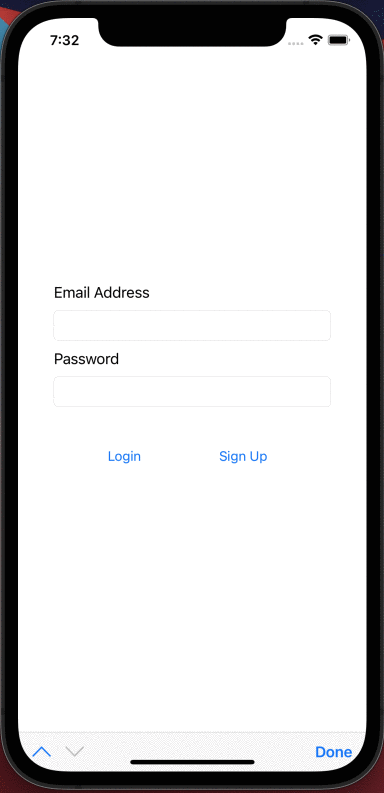

Login / Register

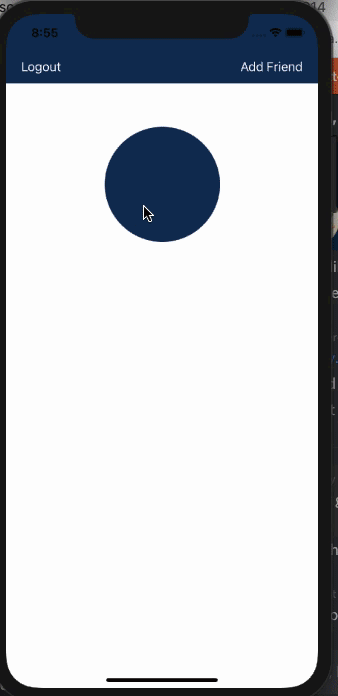

Add Friends & Sign Out

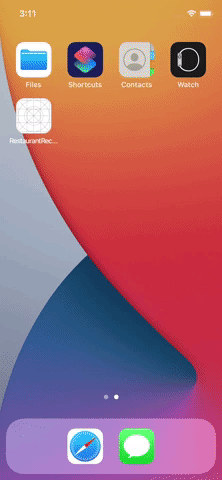

Search Bar

Build Progress 2

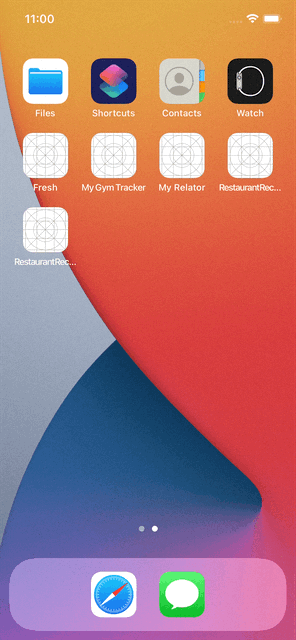

Home Update: Choosing Profile Picture

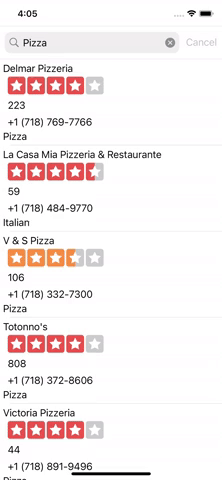

Search Update: Can Search For A Restaurant

Build Progress 3

Home Update: Show Profile Image And Total Amount of Friends

Friend Update: Show User's Friends

Detail Update: Show Details of Restaurant

Build Progress 4: Final Build

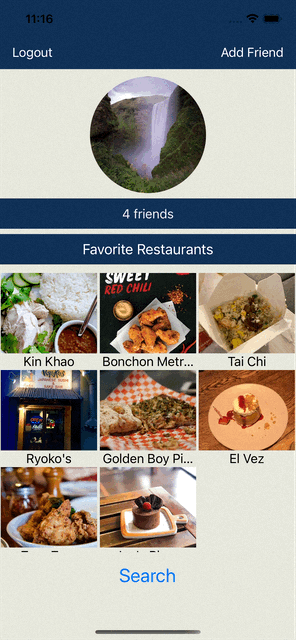

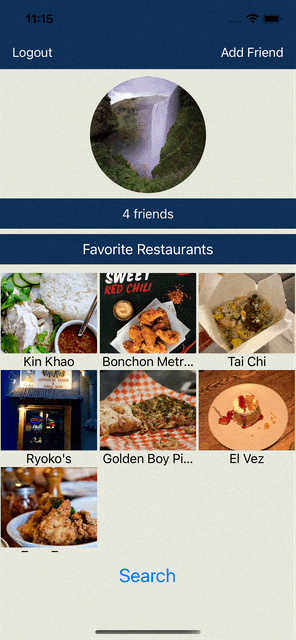

Viewing Current User's Favorite Restaurants

Adding New Restaurants To Favorites

Getting Recommendations Based on A Friend's List

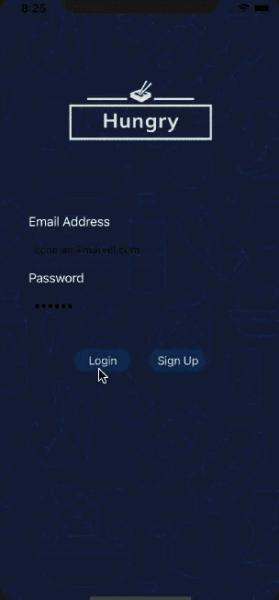

Final Project
