This PR is an improvement of the existing Labgraph Monitor application

The PR adds the following :

Migrate the old application from Javascript to Typescript( static/strong typing support)
Use a much simpler serialized representation of the computational graph (old representation was complex, hard to process, and contained redundant data)
Add input/output messages (name, fields & datatypes)
Add REALTIME / MOCK features

(!) this PR is complementary to the following PR Bennaaym/yaml support #58

Fixes #45

Type of change

Bug fix (non-breaking change which fixes an issue)
New feature (non-breaking change which adds functionality)
This change requires a documentation update

Feature/Issue validation/testing

Tested the different components of the application using react-testing-library & jest

Checklist:

Have you added tests that prove your fix is effective or that this feature works?
New and existing unit tests pass locally with these changes?
Has code been commented, particularly in hard-to-understand areas?
Have you made corresponding changes to the documentation?

…nitor

…tion

…nd server

…vious graph structure is different than the new one

…with realdata

…e extensions/prototypes/labgraph_monitor

…rectory

dtemir · 2022-03-01T20:44:29Z

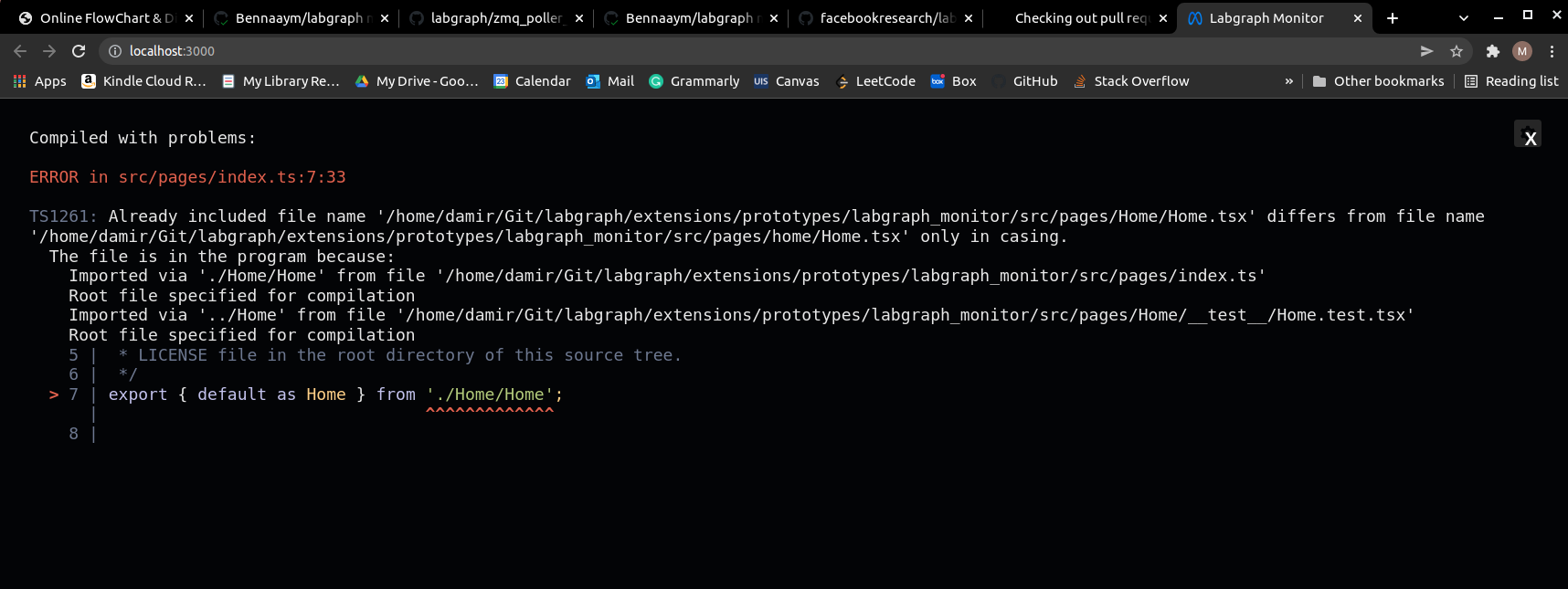

hey @bennaaym. again, awesome work! i just wanted to let you know that there are two sub-directories under labgraph_monitor/src/pages: Home and home. Having both of them threw me an error, so I deleted the home one and everything worked.
