People-High-Risk-Area

High-Risk Area People Counting systems are designed to automatically monitor and count the number of individuals within designated zones using computer vision and machine learning techniques. These systems help enhance safety by detecting overcrowding in vulnerable areas, providing real-time insights, and supporting authorities in managing risks more efficiently.

Project Task List

No	Task	Status	Notes / Issues
1	Database Setup	[OK]
2	Livestream Source	[OK]
3	Object Detection & Tracking	[OK]
4	Polygon Zone & Counting	[OK]
5	API Integration	[OK]
6	Docker Deployment	[OK]
7	Dashboard	[X]

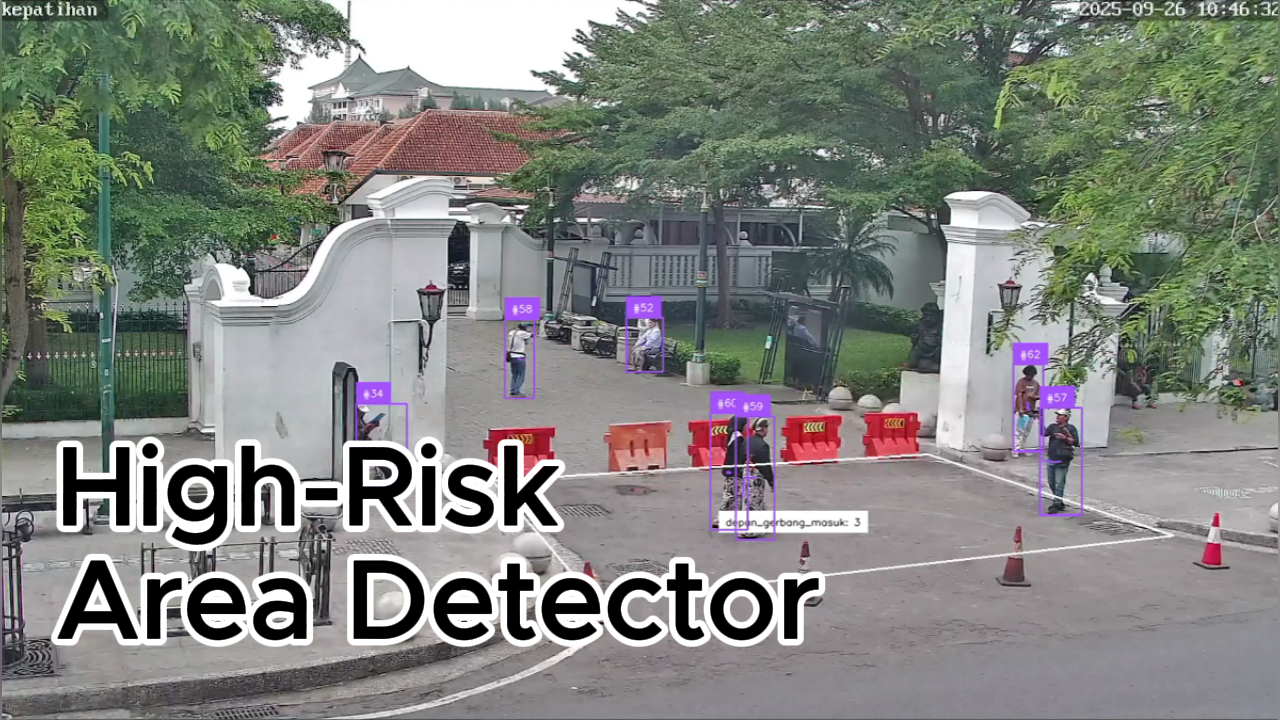

Demo

Livestream Video

• https://cctvjss.jogjakota.go.id/malioboro/Malioboro_10_Kepatihan.stream/playlist.m3u8 (default)
• https://cctvjss.jogjakota.go.id/malioboro/NolKm_Utara.stream/playlist.m3u8
• https://cctvjss.jogjakota.go.id/malioboro/Malioboro_30_Pasar_Beringharjo.stream/playlist.m3u8
• https://restreamer3.kotabogor.go.id/memfs/b99d528a-1eb8-47bf-ba0f-a63fe11dbece.m3u8
• https://restreamer3.kotabogor.go.id/memfs/c2d90a44-8f2c-4103-82ad-6cb1730a5000.m3u8
• https://restreamer3.kotabogor.go.id/memfs/eedbb9a2-1571-41bd-92db-73b946e3e9b2.m3u8

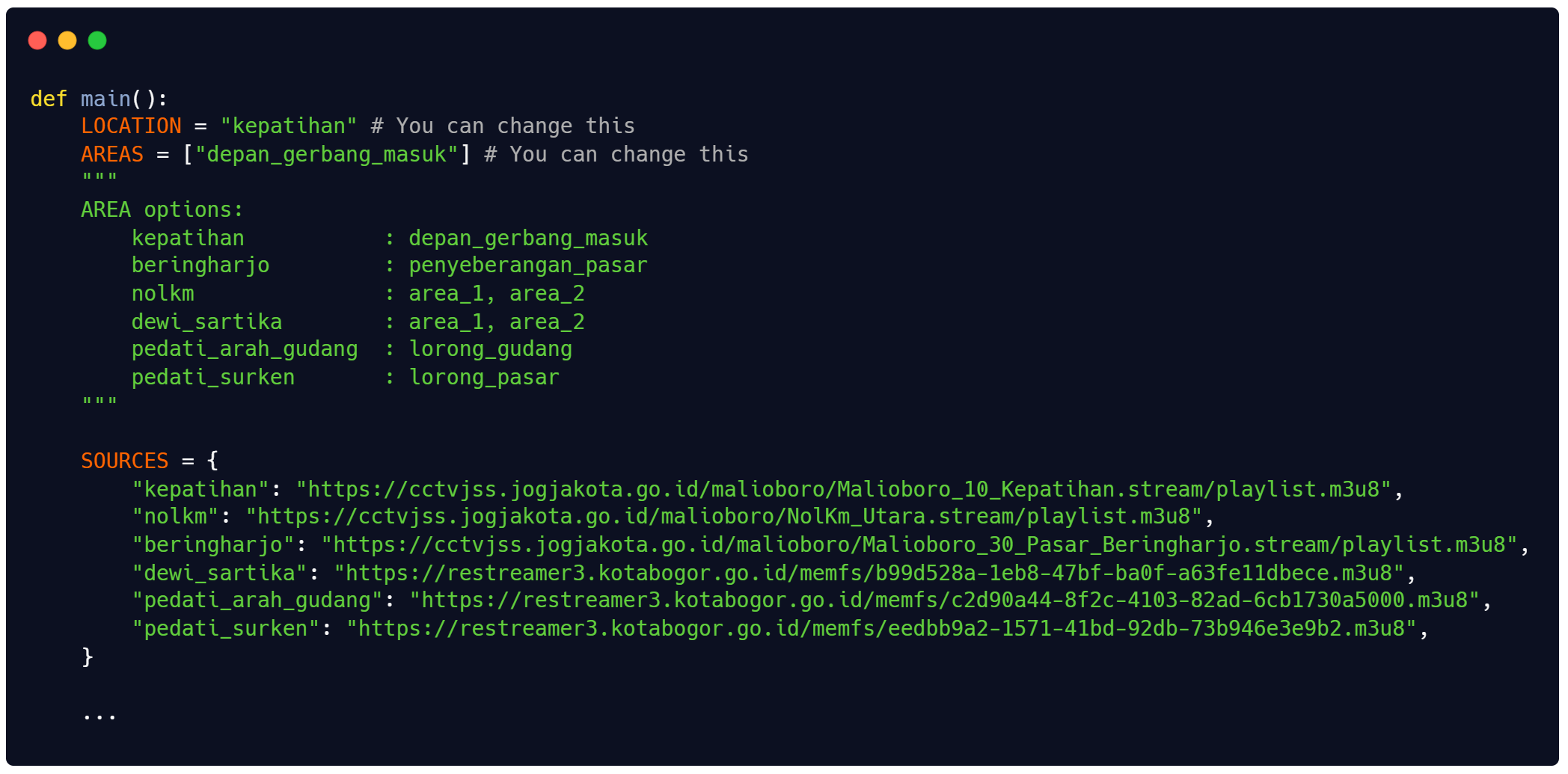

If you want to change the source, below is the code location (inference/inference.py)

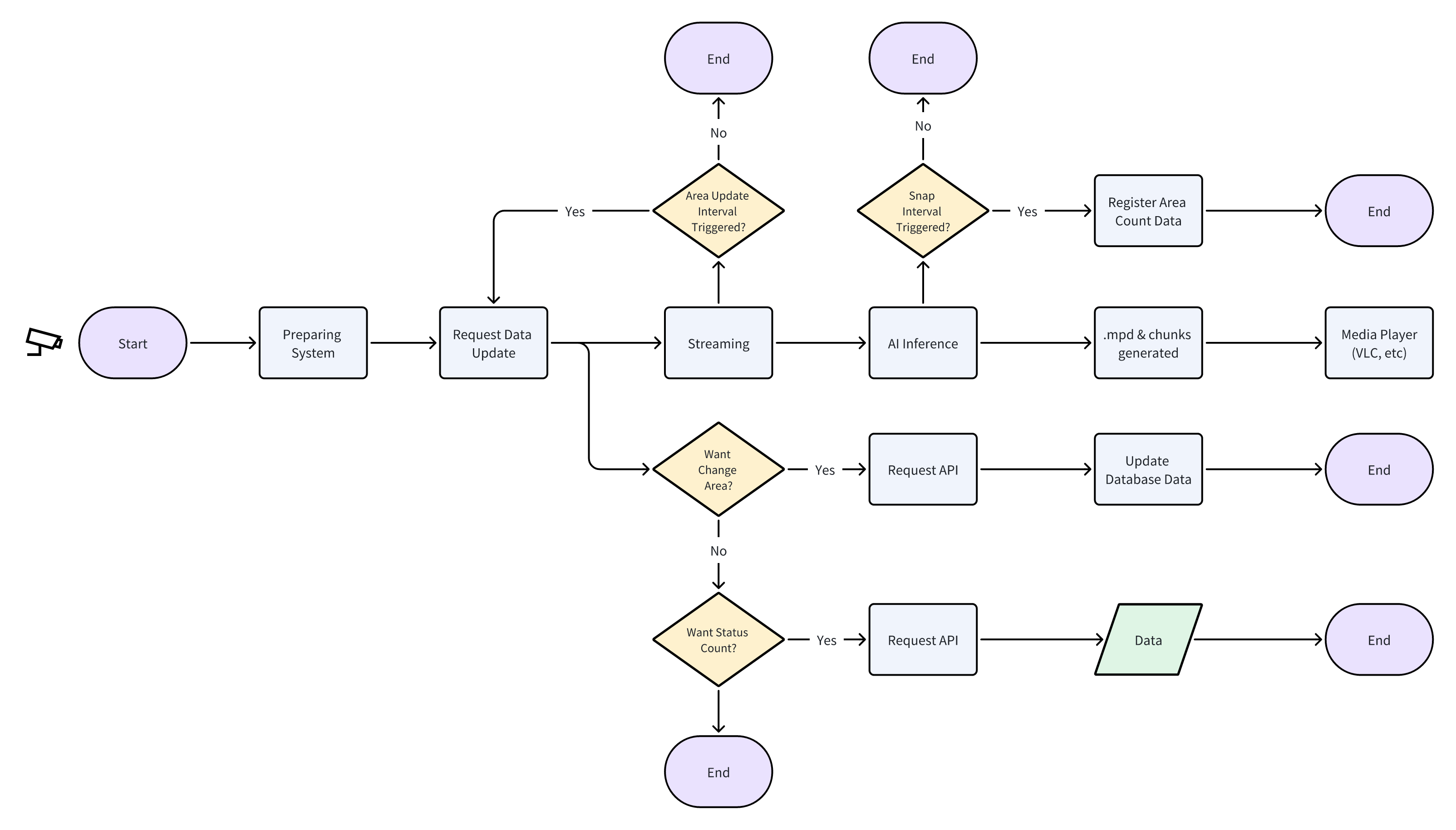

System Design

• "Area Update Interval Triggered?": It request updated data from database if any changes present (create, delete, update)
• "Snap Interval Triggered?": It send captured scene (people inside and outside of area) been snapshot and registered on database
• "Want Change Area?": It request an update of area and registered to database
• "Want Status Count?": It request history or live status count

Tech Stack

• Minio
• MongoDB
• YOLOv11
• Supervision
• Docker
• FastAPI
• OpenCV

Database Design

Below is the list of structure of collection on MongoDB:

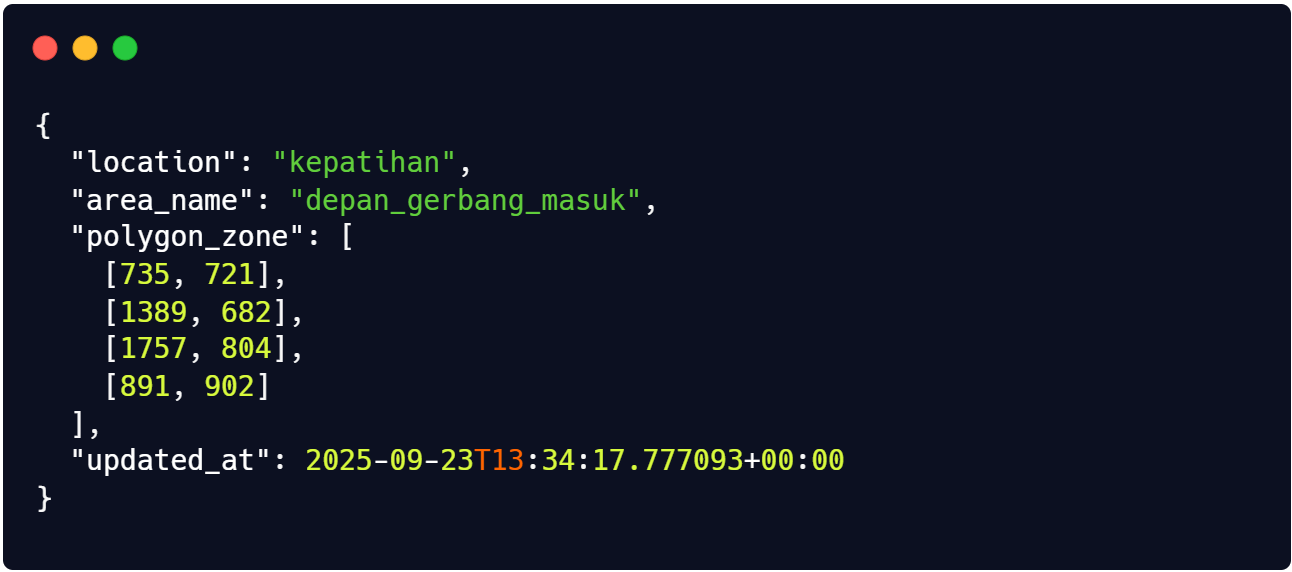

Areas

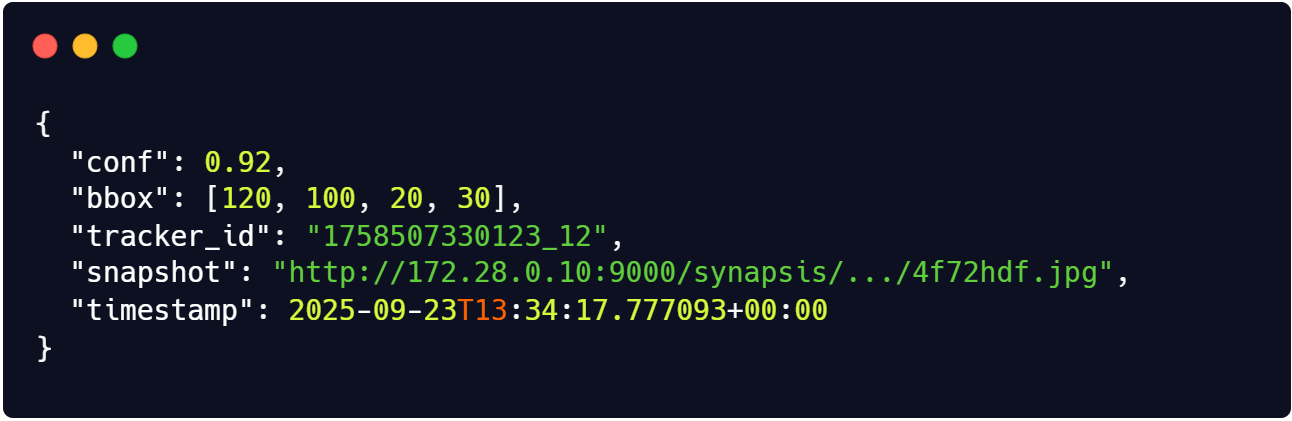

Peoples

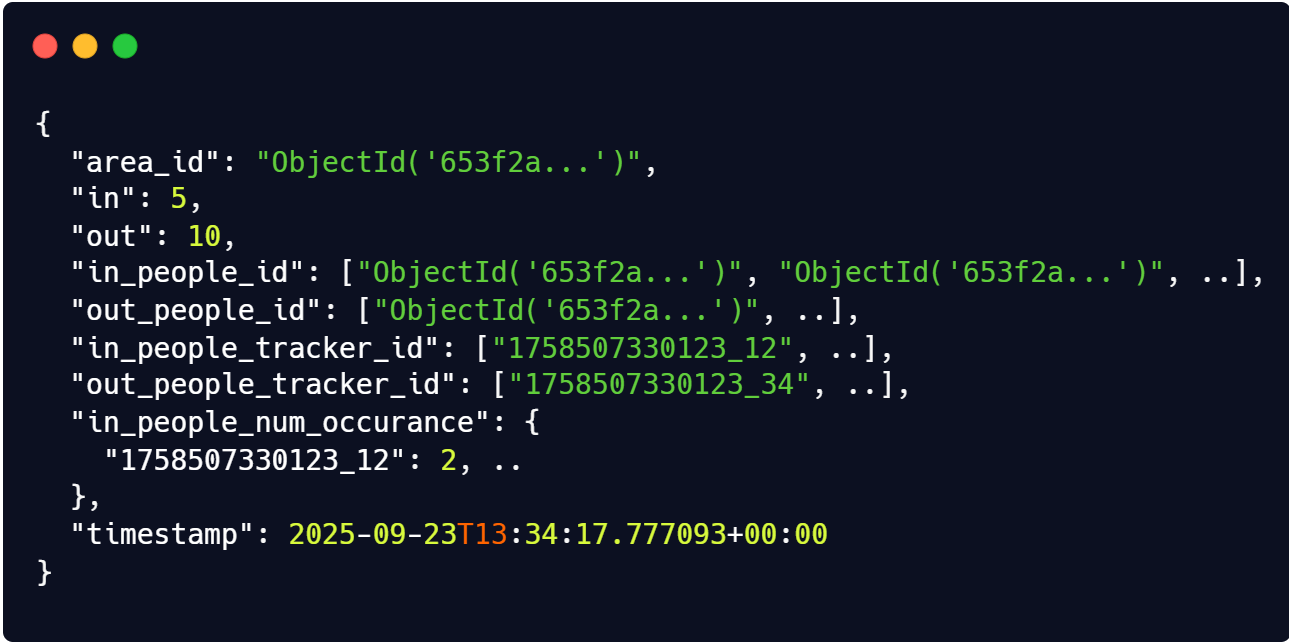

Counts

Docker Deployment

Video Installation

You have to have following already installed

• git
• docker & docker-compose (https://docs.docker.com/engine/install/)

Clone this project

git clone https://github.com/erwinyo/People-High-Risk-Area.git

Run docker compose up

docker compose -f docker-compose.yml up -d --build

Run .mpd file on the output/ folder

• Open VLC media player
• Click media, choose open file
• Open .mpd file (located: /output/_/dash_out.mpd) *Note: the result is playable, but sometime lagging and stopped. Need refresh periodically.

Manual Deployment

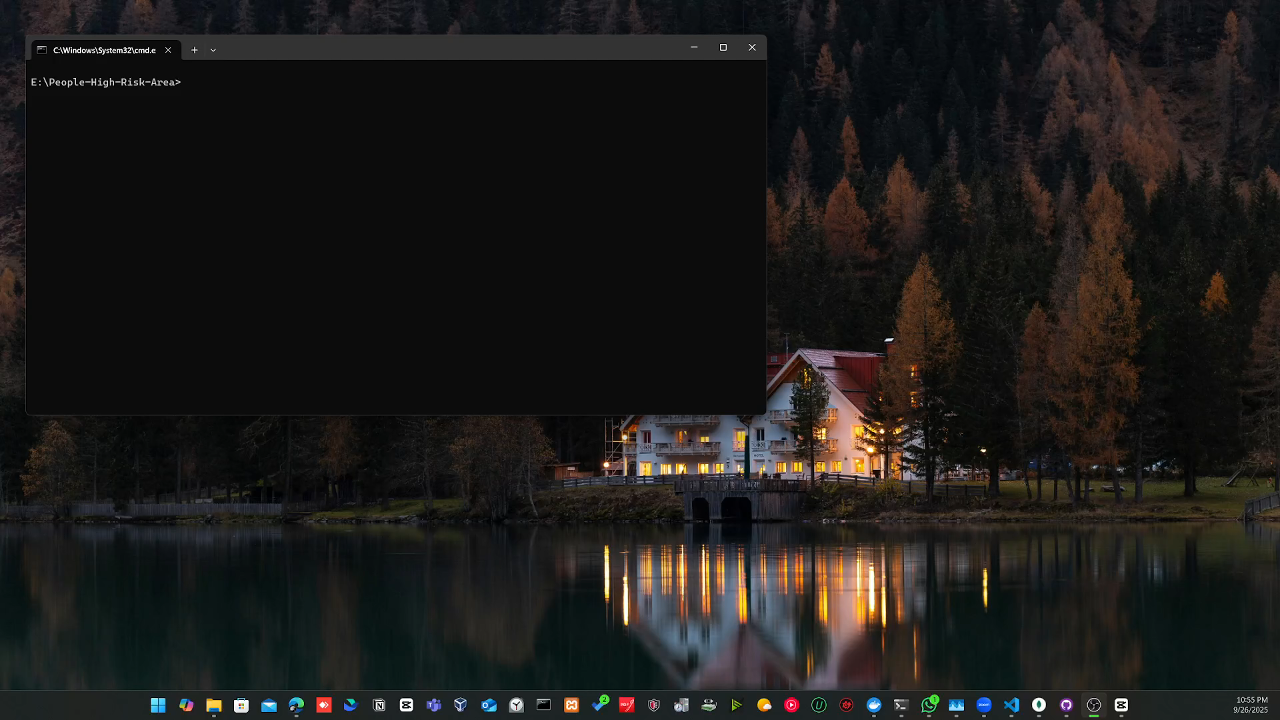

Video installation

You have to have following already installed

• git
• uv (https://docs.astral.sh/uv/getting-started/installation)

Clone this project

git clone https://github.com/erwinyo/People-High-Risk-Area.git

Deploy MongoDB and Minio Containers

cd People-High-Risk-Area
docker compose -f docker-compose-manual.yml up -d --build

Run API

cd api
uv run python api.py

Run Inference

cd inference
uv run python inference.py

A window will be pop-up to show the inference

API Reference

Get counts status

  GET /api/stats

Name	Type	Required	Default	Description
start_time	int	No	None	Start timestamp (epoch) for filtering stats.
end_time	int	No	None	End timestamp (epoch) for filtering stats.
page	int	No	1	Page number for paginated results.
limit	int	No	10	Number of items per page.

Example Request

http://localhost:8000/api/stats?start_time=1758905345&end_time=1758905360&page=1&limit=10
http://localhost:8000/api/stats?page=1&limit=20

Get live count status

  GET /api/stats/live

Get all area

  GET /api/area

Create new area

  POST /api/set/area

Field	Type	Required	Description
location	str	Yes	The location identifier.
area_name	str	Yes	The name of the area.
polygon_zone	list[list[int]]	Yes	Polygon coordinates defining the zone.

Example Request

{
    "location": "kepatihan",
    "area_name": "depan_gerbang_masuk",
    "polygon_zone": [[735, 721], [1389, 682], [1757, 804], [891, 902]]
}

  POST /api/get/area

Field	Type	Required	Description
location	str	Yes	The location identifier.
area_name	str	Yes	The name of the area.

Example Request

{
    "location": "kepatihan",
    "area_name": "depan_gerbang_masuk",
}

  POST /api/update/area

Field	Type	Required	Description
location	str	Yes	The location identifier.
area_name	str	Yes	The name of the area.
polygon_zone	list[list[int]]	Yes	Updated polygon coordinates for the zone.

Example Request

{
  "location": "kepatihan",
  "area_name": "depan_gerbang_masuk",
  "polygon_zone": [[735, 721], [1389, 682], [1757, 804], [891, 902]]
}

  POST /api/delete/area

Field	Type	Required	Description
location	str	Yes	The location identifier.
area_name	str	Yes	The name of the area.

Example Request

{
  "location": "kepatihan",
  "area_name": "depan_gerbang_masuk"
}

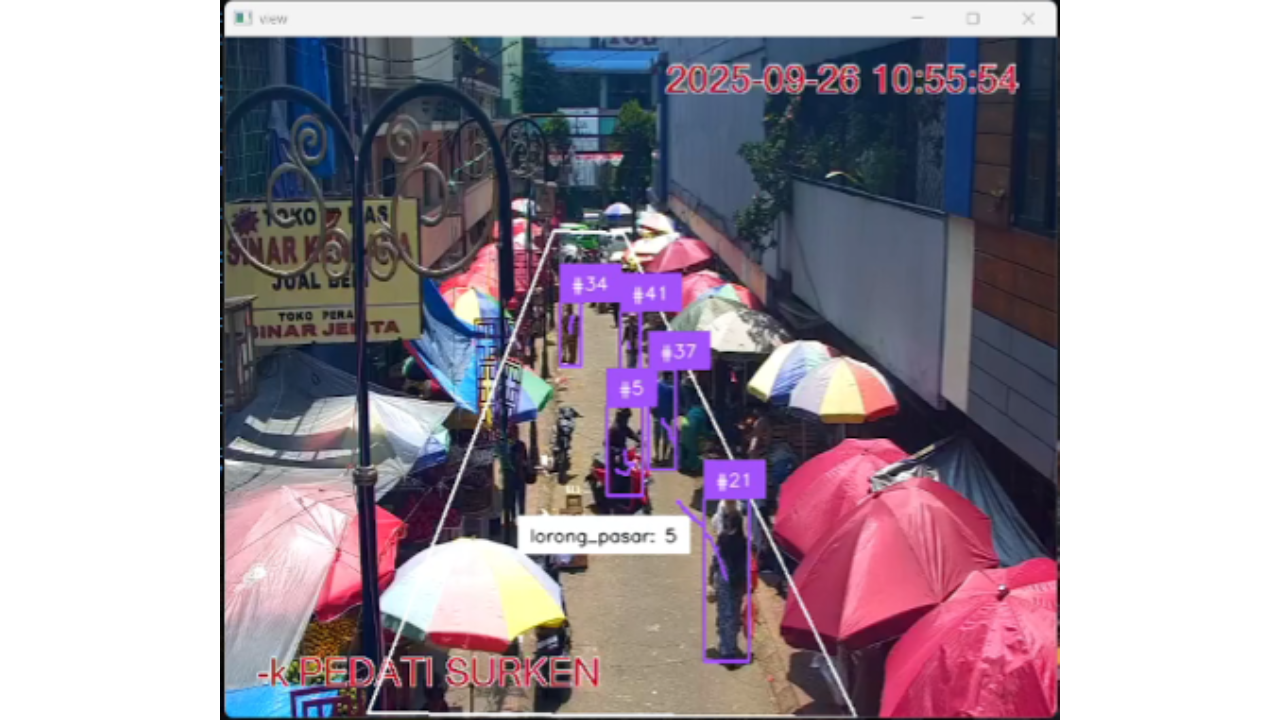

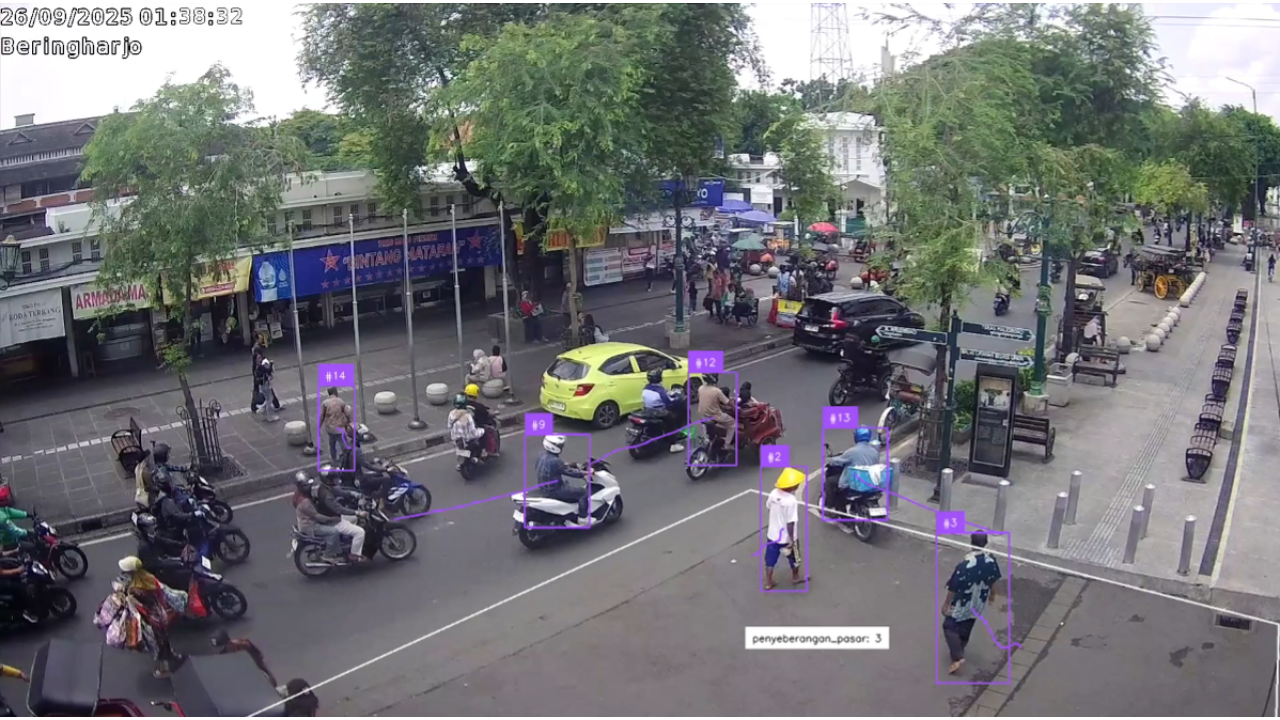

Screenshots
