By Justin Green
Check 2600 is an Atari 2600 emulator written in C++. Atari is a Go term that very loosely translates to "check" in Chess, hence the name of this emulator.

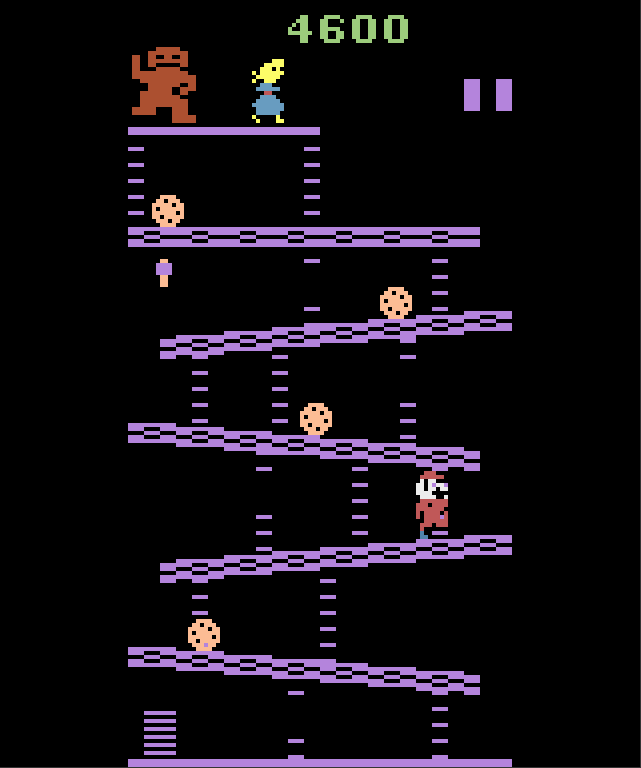

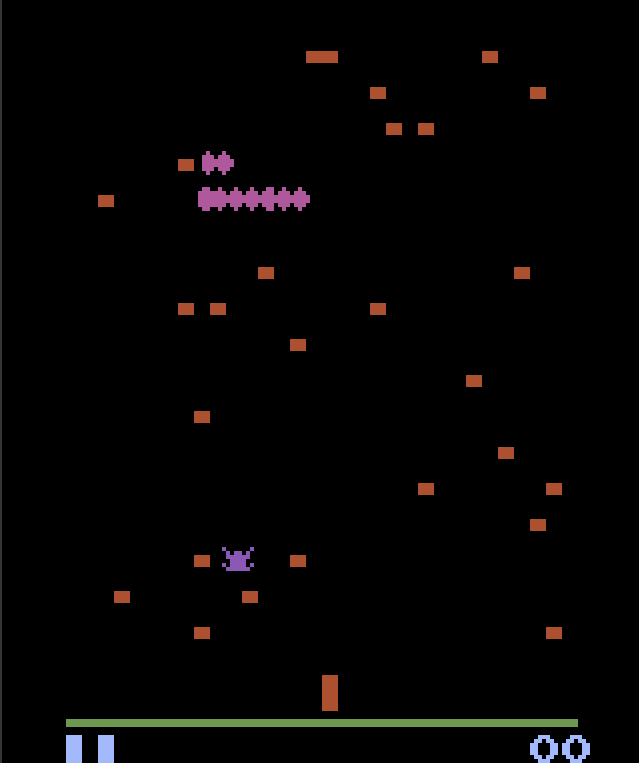

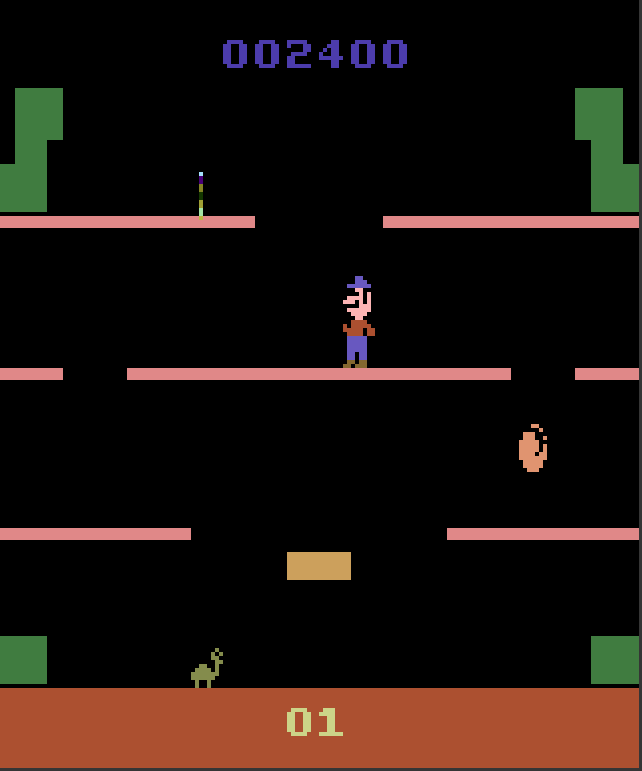

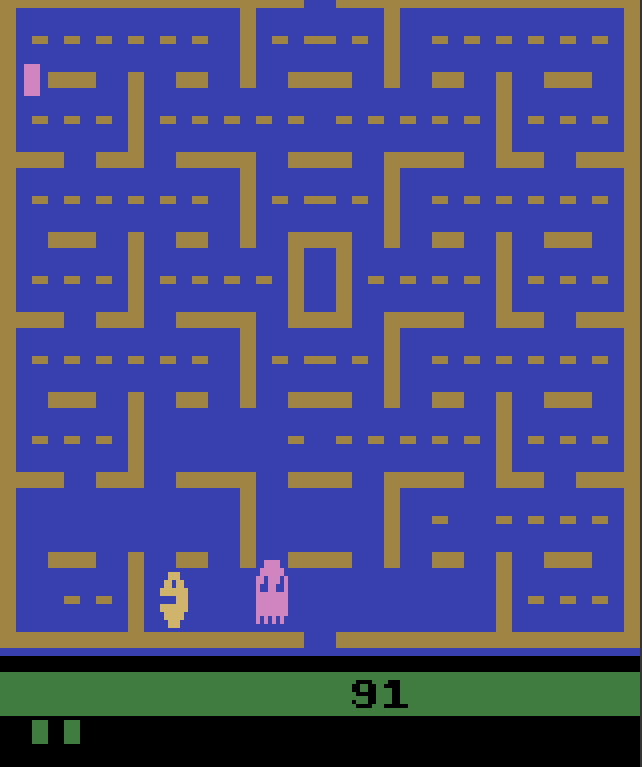

This is the current list of titles that are known work well. Note that this list is not exhaustive, these are just the games I've tested so far.
- Sound may be 'crunchy' or non-existent on some games. This is due to limitations in QT5's multimedia libraries.
- Only NTSC is currently supported.
- Only paddle controls are currently supported.
- No multiplayer yet.
- Limited bankswitching support.
Check 2600 was written to be cross platform, but has only been tested on Linux. Your mileage may vary.
- QT5 and QT5 headers
- Clang with C++14 support
- [Optional, for tests] acme
You will need to edit the Makefile to point INCLUDE to your QT5 headers. I've included 2 common locations at the top of the file, so hopefully you will just need to uncomment one of them.
Release builds can be build by just running make from the source directory.
A few simple TIA and 6502 tests are included in the tests directory. These can be built using make test.
To include debug symbols in your build, run make debug. Note: this will automatically build the tests as well.
Once you have built Check, you should see a binary in the source directory called check2600. This is the emulator. It takes the following flags:
- "-f ", which specifies the file
- "-s ", which specifies the UI scaling. The original Atari 2600 was 160x192, which will look tiny on a modern display, so we scale it up with this flag. The default value is 4.
- "-b ", which specifies the bank switching type. Currently the options are "none", "Atari8K", "Atari16K", and "Atari32K". The default is none. Note that only Atari8K has been thoroughly tested so far.
- "-d", which activates debug mode. More on this mode in the next section.
You can usually tell what the correct bankswitch configuration of a ROM is by looking at its filesize. 2KB or 4KB usually indicate a normal ROM, 8KB usually indicates Atari8K bank switching, etc.
Certain games may not work yet because they rely on a bankswitching scheme that isn't yet supported. Dig-Dug, for example, includes extra RAM in the cartridge.
Check 2600 includes a basic built-in debugger. The interface for the debugger is command line, but its features are heavily inspired by Stella's graphical debugger.
Before every command, the disassembly of the instruction at the current program counter is printed out.
step will step forward one instruction.
scan will step forward until it hits the beginning of the next scanline.
frame will step forward until it hits the end of a vertical sync cycle.
break XYZW will set a breakpoint at the hex address 0xXYZW.
cont will continue execution until a breakpoint is hit.
delete XYZW will delete the breakpoint at address 0xXYZW.
dump reg will print all available information about the processor's internal state, including its registers.
dump mem will print all 128 bytes of RAM (and stack, since these are identical on the 2600).
dump tia will print information about the internal state of the Television Interface Adapter.
dump pia will print information about the timer built into the Peripheral Interface Adapter.
dump or dump all will print all of the above.
The debugger can fake input using the set and unset commands. These commands can be used to toggle a digital input on or off. The inputs are intuitively named "up", "down", "left", "right", and "fire".
Patches are welcome!
- Test more games and fix bugs as they arise.
- Add more bankswitching formats.
- Add support for more control schemes.
- Improve debugging interface. Possibly add a way to save and rewind state.
- Add PAL and SECAM support.
- Fix the sound subsystem.
- Investigate improving performance with proper JIT compilation.
- Write a unit test that thoroughly exercises CPU instructions and addressing modes.
- Add GUIs other than QT5 software rendering. Maybe ANSI character based, or OpenGL.
I've tried to comment the code as much as I could to make it easy to understand. One of the goals of this projects was to create a modular 6502 core that could be re-used in future emulators.
- main.cc
- atari.h/atari.cc: Atari specific setup code and the main emulator loop. Also contains the debugger.
- bank_switchers.h/bank_switchers.cc: Implementation of various bank switching schemes.
- display.h/display.cc: Generic interface for host rendering, sound, and input code.
- input.h/input.cc: Current state of user input.
- ntsc.h/ntsc.cc: Helper class to simulate the sweeping of the electron beam and provide useful constants such as screen width and number of scanlines.
- pia.h/pia.cc: Simulates some of the PIA registers, especially those related to timers.
- qt_display/h/qt_display.cc: QT5 implementation of the Display class.
- sound.h/sound.cc: Current state of sound generator.
- sounds: This directory contains a python script for generating all 512 possible sounds the Atari 2600 can make. During build, this script is run and the wav files are also deposited in the sounds directory.
- tia.h/tia.cc: All TIA related code.
- cpu.h/cpu.cc: High level code for fetch/decode/execute. This class caches instructions to avoid reparsing. It's not a JIT, but it's a similar concept.
- disasm.h/disasm.cc: The debugger's disassembler.
- instructions.h/instructions.cc: Implementation of every 6502 instruction by opcode. Note that these implementations are generally addressing mode agnostic, as that code is handled in the Operands class.
- memory.h/memory.cc: Definition of the various types of memory regions in a 6502 system, and helper functions for directing reads and writes to the appropriate region.
- operand.h/operand.cc: Encapsulates most of the addressing mode logic to simplify instructions.cc.
- registers.h/registers.cc: The current state of the processor, including the number of cycles since power on.
There are some very simple test ROMs located in the "tests" directory demonstrating how to get simple sprites and missiles on the screen.
One common "gotcha" when writing an Atari 2600 ROM is that the assembler will put all of your code at 0x0000 by default. 0x0000-0x0200 are reserved for the TIA, PIA, and RAM/stack. Sometimes your ROM will work anyway if you assemble it this way, but any absolute addresses will break. Traditionally, ROMs are assembled to occupy the 0xF000-0xFFFF address space, but the address line is only 13-bit, so anything above 0x1000 will technically do as long as the starting address is 4096 (0x1000) byte aligned.
Another common "gotcha" is forgetting to set the reset vector. Offsets 0xFFC and 0xFFE of your ROM should be a 2-byte little-endian pointer to the absolute address of your entry point.
The following is an excellent, but incomplete introduction to programming the 2600: https://cdn.hackaday.io/files/1646277043401568/Atari_2600_Programming_for_Newbies_Revised_Edition.pdf
I've tried to document all of the TIA and PIA registers in source comments as best as I could, but the following is an excellent reference for these registers: https://problemkaputt.de/2k6specs.htm
This is the most thorough reference for the 6502 instruction set that I've ever seen: https://www.masswerk.at/6502/6502_instruction_set.html. The cycle counts in particular are super helpful.
