planny-v2

This is a self project of my own to practice creating a full stack web application using the various tech stacks. A personal itinerary planner where one can plan an itinerary for a holiday trip so that one does not get so lost not knowing what to do during the trip.

You can view the complete app here - https://itinerary-planner.herokuapp.com/

Getting Started

The instructions below will get you a copy of the project up and running on your local machine for development and testing purposes. See deployment section for notes on how to deploy the project on a live system.

Prerequisites

Make sure to download and install the following items

• Text Editor - Up to your own preference, I personally prefer atom (https://atom.io/)
• Node.js - https://nodejs.org/en/
• PostgreSQL - https://www.postgresql.org/download/
• Heroku CLI - https://devcenter.heroku.com/articles/heroku-cli
• Git - https://git-scm.com/

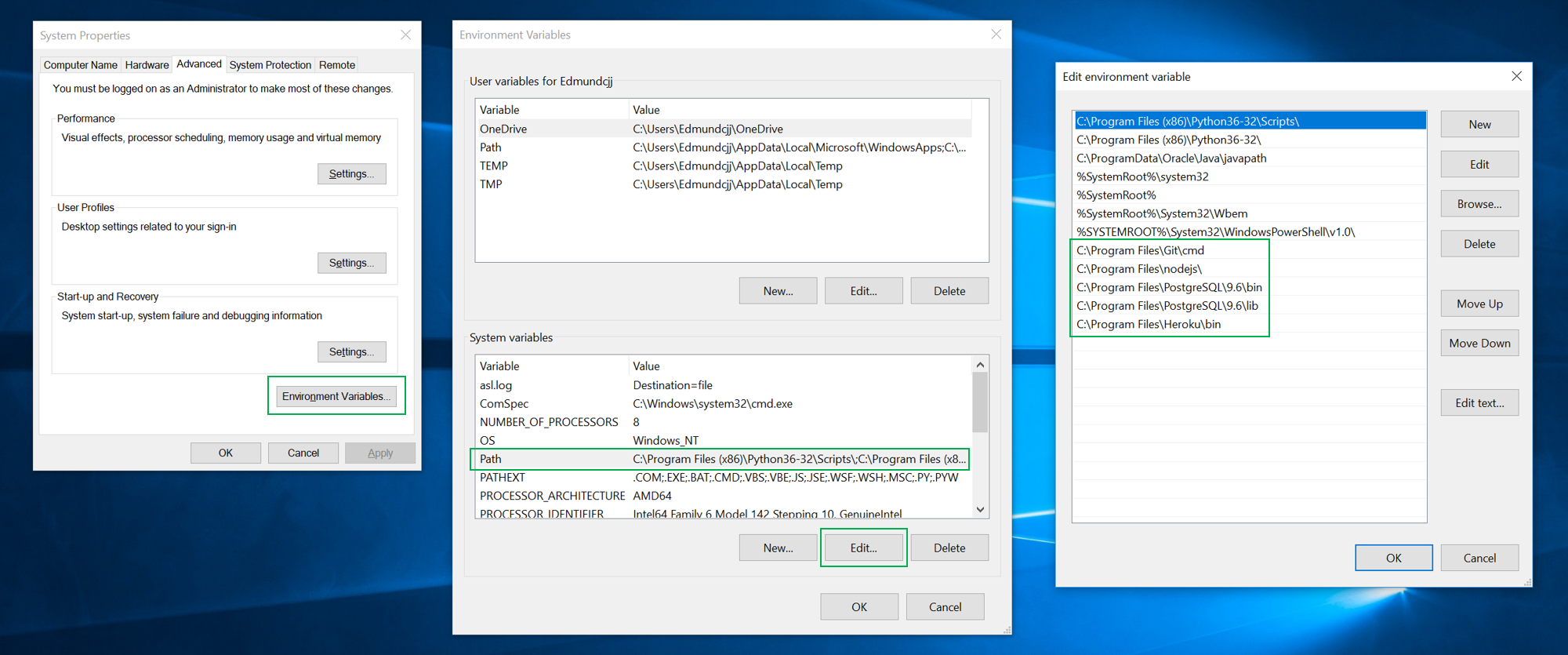

Do remember to check that the environment variables are updated with the above items

Installation

Once you are done with the prerequisites, let's move on to the installation. Note that the next few steps are meant for localhost development only.

Step 1 => Fork the project to your own github account

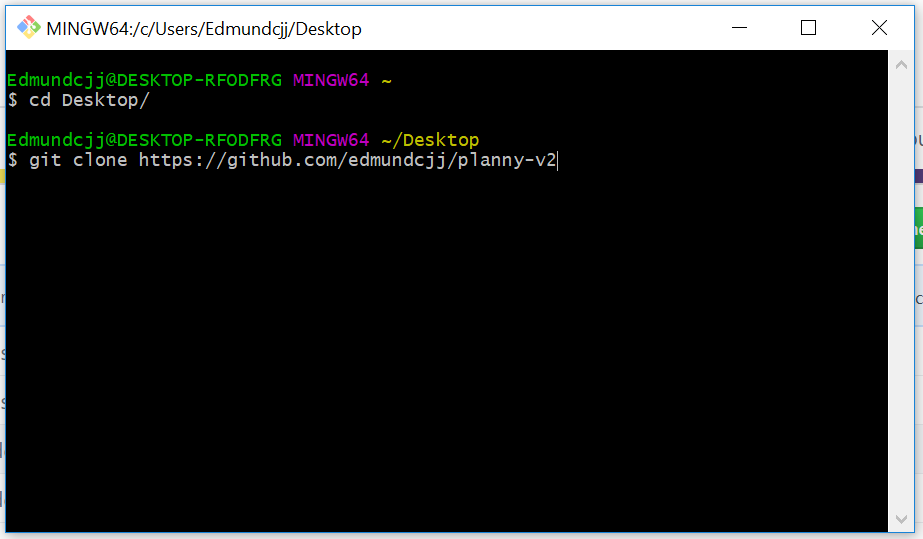

Step 2 => Git clone the project to your local computer directory using a terminal

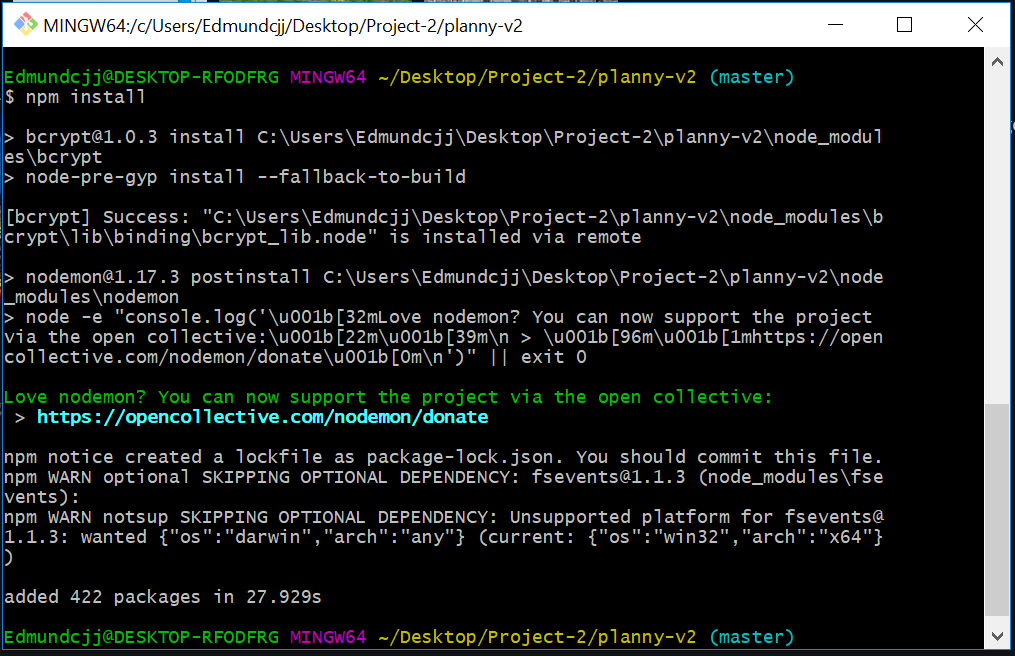

Step 3 => In the terminal, dive down to the cloned project folder and type the command "npm install" This command will install all the packages required for this particular project

Step 4 => Get a google developers api key and update it in the code wherever needed. Visit https://developers.google.com/places/web-service/get-api-key to see how to get a api key.

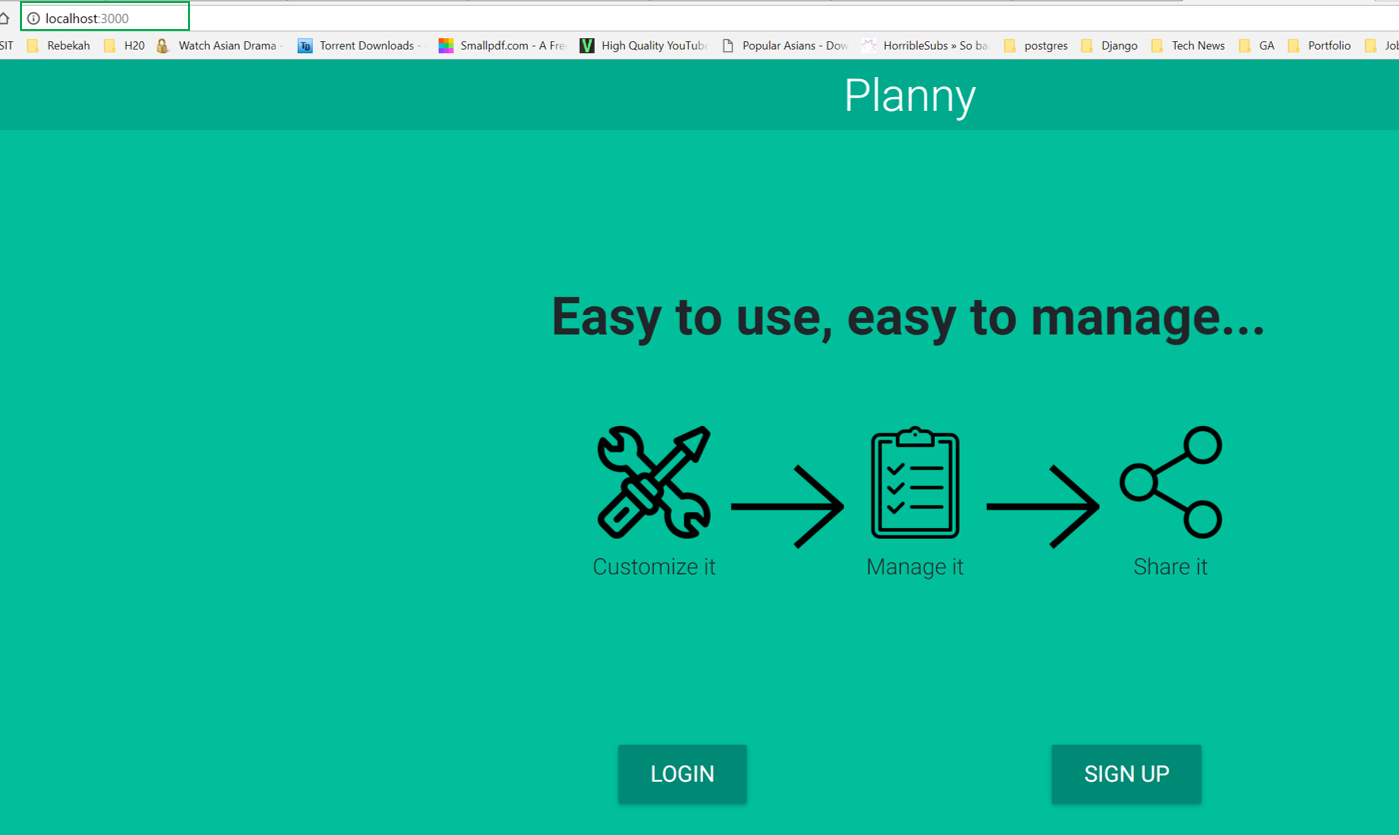

Final step => In the terminal, type the command "nodemon index.js", launch the browser and type in the address as shown in the picture, you will see the default page.

Deployment

The following steps below will show you how to deploy your local project to Heroku so that it is publicly accessible.

Step 1 => Create an account with heroku.

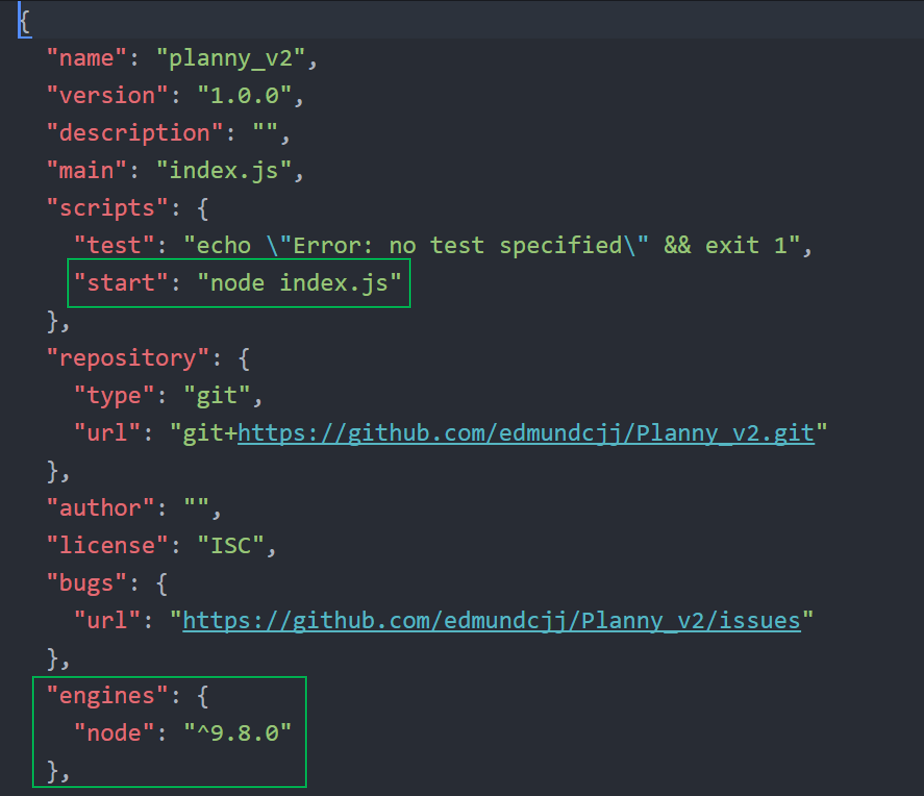

Step 2 => Make sure the code shown below exists in the package.json file Do remember to edit the version of node with the version you have installed in your local system!

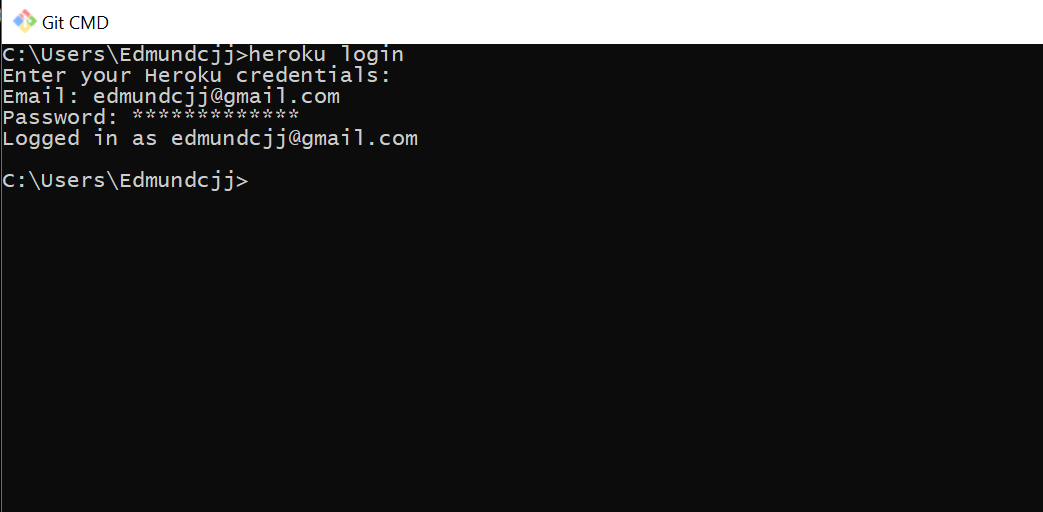

Step 3 => Open git cmd, type the command "heroku login" and enter your credentials

Step 4 => Open another git cmd, dive down to the project folder and type the command

heroku create sitename

where sitename is the name of your app. This will create a url like: http://sitename.herokuapp.com"

Step 5 => In the same git cmd in step 4, enter the following command to push your project to heroku

git push heroku master

Step 6 => Similarly to step 5, enter the following command

heroku ps:scale web=1

This will ensure you have at least one dyno(process) running.

Step 7 => Click the link below to add the heroku postgres addon to your heroku project

https://elements.heroku.com/addons/heroku-postgresql

Step 8 => Ensure that the following piece of code exists in the db.js file

// inside of db.js

//require the url library
//this comes with node, so no need to yarn add
const url = require('url');

//check to see if we have this heroku environment variable
if( process.env.DATABASE_URL ){

  //we need to take apart the url so we can set the appropriate configs

  const params = url.parse(process.env.DATABASE_URL);
  const auth = params.auth.split(':');

  //make the configs object
  var configs = {
    user: auth[0],
    password: auth[1],
    host: params.hostname,
    port: params.port,
    database: params.pathname.split('/')[1],
    ssl: true
  };

}else{

  //otherwise we are on the local network
  var configs = {
      user: 'akira',
      host: '127.0.0.1',
      database: 'pokemons',
      port: 5432
  };
}

//this is the same
const pool = new pg.Pool(configs);

Step 9 => Create database tables on the heroku db in the same git cmd in step 6

heroku pg:psql < tables.sql

You are now ready to launch the app deployed to heroku. You can launch the app in your heroku dashboard

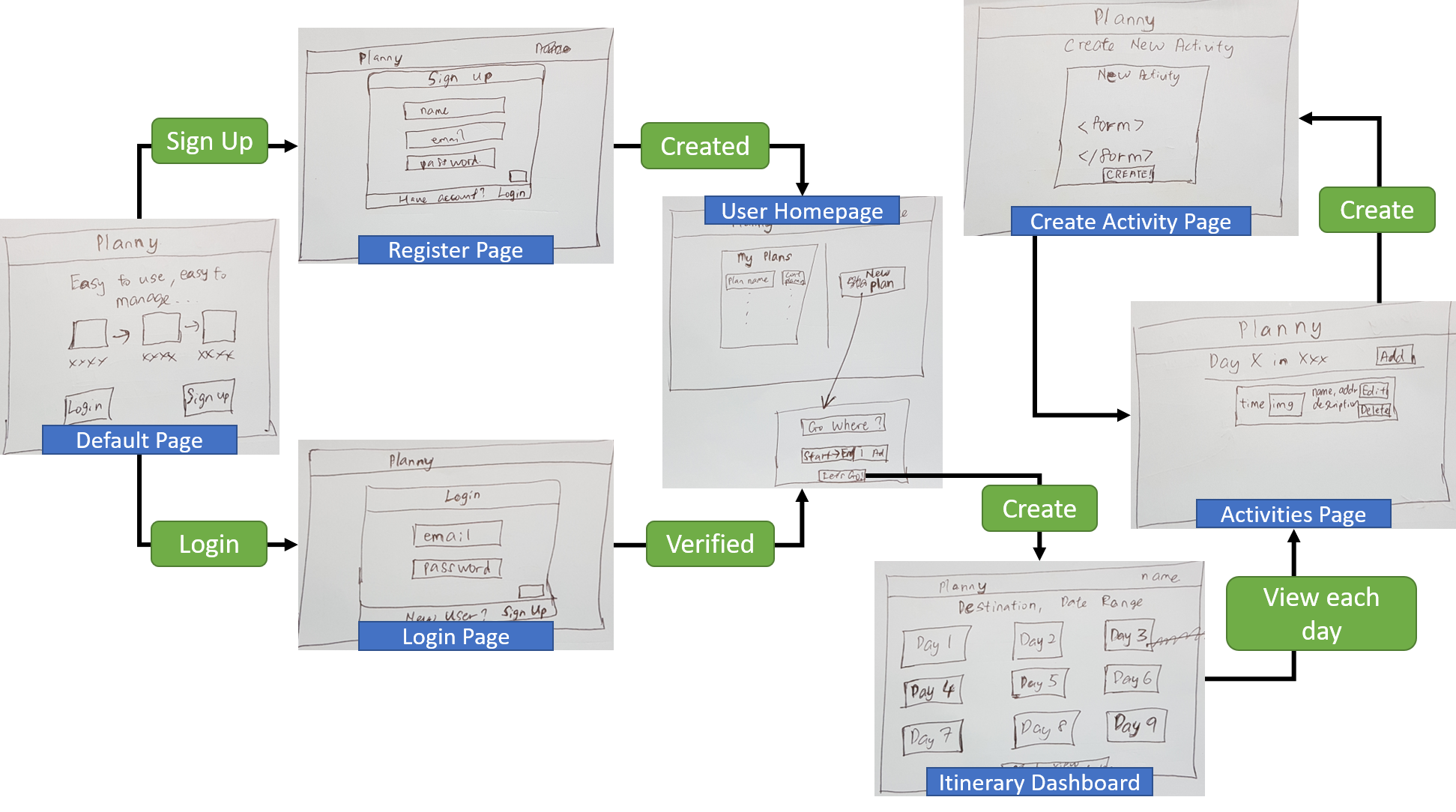

Wireframes

The following below shows the wireframes I came up with during the planning process.

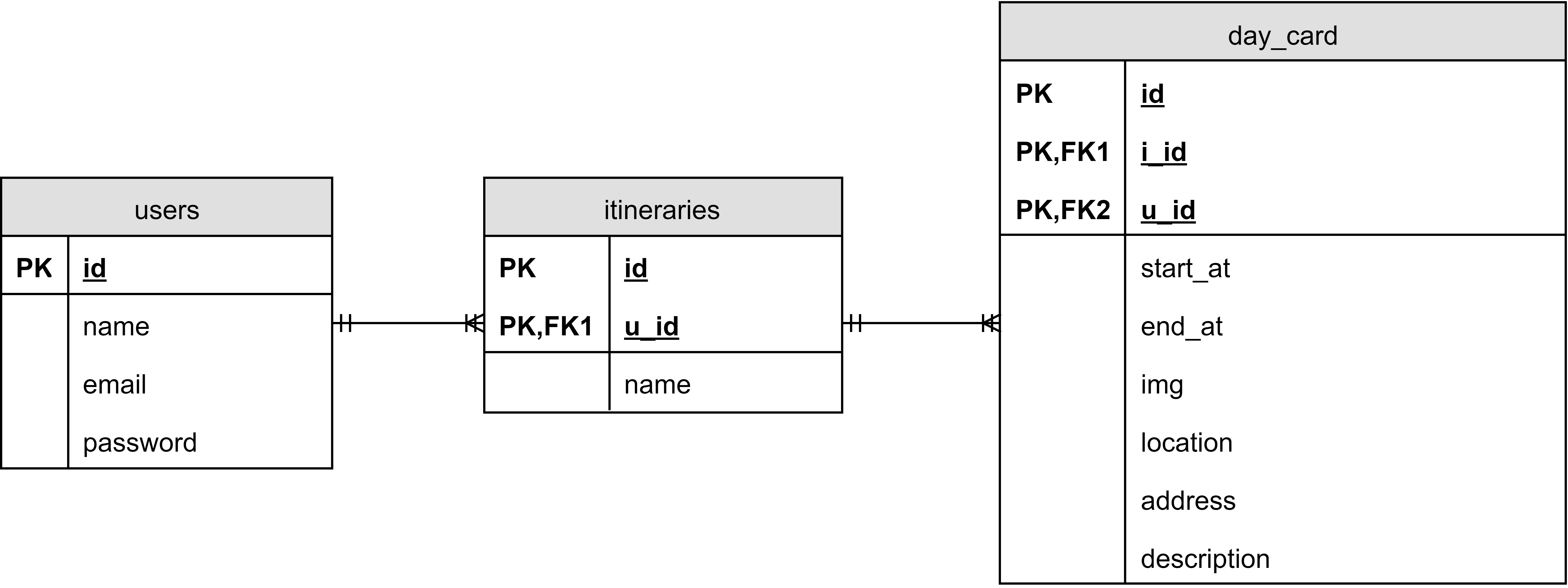

ERD Diagrams

The following shows the relationships between the various database tables for this project.

User Stories

Click this link to view the user stories for this project - https://trello.com/b/KRfeVL3E

Built With

Frameworks

• Node - Open-source, cross-platform JavaScript run-time environment that executes JavaScript code server-side.
• Express - The back-end web framework used for node.js
• MDBootstrap - The front-end framework used that aligns with Google Material Design

NPM Packages

• NPM request - To handle api calls to external APIs
• NPM express - Fast, unopinionated, minimalist web framework for node.
• NPM express-handlebars - Handlebars view engine for Express web framework
• NPM bcrypt - Library to help with hashing passwords
• NPM body-parser - Parse incoming request bodies in a middleware before your handlers, available under the req.body property.
• NPM cookie-parser - Parse Cookie header and populate req.cookies with an object keyed by the cookie names. Optionally you may enable signed cookie support by passing a secret string, which assigns req.secret so it may be used by other middleware.
• NPM method-override - Lets you use HTTP verbs such as PUT or DELETE in places where the client doesn't support it.
• NPM nodemon - nodemon will watch the files in the directory in which nodemon was started, and if any files change, nodemon will automatically restart your node application.
• NPM pg - Non-blocking PostgreSQL client for node.js. Pure JavaScript and optional native libpq bindings.

Database

• PostgreSQL - Open Source Database

APIs

• Google Place Details - Google Place Details API
• Google Place Autocomplete - Google Place Autocomplete API
