Machine Learning Research Wizard — reproducible experiments from YAML (model selection + risk assessment) for vectors, images, time-series, and graphs.
- 📘 Docs: https://mlwiz.readthedocs.io/en/stable/
- 🧪 Tutorial (recommended): https://mlwiz.readthedocs.io/en/stable/tutorial.html
- 📦 PyPI: https://pypi.org/project/mlwiz/
- 📝 Changelog:
CHANGELOG.md - 🤝 Contributing:
CONTRIBUTING.md
MLWiz helps you run end-to-end research experiments with minimal boilerplate:
- 🧱 Build/prepare datasets and generate splits (hold-out or nested CV)
- 🎛️ Expand a hyperparameter search space (grid or random search)
- ⚡ Run model selection + risk assessment in parallel with Ray (CPU/GPU or cluster)
- 📈 Log metrics, checkpoints, and TensorBoard traces in a consistent folder structure
Inspired by (and a generalized version of) PyDGN.
| Area | What you get |
|---|---|
| Research Oriented Framework | Anything is customizable, easy prototyping of models and setups |
| Reproducibility | Ensure your results are reproducible across multiple runs |
| Automatic Split Generation | Dataset preparation + .splits generation for hold-out / (nested) CV |
| Automatic and Robust Evaluation | Nested model selection (inner folds) + risk assessment (outer folds) |
| Parallelism | Ray-based execution across CPU/GPU (or a Ray cluster) |
MLWiz supports Python 3.10+.
pip install mlwizTip: for GPU / graph workloads, install PyTorch and PyG following their official instructions first, then pip install mlwiz.
| Step | Command | Notes |
|---|---|---|
| 1) Prepare dataset + splits | mlwiz-data --config-file examples/DATA_CONFIGS/config_MNIST.yml |
Creates processed data + a .splits file |
| 2) Run an experiment (grid search) | mlwiz-exp --config-file examples/MODEL_CONFIGS/config_MLP.yml |
Add --debug to run sequentially and print logs |
| 3) Inspect results | cat RESULTS/mlp_MNIST/MODEL_ASSESSMENT/assessment_results.json |
Aggregated results live under RESULTS/ |
| 4) Visualize in TensorBoard | tensorboard --logdir RESULTS/mlp_MNIST |
Per-run logs are written automatically |
| 5) Stop a running experiment | Press Ctrl-C |

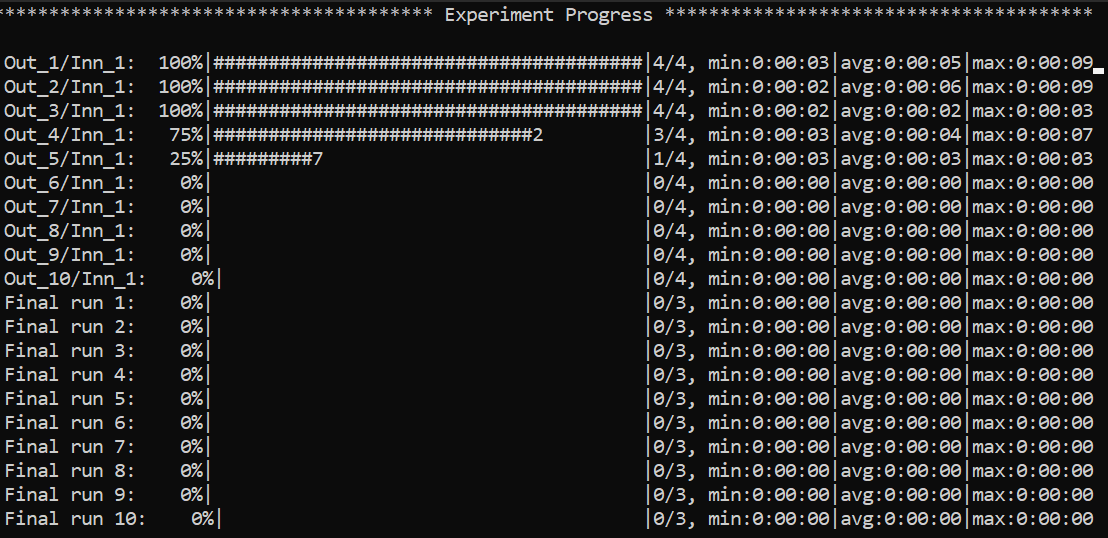

Example of the global view CLI:

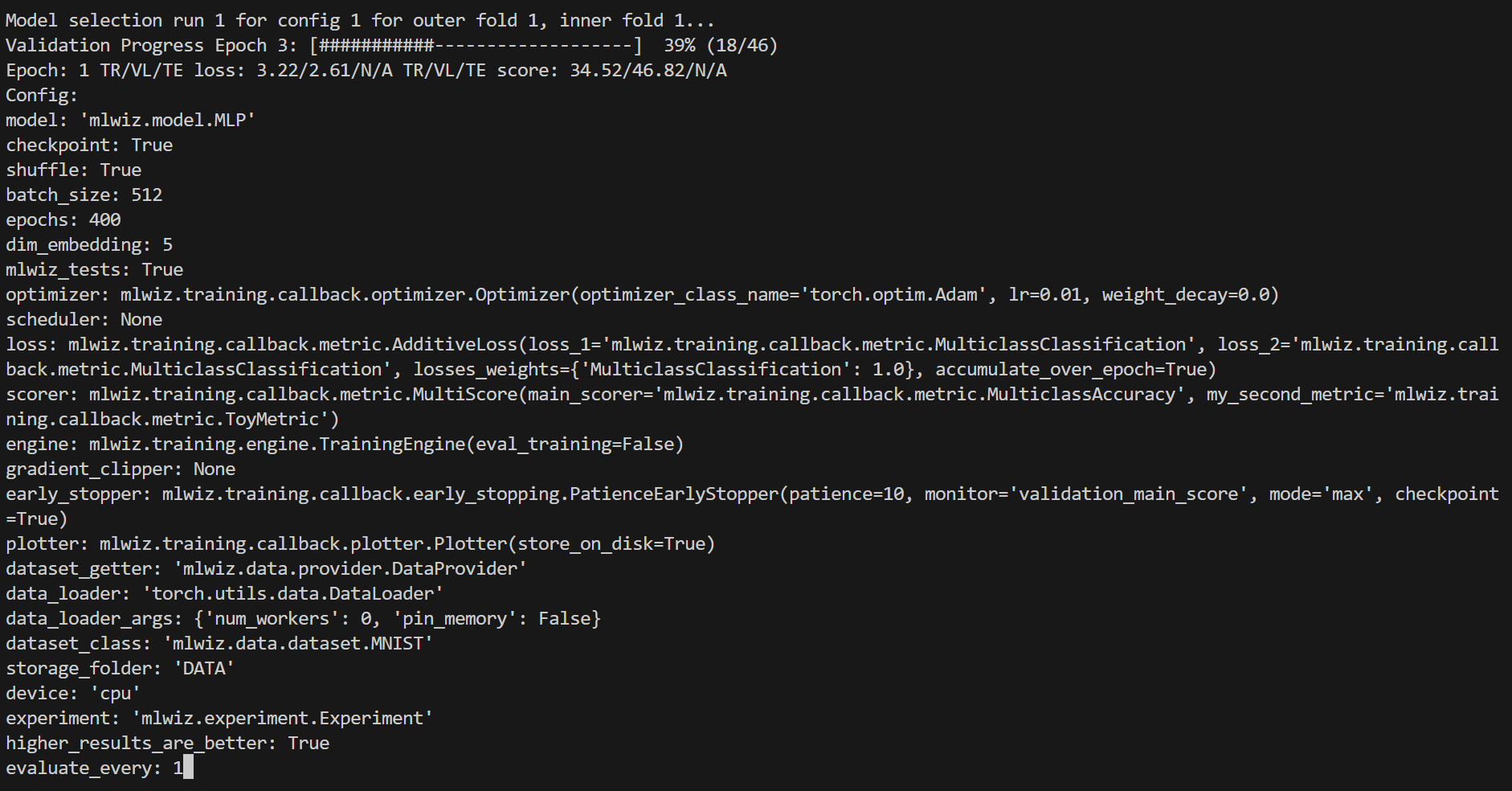

Specific views can be accessed, e.g. to visualize a specific model run:
:<outer_fold> <inner_fold> <config_id> <run_id>…or, analogously, a risk assessment run:
:<outer_fold> <run_id>Here is how it will look like
Handy commands:
: # or :g or :global (back to global view)
:r # or :refresh (refresh the screen)You can use left-right arrows to move across configurations, and up-down arrows to switch between model selection and risk assessment runs.
MLWiz is built around two YAML files and a small set of composable components:
data.yml ──► mlwiz-data ──► processed dataset + .splits
exp.yml ──► mlwiz-exp ──► Ray workers
├─ inner folds: model selection (best hyperparams)
└─ outer folds: risk assessment (final scores)
- 🧰 Data pipeline:
mlwiz-datainstantiates your dataset class and writes a.splitsfile for hold-out / (nested) CV. - 🧪 Search space:
grid:andrandom:sections expand into concrete hyperparameter configurations. - 🛰️ Orchestration: the evaluator schedules training runs with Ray across CPU/GPU (or a Ray cluster).
- 🏗️ Execution: each run builds a model + training engine from dotted paths, then logs artifacts and returns structured results.
MLWiz expects:
- 🗂️ one YAML for data + splits
- 🧾 one YAML for experiment + search space
Minimal data config:
splitter:
splits_folder: DATA_SPLITS/
class_name: mlwiz.data.splitter.Splitter
args:
n_outer_folds: 3
n_inner_folds: 2
seed: 42
dataset:
class_name: mlwiz.data.dataset.MNIST
args:
storage_folder: DATA/Minimal experiment config (grid search):
storage_folder: DATA
dataset_class: mlwiz.data.dataset.MNIST
data_splits_file: DATA_SPLITS/MNIST/MNIST_outer3_inner2.splits
device: cpu
max_cpus: 8
dataset_getter: mlwiz.data.provider.DataProvider
data_loader:
class_name: torch.utils.data.DataLoader
args:
num_workers : 0
pin_memory: False
result_folder: RESULTS
exp_name: mlp
experiment: mlwiz.experiment.Experiment
higher_results_are_better: true
evaluate_every: 1
risk_assessment_training_runs: 3
model_selection_training_runs: 2
grid:
model: mlwiz.model.MLP
epochs: 400
batch_size: 512
dim_embedding: 5
mlwiz_tests: True # patch: allow reshaping of MNIST dataset
optimizer:
- class_name: mlwiz.training.callback.optimizer.Optimizer
args:
optimizer_class_name: torch.optim.Adam
lr:
- 0.01
- 0.03
weight_decay: 0.
loss: mlwiz.training.callback.metric.MulticlassClassification
scorer: mlwiz.training.callback.metric.MulticlassAccuracy
engine: mlwiz.training.engine.TrainingEngineSee examples/ for complete configs (including random search, schedulers, early stopping, and more).
Point YAML entries to your own classes (in your project). mlwiz-data and mlwiz-exp add the current working directory to sys.path, so this works out of the box:
grid:
model: my_project.models.MyModel
dataset:
class_name: my_project.data.MyDatasetRuns are written under RESULTS/:
| Output | Location |
|---|---|
| Aggregated outer-fold results | RESULTS/<exp_name>_<dataset>/MODEL_ASSESSMENT/assessment_results.json |
| Per-fold summaries | RESULTS/<exp_name>_<dataset>/MODEL_ASSESSMENT/OUTER_FOLD_k/outer_results.json |
| Model selection (inner folds + winner config) | .../MODEL_SELECTION/... |
| Final retrains with selected hyperparams | .../final_run*/ |
Each training run also writes TensorBoard logs under <run_dir>/tensorboard/.
Duplicate a base experiment config across multiple datasets:
mlwiz-config-duplicator --base-exp-config base.yml --data-config-files data1.yml data2.ymlFilter configurations from a MODEL_SELECTION/ folder and convert them to a DataFrame:
from mlwiz.evaluation.util import retrieve_experiments, filter_experiments, create_dataframe
configs = retrieve_experiments(
"RESULTS/mlp_MNIST/MODEL_ASSESSMENT/OUTER_FOLD_1/MODEL_SELECTION/"
)
filtered = filter_experiments(configs, logic="OR", parameters={"lr": 0.001})
df = create_dataframe(
config_list=filtered,
key_mappings=[("lr", float), ("avg_validation_score", float)],
)Export aggregated assessment results to LaTeX:
from mlwiz.evaluation.util import create_latex_table_from_assessment_results
experiments = [
("RESULTS/mlp_MNIST", "MLP", "MNIST"),
("RESULTS/dgn_PROTEINS", "DGN", "PROTEINS"),
]
latex_table = create_latex_table_from_assessment_results(
experiments,
metric_key="main_score",
no_decimals=3,
model_as_row=True,
use_single_outer_fold=False,
)
print(latex_table)Compare statistical significance between models (Welch t-test):
from mlwiz.evaluation.util import statistical_significance
reference = ("RESULTS/mlp_MNIST", "MLP", "MNIST")
competitors = [
("RESULTS/baseline1_MNIST", "B1", "MNIST"),
("RESULTS/baseline2_MNIST", "B2", "MNIST"),
]
df = statistical_significance(
highlighted_exp_metadata=reference,
other_exp_metadata=competitors,
metric_key="main_score",
set_key="test",
confidence_level=0.95,
)
print(df)Load the best configuration for a fold, instantiate dataset/model, and restore a checkpoint:
from mlwiz.evaluation.util import (
retrieve_best_configuration,
instantiate_dataset_from_config,
instantiate_model_from_config,
load_checkpoint,
)
config = retrieve_best_configuration(
"RESULTS/mlp_MNIST/MODEL_ASSESSMENT/OUTER_FOLD_1/MODEL_SELECTION/"
)
dataset = instantiate_dataset_from_config(config)
model = instantiate_model_from_config(config, dataset)
load_checkpoint(
"RESULTS/mlp_MNIST/MODEL_ASSESSMENT/OUTER_FOLD_1/final_run1/best_checkpoint.pth",
model,
device="cpu",
)For more post-processing helpers, see the tutorial: https://mlwiz.readthedocs.io/en/stable/tutorial.html
See CONTRIBUTING.md.
BSD-3-Clause. See LICENSE.
