RetailApp

more details about Code Quality

This README provides guidelines to install, and use the Retail API and the Web Application.

Content

• Getting Started
• Prerequisites
• Installation
• Running
• How to Use
  • Login
  • Create an User
  • Create a Shipping Address
  • Create an Order
  • Create a Payment
  • Make a Search
• Routes and Methods
  • Users Routes
  • Shippings Routes
  • Orders Routes
  • Payment Route
  • Country Route
  • State Route
  • City Route
• Built With
• Video Demo
• Author

Getting Started

Web application to manage a retail business, where you can create users, add address to the users, create orders to the users, and create payments. The web application have a view to search and filter data from the database. This project was based on the assessment by Holberton School, here you can find more information about.

Prerequisites

• mysql => v8.0.23
• npm => v6.14.4
• node => v10.19.0
• python => v3.8.5

Installation

• git clone https://github.com/devarias/RetailApp.git
• cd RetailApp
• First you have to enable the virtual environment for python.
• source env.sh => Here you will install virtualenv with pip3, create the venv and enter to this.
• Everything is installed and ready to run.

Running

• You will be now in the virtual environment to run the installation and start the RESTful API and Web Application, or just start them.
• ./start
  • This command will start the instructions to install or start the RESTful API and the Web Application.
  • The option number 1 is to create the Database, create the user in MySQL and install all the dependencies and the python requirements to run the application, after installation will start the RESTful API and the Web Application.
  • Remember we are going to create the DataBase and the users, we will do under the root user, then the program will ask you for your mysql password.
  • The option number 2 is to start the RESTful API and the Web Application, because you have the database created and everything created.
  • To exit from the web application in the terminal just press Ctrl + C
  • To exit from the virtual environment just type deactivate

How to use

• Login

To log in in the web application use the next credentials:

• email: react.fastapi.app@gmail.com
• password: Password123

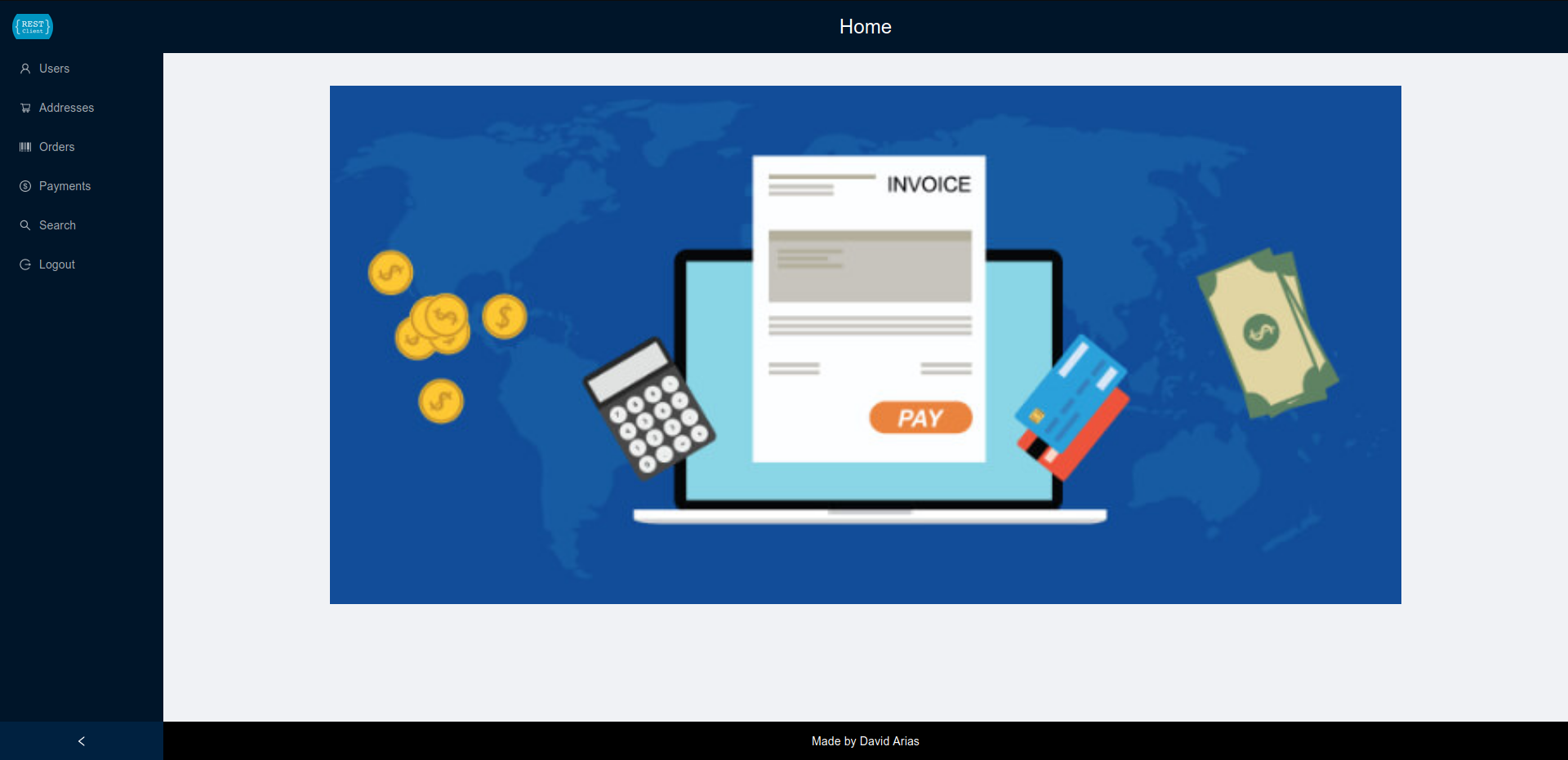

Once you are logged in, you are in the Home with a Navigate Side Bar with the next options:

• Users: You can create Users.
• Addresses: You can add to a specific user a shipping address.
• Orders: You can select an user and create an order to it.
• Payments: You can select the user and the order to create a payment.
• Search: You have a table to search by Order ID, by name, by address, by a range date, and by location.
• Logout: Logout of the web application.

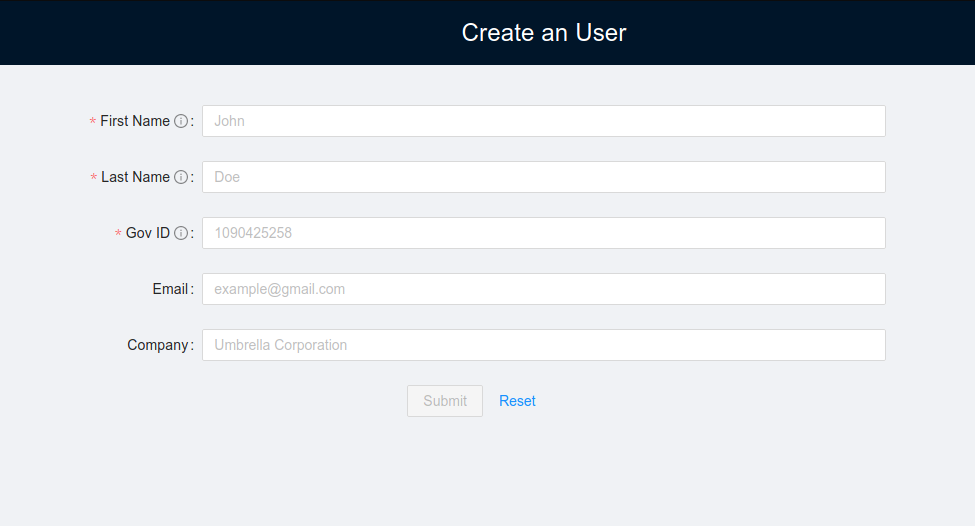

• Create an User

Here you can create an User, the fields required have the exclamation mark next to the label.

• First Name. (Required)
• Last Name. (Required)
• Gov ID. (Required)
• email.
• Company

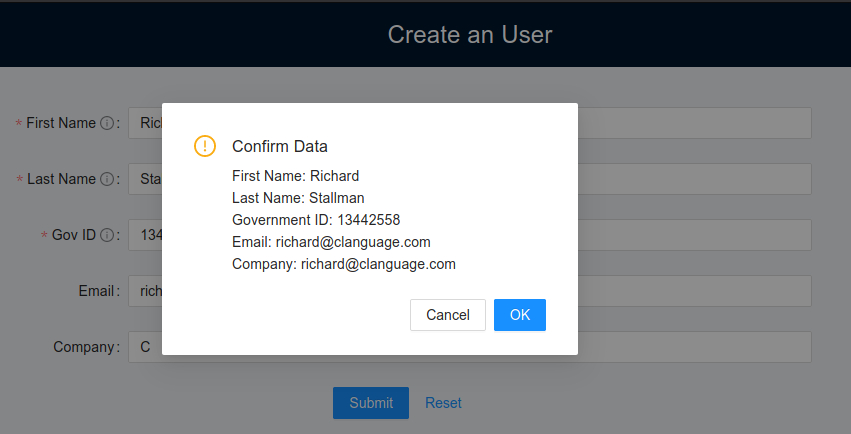

Notice if you don't fill out the required fields the submit button will stay disabled. Also you can reset the fields with the button Reset. When you click the submit button will appear a modal box asking to confirm the data given.

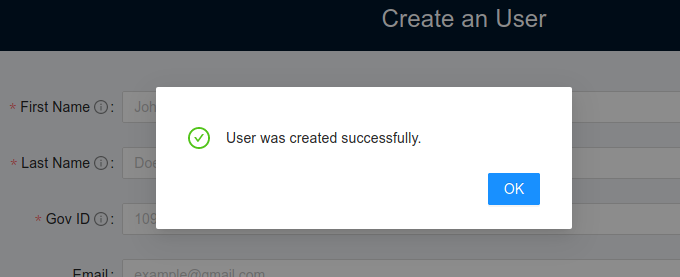

If you confirm the data, a successfully message will show up.

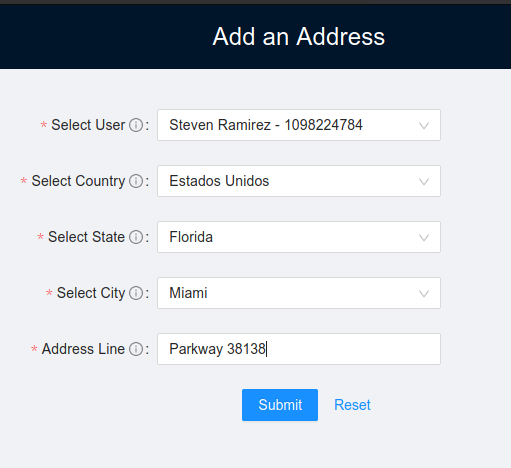

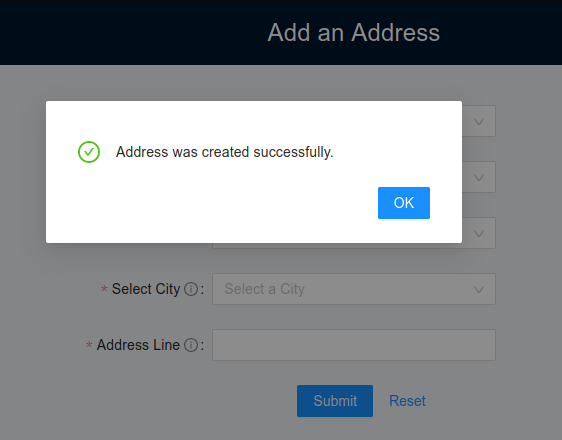

• Create a Shipping Address

In this section you can add a shipping address to a User.

• Select User. (required)
• Select Country. (required)
• Select State. (required)
• Select City. (required)
• Address Line. (required)

• Create an Order

Now you can add orders to the users, selecting the user and its shipping address. When you select the address it will show you automatically the State, Country and Shipping taxes. And if you are typing the cost of the order, you can see the total including the taxes.

• Select User. (required)
• Select an Address. (required)
• State.
• Country.
• Order Cost. (required)
• Shipping Taxes.
• Total

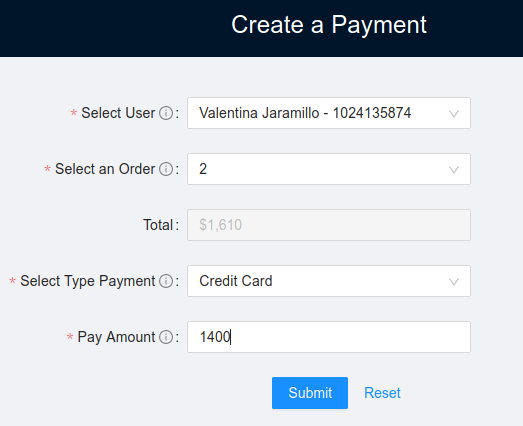

• Create a Payment

Now you can add payments to the order's users, selecting the user and its order. When you select the order it will show you automatically the Total Cost of the Order. Also you have to select the Type of Payment, Credit Card, Debit Card, or Cash.

• Select User. (required)
• Select an Order. (required)
• Total.
• Select Type Payment. (required)
• Pay Amount. (required)

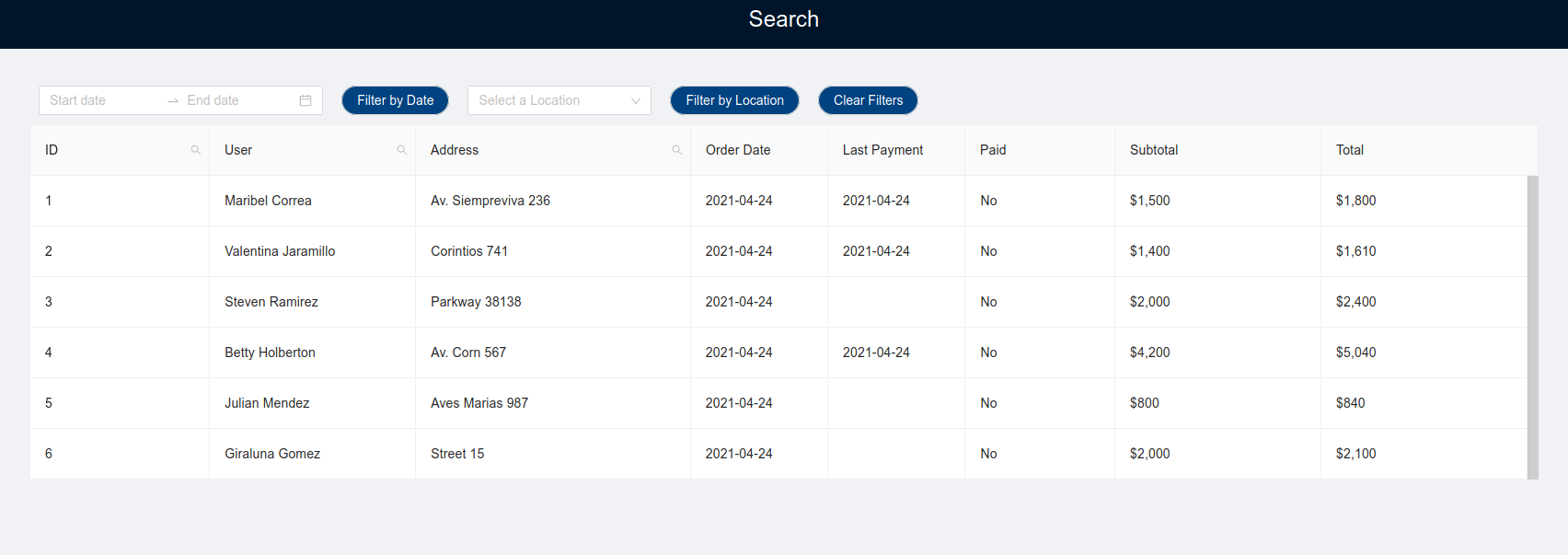

• Make a Search

Here you can filter by Order ID, or by user name, or by shipping address, also you can filter by a date range or by location.

Routes and Methods

• Users Routes

Route	Method	Description
api/users/all	get	To get all the data of the users
api/users/{id}	get	To get the information of an user
api/users	post	To create an user

• Shippings Routes

Route	Method	Description
api/shippings/	get	To get all the data of the shipping addresses
api/shippings/	post	To create a new shipping addresses to an user

• Orders Routes

Route	Method	Description
api/orders	get	To get all the data of the orders
api/orders/	post	To create an order
api/orders/shipping/{key}	get	To get all the orders with the same key as Country, State or City
api/orders/{order}	get	To get all the data of the orders according to the string passed

• {order} could be:
  • 2 a single order.
  • 1,2,3,4,5 a list of orders separated by comma.
  • 123e4567-e89b-12d3-a456-426614174000 a user id to know all the orders by it.
  • 2021-04-15-2021-04-25 a date range to know all the orders between that range.

• Payment Routes

Route	Method	Description
api/payments	get	To get all the data of the payments

• Country Route

Route	Method	Description
api/countries	get	To get all the data of the countries

• State Route

Route	Method	Description
api/states	get	To get all the data of the states

• City Route

Route	Method	Description
api/cities	get	To get all the data of the cities

Built With

• Python
• FastAPI
• MySQL
• React.js
• npm
• Bash
• Auth0

Demo Video

You can find the demo video here

Author

David Arias Fuentes
