genchanted

Put on your robe and wizard hat!

"Genchanted" was created for the Godot XR Game Jam (Feb 2025) with the theme "Enchanted!" as a proof-of-concept tool for using AI to generate 3D objects directly into Godot, as if by magic.

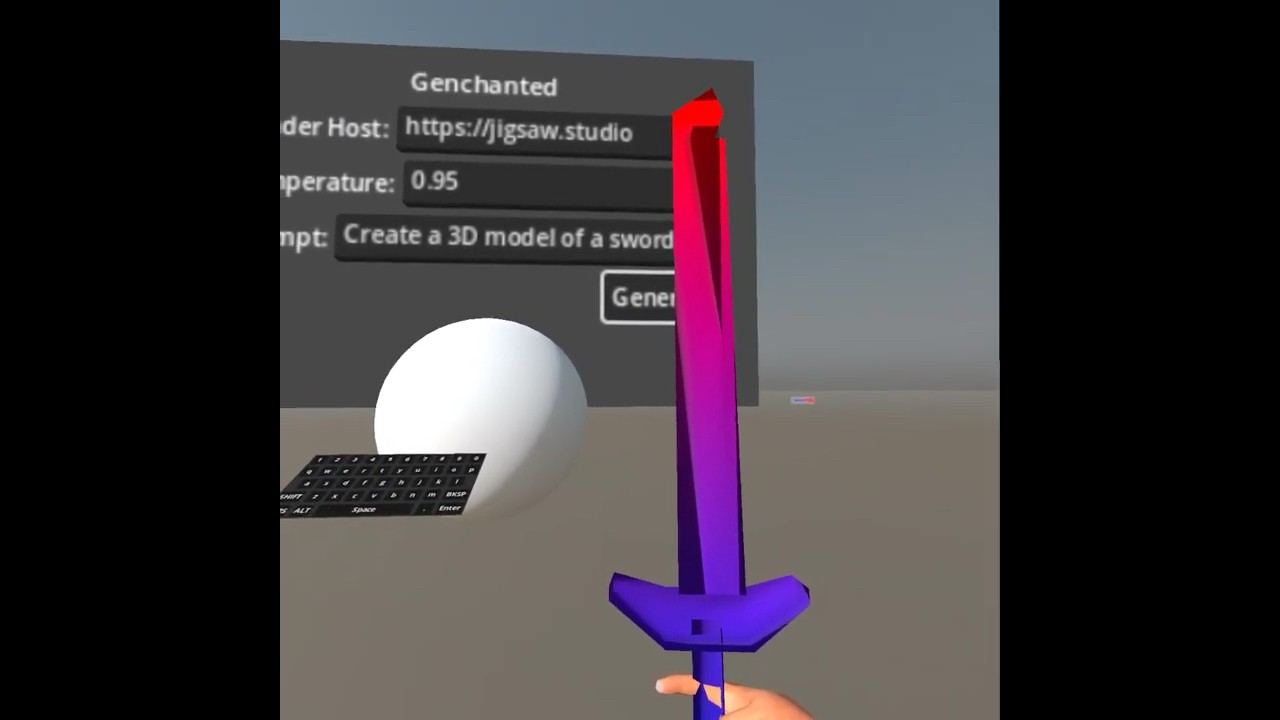

Demonstration video

Generating a sword in XR Simulator

Features

• Render 3D objects from a text prompt using Generative AI
• Generated objects are imported directly into Godot during gameplay
• Vertexes are previewed in realtime as they are generated
• Rendering can be on same system (such as for PCVR) or a remote server (such as for Meta Quest)
• Forked from styx-godot 3D network traffic and data visualization application
• Supports Ollama or generate-glb backends for 3D object generation
• "Teleport" locomotion for AR/VR/XR environments
• On-screen Joystick Touch Pad support for mobile and tablet devices
• Released as Open Source under the permissive MIT License

Platforms

• Apple Vision Pro
• Meta Quest 3, 3s, and 2
• SteamVR and OpenXR headsets (such as Valve Index)
• WebXR supported devices
• Android
• iPhone and iPad

Instructions

Setup

• Download and install for your preferred platform
• Configure Network Rendering according to Dependencies below
• Launch Genchanted
• Verify the Render Host URL matches your network rendering server (default is localhost for PCVR)
• Adjust the Temperature as desired, the higher the value the more "creative" the model
• Adjust the prompt to your preferred object. Note that a single word works best
• Click "Generate" (or the large circular button for touchscreen interfaces) to request 3D object generation from the network host

Tips

• It may take several seconds for generation to begin, vertexes will be rendered as black dots inside a translucent cube as they are streamed from the host
• Examples of previously-rendered objects (a sword and a hammer) as displayed to illustrate expected output
• Generating objects which were in the model's original training data will work best, though not all types of model names are known. Here's some examples:
  • sword
  • hammer
  • ring
  • barrel
  • lamp
• Note: There are several quantized versions of the LLaMA-Mesh available on HuggingFace, but the original non-quantized version seems to work the best. It will be necessary to use generate-glb (written specifically for this project) to host network access to that model.

Dependencies

Network Rendering

Ollama

Note: Easiest setup

• Download and install Ollama
• Install a supported model, for example:

ollama pull hf.co/bartowski/LLaMA-Mesh-GGUF:Q4_K_M

• For Windows network host (Windows serving to other devices over a network), close Ollama and re-launch using a batch file named ollama-server.bat:

@echo off
set OLLAMA_HOST=0.0.0.0:11434
ollama serve

generate-glb

Note: Best results

• Install generate-glb by following the instructions found in the repository
• Launch the server on the network interface:

python3 src/server.py --host 0.0.0.0 --port 11434

Docker with CUDA (NVIDIA Container Toolkit)

Note: Best results, fastest

• Recommended: NVIDIA card with 16 GB+ of VRAM (3090, 4080, 4090, 5080, 5090, etc.)
• If NVIDIA Container Toolkit with CUDA support is available on the system:

docker run \
  --gpus all \
  -p 11434:11434   \
  -v ${PWD}/logs:/logs \
  -v ${HOME}/.cache/huggingface:/root/.cache/huggingface   \
  ghcr.io/castellotti/generate-glb/generate-glb:main-cuda   \
  python3 /app/src/server.py \
    --host 0.0.0.0 \
    --port 11434

Source Code Dependencies

Apple Vision Pro

• Reference: GodotVision
• Requires updates from Godot 4.2 to 4.3
• Download Godot 4.3 version of modules:

  git clone git@github.com:kevinw/GodotVision.git
  git clone git@github.com:multijam/SwiftGodot.git
  git clone git@github.com:multijam/SwiftGodotKit.git


• Download Godot 4.3 version of libgodot.xcframework.zip
• Extract libgodot.xcframework and place into SwiftGodot root directory from git repository (this prevents a later error during import that local binary targets libgodot_tests and binary_libgodot at the SwiftGodot/libgodot.xcframework location "does not contain a binary artifact.")
• Open GodotProject/project.godot once in Godot 4.3 editor to automatically import assets
• Open Styx.xcodeproj Xcode project in Xcode 16.2
• Build and Run on visionOS simulator or install to Apple Vision Pro (will require adding App Store Team ID)

Meta Quest and Android devices

• Follow the standard Godot Deploying to Android guide

WebXR

• Reference: Godot Exporting for the Web guide
• Generate a Web Export to a build directory with name index.html
• Transfer all files from build directory to styx-os at path /srv/styx-web/html
• Example all-in-one command on macOS:

  /Applications/Godot\ 4.3.app/Contents/MacOS/Godot \
    --path $HOME/genchanted/Godot_Project \
    --headless \
    --export-release "Web" \
          $HOME/genchanted/Godot_Project/build/html/index.html \
  && rsync --delete -zvaP \
      $HOME/genchanted/Godot_Project/build/html/* \
      172.16.100.1:/srv/styx-web/html


iOS and iPadOS

• Reference: Godot Exporting for iOS guide
• In most cases the default settings for exporting to iOS should be sufficient

Credits

• Models: LLaMA-Mesh and meshgen
• Godot XR Tools: Website, GitHub (special thanks Bastiaan Olij)
• GodotVision (special thanks Kevin Watters)
• Pocket Godot (special thanks @lukky-nl)
• David Snopek's How to make a VR game for WebXR with Godot 4
