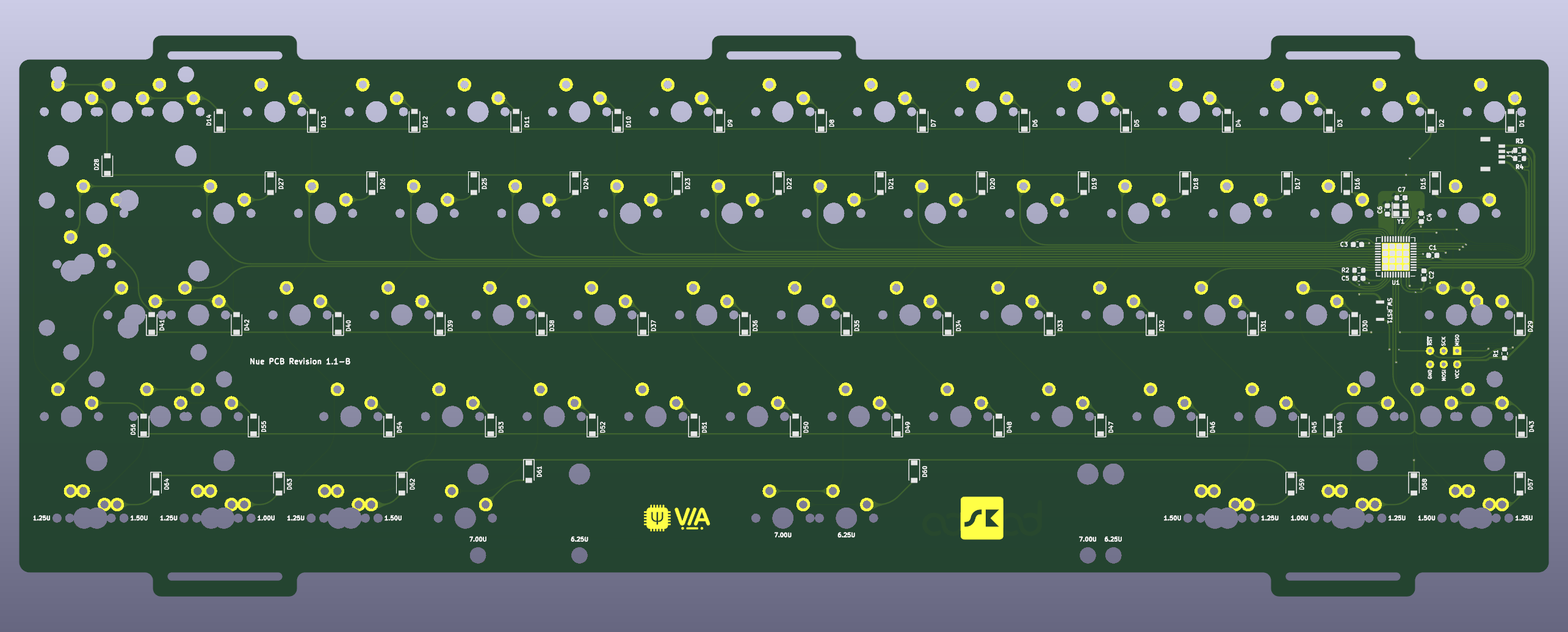

This is the open source PCB modified from the Nue PCB for the Ouro Keyboard. This PCB was designed by kbye/studio kestra.

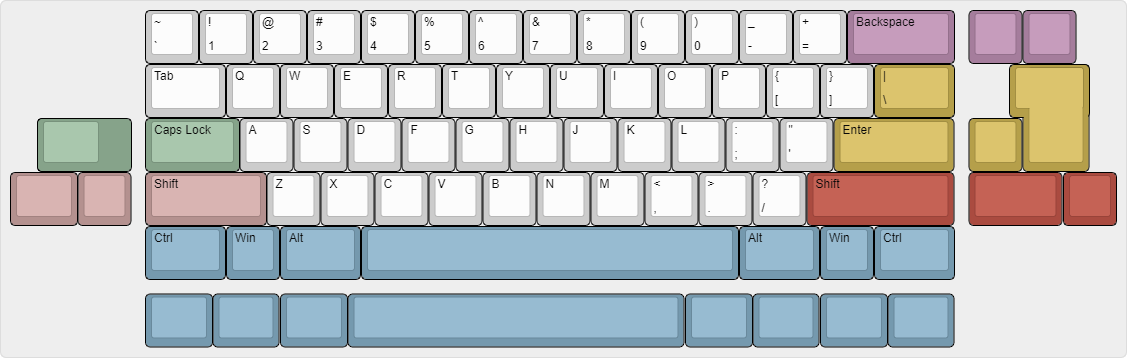

It's minimally designed (as intentioned) with ISO support and basic 60% layout options. The Nue/Ouro PCB has gasket mounting tabs and as such will not work on any other keyboard. Fuse / ESD protection was not implemented initially as this was taken care of by the unifed C3 daughterboard, however future revisions will have it onboard as backup. These files are provided as-is and are intended for tinkerers, do not expect warranty or support to be provided.
- Designed with KiCad 6.0+
- Compatible with QMK/VIA
- Only works with Ouro Keyboard
- Utilizes Unified C3 daughterboard or compatible equivalents
- ISP header
The files necessary to produce the PCBs via JLCPCB are located in the production/JLCPCB folder.
