Observation

As I will write the text in English, I will express the numbers in the notation adopted in US ("EUA" in brazilian portuguese). The thousand separator will be "," and decimal separator will be ".". We adopt the inverse in portuguese.

Note

After the initial solution I will make a more flexible solution in the end of this document.

General

2 columns, left line with 3 items and right line with 2 items - 5 items

Let's think. We need to allocate all the parts in a big part, who needs to be a perfect rectangle (or a square).

I chatted with Chat GPT to try to understand better the problem. Let's talk about my understand:

We will try to build a treemap with the numbers 1, 2, 10, 20, 50.

The sum of these numbers is 1 + 2 + 10 + 20 + 50 = 83.

First of all, the proportions are in the are. In another words, the rectangle "2" needs to have the double of the area of the rectangle "1".

We need some assumptions, like the total area. We need to adopt the total widthand height. Let's adopt 800x600 (width x height).

Thus, the total area will be 800x600 = 480.000.

The area of off all parts needs to be proportional. In another words:

• The sum of the parts is 83;
• The total area is 480,000.

Then we need a scale factor. The scale factor will be:

• 480.000/83 = 5,783.1325 (approximately)

Is a little obvios (kkk), but if we multiply the sum of the parts to the scale factor we will get the total ``area`:

(1 + 2 + 10 + 20 + 50) x 5,783.1325 = 479,999.9975 = 478,000 (approximately).

Proportionally, the area of the "1" part will be 5,783.1325

We defined that the total square has the 800x600 dimensions. The solution of Chat GPT adopted the 3 minor values on the left and the remainder 2 values on the right. We will adopt that we will have:

• If the total of the parts is an even number, then we will have half of the parts in the left and half of the parts in the right;
• If the total of the parts is an odd number, then we will have half of the parts + 0.5 in the left and half of the parts -0.5 in the right. Example: 5 parts - half of this value is 2.5. 2.5 + 0.5 = 3 and 2.5 - 0.5 = 2. 3 + 2 = 5;
• The lower values will be allocated in the left. And this will be result in a right solution? Yes, because the right part will be bigger in x aixis.

"The general shape" of the general idea will be:

 __ ________
|__|        |
|  |________|
|__|        |
|  |        |
|  |        |
|  |        |
|__|________|

Let's return to our solution. We will have the height of 600. Thus the sum of the height of the three parts on the left will have the value 600. The dimension will be the same in this 3 parts. This way, proportionally, the height of the Y part "1" will be 1/(1 + 2 + 10) x 600 => 1/13 x 600 = 46.1538

We know that the total area of the "1" part will be 5,783.1325 as we calculated before. Then the width will be:

5,783.1325 / 46.1538 = 125.3013

To calculate the another areas` (not widths or ``heights) we need only the make a multiplication respecting the proportionality. In another words:

• "1" part: area will be 5,783.1325 x 1 = 5,783.1325
• "2" part: area will be 5,783.1325 x 2 = 11,566.2650
• "10" part: area will be 5,783.1325 x 10 = 57,831.3250
• "20" part: area will be 5,783.1325 x 20 = 115,662.6500
• "50" part: area will be 5,783.1325 x 50 = 289,156.6250

Let's verify. We need to have the sum of the parts equals to the total:

5,783.1325 + 11,566.2650 + 57,831.3250 + 115,662.6500 + 289,156.6250 = 479,999.9975

479999.9975 is approximately 480,000.0000

We verified the area. Seem that we are right until now.

Let's make another verification. The sum of the 3 y parts of the parts on the left needs to be equals to the total height. Reviewing the information of the height of the "1" part: 46.1538

As the width of the 3 parts are equals, we can mutiply proportionally the values on height. Then:

• 1 part: height = 46.1538
• 2 part: height = 92.3076
• 10 part: height = 461.5380

Testing the sum:

46.1538 + 92.3076 + 461.5380 = 599.9994 (approximately 600)

Ok, a little obvious in mathematics as: x + 2x + 10x = 13x and 13 x 46.1538 = 599.9994

Ok, seems right until now...

We verified the total height. Remember, the height of the three blocks on the left is equals to the height of the two blocks on le right.

We need only to calcute the 2 last rectangles dimensions. We know that the width of the minor group of 3 rectangles is 125.3013

Than can calculate the width of the another part this way: 800 - 125.3013 = 674.6987

We already calculate the area of all the parts. Then we can calculate the heights:

• "20" part: height will be 115,662.6500 / 674.6987 = 171.4285
• "50" part: height will be 289,156.6250 / 674.6987 = 428.5714

The sum of the calculated heights above is: 171.4285 + 428.5714 = 599.999 (approximately 600)

Ok, seems right

The rectangles will be:

• Part "1": 125.3013 x 46.1538
• Part "2": 125.3013 x 92.3076
• Part "10": 125.3013 x 461.5380
• Part "20": 674.6987 x 171.4285
• Part "50": 674.6987 x 428.5714

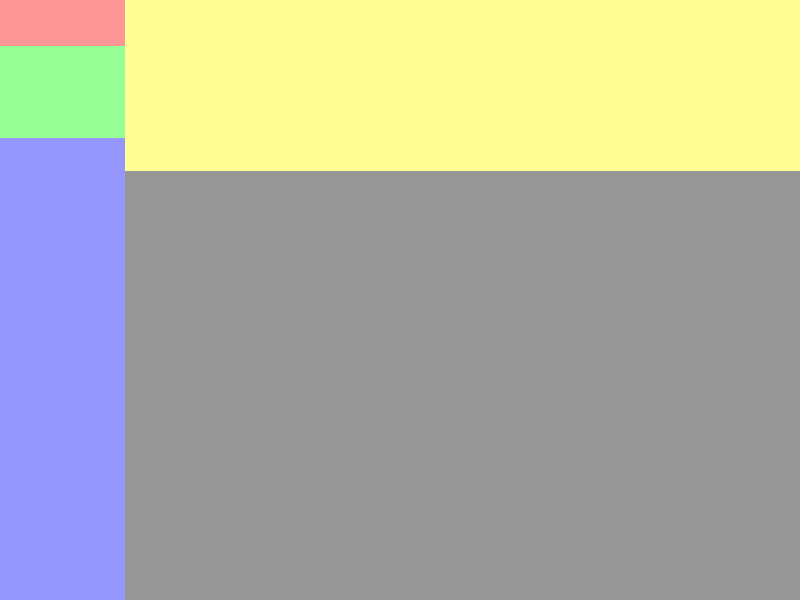

Let's build the PHP script to make the tree map. We need first to install the GD extension, ok? Please see this file. You can see the result of this script here.

More flexible solution

3 (lines) x 2 (columns) treemap

After talking about my solution and thinking in the necessary rules that I have setted, I conclude that I don't need so strict rules.

First of all I talked with another person about this question: if I have 9 items, I can build a treemap with 3 columns (3 items in each column) or with 2 columns (one column with 5 items and another column with 4 items). I do not know the rule to apply to enforce one of that solutions and do not extract the definitive answer from another person, so I talked to Chat GPT. And Chat GPT said me: .

So I can let the user to decide. Besides this user selection, we enforce the number of lines. We need to test a rules. Let's build the first rule:

• We will have at minimum 1 columns;
• We will have at maximum 4 columns. Why? Because think in 20 items. Is possible to build a treemap with 20 columns of 1 item, a little strange, right? How? adjusting the width of every column, respecting the height, that way the rectangle representing every item correspond proportionally to each value. We will try to make a draf under this message:

 _ _________
|_|_________|

But we simple can ignore this rule of maximun of columns. The solution still works. Obviously do not have sense in selecting 5 colums for 3 items. The maximum number of columns needs to be the number of items.

I think you understood the general idea. So the user will can select the number of items, its values and the number of columns. The columns will vary beetween 1 and 4 and obvoiusly we can't allow that the number of columns to be great than the number of items.

And the user will can insert the total size in 2 fields, resulting in values like 1000x2000.

Let's try to use the total area size 850 x 550 (width x height) and 6 items, making the solution varianting between the arrangment 2x3 and 3x2.

Let's start with 3x2.

The random values will be:

• 5
• 8
• 9
• 14
• 15
• 17

We will put the lower values at the right. If we have 7 values? I think that you already understood that this will not be a problem, as we already make a treemap with 5 items at the beggining of this document. We only need to put more items in one (or more) columns and we will adjust the width of the column and the height of the line. We dont need the entire line with the same height. Comments:

• the width of every column vary. But all items in the column have the same width of the column;
• the height of the line is not the same. It vary for each item, as we need to adjust the area to be proportional of the value (the porportion of each area item and the value its represent is the same).

We talked about a interesting thing. How to select the number of items in each column. The user will select the number of columns and not the number of items for every column.

Let's think in examples for three columns:

• 6 items: 3 coluns with 2 items (3x2 = 6);
• 7 items: 1 column with 3 items and 2 columns with 2 items (1x3 + 2x2 = 7);
• 8 items: 2 columns with 2 items and 1 column with 1 item (2x3 + 1x2 = 8);
• 9 items: 3 columns with 3 items (3x3 = 9).

The rule for 6 items, testing:

<?php
$numberOfColumns = 3; // prerequisite
$itemsPerColumns = [];
$remainderItems = 6; // We will test after with another values

while ($numberOfColumns > 0) {
    if (count($itemsPerColumns) < $numberOfColumns) {
        $totalItem = ceil($remainderItems / $numberOfColumns )
    } else { //
        $totalItem = ceil($remainderItems / $numberOfColumns )
    }
    $itemsPerColumns[] = $totalItem;
    $numberOfColumns--;
    $remainderItems -= $totalItem;

}
?>

Testing the solution for 6 items. First processing in the loop:

$itemsPerColumns = [2]; // totalItem = 6/3 = 2 .. $remainderItems = 6 - 2 = 4 $numberOfColumns = 2;

Second:

$itemsPerColumns = [2, 2]; // totalItem = 4/2 = 2 .. $remainderItems = 4 - 2 = 2 $numberOfColumns = 1;

Third:

$itemsPerColumns = [2, 2, 2]; // totalItem = 2/1 = 2 .. $remainderItems = 2 - 2 = 0 $numberOfColumns = 0; // Now exit the loop

Ok, another way to exit the loop is verifying the remainder items and not the number of columns, but ok, verifying the number of columns works.

Let's think in the solution for 7 items:

<?php
$numberOfColumns = 3; // prerequisite
$itemsPerColumns = [];
$remainderItems = 7; // We will test after with another values

while ($numberOfColumns > 0) {
    if (count($itemsPerColumns) < $numberOfColumns) {
        $totalItem = ceil($remainderItems / $numberOfColumns )
    } else { //
        $totalItem = ceil($remainderItems / $numberOfColumns )
    }
    $itemsPerColumns[] = $totalItem;
    $numberOfColumns--;
    $remainderItems -= $totalItem;

}
?>

Testing the solution for 7 items. First processing in the loop:

$itemsPerColumns = [3]; // totalItem = 7/3 = 2.33 (ceil = 3) ... $remainderItems = 7 - 3 = 4 $numberOfColumns = 2;

Second:

$itemsPerColumns = [3, 2]; // totalItem = 4/2 = 2 (ceil = 2) ... $remainderItems = 4 - 2 = 2 $numberOfColumns = 1;

Third:

$itemsPerColumns = [3, 2, 2]; // totalItem = 2/1 = 2 (ceil = 2) ... $remainderItems = 2 - 2 = 0 $numberOfColumns = 0; // Now exit the loop

Ok, still works. And for 8 items? Between solutions we are only modifying this line ($remainderItems = 6 // or 7 for 7 items), we will not repeat the code more, ok?

First processing of the loop:

$itemsPerColumns = [3]; // totalItem = 8/3 = 2.66 (ceil = 3) ... $remainderItems = 8 - 3 = 5 $numberOfColumns = 2;

Second:

$itemsPerColumns = [3, 3]; // totalItem = 5/2 = 2.5 (ceil = 3) ... $remainderItems = 5 - 3 = 2 $numberOfColumns = 1;

Third:

$itemsPerColumns = [3, 3, 2]; // totalItem = 2/1 = 2 (ceil = 2) ... $remainderItems = 2 - 2 = 0 $numberOfColumns = 0; // Now exit the loop

Still works. Now for 9 items:

First processing of the loop:

$itemsPerColumns = [3]; // totalItem = 9/3 = 3 (ceil = 3) ... $remainderItems = 9 - 3 = 6 $numberOfColumns = 2;

Second:

$itemsPerColumns = [3, 3]; // totalItem = 6/2 = 3 (ceil = 3) ... $remainderItems = 6 - 3 = 3 $numberOfColumns = 1;

Third:

$itemsPerColumns = [3, 3, 2]; // totalItem = 3/1 = 3 ... $remainderItems = 3 - 3 = 0 $numberOfColumns = 0; // Now exit the loop

Ok, the solution to select the number of items per column works.

Let's return to our previous challenge. First we think that the user selected 2 columns. Then we will have:

• 6 items in 2 columns, 3 items by column;
• Total area of 850 x 550.

Repeating the make the reading easier, our random values are:

• 5
• 8
• 9
• 14
• 15
• 17

Testing our previous algoritm. First processing of the loop: $itemsPerColumns = [3]; // totalItem = 6/2 = 3 (ceil = 3) ... $remainderItems = 6 - 3 = 3 $numberOfColumns = 1;

Second $itemsPerColumns = [3, 3]; // totalItem = 3/1 = 3 (ceil = 3) ... $remainderItems = 3 - 3 = 0 $numberOfColumns = 0;

We reached as we noted before in 2 columns with 3 items in each column ([3, 3]).

The total area is 850 x 550 = 467,500

The sum of the values of the items is 5 + 8 + 9 + 14 + 15 + 17 = 68

The = n the scale factor will be 467,500 / 68 = 6,875.0000 (6,875)

We know that we must not have a unique line height, but we need the same width in the items of the same column (not only a unique column width for each column, but in the same column we will have an unique width).

We will select the lower values to the left column, remembering that how the column width will vary between different columns, we will have the areas` proportionally allocated correctly.

Proportionally to the values, we have this areas:

• Value 5: 5 x 6,875 = 34,375
• Value 8: 8 x 6,875 = 55,000
• Value 9: 9 x 6,875 = 61,875
• Value 14: 14 x 6,875 = 96,250
• Value 15: 15 x 6,875 = 103,125
• Value 17: 17 x 6,875 = 116,875

The sum of these small rectangle areas needs to be equals to the total rectangle area. Let's verify: 34,375 + 55,000 + 61,875 + 96,250 + 103,125 + 116,875 = 850 x 550 = 467,500

Ok, we are right until now.

We know that we have two columns. The right column will have the lower values and the rectangles will vary in height.

The total height is 550 with the proportional parts 5, 8 and 9. So, the values of the heights will be:

The sum of the values that will be allocated in the left part will be 5 + 8 + 9 = 22

• Value 5: (550 / 22) x 5 = 125
• Value 8: (550 / 22) x 8 = 200
• Value 9: (550 / 22) x 9 = 225

The sum of the heights of the parts needs to be equals to the total height. Let's verify:

125 + 200 + 225 = 550

Right until now... Then the widths needs to be the same in this three values and will be area / height:

• Value 5: 34,375 / 125 = 275
• Value 8: 55,000 / 200 = 275
• Value 9: 61,875 / 225 = 275

Right again! :)

Now we can easily finish the calculations. The width of the right part will be totalWidth - widthLeftPart

widthRightPart = 850 - 275 = 575

We have the areas of the blocks of the right part. And the width. So we can calculate the heights (height = area / width):

• Value 14: 96,250 / 575 = 167.39130434 (approximately)
• Value 15: 103,125 / 575 = 179.34782608 (approximatelly)
• Value 17: 116,875 / 575 = 203.26086956 (approximatelly)

Let's sum these values to make a final verification: 167.39130434 + 179.34782608 + 203.26086956 = 549.99999998 = 550 (approximately)

Seems right... We can result in this dimensions and areas:

Left part:

• Value 5 - dimensions: 275 x 125 . Area: 34,375
• Value 8 - dimensions: 275 x 200. Area: 55,000
• Value 9 - dimensions: 275 x 225. Area: 61,875

Right part:

• Value 14 - dimensions: 575 x 167.39130434. Area: 96,250
• Value 15 - dimensions: 575 x 179.34782608. Area: 103,125
• Value 17 - dimensions: 575 x 203.26086956. Area: 116,875

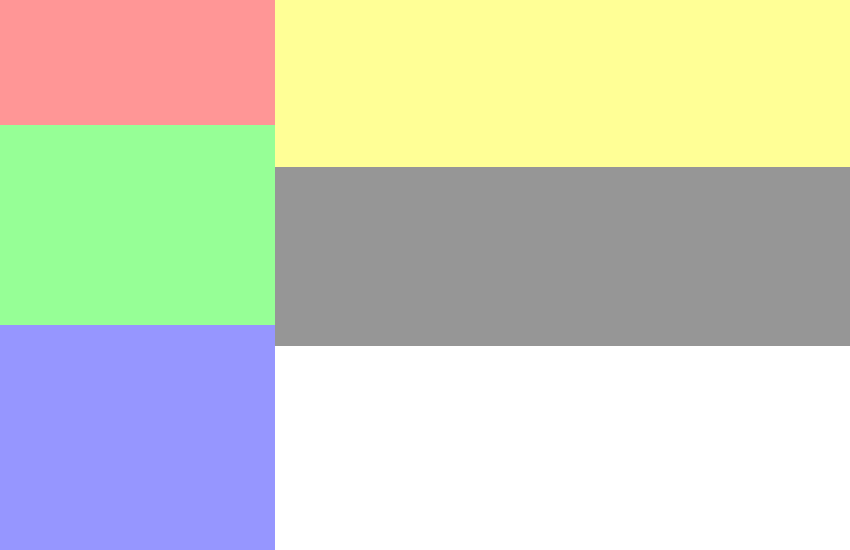

We elaborated this script to build this treemap, with these values, with PHP (and GD). And you can see the execution of this script here.

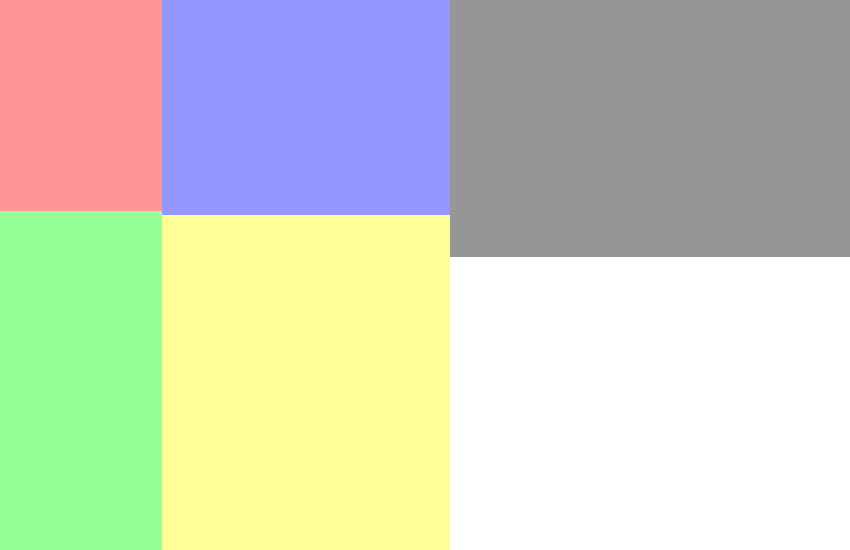

2 (lines) x 3 (columns) treemap

Now let's make a treemap with 3 colums, with the same values of the previous study case.

Let's try to use the total area size 850 x 550 (width x height) and now we will use the arrangment 2x3.

The random values again will be:

• 5
• 8
• 9
• 14
• 15
• 17

We will put the lower values on the left and if two value are in the same column, the lower value will be inserted at the top, generating the columns with the values:

• 5 and 8
• 9 and 14
• 15 and 17

Ignoring the PHP script that select the number of items per column, we start only put under this message to remember, but some values still the same as the previous example:

• Total area = 85 x 550 = 467,500
• Total sum of the items = 5 + 8 + 9 + 14 + 15 + 17 = 68
• Proportional total area / sum of the items = 467,500 / 68 = 6,875

We will have this proportions in y aixis:

• Value 5: (550 / (5 + 8)) x 5 = 211.53846150
• Value 8: (550 / (5 + 8)) x 8 = 338.46153840

Sum of these two items = 549.99999990 = 550 (approximately) => right

• Value 9: (550 / (9 + 14)) x 9 = 215.21739123
• Value 14: (550 / (9 + 14)) x 14 = 334.78260858

Sum of these two items = 549.99999981 = 550 (approximately) => right

• Value 15: (550 / (15 + 17)) x 15 = 257.81250000
• Value 17: (550 / (15 + 17)) x 17 = 292.18750000

Sum of these two items = 550 => right

The areas using the scale factor to calculate are:

• Value 5: 6875 * 5 = 34375
• Value 8: 6875 * 8 = 55000
• Value 9: 6875 * 9 = 61875
• Value 14: 6875 * 14 = 96250
• Value 15: 6875 * 15 = 103125
• Value 17: 6875 * 17 = 116875

As we have the heights and the areas of each area, we can calculate the widths:

• Value 5: 34,375 / 211.53846150 = 162.50000002
• Value 8: 55,000 / 338.46153840 = 162.50000002

Cool, same values! Same widths!

• Value 9: 61,875 / 215.21739123 = 287.50000009
• Value 14: 96,250 / 334.78260858 = 287.50000009

Cool, same values! Same widths!

• Value 15: 103,125 / 257.81250000 = 400
• Value 17: 116,875 / 292.18750000 = 400

Cool, same values! Same widths!

Now let's sumirize the values to make the PHP script creation with GD easier (width x height):

• Value 5: 162.50000002 x 211.53846150
• Value 8: 162.50000002 x 338.46153840
• Value 9: 287.50000009 x 215.21739123
• Value 14: 287.50000009 x 334.78260858
• Value 15: 400 x 257.81250000
• Value 17: 400 x 292.18750000

The script is here and the implementation in a server is here.
