The main purpose of this page is to present some of the tools (HW and SW) employed in the FET OPEN Project PLEASED to investigate the use of plants as bio sensors.
To investigate the propagation of signals, similarly to what has been already done by Stankovic et al., we used a labjack U6 with a custom made instrumentation amplifier
the schematics of a single channel in Eagle
A diagram of the whole process to acquire data from plants is shown in the following

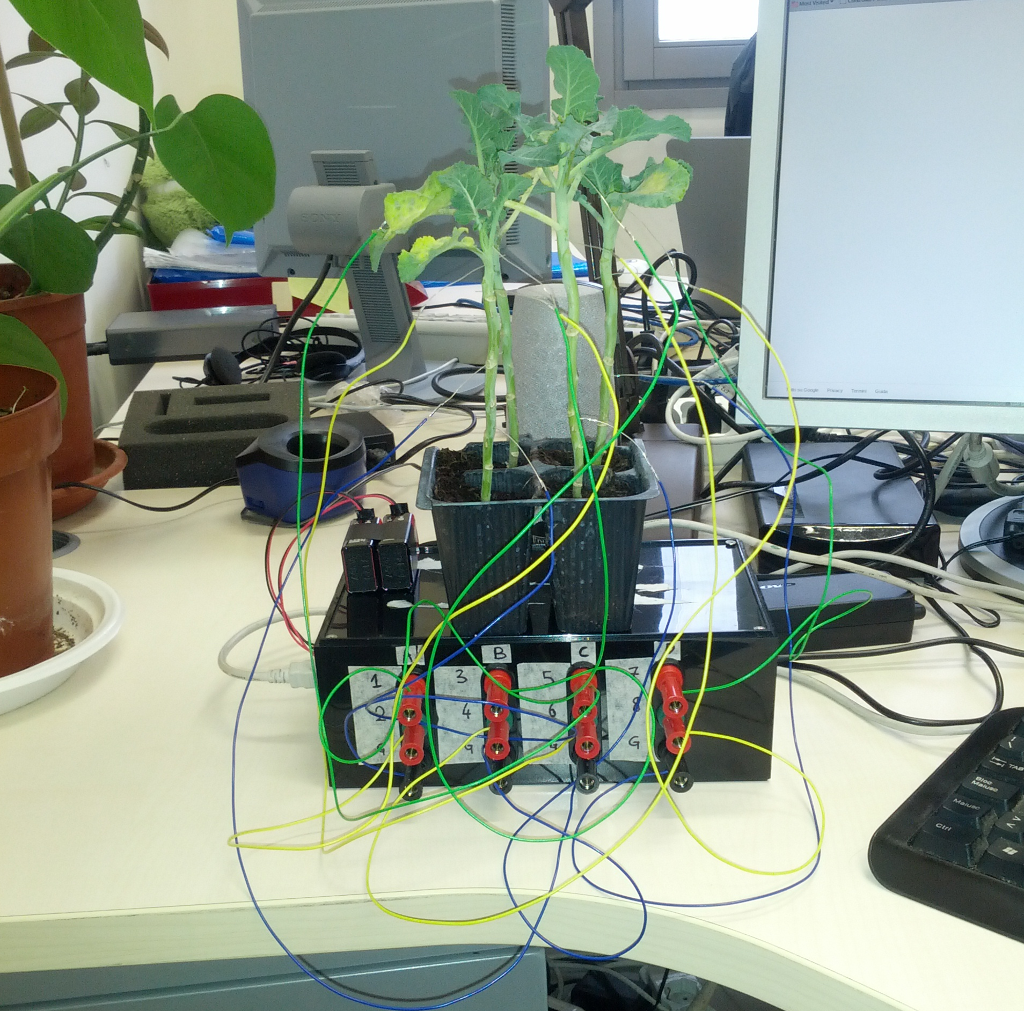

A picture of an experiment with 4 plants
The corrensponding output that is stored in plot.dat and the following picture is obianed plotting plot.dat KST. Notice that KST allow us to plot the data in real-time.
