Simple Dual CNC driver (or 4 DC motors) useing 2 L293 chip

This driver can be used to control 2 Bipolar stepper motors (4 wires motor) or it can be used to control 4 DC motors

Included example cods to run the motors (written in both ANSI-C"ATmeal Studio" and Arduino)

All the files (schematics, PCB) designed by EagleCAD 7.3

Licence: Creative common CC-SA-NC

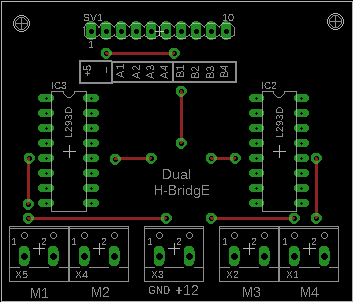

![alt tag](https://raw.githubusercontent.com/abdallah-ali-abdallah/Simple-CNC-Driver/master/Top.png)
