the <wit> project workshop: "html & css"

Anytime you see a 🖥, follow the instructions below. Anytime you see a 💡, click the toggles to find more information.

🖥 Install this project locally

1. Clone this repo: git clone <this repo's remote url>
2. Change directories: cd workshop_flask_sqlalchemy
3. Create a virtual environment for this project and activate it:

mkdir env
python3 -m venv env
source env/bin/activate

4. Install the requirements: pip install -r requirements.txt
5. If you haven't done so already, create a database named todo
6. Run python app/db.py to create and seed your database tables
7. Run the application as needed: python app/app.py

HTML

💡 What is HTML?

---

HTML

HTML, which stands for HyperText Markup Language, is the most basic building block for the content on a webpage. HTML uses markup to annotate pieces of content (such as text, links, images) for the purpose of defining the meaning/structure of that content to a web browser. This markup is composed of a defined set of "elements" which may or may receive additional "attributes".

<p> is a paragraph element used to annotate body text. It typically does not receive attributes besides class or id for styling purposes.

<p>Some text!<p>

<a> is an anchor element and is typically used to markup links on a web page. It recieves an href attribute with a reference to some url.

<a href="www.google.com">Let me google that for you!</a>

You can read more about other HTML elements here.

Accessibility

It's important to use elements correctly for the purpose of web accessibility: use <section> to define sections on a webpage, <nav> to highlight navigation links, and <h> to highlight heading text. This makes it easier for assistive technology to parse your page. It also optimizes your SEO!

---

Templating

💡 What is templating?

---

Templating

Templating allows us to break up HTML in smaller and reusable pieces that we can then inject data into. Take a look at the pages for Princess Diana and Princess Margaret on Wikipedia and note of how similar they are! Do you think engineers at Wikipedia just copy-and-paste a bunch of HTML from other similar Wikipedia entries? No way! They use templates and load them with the appropriate data.

This has a couple of benefits:

• It makes it easier to add content to Wikipedia because maintainers don't need to add new HTML every time.
• If someone decides Wikipedia needs to revamped, styles only have to be changed on the template and not the millions of individual entries.

Jinja

Flask is built on top of Jinja, a templating engine that allows us to serve HTML templates and optionally any data they need. Jinja uses its own markup language to denote variables and expressions where templates and data will later be loaded.

For example, {% block <block_name> %}{% endblock %} is used on one template to designate a block that another template will later fill. The other template then extends the first template and reuses the same markup syntax to highlight the exact block that will take up that space. Check out app/templates/layout.html and app/templates/tasks.html to see this in action. layout.html renders a sidebar and defines a block for content; tasks.html renders some content that will go in that block. If you navigate to localhost:5000/tasks, you'll see that the HTML from these templates is combined! You can even inspect the HTML on your browser if you right click and select "Inspect."

Some more useful Jinja syntax:

• You can loop over lists passed to your template, {% for task in tasks %} ... {% endfor %} to loop over a list tasks
• You can directly reference data in your template: {{ task.name }} to print the value for task.name

Check out more Jinja syntax here or use the prewritten examples in your repo to guide you!

render_template()

To render a template, we use the render_template() method from Flask and return a chosen template and optionally any data it needs. For example:

@app.route('/', methods=['GET'])
def get_home():
    return render_template('home.html')

@app.route('/tasks', methods=['GET'])
def all_tasks():
    data = Task.query.all()
    all_tasks = [item.serialize() for item in data]
    return render_template('tasks.html', tasks=all_tasks) <-- the key here is the variable name you can use in your template

Read more about this method here.

---

🖥 Review files

1. app/app.py
   This is where the basic boilerplate for your app is set up. As mentioned above, the boilerplate for SQlAlchemy is slightly different than what we wrote last week when we used SQLAlchemy on its own. The URI for your database is stored as a configuration attribute on the app object. On line 8, we run the SQLAlchemy function with app passed in to instantiate an database object that acts as both our enginer, sessionmaker, and declarative base. Confirm that the URI on line 6 correctly points to your database. You might need to supply a username and password: postgres+psycopg2://<USERNAME>:<PASSWORD>@localhost:5432/todo
   On line 13, we invoke the run method on app to start our development server. If you run this file (python app/app.py), you'll see some feedback in your terminal saying you are now running a local server on port 5000. You can now access this web app or its endpoints at http://localhost:5000/.
2. app/models.py
   Your models are defined by app/models.py. You'll notice that all of the table definitons extend db.Model as do any Flask-SQLAlchemy helpers, like Column or String or Integer. You might also notice that each model definition has a serialize mehtod in order to return data about our models in JSON. In the future, we might want to utilize a Python package that handles serialization for us.
3. app/db.py
   Our tables are created and seeded in this file. If you run this file (python app/db.py), you'll see some feedback in your terminal and then be able to see changes to your database using psql or your chosen GUI.
4. app/api.py
   You'll notice we already got started rendering some templates in the /tasks routes. You can find the corresponding templates in the /app/templates directory.

🖥 Let's add more HTML to our template in tasks.html

In app/templates/tasks.html, write some more HTML to render this additional information about your task:

• the task name
• the task description
• the project associated with that task
• the person assigned to that task

If you're having trouble figuring out how to reference this data, check out the serialize methods in app/models.py.

After you have done that, try converting the task name into a link that directs you to a page showing only that task.

Click here for the solution.

---

                <h5>
                    <a href="/tasks/{{task.id}}">
                        {{ task.name }}
                    </a>
                </h5>
                <p>{{ task.description }}</p>
                <p>Project: {{ task.project }}</p>
                <p>Assignee: {{ task.person }}</p>

---

🖥 Let's create a new template in projects.html and render it from our /projects routes

If you click "All Projects" in the sidebar links, you're taken to a page displaying JSON data. Let's display this data within a template instead. There's a template already set up in app/templates/projects.html. Use the render_template() method inside the projects routes to render the correct template and data. Then write some HTML to render more data in app/templates/projects.html

Click here for the solution.

---

@app.route('/projects', methods=['GET'])
def all_projects():
    data = Project.query.all()
    all_projects = [item.serialize() for item in data]
    return render_template('projects.html', projects=all_projects)


@app.route('/projects/<int:project_id>', methods=['GET'])
def get_one_project(project_id):
    data = Project.query.get(project_id)
    one_project = data.serialize()
    return render_template('projects.html', projects=[one_project]) <- BONUS: why is this passed as a list?

    {% for project in projects %}
        <div class="projects_card">
            <h5>
                <a href="/projects/{{project.id}}">
                    {{ project.name }}
                </a>
            </h5>
            <h5>Tasks:</h5>
            {% for task in project.tasks %}
                <ul>
                    <li>
                        <a href="/tasks/{{task.id}}">
                            {{ task.name }}
                        </a>
                    </li>
                </ul>
            {% endfor %}
        </div>
    {% endfor %}

---

CSS

💡 What is CSS?

---

CSS

CSS, which stands fro Cascading Style Sheet, is a stylesheet language that is used to write styling rules for HTML elements. CSS allows you to select elements by either element name or class/id attribute and to then provide rules for those selected elements. Because rules can overlap and conflict, the browser's CSS engine "cascades" the rules and determines which rule takes prevalent.

.example { <-- selector
  color: red; <-- rule
}

You can read more about CSS here.

CSS Flex

CSS Flex is a helpful tool for laying out elements in a two dimensional way. Take a moment to skim this article and play Flexbox Froggy to practice these rules.

CSS Grid

CSS Grid is a helpful tool for laying out elements in a three dimensional way. Take a moment to skim this article and play Grid Garden to practice these rules.

CSS Media Queries

Have you ever gone to a website on your phone only to discover that the website looks exactly like it does on your computer, meaning it's tiny and awkward and impossible to navigate? Media queries allow you to write CSS that is responsive to the device someone is using.

In this example, the element with the class example will be blue on screens smaller that 400px and red everywhere else:

.example {
  color: red;
}

@media (max-width: 400px) {
  .example {
    color: blue;
  }
}

Read more about media queries here.

---

🚨 Your CSS is being cached. Ctrl+Shift+R or Cmd+Shift+R to hard refresh and reload new CSS from the server. Otherwise, you will not see your changes!

🖥 Let's use CSS Grid to style layout.html

Let's make our sidebar actually a sidebar. In app/static/css/main.css, write a rule for the .layout class so that it displays two columns:

Click here for the solution.

---

.layout {
    display: grid;
    grid-template-columns: 1fr 3fr;
}

---

🖥 Let's use media queries to style layout.html for phone browsers

If you inspect your webpage again and click the "toggle device toolbar" to display your page on a mobile resolution, you'll notice your sidebar looks a little funky for mobile users now. Let's write a media query for the .layout class so there's only one column on mobile.

Click here for the solution.

---

@media (max-width: 400px) {
    .layout {
        grid-template-columns: 1fr;
    }
}

---

🖥 Let's use CSS Flex to style tasks.html

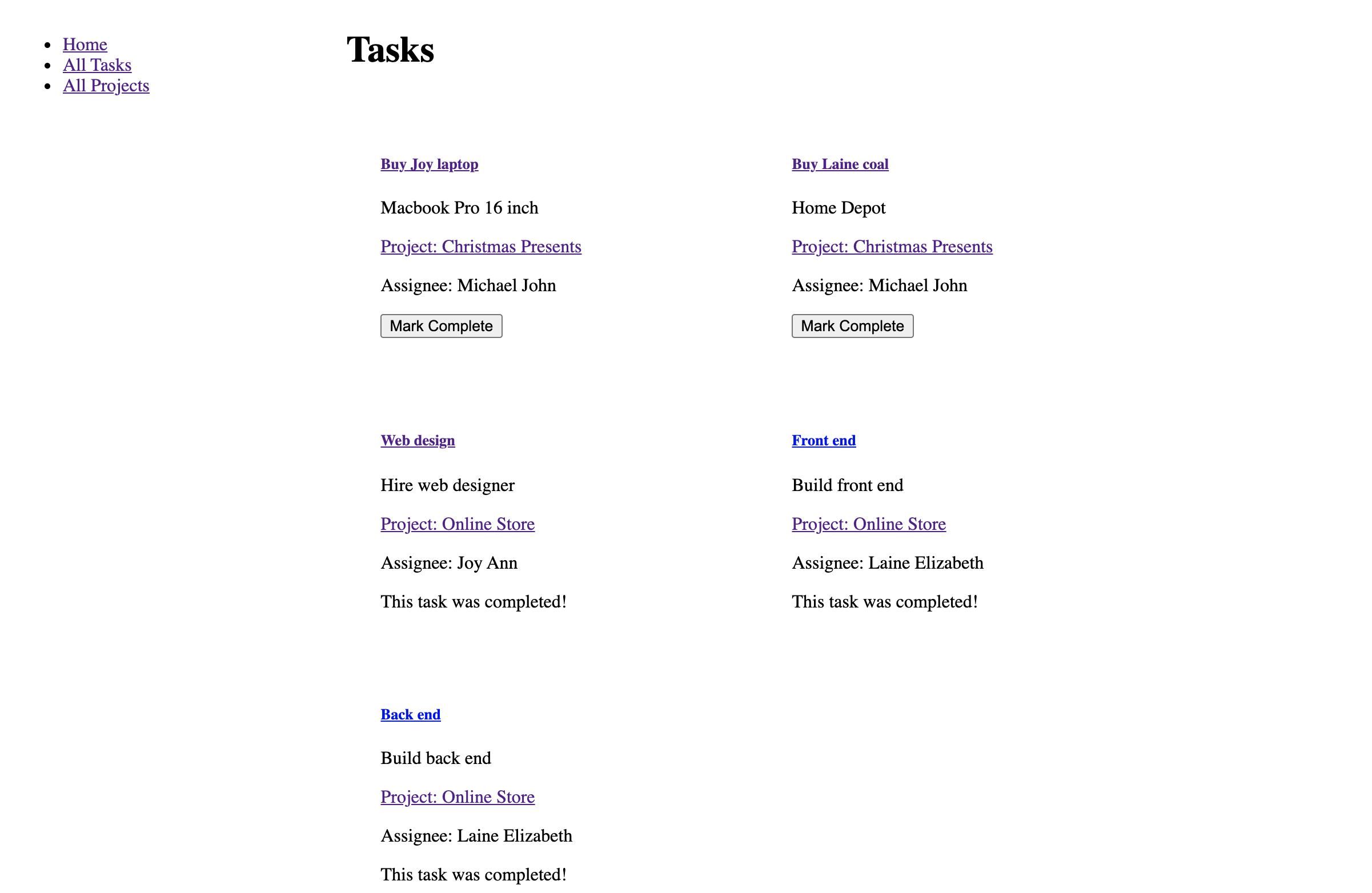

Let's give our .tasks-card class a set width and then style the .tasks-flex container so they appear side-by-side and wrap like this:

Click here for the solution.

---

.tasks_flex {
    display: flex;
    flex-wrap: wrap;
}

.tasks_card {
    width: 300px;
    margin: 20px;
    padding: 10px;
}

---

Styling Libraries

💡 What is a styling library?

---

Styling Libraries

A styling library is a pre-written stylesheet that you can load into your app. These are great for developers because they promote consistent style rules and save us time as developers if we are not CSS whizzes just yet.

Bootstrap

There are many options to choose from, but we're going to load Bootstrap because it's probably the most popular. Check out the docs here. You can find a bunch of component and utility styles in the sidebar. Take a moment to explore and try some out in your app.

---

🖥 Let's enable Bootstrap for our project

In app/templates/base.html, uncomment out the bootstrap stylesheet CDN on line 7 and reload your app. You should see a whole bunch of styles have changes; this is because Bootstrap changes the default styles for all elements.

Click here for the solution.

---

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.0-beta1/dist/css/bootstrap.min.css" rel="stylesheet" integrity="sha384-giJF6kkoqNQ00vy+HMDP7azOuL0xtbfIcaT9wjKHr8RbDVddVHyTfAAsrekwKmP1" crossorigin="anonymous">
    <link rel="stylesheet" href="{{ url_for('static', filename='css/main.css') }}">
    {% block head %}{% endblock %}
</head>
<body>
    {% block layout %}{% endblock %}
</body>
</html>

---

That's it! You did it! Great job! 👏

Feel free to make your project yours by adding more styles! You can do it on your own or use Bootsrap to assist you!
