This repository contains several Postman (https://www.postman.com/) samples which can be used when testing the AIS features.
Before starting to use these Postman samples have a look at our AIS reference guide and other references we provide.
Documentation Repository
AIS reference Guide
In order to use any of the trial signing requests, you will need to generate a certificate containing identifying information so that the trial customer will accept the requests. Please contact Servicedesk.ICT@swisscom.com for more information.
-
https://ras.scapp.swisscom.com/api/evidences/verify Verify Request: This request can be used to check if a user (phoneNumber) is already registered at the RA. Please note, that in the case of reinstalling the MobileID App without using the Backup Code this request response is still successful, but the user is not able to create a qualified signature without a re-identification.
-
https://ais.swisscom.com/AIS-Server/rs/v1.0/sign Sign Request (static): This is the same API call as Sign Request (OnDemand). The difference is that this request will trigger a static signature, for multiple documents, with no 2FA process involved
-
https://ais.swisscom.com/AIS-Server/rs/v1.0/sign Sign Request (OnDemand): This API call can be used to request a MOBILE ID authentication in order to create a digital signature. The request is asynchronous and will trigger 2FA for the user's number. After the 2FA is confirmed, the Pending request must be used to complete the signing.
-
https://ais.swisscom.com/AIS-Server/rs/v1.0/pending Singing Service: Pending Request (OnDemand): This call is needed to collect the signature status. The status is pending until the user confirms the second factor using the MOBILE ID App.
-
https://ais.swisscom.com/AIS-Server/rs/v1.0/sign Sign Request (OnDemand & Templating): This is the same API call as Sign Request (OnDemand), with the difference that a template is used for the DistinguishedName, providing only variables and allowing AIS to fill the data automatically based on the registered mobile number (msisdn) provided.
-
https://ais.swisscom.com/AIS-Server/rs/v1.0/pending Pending Request (OnDemand & Templating): This call is needed to collect the signature status of the template request shown previously. The status is pending until the user confirms the second factor using the MOBILE ID App.
-
https://ais.swisscom.com/AIS-Server/rs/v1.0/sign Sign Request (OnDemand) Wrong Serial: This call can be used to test that providing an invalid serial number will prompt AIS to respond with an appropriate error when the pending request is used and 2FA is confirmed.
-
https://ais.swisscom.com/AIS-Server/rs/v1.0/pending Sign Request (OnDemand) Wrong Serial: This call is needed to collect the signature status of the invalid serial request shown previously. AIS will respond with an error message instead of a signature, advising the user to identify in RA.
-

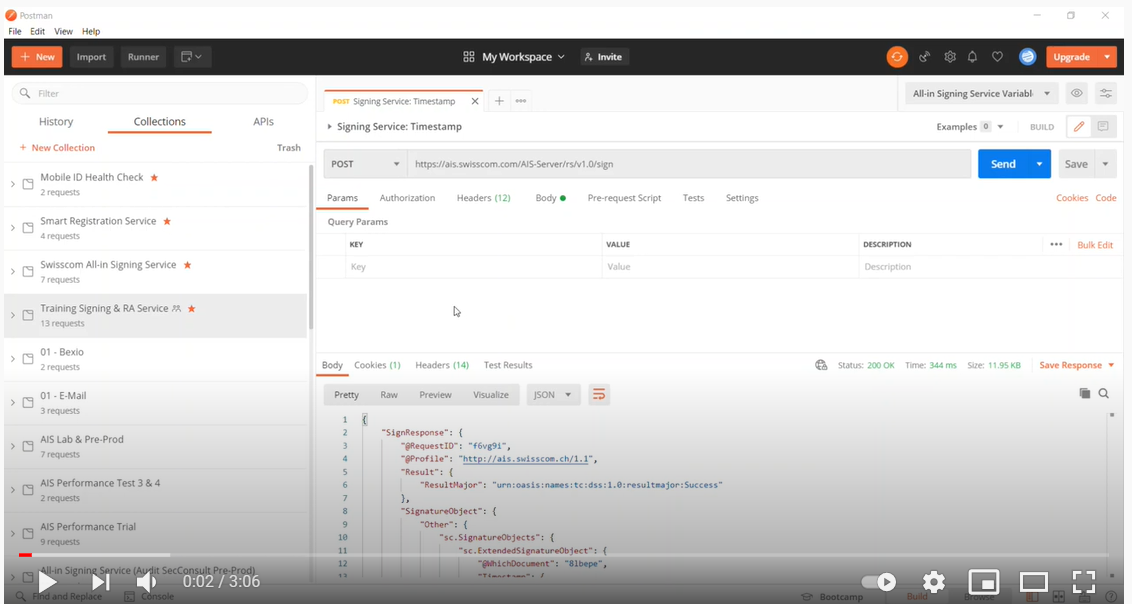

https://ais.swisscom.com/AIS-Server/rs/v1.0/sign Timestamp: This call can be used to sign a document using only a timestamp, with no 2FA involved.
How to place a Verify Call using Postman
Signing requests with and without templating using Postman
The Postman tool for API endpoint testing explained
How is the Distinguished Name composed and Postman example
What is a Distinguished Name and for is it usable
What is a claimed identity and for what is it usable
How to generate a certificate for digital signing using OpenSSL
-
https://ras-idp-dev.scapp.swisscom.com/oauth/token?client_id=missswaggerclient&client_secret=missswaggerclientsecret&grant_type=client_credentials&scope=miss SRS flow: This request can be used to retrieve an access_token to be used for the upcoming requests
-
https://miss-backend-api-preprod.scapp.swisscom.com/api/providers?jurisdiction=EIDAS&loa=3&method=video SRS flow: This request can be used to retrieve a list of providers for a specific jurisdiction, level of assurance or identification method
-
https://miss-backend-api-preprod.scapp.swisscom.com/api/providers/test/video SRS Identification flow: This request can be used to test an identification endpoint (via video) for a specific user. The contents of the request will include information about the user undergoing the identification, such as phone number, first/last name, email and country. The server will respond with a refId that will be used in the next request, as well as details about the identification task.
-
https://miss-backend-api-preprod.scapp.swisscom.com/api/identifications/{{refId}} SRS Identification flow: This request can be used to verify the status of the identification task started in the previous request, based on the reference ID (refId). The server responds with information about the task, including the issuer, the identification method, the mobile number and statuses.
For more detailed information on the SRS flow, see section 4 in the Integration guide: https://documents.swisscom.com/product/filestore/lib/3b44e6a3-3799-4c55-bb6b-8f847c463d31/integration-guide-srs-en.pdf?idxme=pex-search
In order to use these Postman samples the user has to first generate a certificate signing request (CSR) and send it to our support team together with the application form. The following formular can be used:
Next, the user has to configure the certificate which he receives from the support team in Postman or any other used client. Details on how to configure a certificate in Postman can be seen in the first video linked at the top of the readme GitHub repo file.
More details on how to integrate the ETSI interface can be found here.
Standard Signing Flow:
-
Broker Authentication Flow: In order to generate an auth_code for the /token endpoint, you will need to identify via broker using an appropriate IdP depending on your evidence (MID, PF or PWDOTP). After successful authentication you will receive the code in the URL. Used Endpoint: https://auth.trustservices.swisscom.com/
-
Broker Token Generation: This request is used to generate a JWT token for document signing for the upcoming requests by using the code from the previous step and client credentials provided by support after successful trial account onboarding. Used Endpoint: https://auth.trustservices.swisscom.com/api/auth/realms/broker/protocol/openid-connect/token
-
ETSI Signing (OnDemand) eIDAS: This call will sign a document hash using ETSI (OnDemand), eIDAS, and the JWT token generated in the previous step, prompting AIS to respond with the signatureObject after a successful signing. Used Endpoint https://ais.swisscom.com/AIS-Server/etsi/standard/rdsc/v1/signatures/signDoc
-
ETSI Signing (OnDemand) ZertES: This call will sign a document hash using ETSI (OnDemand), ZertES, and the JWT token generated in the previous step, prompting AIS to respond with the signatureObject after a successful signing. Used Endpoint https://ais.swisscom.com/AIS-Server/etsi/standard/rdsc/v1/signatures/signDoc
-
ETSI Signing (static) eIDAS: This call will sign a document hash using ETSI (static seal), eIDAS, and the JWT token generated in the previous step, prompting AIS to respond with the signatureObject after a successful signing. Used Endpoint https://ais.swisscom.com/AIS-Server/etsi/standard/rdsc/v1/signatures/signDoc
-
ETSI Signing (static) ZertES: This call will sign a document hash using ETSI (static seal), ZertES and the JWT token generated in the previous step, prompting AIS to respond with the signatureObject after a successful signing. Used Endpoint https://ais.swisscom.com/AIS-Server/etsi/standard/rdsc/v1/signatures/signDoc
PAR Based Signing Flow:
-
Postman samples are available by mid Aug. 2023 with the next RAX PROD release. Currently the samples are only in PRE-PROD available.
-
ParRequest: Generates a request_uri based on the customer's login_hint/claims that will be used to form the authentication URL containing the QR code. Used Endpoint /api/auth/realms/broker/protocol/openid-connect/ext/par/request
-
Auth: Generates an authentication URL containing the request_uri, redirect_uri, scope, state and nonce that can be opened via the browser to access the QR code for scanning with the MySwisscomApp/Futurae app.
CIBA Based Signing Flow:
-
Customer Futurae or MySwisscomApp account is needed.
-
QRCodeAuthorize: Generates a QR code containing the login_hint/claims used for authenticating a sign request. QR code must be scanned by the MySwisscomApp or Futurae app and authorized by the user. Used Endpoint /api/auth/realms/broker/protocol/openid-connect/oauth-authorize
-
CIBATokenGeneration: Generates an SAD token for the ETSI signing endpoint based on the QR code authentication used in the previous call. Used Endpoint /api/auth/realms/broker/protocol/openid-connect/oauth-token
Signing based on the ETSI interface and ZertES.
Standard Authenticaiton and Signing Flow:
PAR Based Authentication and Signing Flow:
CIBA Based Authenticaiton and Signing Flow:
