Active Directory Home Lab

Description

Project consists of how to create an Active Directory home lab Environment using Oracle Virual Box.

Languages and Utilities Used

• PowerShell
• Oracle Virtual Box

Environments Used

• Windows 10 (21H2)
• Server 2019

Program walk-through:

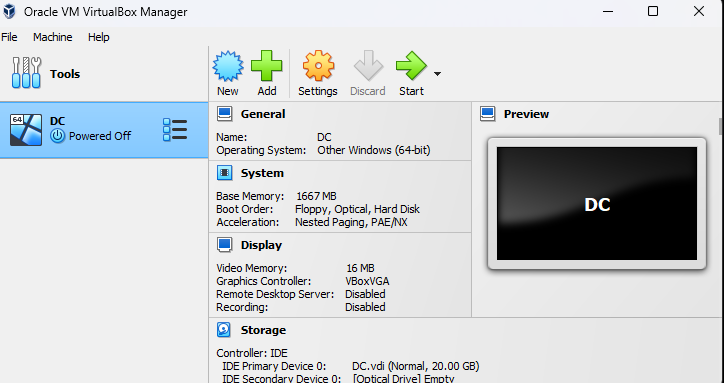

Create Virtual Box:

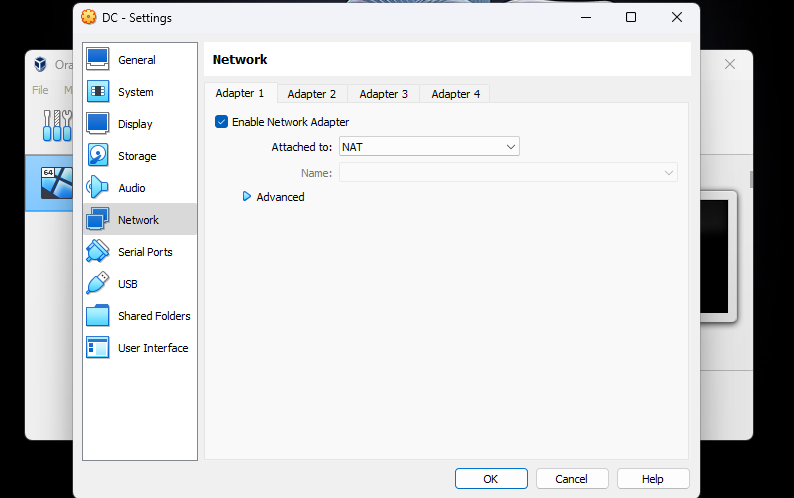

Set Adapter 1 to NAT:

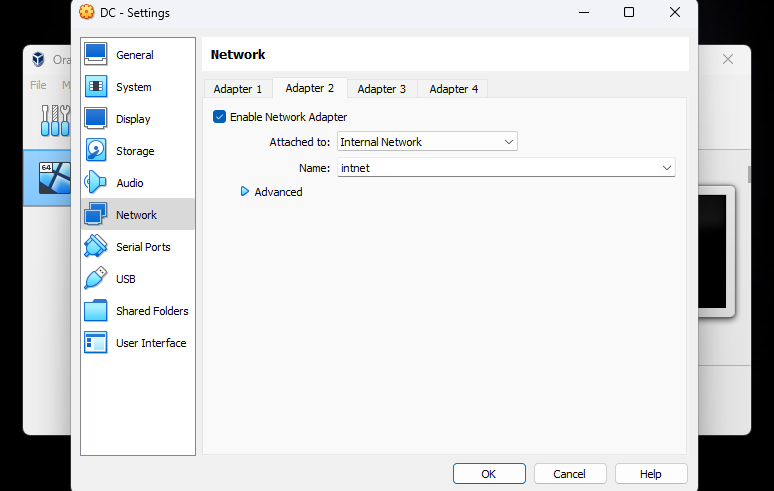

Set Adapter 2 to Internal Network:

Start VB and select Server 2019 iso:

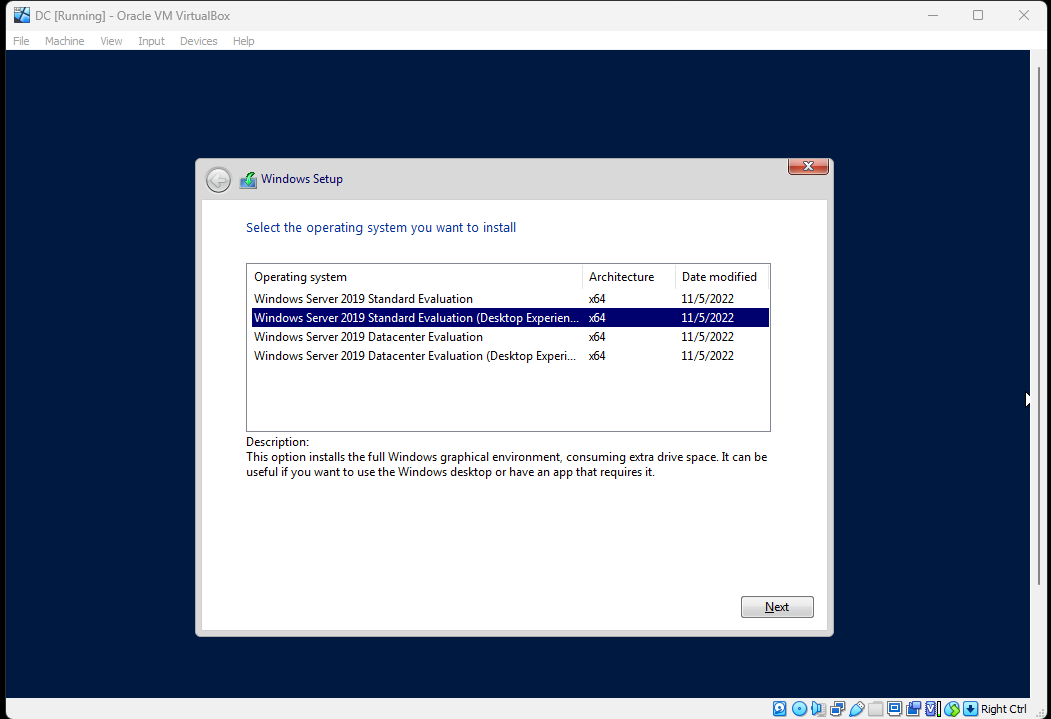

Select Windows Server 2019 Starndard Evaluation(Deskstop...) :

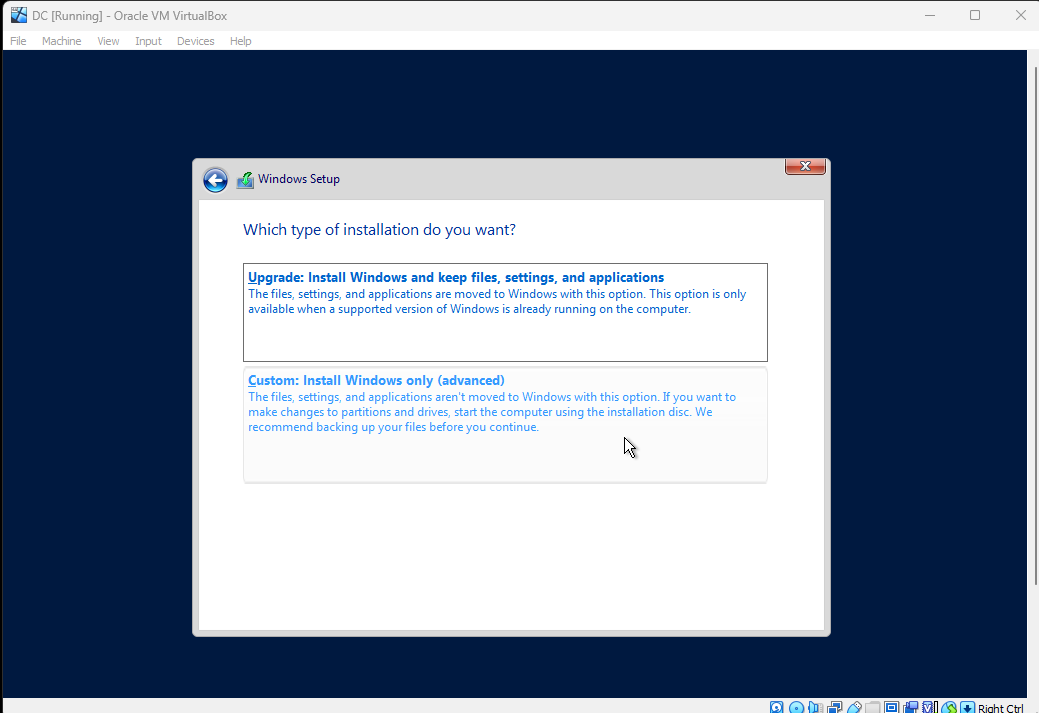

Custom install:

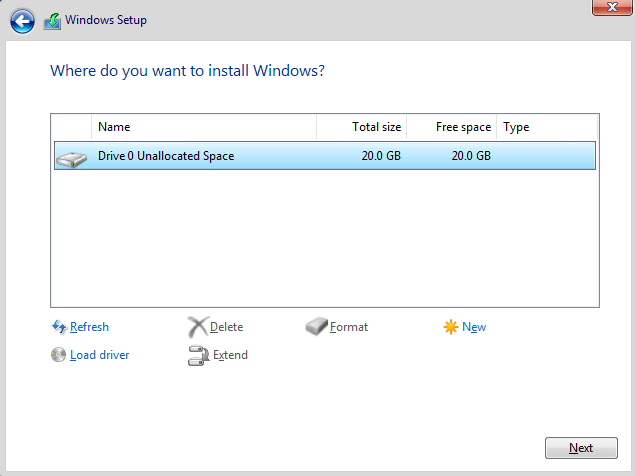

Select Drive 0:

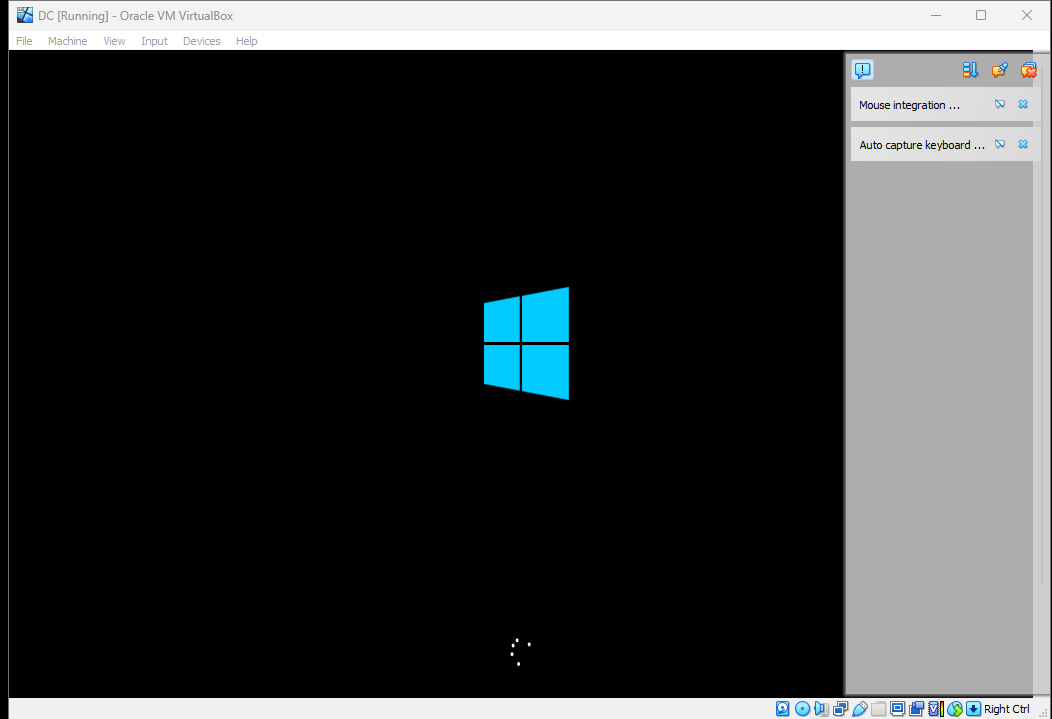

Wait for The installation to complete(Do not click the screen):
