Introduction

Header file: graphics/graphics.h

The shape drawing module arrived with GPTP v2.33. It provides functions for drawing basic shapes and text on the in-game screen and map.

To use the drawing module, the graphics::resetAllGraphics() function must be called every frame. By default, this is already done in hooks/game_hooks.cpp, so you don't have to worry about this.

To use the actual drawing functions, you must add the following code at the top of the source file:

#include <graphics/graphics.h>

Colors

All shape-drawing functions (except drawText()) take the shape's color as an argument. The list of available colors is defined in graphics/graphics.h, under the graphics namespace. They are: RED, BLUE, TEAL, PURPLE, ORANGE, BROWN, WHITE, YELLOW, GREEN, CYAN, BLACK, and GREY.

Graphics colors available

graphics::drawText() does not take a color as an argument. Instead, it uses the same string color codes used in map editors and TBL files. Use hexadecimal character codes to manually specify text color:

graphics::drawText(15, 25, "\x06This is red text. \x01Normal color \x11orange");
graphics::drawText(45, 25, "\x06This is red text. \x01Normal color \x11orange", );

Positioning

All drawing functions take a CoordType parameter that specifies how the given coordinates are interpreted. For example, when drawing a box at (10, 20):

  • graphics::ON_SCREEN places it at (10, 20) relative to the top left corner of the screen. This is the default.
  • graphics::ON_MAP places it at (10, 20) relative to the top left corner of the map.
  • graphics::ON_MOUSE places it at (10, 20) relative to the current mouse position.

Note that all shapes are drawn over the in-game map and units, but not over the in-game console (unit status display and minimap). Overlapping shapes are drawn over the ones created previously, regardless of their positioning.

Function Reference

All of the following functions are available in the graphics namespace.

Drawing Functions

rawText

void drawText(int x, int y, const std::string& str, FontSize fontSize = FONT_MEDIUM, CoordType ct = ON_SCREEN);

Draws a text string at (x, y). You can specify a font size for the fontSize argument:

  • FONT_SMALL
  • FONT_MEDIUM: This is the default.
  • FONT_LARGE
  • FONT_LARGEST

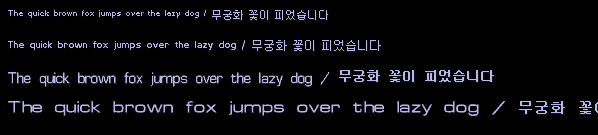

Text sizes

drawDot

void drawDot(int x, int y, ColorId color, CoordType ct = ON_SCREEN);

Draws a dot at (x, y).

drawLine

void drawLine(int x1, int y1, int x2, int y2, ColorId color, CoordType ct = ON_SCREEN);

Draws a line connecting (x1, y1) and (x2, y2).

drawBox

void drawBox(int left, int top, int right, int bottom, ColorId color, CoordType ct = ON_SCREEN);

Draws an empty box with the bounds given by left, top, right, bottom.

drawFilledBox

void drawFilledBox(int left, int top, int right, int bottom, ColorId color, CoordType ct = ON_SCREEN);

Draws a filled box with the bounds given by left, top, right, bottom.

drawCircle

void drawCircle(int x, int y, int radius, ColorId color, CoordType ct = ON_SCREEN);

Draws an empty circle with radius centered at (x, y).

drawFilledCircle

void drawFilledCircle(int x, int y, int radius, ColorId color, CoordType ct = ON_SCREEN);

Draws a filled circle with radius centered at (x, y).

Miscellaneous

resetAllGraphics

void resetAllGraphics();

Resets all previous graphics and clears error messages. This should be called every frame in hooks/game_hooks.cpp.
