Octowindow

An open-source web interface for OctoPrint, designed to be lightweight and user-friendly.

Features

• 📱Responsive: Optimized for small screens like a 5" one.
• 🪶Lightweight: Optimized for limited performance devices like Raspberry Pi.
• ✅User-friendly: Intuitive interface for easy navigation.
• 📂File explorer: Start 3D prints directly from the file explorer.
• 🔥Preheat presets: Quickly preheat your printer with custom presets.
• 🧵Filament Spool Selector: Select if you have SpoolManager installed a filament spool to print with.

Screenshots

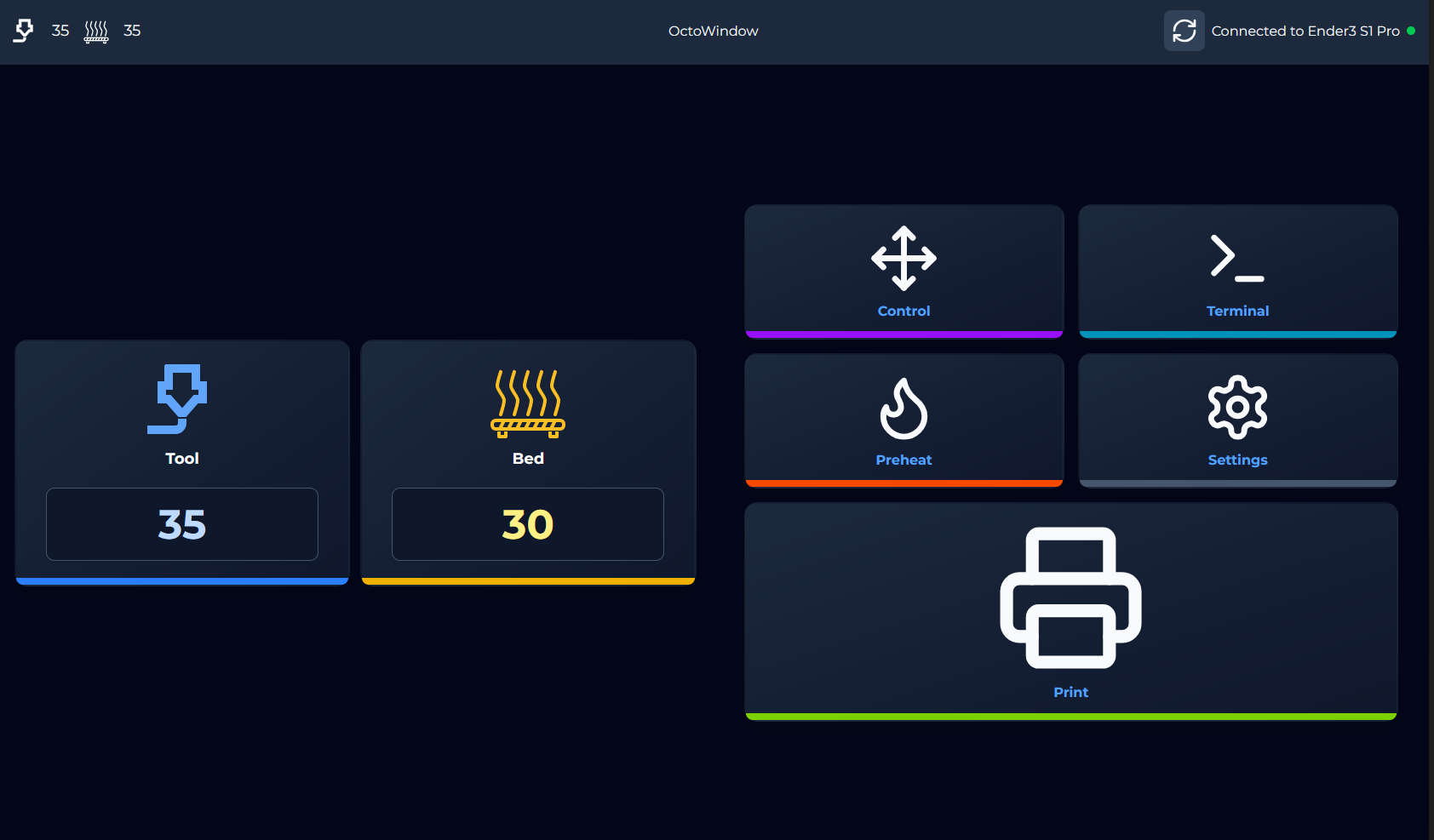

Desktop preview (1080p)

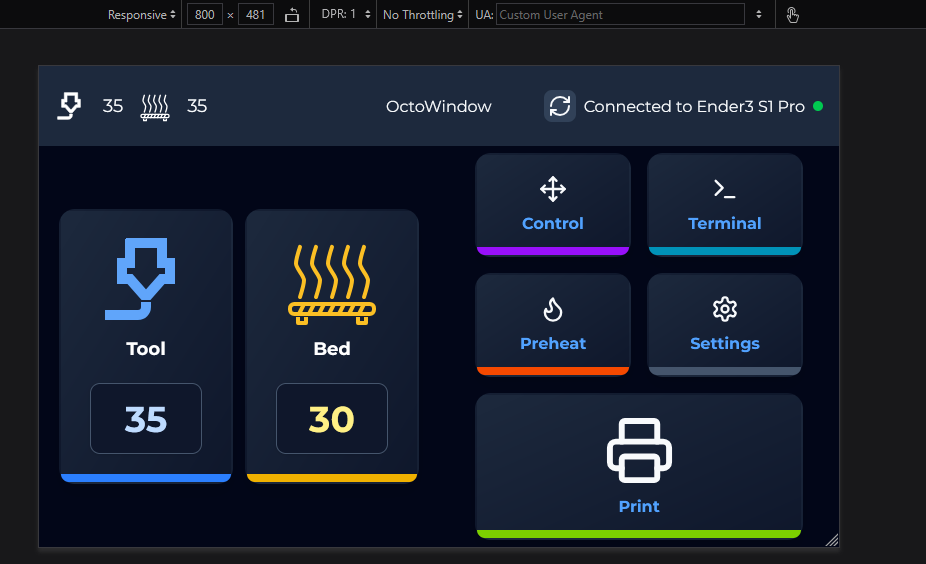

5 Inch display preview

Installation

Frontend & Backend

This script will install the frontend & backend

bash <(wget -qO- https://github.com/PastaLaPate/Octowindow/raw/master/scripts/install.sh)

Note

If you choose a custom install dir, note it for later

XServer

Then you will need an X Server to display the frontend if you haven't already one do this. sudo apt install xserver-xorg ratpoison x11-xserver-utils xinit libgtk

Important

Don't forget to install ratpoison even if you already have an x-server

Chromium

You will also need chromium sudo apt install chromium-browser

File editing

You need to add this to ~/.xinitrc

#!/bin/sh

xset s off
xset s noblank
xset -dpms
cd {YOUR_INSTALL_DIR}/backend
ratpoison &
npm start &
chromium \
  --kiosk http://127.0.0.1:3000 \
  --force-dark-mode \
  --disable pinch

The default install dir is /opt/octowindow/

Add this to your ~/.bashrc

if [ -z "\$SSH_CLIENT" ] || [ -z "\$SSH_TTY" ]; then
    xinit -- -nocursor
fi

And this to your ~/.ratpoisonrc startup_message off You may also follow a guide for setuping the auto login

Permissions

sudo chmod +x ~/.xinitrc
sudo chmod ug+s /usr/lib/xorg/Xorg

You now need to reboot

Stack

• Frontend: Vite, React.js, ShadCN, Tailwind CSS
• Backend: Node.js, Express.js

Uninstallation

bash <(wget -qO- https://github.com/PastaLaPate/Octowindow/raw/master/scripts/uninstall.sh)
