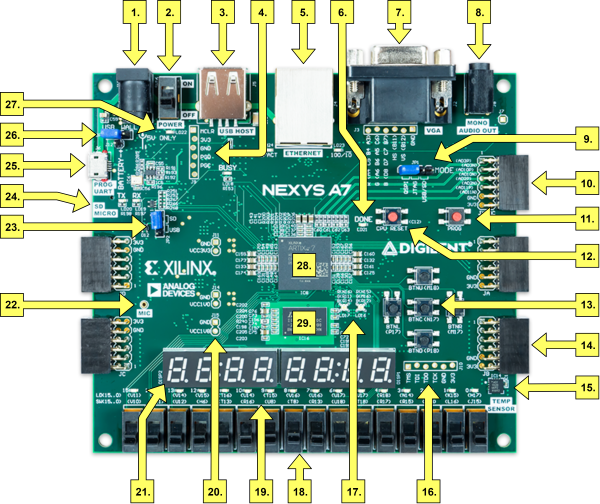

Our project goal is to generate basic signals and audio samples onto board Nexys A7-50T mono audio output. Pulse width modulation (PWM) must be chosen as the method of sound generation.

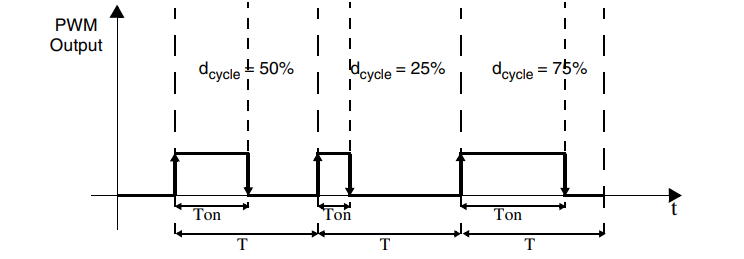

Pulse Width Modulation (PWM) is a technique in which the width of a pulse is modulated keeping the time period of the wave constant. We use PWM module to generate a signal whose pulse width is proportional to the amplitude of the sample data. The PWM output signal is then integrated by a low-pass filter to remove high frequency components, leaving only the low-frequency content. The output of the lowpass filter provides a reasonable reproduction of the original analog signal.
A fourth order low pass filter is composed of two cascaded second order low pass filter sections. There is no limit to the order of the filter that can be formed; as the order of the filter increases, so does its size.
architecture Behavioral of pwm is
--Internal signals
signal fill : natural := 0; --amount of filled time
signal cycles : integer := 0; --amount of filled time
signal duty_int: natural; --duty cycle converted to a comparable value
begin
p_pwm : process(clk)
begin
if rising_edge(clk) then --start on rising edge
if (en_i = '1') then --check if the enable signal is on
if (reset='1') then --synchronous active high reset
cycles <= 0;
fill <= 0;
else -- if reset is turned off
if (duty_sw = '1') then
duty_int <= 750;
else
duty_int <= 500;
end if;
if (cycles < to_integer(period)*5) then --period*5 for sound (starts at 20 kHz with 1, ends at 50Hz with 4000)
cycles <= cycles+1;
else --when desired number of periods hits
cycles <= 1;
if (fill < duty_int) then --checks if the fill level is larger than the duty cycle
pwm_o <= '1';
fill <= fill+1;
elsif (fill >= 1000) then --if the period finishes, then start again
fill <= 0;
else -- when period is continuing and the output should be off
pwm_o<='0';
fill <= fill+1;
end if;
end if;
end if;
end if;
end if;
end process p_pwm;
end architecture Behavioral;

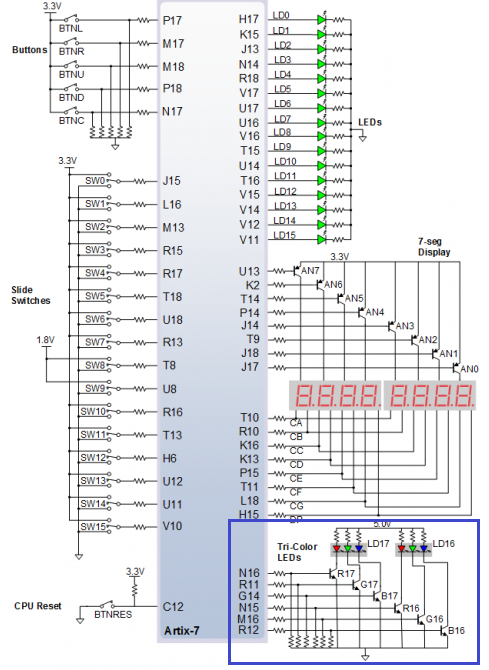

entity top is
Port (
CLK100MHZ : in STD_LOGIC;
BTNC : in std_logic;
SW0: in std_logic;
SW1: in std_logic;
AUD_PWM: out std_logic;
SW: in std_logic_vector (11 downto 0)
);
end top;
architecture Behavioral of top is
begin
pwm : entity work.pwm
port map(
clk => CLK100MHZ,
reset => BTNC,
en_i => SW0,
pwm_o => AUD_PWM,
duty_sw => SW1,
period =>unsigned (SW)
);
end Behavioral;
