Preffusion: Boosting Stochastic Trajectory Prediction using Conditional Latent Diffusion Model

Get Started

1. Create virtual environment

conda create -n ccbda_project python=3.8
conda activate ccbda_project
pip install -r requirements.txt

2. Prepare data

Download from google drive

.
└── argo/
    └── raw/

3. Generate data path in advance to speed up initialization

Replace with your data root in config.yaml

data:
    root: ~/Downloads/argo/

python generate_path.py

Docker

cd into the project directory and run:

docker run --rm -it \
--gpus all \
-p 8848:8888 \
-p 2232:22 \
-v $(pwd):/home \
-e GRANT_SUDO=yes \
-e JUPYTER_ENABLE_LAB=yes \
--user root \
--name gpu-jupyter \
--shm-size 60G \
softmac/jupyterlab:ccbda

Change --shm-size value to a value lower than your RAM size.

Add -v PATH_TO_DATA:/data if needed.

Enter container

To Enter container: ssh root@localhost -p 2232 password: root

Run code

Train VAE

python train_vae.py

Train ldm

python main.py --vae_weight PATH_TO_VAE_CKPT

Sample from ldm

python main.py --test --vae_weight PATH_TO_VAE_CKPT --weight PATH_TO_LDM_CKPT

---

Idea

Trajectory prediction is a trending topic recent years. There are various deep learning models designed to do predict the trajectories of vehicles and pedestrians in driving scenes. Most of the competitions require models to predict multiple predictions and focus on evaluating the nearest prediction to the ground truth. A typical way to perform trajectory prediction is using Transformer model to fuse the information of vehicles' history trajectories, lane lines, and other information. However, we think of this task as a generative task, and should be solved in a different manner. Those Transformer based model can perform well on statistics overall, but cannot really hold a good variety of generated predictions. If think of the task of generative task, Transformer based models are kind of auto-regressive approach, which has been replaced with VAE, GAN, or Diffusion models in image generation recent years. We propose a Diffusion based trajectory prediction model that can generate predictions with good variety.

Application

Trajectory prediction is important for self-driving vehicles because it allows the vehicle to anticipate the movements of other objects on the road, such as other vehicles, pedestrians, and obstacles. This allows the vehicle to make decisions about its own motion, such as planning a safe and efficient path through traffic or avoiding collisions. Accurate trajectory prediction is essential for the safe operation of self-driving vehicles, as it enables the vehicle to respond quickly and appropriately to changing traffic conditions.

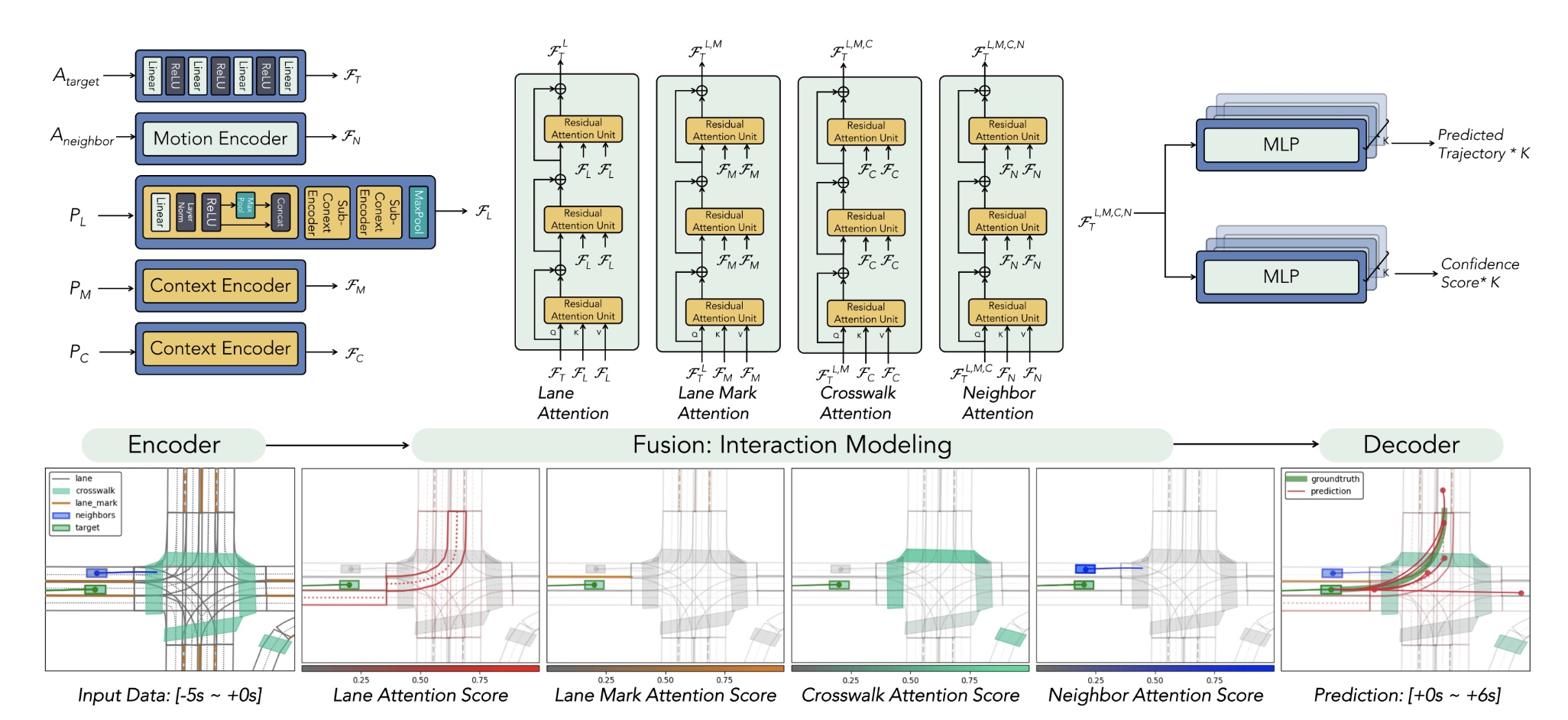

Model

Training target: Whole path Input/Conditioning encoder: Attention model Latent: 128 dim Conditioning: History path, Other cars, Semantic information, Map information Output decoder: MLP

Uniqueness or the comparisons with state-of-the art

In previous work

90% of researches are based on auto-regressive approach.

In this work

We employ diffusion model as a method for predicting trajectories, and incorporate semantic traffic information in addition to motion data.

Dataset

Argoverse 2

Argoverse 2 Motion Forecasting Dataset:

Contains 250,000 scenarios with trajectory data for many object types. This dataset improves upon the Argoverse 1 Motion Forecasting Dataset.

Reference

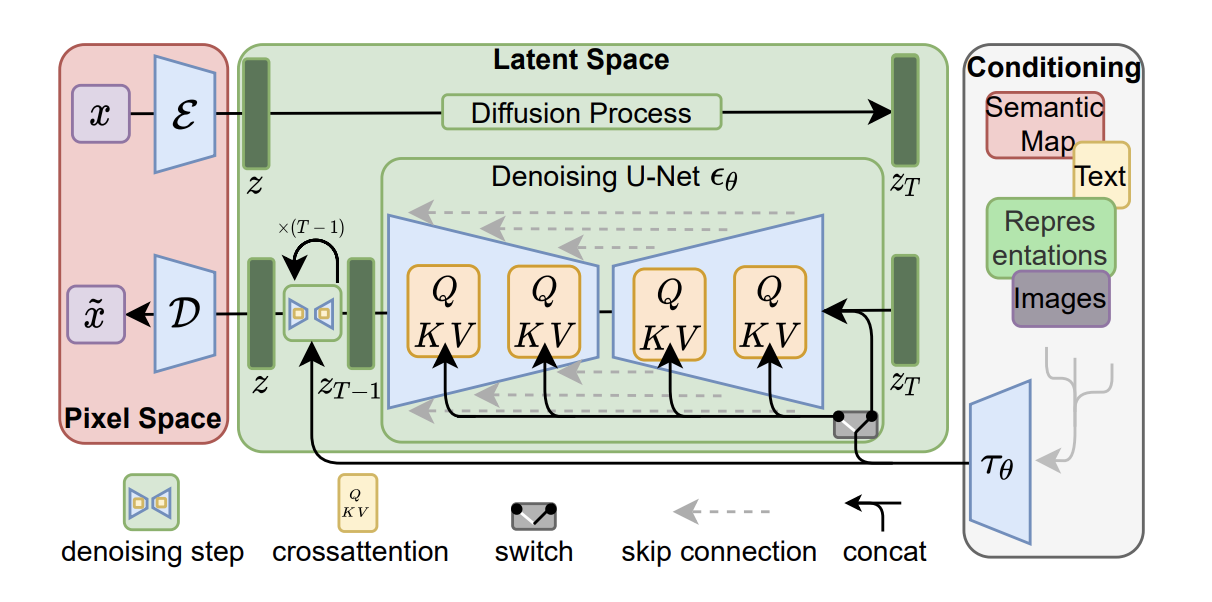

latent-diffusion

The architecture of diffusion model is based on: pytorch-diffusion

Members

• 侯俊宇 311511035 jerry.ee07@nycu.edu.tw
• 洪愷尹 311511036 kaiyin.ee11@nycu.edu.tw
• 呂宗翰 311512006 henrylu.ee11@nycu.edu.tw
