CreditCard-Project

Full Stack Project with MySQL that explains the functionalities of a credit card

Interactive Credit Card Simulator

Introduction

Welcome to the Interactive Credit Card Simulator Web application, created with Python Flask, MySQL, JavaScript, HTML, and CSS, offers a unique, real-time experience in managing credit card transactions. This simulator is designed to demonstrate the intricacies of credit card operations, providing users with a hands-on understanding of various transaction types and their impact on credit card balances.

How It Works

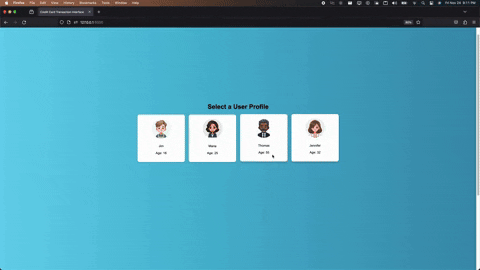

User Selection

Upon launching the application, users are prompted to select a profile from a MySQL database. This profile selection sets the stage for personalized interaction with the credit card interface.

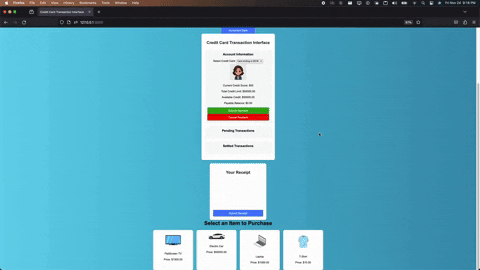

Credit Card Interface

Once a profile is chosen, the Credit Card Interface appears. This interface is where the credit card information is placed. It accurately represents real-life credit card functionalities.

Shopping Experience

Alongside the credit card interface, users are shown items pulled from our items database. This feature simulates a shopping experience, allowing users to make purchases and see the direct effect on their virtual credit card.

Receipt Panel

The receipt panel provides users with a view of their transactions.

Credit Card Functionalities

Transaction Authorization (TXN_AUTHED)

Authorize a new Transaction. This decreases the Available Credit but does not change the payable balance.

1. Send Request: From the client to the server using 'POST' with input as (userID, cardId, current date).
2. Authenticate & Authorize: Verify user's identity and authorization to perform a transaction.
   • Note: Implementation of Token-Based Authentication is pending.
3. Validate Input: Ensure input is valid and within acceptable limits.
4. Record Creation: Create a new transaction record in the database with a unique transaction ID in a Pending State.
5. Currency Conversion: If needed, convert local currency at a specific exchange rate.
6. Adjust Credit: Adjust the Available Credit by the Transaction Amount.
7. Return Response: Provide a response of Pending Transactions and Available Credit.

Transaction Settlement (TXN_SETTLED)

Finalize a Transaction, increase Payable Balance, and decrease Available Credit if the settled amount differs from the authorization amount.

1. Send Request: From the client to the server using 'POST' with input as (userId, pending transactions).
2. Validate Transaction: Check transactionID exists and is in a state that can be settled.
3. Transaction Details: Find Initial Amount & CardID for the specific transaction.
4. Verify Funds: Check if sufficient credit is available.
   • Note: Implementation of a warning for low credit is pending.
5. Adjust Credit: Update Available Credit if initial amount differs from settled amount.
6. Increase Balance: Increase Payable Balance by the settled amount.
7. Update Status: Change the Transaction status to 'settled'.
8. Return Response: Provide updated Available Credit, Payable Balance, and Finalized Transactions.

Transaction Clear (TXN_AUTH_CLEARED)

Clears an Authorized Transaction, releasing a hold on funds and increasing the Available Credit back to its previous state.

1. Send Request: From the client to the server using 'POST' with input as (userID, transactions being cleared).
2. Validate Transaction: Check transactionID exists and is in a state that can be cleared.
3. Transaction Details: Find amount & cardID of the specific transaction.
4. Restore Credit: Increase Available Credit by the Transaction amount.
5. Update Status: Change the Transaction Status to 'cleared'.
6. Return Response: Provide updated Cards' Available Credits.

Payment Initiation (PAYMENT_INITIATED)

Represents the initiation of a payment towards the card's balance, decreasing the payable balance but not immediately affecting the available credit.

1. Send Request: From the client to the server using 'POST' with input as (userID, cardId, current date).
2. Authenticate & Authorize: Verify user's identity and authorization.
3. Validate Input: Ensure input is valid and within acceptable limits.
4. Record Creation: Create a new payment record in the database with a unique ID in a Pending State.
5. Currency Conversion: If needed, convert local currency at a specific exchange rate.
6. Decrease Balance: Decrease the Payable Balance by the Payment Amount.
7. Return Response: Provide a response of Pending Payments and Available Credit.

Payment Posting (PAYMENT_POSTED)

Finalizes a payment and increases the available credit. This occurs one day after the payment is sent as pending.

1. Send Request: From the client to the server using 'POST' with input as (userId, pending payments).
2. Validate Payment: Check ID exists and is in a state that can be posted.
3. Payment Details: Find Payment Amount & CardID of the specific Payment.
4. Increase Credit: Increase Available Credit by the initial amount of Payment.
5. Update Status: Change the Payment status to 'posted'.
6. Return Response: Provide updated Available Credit, and Finalized Payments.

Payment Cancel

Cancel a Payment before it posts, restoring the Payable Balance to its previous state.

1. Send Request: From the client to the server using 'POST' with input as (userID, payments being canceled).
2. Validate Payment: Check ID exists and is in a state that can be canceled.
3. Payment Details: Find amount & cardID of the specific transaction.
4. Restore Balance: Decrease Payable Balance by the Payment amount.
5. Update Status: Change the Payment Status to 'canceled'.
6. Return Response: Provide updated Cards' Payable Balances.

Installation & Setup

Prerequisites

Before you begin, ensure you have the following installed:

• Python (3.x or later)
• MySQL Server
• pip (Python package manager)

Installing Dependencies

1. Clone the repository to your local machine. git clone https://github.com/Castro19/CreditCard-Project.git

2. Install the required Python packages. pip install -r requirements.txt

Setting Up the Database

1. Start your MySQL server.
2. Create a new database for the application called credit_card_simulator
3. Import the initial schema located in SQL/DDL
4. Input the Values located in SQL/DDL
5. Create config.py in the root directory, as: class Config: SQLALCHEMY_DATABASE_URI = 'mysql+pymysql://[username]:[password]@localhost/credit_card_simulator'

Features I will implement

1. More Credit Card Functionalities: AUTH Cleared Refunds Payment Cancelled ...

2. API Integration to Summarize how each transaction might affect the credit score

3. A more normalized structure for my database system including relational tables Receipts & ReceiptItems for extra practice (Look at SQL/NormalizedDB.png)
