Project 1: PacMan Team1

Group: William He, Justin Pratama, Aman Thanvi, Anirudha Uppugunduri

---

Running Code from the Command Line

javac -cp "src/" src/*.java
java -cp "src/" StartMenu

---

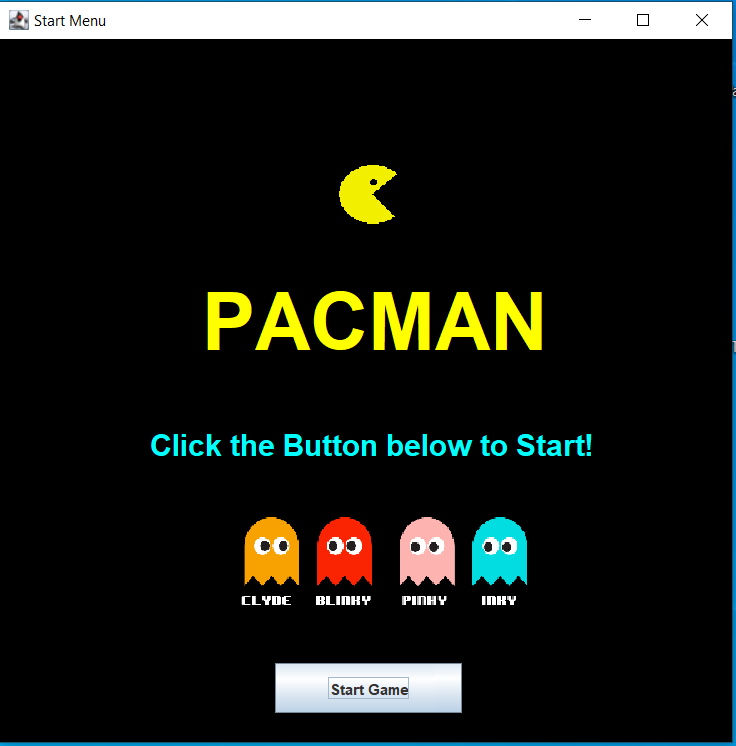

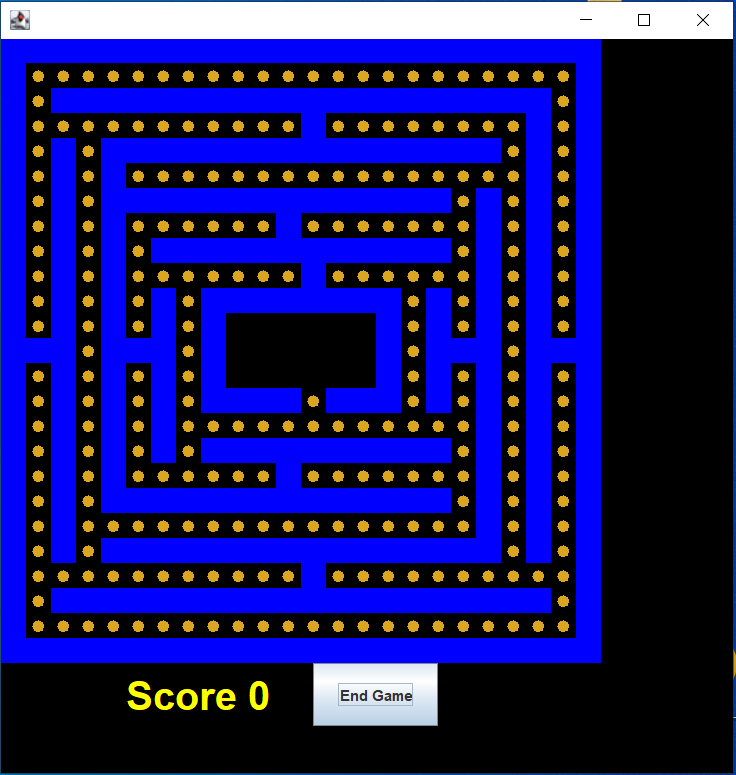

Display of Pacman Game

---

Team members and functions

---

umdjpratama (Justin Pratama)

Worked on:

-PacMan Class: consume()

-Ghost Class: attack()

-Map Class: eatCookie(String Name)

---

amanthanvi (Aman Thanvi)

Worked on:

• PacMan Class: is_ghost_in_range()

• Ghost Class: is_pacman_in_range()

• Map Class: attack(String name)

PacMan Class

consume()

-Type: () -> JComponent

-Description:

Function is meant to imitate the consumption of cookies that is present in the original pacman game, references eatCookie in the map class to do so.

-Example:

//pacman at location (2,2) and a cookie is at (2,2)

pacman.consume() -> /Cookie component with location (2,2)/

//pacman at location (2,2) and there is no cookie

pacman.consume() -> null

-Tests:

JUnit tests will check for if null is not returned and essentially if a cookie component is at the correct position.

Ghost Class

attack()

-Type: () -> boolean

-Description:

Function is meant to imitate the ghost attacking the player pacman, essentially changing the gameOver condition in map.

-Example:

//pacman at location (2,2) and a ghost is at (2,1)

ghost.attack() -> true

//pacman at location (2,2) and ghost at (5,2)

ghost.attack() -> false

-Tests:

JUnit tests will check for if ghost is available to attack the pacman player as it is in close proximity to the player.

Map Class

eatCookie()

-Type: () -> JComponent

-Description:

Function is meant to imitate the functionality of eating a cookie, how the board changes and the cookie is removed.

-Example:

//pacman at location (2,2) and a cookie is at (2,2)

map.eatCookie() -> /Cookie component with location (2,2)/

//pacman at location (2,2) and no cookie

map.eatCookie() -> Null

-Tests:

JUnit tests will check for if a cookie is the right position and, if so, will remove it from the map through components, field, etc. This is tested through a notNull assertion to see if it works.

---

whe1123 (William He)

Worked on:

-PacMan Class: get_valid_moves()

-Ghost Class: get_valid_moves()

-Map Class: getLoc(Location loc)

PacMan Class

get_valid_moves()

-Type: () -> ArrayList

-Description:

This function returns all possible moves that the pacman can take at its current position. (Pacman can't go into a position where there's a ghost or another pacman).

-Example:

//pacman at location (5,5) and there is a wall on position (4,5) and a ghost on position (5,4)

pacman.get_valid_moves() -> {(6,5), (5,6)}

//pacman at location (5,5) and there are no obstacles

pacman.get_valid_moves() -> {(4,5), (6,5), (5,4), (5,6)}

-Tests:

JUnit tests will check for when pacman is trapped, in an invalid location, or in a position where the pacman has possible moves.

Ghost Class

get_valid_moves()

-Type: () -> ArrayList

-Description:

This function returns all possible moves that the ghost can take at its current position. (Ghosts can't go through walls but can go through other Pacman and Ghosts).

-Example:

//Ghost at location (5,5) and there is a wall on position (4,5) and on position (5,4)

Ghost.get_valid_moves() -> {(6,5), (5,6)}

//Ghost at location (5,5) and there are no obstacles

Ghost.get_valid_moves() -> {(4,5), (6,5), (5,4), (5,6)}

-Tests:

JUnit tests will check for when ghost is trapped, in an invalid location, or in a position where the ghost has possible moves.

Map Class

getLoc(Location loc)

-Type: (Location Loc) -> HashSet

-Description:

This function takes in a given location and returns what's currently on that location. (Empty, Pacman, Cookie, Ghost, Wall)

-Example:

//pacman at location (5,5)

map.getLoc(new Location (5,5) -> Map.Type.PACMAN

//cookie and ghost at location (5,6)

map.getLoc(new Location (5,5) -> [Map.Type.COOKIE, Map.Type.GHOST]

-Tests:

JUnit tests will check for locations with Empty, Pacman, Cookie, Ghost, and Wall will also check when there are more than one object at a spot. (If location has a wall it will always just return Map.Type.WALL). Tests also check for invalid/out of bounds locations.

---

emeraldswag312 (Anirudha Uppugunduri)

Worked on:

-PacMan Class: move()

-Ghost Class: move()

-Map Class: move()

PacMan Class

move()

-Type: () -> boolean

-Description:

This method randomly chooses one move out of all possible moves that it can take. It will not move if there are no possible moves.

-Example:

//pacman at location (1,1) can move to (1,2),(2,1). It randomly chooses (1,2)

pacman.move() -> true

-Tests:

JUnit tests will check for when pacman is trapped and cannot move and will check for when pacman can move.

Ghost Class

move()

-Type () -> boolean

-Description:

This method randomly chooses one move out of all possible moves that it can take. It will not move if there are no possible moves.

-Example:

//Ghost at location (1,1) can move to (1,2),(2,1). It randomly chooses (1,2).

ghost.move() -> true

-Tests:

Junit tests will check for when ghost is surrounded by pacmans and can move onto pacmans as well as onto spaces without pacmans.

Map Class

move()

-Type () -> boolean

-Description:

This method takes the parameters and checks if they are within the map such as moving a name to a location that is within the map and legal while also checking if a component is on the field with the given name. This method fails if any parameter check fails.

-Example:

//Pacman at location (1,1) wants to be moved to (1,2). (1,2) is a legal move, so //the necessary instance variables are modified while changing the location of //the component.

map.move("pacman", new Location(0,0), Map.Type.PACMAN)) -> false

-Tests:

Junit tests will check for when the component can and cannot be moved to a location. For example, it cannot move into a wall. It also tests valid locations that components can move to.
