Wrong spouse pairing

[magnusdv]

Hi! I may have stumbled upon a bug in your (usually brilliant) plotting algorithm:

library(kinship2)

x = pedigree(id    = 1:15,
             dadid = c(0,0,0,0,0,1,3,3,5,6,8,8,10,12,13),
             momid = c(0,0,0,0,0,2,2,4,4,7,7,9,11,11,14),
             sex   = c(1,2,1,2,1,1,2,1,2,1,2,1,1,2,1))
as.data.frame(x)
#>    id dadid momid    sex
#> 1   1     0     0   male
#> 2   2     0     0 female
#> 3   3     0     0   male
#> 4   4     0     0 female
#> 5   5     0     0   male
#> 6   6     1     2   male
#> 7   7     3     2 female
#> 8   8     3     4   male
#> 9   9     5     4 female
#> 10 10     6     7   male
#> 11 11     8     7 female
#> 12 12     8     9   male
#> 13 13    10    11   male
#> 14 14    12    11 female
#> 15 15    13    14   male

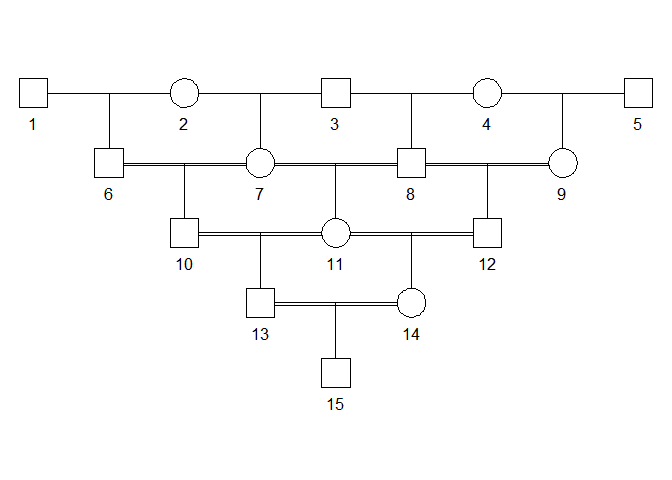

A correct plot of the pedigree is shown below. I’m only able to produce this by specifying the complete spouse order data:

sp = rbind(c(1,2), c(2,3), c(3,4), c(4,5), c(6,7), c(7,8), c(8,9), c(10,11), c(11,12), c(13,14))
x$hints = list(order = 1:15, spouse = cbind(sp, 0))
plot(x)

Without the hints, the top row gets botched:

x$hints = NULL
plot(x)

For some reason individuals 1 and 4 are connected as spouses, although they aren't.

^{Created on 2022-01-31 by the reprex package (v2.0.1)}

[sinnweja]

Thank you for pointing out this bug. I'm glad you found a work-around with the hints, but I'll add this to my list of bugs to address.
