A brief note here about setting up the physical and virtual networking so that OpenShift can connect VMs directly to their appropriate network segment / VLAN. This is documented in the official docs as well...
If you don't setup VM networks, the VMs are required to use the default "Pod network" which makes SSH and RDP connections awkward.

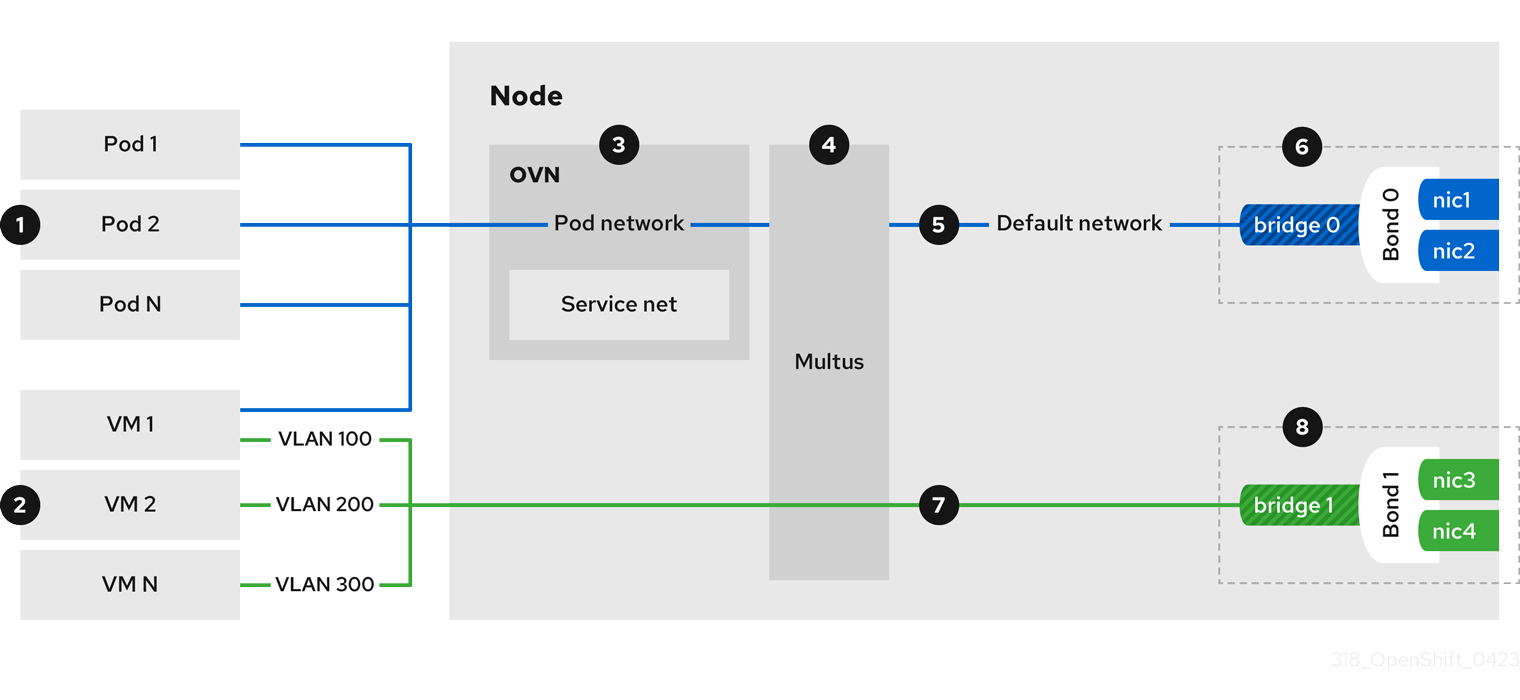

(7) Secondary VM networks are typically bridged directly to a physical network, with or without VLAN encapsulation. (8) Secondary VM networks typically use a dedicated set of NICs (*) Other configurations are possible, but out-of-scope for this note
I prefer to use the declarative syntax of NMState to create the hosts' bonds and bridges. This is done by creating NodeNetworkConfigurationPolicies.
You must install the Kubernetes NMState Operator in order to apply the YAML below.

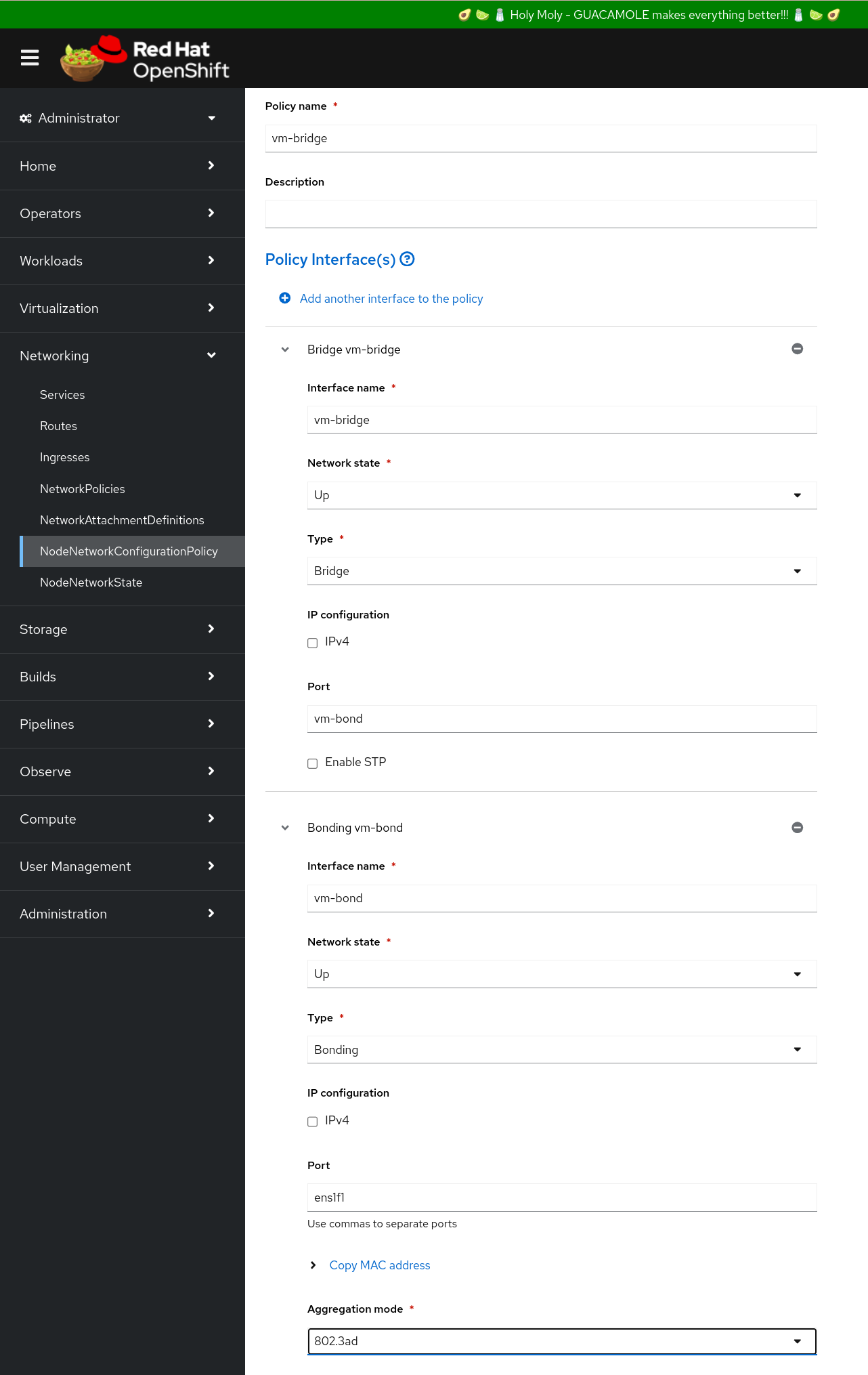

You can also create this via the WebUI. I'll provide an image below...
---
apiVersion: nmstate.io/v1
kind: NodeNetworkConfigurationPolicy
metadata:
name: vm-bridge
spec:
# Only use nodeSelector if:
# * You're using Static IPs for some reason (storage)
# * Your NIC names are inconsistent between servers
# nodeSelector:
# kubernetes.io/hostname: node1.example.com
# node-role.kubernetes.io/worker: ""
desiredState:
interfaces:
- name: vm-bridge
description: Bridge for VMs to directly connect with networksVLANs via NetworkAttachmentDefinitions
state: up
type: linux-bridge
#mtu: 9000 ### optional, your switch must be configured for jumbo frames
bridge:
options:
stp:
enabled: true
port:
- name: ens1f1 ### this needs to be changed
#- name: vm-bond ### optional, created below
ipv4:
enabled: false ### the host doesn't normally need an IP address
ipv6:
enabled: false
- name: vm-bond
description: LACP or active-backup bond for VLANs 676-South-VMs & 677-West-VMs
state: up
type: bond
#mtu: 9000 ### your switch must be configured for jumbo frames
link-aggregation:
mode: active-backup
#mode: 802.3ad ### the switch must be configured for LACP/link-agg/port-channel
port:
- ens1f1
ipv4:
enabled: false ### the host doesn't normally need an IP address
ipv6:
enabled: false
lldp:
enabled: true ### optional, show lldp using "nmcli dev lldp"
Don't delete the NNCP if you make a mistake and want to remove the previously applied configurations. Instead, modify the YAML and set the interface state: to absent like this:
## CLEANUP
---
apiVersion: nmstate.io/v1
kind: NodeNetworkConfigurationPolicy
metadata:
name: cleanup
spec:
nodeSelector:
#kubernetes.io/hostname: node1.example.com
#node-role.kubernetes.io/worker: ''
desiredState:
interfaces:
- name: vm-bridge
type: linux-bridge
state: absent
- name: vm-bond
type: bond
state: absent

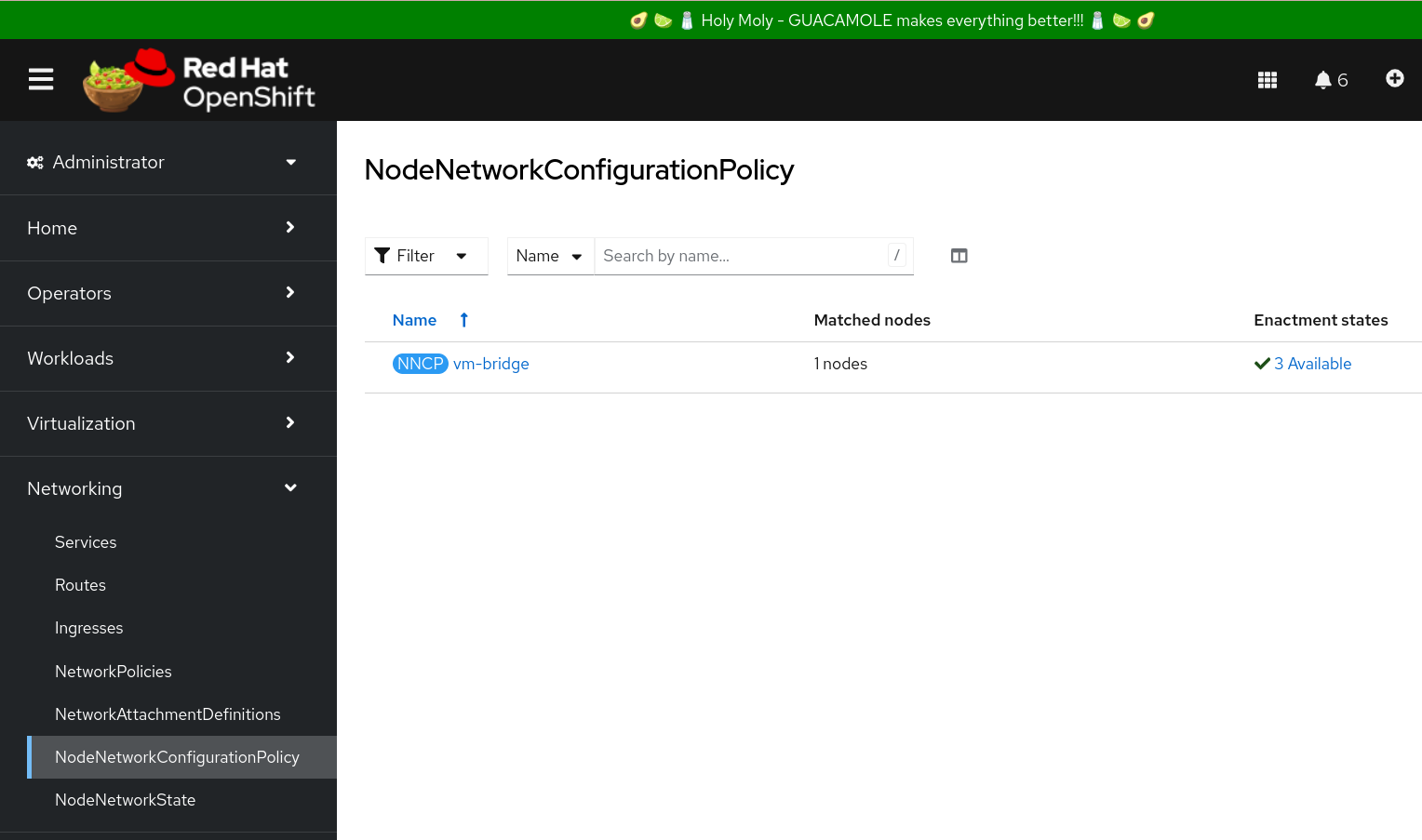

The Web UI will show a green check mark when the configuration has been applied to the node(s)
Now that the server/host/node(s) have their physical interfaces and bonds added to a bridge, it's time to create the "vSwitch" / "Distributed Port Group". In other words, what OpenShift calls a NetworkAttachmentDefinition. Please be aware that net-attach-defs (the short name, which is better than NADs) must be created in a particular project. Please avoid creating these in the default namespace/Project.

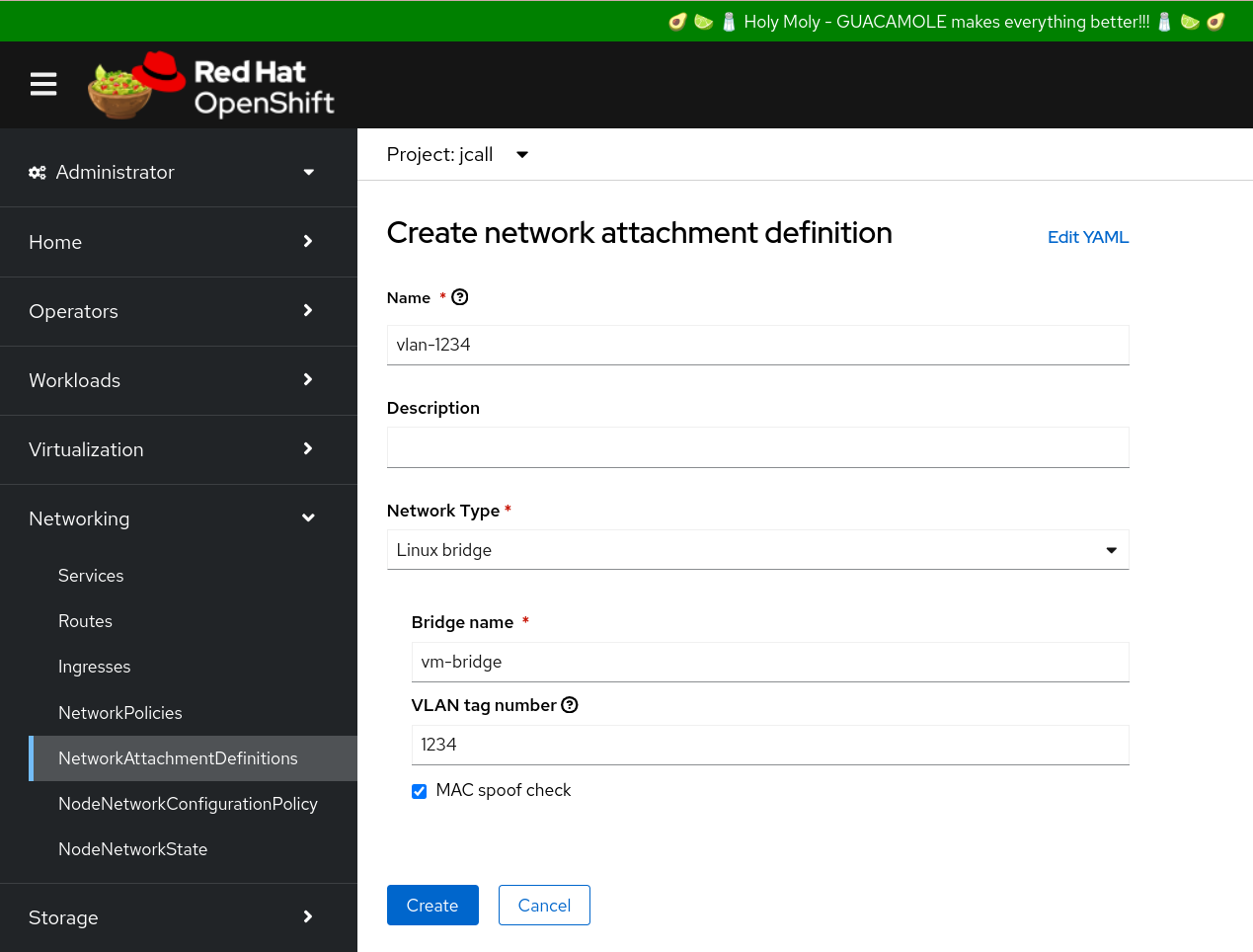

The WebUI can be used to create these too. I'll provide an image below.
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: native-vlan
namespace: vm-test ### must exist in the same namespace as the VM
annotations:
description: Native VLAN of vm-bond/vm-bridge (eth0 & eth1)
k8s.v1.cni.cncf.io/resourceName: bridge.network.kubevirt.io/vm-bridge
spec:
config: '{
"name": "native-vlan",
"bridge": "vm-bridge",
"type": "cnv-bridge",
"cniVersion": "0.3.1",
"macspoofchk": true,
"ipam": {},
"preserveDefaultVlan": false
}'
TODO: Add a blurb here about OpenShift being responsible for adding / removing VLAN tags to the VMs traffic.
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: vlan-1234
namespace: vm-test ### must exist in the same namespace as the VM
annotations:
description: VLAN 1234 trunked to vm-bond/vm-bridge (eth0 & eth1)
k8s.v1.cni.cncf.io/resourceName: bridge.network.kubevirt.io/vm-bridge
spec:
config: '{
"name": "vlan-1234",
"vlan": 1234,
"bridge": "vm-bridge",
"type": "cnv-bridge",
"cniVersion": "0.3.1",
"macspoofchk": true,
"ipam": {},
"preserveDefaultVlan": false
}'

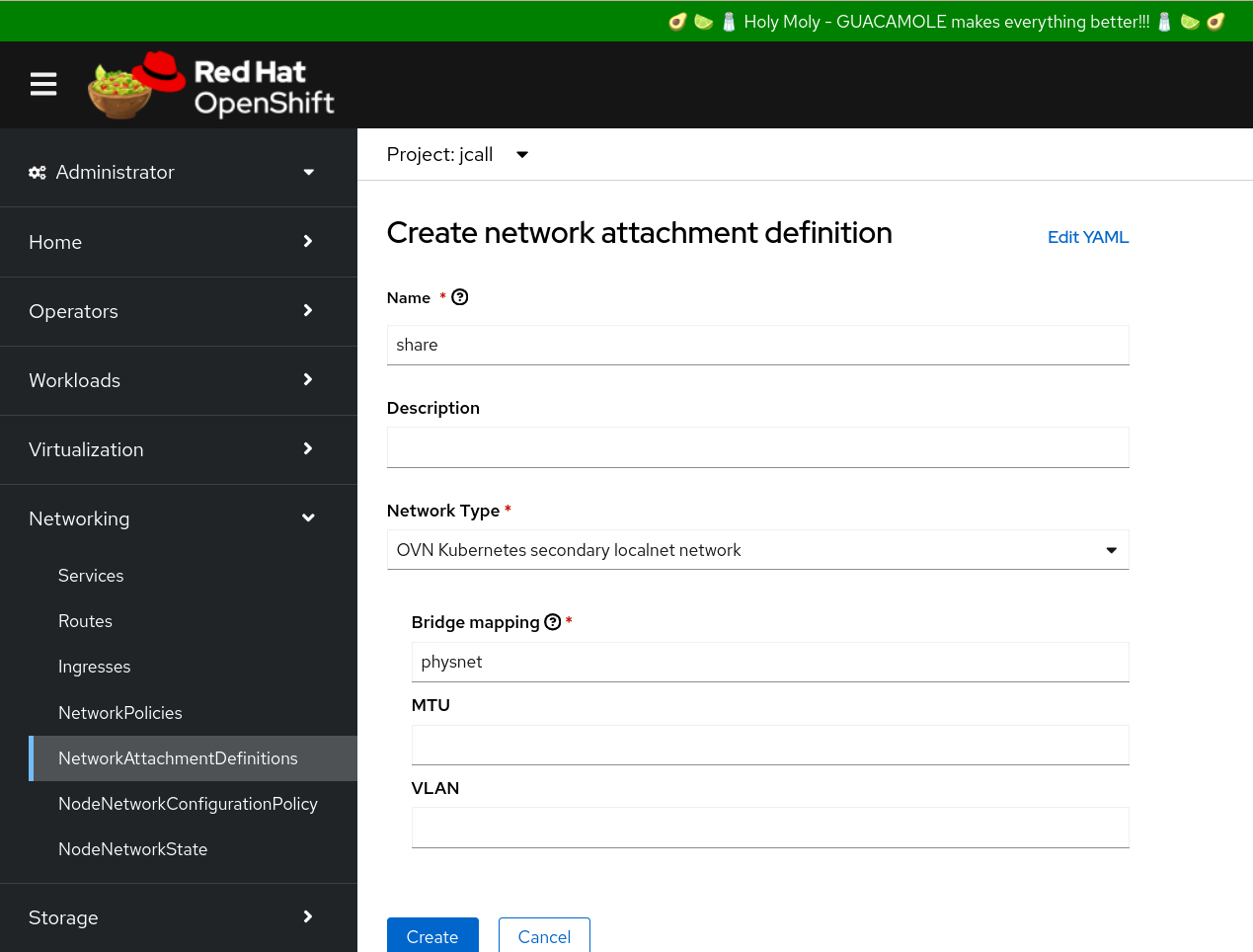

NOTE 1: It's a better idea to use "secondary" NICs instead of forcing VMs to share OpenShift's br-ex primary interface.
NOTE 2: Creating this via the GUI creates an empty annotation that prevents VMs from scheduling. You must remove the annotation in order for the VM to boot.
# You must make three changes to this file
# 1 - choose a name
# 2 - choose a namespace
# 3 - update the "netAttachDefName" value to be "<namespace>/<name>"
# Please note:
# "physnet" is automatically created by OVNKubernetes during the installation of OpenShift
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: share
namespace: vm-test
spec:
config: |2
{
"name": "physnet",
"topology":"localnet",
"netAttachDefName": "vm-test/share",
"type": "ovn-k8s-cni-overlay",
"cniVersion": "0.4.0"
}
Thanks for reading. Nothing else to see here...
:::spoiler
The interface (enp5s0f0) is able to use the default/native vlan (921) configured on the switch for OpenShift. An additional Storage VLAN (923) is available on the same interface (enp5s0f0)
The NodeNetworkConfigurationPolicies to create a vlan-interface and assign a static IP address would like like this.
Please note: Because static IP addresses are being used, these NNCPs must use a nodeSelector. Every node needs its own NNCP with a unique static IP address.
---
apiVersion: nmstate.io/v1
kind: NodeNetworkConfigurationPolicy
metadata:
name: storage-node-1 #change
spec:
nodeSelector:
kubernetes.io/hostname: node-1.example.com #change
desiredState:
interfaces:
- description: VLAN 923 (Storage)
name: enp5s0f0.923 #match with lines 25-26
type: vlan
state: up
#mtu: 9000 #default is 1500 #confirm
ipv4:
enabled: true
dhcp: false
address:
- ip: 192.1.196.21 #confirm + change
prefix-length: 24 #confirm
ipv6:
enabled: false
vlan:
base-iface: enp5s0f0 #confirm
id: 923 #confirm
---
apiVersion: nmstate.io/v1
kind: NodeNetworkConfigurationPolicy
metadata:
name: storage-node-2 #change
spec:
nodeSelector:
kubernetes.io/hostname: node-2.example.com #change
<...snip...>
---
---
apiVersion: nmstate.io/v1
kind: NodeNetworkConfigurationPolicy
metadata:
name: storage-node-3 #change
spec:
nodeSelector:
kubernetes.io/hostname: node-3.example.com #change
<...snip...>
:::
