Glass catalogs path for AppImage

I try to use AppImage builds, but seems like there are some issues with glass catalog path.

• AppImage builds - https://github.com/Symbian9/Astree/releases/tag/continuous

Actually, according ../src/gui/MainWindow.cpp, Astree use next path for sGlassPath:

std::string MainWindow::get_glass_path() const
{

...

#ifdef __unix__ //linux

	string sAppPath = QCoreApplication::applicationDirPath().toStdString();
	string sGlassPath = sAppPath + "/../share/astree/glass/"; //not very clean but should work
	return sGlassPath;
#endif

	return "invalid glass path";
}

Inside AppImage (if extract it as $ ./Astree*.AppImage --appimage-extract) there is /glass/ catalog, but its path looks next:

/squashfs-root/usr/glass

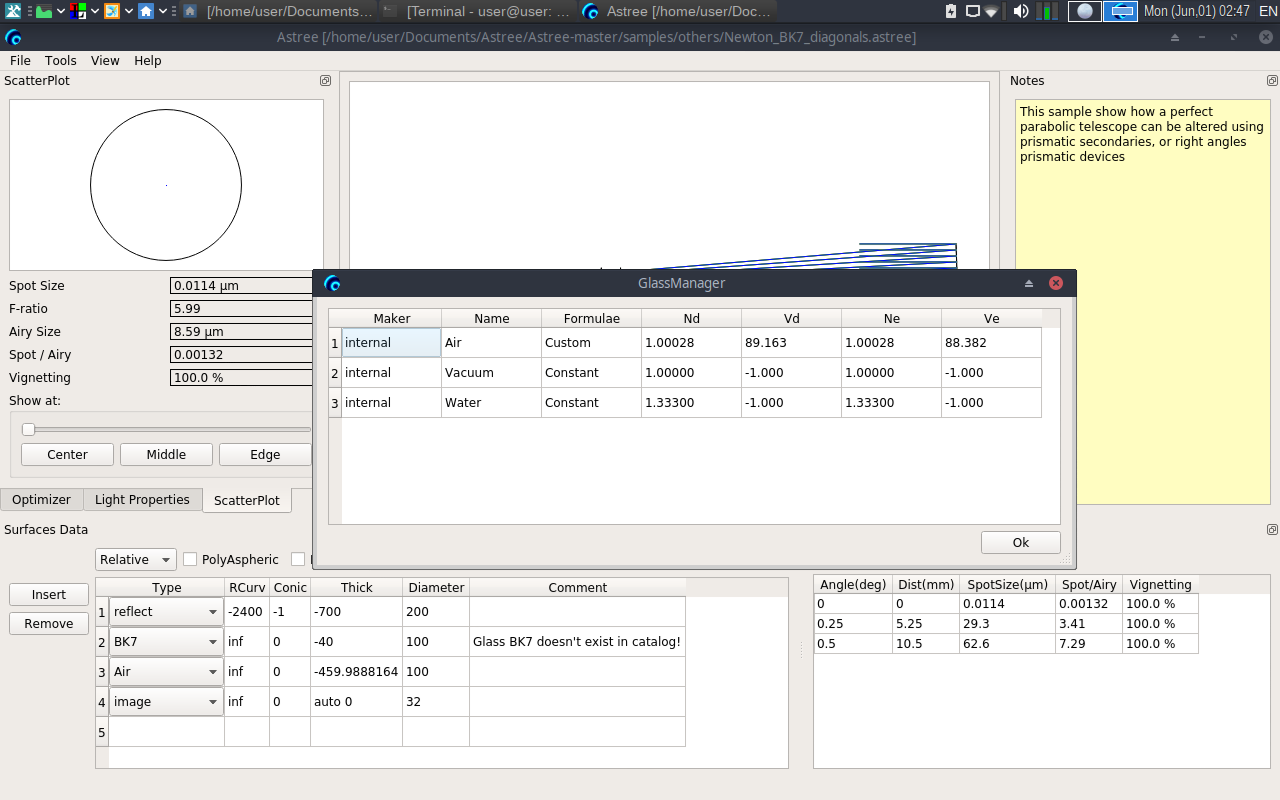

So, if I run AppImage build Astree recognize only built-in materials (Air; Vacuum; Water).

As result, on opening Newton_BK7_diagonals.astree sample BK7 could not be loaded from ../glass/common_glass.agf: "Glass BK7 doesn't exist in catalog!"

[edeforas]

Hi, can you make a PR ? thanks!
Or can you copy/paste the good lines for linux and std::string MainWindow::get_glass_path() const ?

[edeforas]

By the way does Astree launch in full screen correctly?

Or can you copy/paste the good lines for linux and std::string MainWindow::get_glass_path() const?

As I can see in initially @probonopd proposed to use ../share/astree/glass/, but actual path (... sAppPath + "/../share/astree/glass/" ...) include one extra / as first path character; think, this extra / should be removed.

By the way does Astree launch in full screen correctly?

NO! Yeah, there is issue with fullscreen too.

I suggest issue exits with size of some widgets, because I can't maximize window until move/reorder few widgets on left pane.

I hope path issue now fixed, but can't verify it just now so will test builds later today.

If all would be OK I will close this issue.

[edeforas]

thanks

UPD: Last fix does NOT help; not solved yet.

Need deeper review internal AppImage structure and glass folder path.

[edeforas]

thanks anyway !

[probonopd]

So you have

appdir/usr/bin/astree
appdir/usr/share/astree/glass

Correct?

Then it should work... what does QCoreApplication::applicationDirPath() return?

So you have

appdir/usr/bin/astree
appdir/usr/share/astree/glass

Check actual AppImage build:

• https://github.com/Symbian9/Astree/releases/tag/continuous

If extract it, paths looks next:

$ ./Astree-dc626b8-x86_64.AppImage --appimage-extract
squashfs-root/.DirIcon
squashfs-root/AppRun
squashfs-root/astree.desktop
squashfs-root/astree.svg
squashfs-root/usr
squashfs-root/usr/bin
squashfs-root/usr/bin/astree
...
squashfs-root/usr/glass
...

[probonopd]

squashfs-root/usr/glass looks wrong to me, should be squashfs-root/usr/share/glass?

[RocketEnvy]

Since this might break AppImage again, and I'm not certain this is optimal, I'm not doing a pull request. However, I made the following changes to get non-AppImage Astree Glass Catalogue to work in Linux:
`$ git diff *cpp
diff --git a/src/gui/MainWindow.cpp b/src/gui/MainWindow.cpp
index 675c7ea..d78598f 100644
--- a/src/gui/MainWindow.cpp
+++ b/src/gui/MainWindow.cpp
@@ -3,7 +3,8 @@
// copyright Etienne de Foras ( the author ) mailto: etienne.deforas@gmail.com

#include "FileUtil.h"

+#include
+#include
#include "MainWindow.h"
#include "ui_MainWindow.h"
#include
@@ -46,9 +47,10 @@ MainWindow::MainWindow(QWidget parent)
//load all glass catalog
string sGlassPath = get_glass_path();
vector vsCatalog=FileUtil::list(sGlassPath+".agf");
+
for(unsigned int i=0;i<vsCatalog.size();i++)
{

•    bool bOk=GlassCatalogIO::load(sGlassPath +vsCatalog[i],GlassManager::singleton());


•    bool bOk=GlassCatalogIO::load(vsCatalog[i],GlassManager::singleton());
     if(bOk==false)
         QMessageBox::warning(this,"Warning:","Unable to load glass catalog: "+QString(vsCatalog[i].c_str()));


  }
  @@ -399,7 +401,7 @@ std::string MainWindow::get_glass_path() const
  #ifdef unix //linux

    string sAppPath = QCoreApplication::applicationDirPath().toStdString();


•   string sGlassPath = sAppPath + "../share/astree/glass/"; //not very clean but should work


•   string sGlassPath = sAppPath + "/../share/astree/glass/"; //not very clean but should work
    return sGlassPath;


#endif
`
Basically the strings in the vsCatalog vector of strings already has sGlassPath so it shouldn't be added again when loading the catalog files. And sAppPath doesn't end in "/" so I added one to sGlassPath.

The makefile didn't install the catalogs so I copied them by hand to /usr/share/astree/glass.

It might be better to use QStandardPaths::AppDataLocation, QStandardPaths::AppLocalDataLocation, or even QStandardPaths::AppConfigLocation so you don't have to worry about where to put stuff for each OS. I don't know anything about AppImage except I use some that store stuff in those locations on the regular hard drive, FreeCad for instance.

[probonopd]

Indeed:

If an application is relying on QStringList QStandardPaths::standardLocations(QStandardPaths::AppDataLocation); the XDG_DATA_DIRS environment variable must be exported to <inside the AppDir>/usr/share/ in the AppDir by AppRun. (Note that linuxdeployqt does not use an AppRun file, just a symlink, and as a result this does not work there.)

As a fallback, you can use QString QCoreApplication::applicationDirPath() instead and construct a relative path to the application's data files from there.

For an example, see:
KaidanIM/Kaidan@da38011

As a result, it should work both in normal installations and in relocatable installations such as AppImages.

Source:
https://github.com/AppImage/AppImageKit/wiki/Bundling-Qt-apps

[edeforas]

Hello thanks for the PR!
So, agree to merge ?
