Imported Bridge Domains loose relationship to VRF #80

@camrossi

Description

@camrossi

Steps to reproduce:

Create a BD and map it to a VRF:

resource "aci_vrf" "vrf" {
  tenant_dn = aci_tenant.tenant.id
  name      = "vrf"
}


resource "aci_bridge_domain" "bd" {
  tenant_dn = aci_tenant.tenant.id
  name      = "bd1"
  unicast_route = "yes"
  relation_fv_rs_ctx = aci_vrf.vrf.id
}

This will create a BD that looks like:

Import the tenant:
./terraformer-aci import aci --resources=\* --parent-dn=$TENANT --path-pattern {output}/{provider}/ --compact -o $TMP_STATE

The BD state looses the relationship:

resource "aci_bridge_domain" "tfer--fvBD_bd1_29" {
  annotation                     = "orchestrator:terraform"
  arp_flood                      = "no"
  bridge_domain_type             = "regular"
  description                    = ""
  ep_clear                       = "no"
  ep_move_detect_mode            = "disable"
  host_based_routing             = "no"
  intersite_bum_traffic_allow    = "no"
  intersite_l2_stretch           = "no"
  ip_learning                    = "yes"
  ipv6_mcast_allow               = "no"
  limit_ip_learn_to_subnets      = "yes"
  ll_addr                        = "::"
  mac                            = "00:22:BD:F8:19:FF"
  mcast_allow                    = "no"
  multi_dst_pkt_act              = "bd-flood"
  name                           = "bd1"
  name_alias                     = ""
  optimize_wan_bandwidth         = "no"
  relation_fv_rs_abd_pol_mon_pol = ""
  relation_fv_rs_bd_to_ep_ret    = ""
  relation_fv_rs_bd_to_fhs       = ""
  relation_fv_rs_bd_to_nd_p      = ""
  relation_fv_rs_bd_to_profile   = ""
  relation_fv_rs_bd_to_relay_p   = ""
  relation_fv_rs_ctx             = ""  <=== this should point to my VRF
  relation_fv_rs_igmpsn          = ""
  relation_fv_rs_mldsn           = ""
  tenant_dn                      = "${data.terraform_remote_state.local.outputs.aci_tenant_tfer--fvTenant_terraformDrift_19_id}"
  unicast_route                  = "yes"
  unk_mac_ucast_act              = "proxy"
  unk_mcast_act                  = "flood"
  v6unk_mcast_act                = "flood"
  vmac                           = "not-applicable"
}```

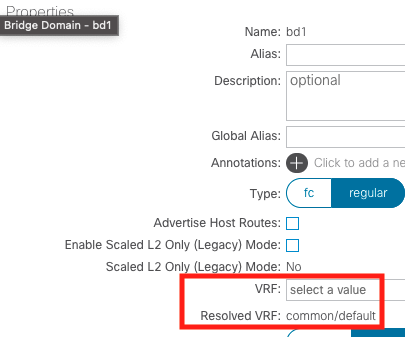

If I now delete and recreate the BD with tf plan and apply the BD will pick the default VRF in the common tenant.

![image](https://user-images.githubusercontent.com/16535101/176322189-0839d3e0-bb6d-43b7-be07-a60d83e745e8.png)
