The docs are written in Markdown, if you're not familiar with this start here:
We use Docusaurus to create the doc website - https://wandisco.github.io/wandisco-documentation
Note for WANdisco staff The WANdisco GitHub docs are for the newer versions of products. This is currently those relating to the new UI, Docker and FRP. Other product documentation will gradually move here. For changes to the older docs, please raise JIRA tickets as normal. If unsure, please contact the docs team.
There are 2 main branches - master and develop.
Use feature branches from develop to make changes. Work is then reviewed and committed using pull requests to the develop branch. Feature branches should be deleted when no longer required.
Develop will be merged into master to coincide with the engineering branches being promoted. With the help of UAT, ensure that nothing is put on to master that isn’t on engineering master.
If any emergency fixes are required, these can be done via feature branch/PR from develop and cherry-picked to master.
This only changes the GitHub version of the docs, the docs team will control promoting to the live/Docusaurus version.
We use US English.
- Clear - must be easily understood by users.
- Concise - use as few words as possible.
- Correct - technically and grammatically correct .
- Current - the docs team rely on timely information from other teams to keep the docs up to date.
- Complete - info must be complete and if relevant give references to more information.
- Consistent - use consistent language and format.
Therefore, general guidelines for use of language are:
- Keep it short and simple - use short words, short sentences, short paragraphs, etc. Write in the simplest form to avoid confusing users.
- Use clear and relevant language, not sales or marketing language. People reading the guides have either already decided to use the product or only care about how it works. The technical documentation is a tool, like Google, which the customer only wants a clear answer from. Avoid emotive language and don't try to impress the reader.
- Use active voice - make the content user-centric. Address the user directly. Write as if the user has asked you how to do something.
- Use present tense - unless an action will happen in the future.
- Use terms and phrases consistently - technical writing is the opposite of creative writing in that you should repeat words rather than try to think of different words that mean the same thing.
Please use the following terms, punctuation etc for consistency.
| Correct | Variants (don't use) |
|---|---|
| WANdisco LiveData Plane or LiveData Plane | Live Data Plane |
| On-premise | On premises, on premise |
There are a few common traps, take care to avoid them! A good example is when using log in and login.
Correct - Log in to your machine
Incorrect - Log into your machine or Login to your machine
For tips on correct hyphenation see https://grammartips.homestead.com/hyphens2.html.
The format for variables used can be found here. If there are any missing, please add them! https://wandisco.github.io/wandisco-documentation/docs/help/variables
For page titles and sidebar/ToC, use capital letters at the start of significant words. Prepositions such as 'of' and 'from' should be in lower case unless they begin the title.
Title/sidebar examples:
- Installation of LiveData Plane in Docker
- Create a Rule
For headers, capitalization rules are standard English.
Header examples:
- Hive Plugin activation
- Integrate LiveAnalytics with your Databricks cluster
Follow the style of existing quickstarts when deciding on subheadings.
In general, follow the capitalization rules of standard English.
Try to keep your use of capital letters to a minimum.
- Don’t invent proper nouns when unnecessary, e.g. cluster manager (not Cluster Manager).
- Never use all uppercase for emphasis - use the sentence structure instead, or admonitions if necessary.
Follow capitalization guidelines or conventions for software or for a specific product or service as necessary. This can include case-sensitive keywords or product or service names with internal capitalization. For clarification, always check the official product documentation.
Use *text* to bold words in Markdown.
- Use bold to represent text seen on the screen/UI, but not terminal output or code.
- Do not bold words for emphasis.
Use _text_ to italicize words in Markdown.
- Used to highlight examples.
- Used for emphasis.
Use both of the above sparingly.
Use `text` to monospace words in Markdown.
-
Used to display code or terminal examples/output within a sentence.
Example
Use the
az loginto test Azure access via the command line. -
Used to display single line commands.
Example
Use the following commands:
cd /my/directory./my-script.sh -
Used for hostname examples.
Example
docker_host01.example.com
Use ```content``` to enclose multiple lines into a code snippet.
-
Used to show the output of a terminal command.
Example
If successful, you will see that the following within the output below:
< HTTP/1.1 100 Continue < HTTP/1.1 200 OK -
Used for multi-line commands (such as a Hive table create). To give the code type, e.g. sql, json, bash, text, use e.g. ```sql
Example
Create a table inside this database:
CREATE TABLE databricks_demo.customer_addresses_dim_hive ( Customer_Address_ID bigint, Customer_ID bigint, Valid_From_Timestamp timestamp, Valid_To_Timestamp timestamp, House_Number string, Street_Name string, Appt_Suite_No string, City string, State_Code string, Zip_Code string, Zip_Plus_Four string, Country string, Phone_Number string ) stored as ORC;
Use very sparingly! If there are too many used then none will stand out.
You can create a box around your text using a faux-table, which works as a warning or important note.
Example
| WARNING: If you run this you will lose your entire environment. |
| --- |
Renders as:
| WARNING: If you run this you will lose your entire environment. |
|---|
- Avoid substeps where possible but they can be used if there are two options for the same step.
- Do not breakdown steps too far but they do need to be clear.
- Do not have very specific and obvious steps for example, 'Click create'. The docs should be supporting the product but if really basic things are not obvious, please raise a product improvement instead of using the doc to cover for the product.
The formatting difficulty is that you must indent text within your numbered steps to be in line with the text above.
Correct formatting
1. The beginning of a step.
This is inline with the first letter of the step.
2. Second step.
This is inline with the first letter of the step.
Incorrect formatting
1. The beginning of a step.
This is not inline with the first letter of the step.
2. Second step.
This is also not inline with the first letter of the step.
Use these if there is no order or priority to the list items. The same formatting concerns as above apply.
You can add unordered lists into a numbered step.
Example
1. Beginning of a step.
* unordered item 1
* unordered item 2
Tables can be a good way of displaying a variety of options for a script or describing multiple properties within a file. However please review each table as they don't always work, especially if there is large amounts of text.
Example
| Option | Example | Description |
|----------|---------------|---------------------------|
| Option 1 | `example1` | Option 1 does this. |
| Option 2 | `example2` | Option 2 does this. |
| Option 3 | `example3` | Option 3 does this. |
The pipes and dashes do not actually have to be in alignment for the table to format correctly.
See the tables generator link for further examples: https://www.tablesgenerator.com/markdown_tables
Generally, one to nine written in full and larger numbers as numerical but there are exceptions! See https://style.ons.gov.uk/category/house-style/numbers/ for details.
- Keep numbers and their units together (that is, no space between them) e.g. 32KB
- In lists keep numbers and their units together e.g. 16-bit and 32-bit, not 16- and 32-bit
- Use a normal dash for number ranges, e.g: 12-19.
If moving a page or removing a subsection, ensure you update any affected links.
Links are very useful as they help reduce duplication and add detail without making a doc too long. If you link externally, link to the official documentation where possible.
The on-screen text must indicate where the link will take you and not just be 'this section' etc.
External link example
See the [Databricks documentation](https://docs.databricks.com/) for more info.
Internal link example
See the [create a rule](../operation/create-rule.md) section for details.
In this example the doc is /docs/quickstarts/installation/document.md and is referencing /docs/quickstarts/operation/create-rule.md.
.md is required for links to work in the GitHub view. They are automatically removed in the Docusaurus version.
Same page example
See the [Info you will need](#info-you-will-need) section for reference.
This example links to a header within the same document. Any spaces in the header will need to be replaced with a hyphen, prefixed with #.
See https://www.markdownguide.org/basic-syntax/#links or https://v2.docusaurus.io/versions#referencing-other-documents for more info.
All images should be hosted internally as externally hosted images may move or be deleted.
Images are stored in /website/static/img/ for the website.
Example
Use:
Due to the migration to Docusaurus 2, at time of writing, images will not be visible in the markdown pages viewed in GitHub. See the Docusaurus docs themselves as an example: https://github.com/facebook/docusaurus/blob/master/website/docs/introduction.md#a-better-docusaurus-is-coming-to-town
They are still visible on the main site and when building locally using NPM/yarn.
Use only when absolutely necessary, the UI should be clear enough. Using screenshots also greatly increases the effort needed to keep the docs up to date.
If they are required then screenshots should give good context of the whole screen and not be a small zoomed in portion. Use dev tools to remove any potentially sensitive info.
Good example
Bad example
These should be used alongside architectural sections, or to illustrate the workflow of a product.
They should be used to help explain a concept further, and not used as a substitute for the subject matter.

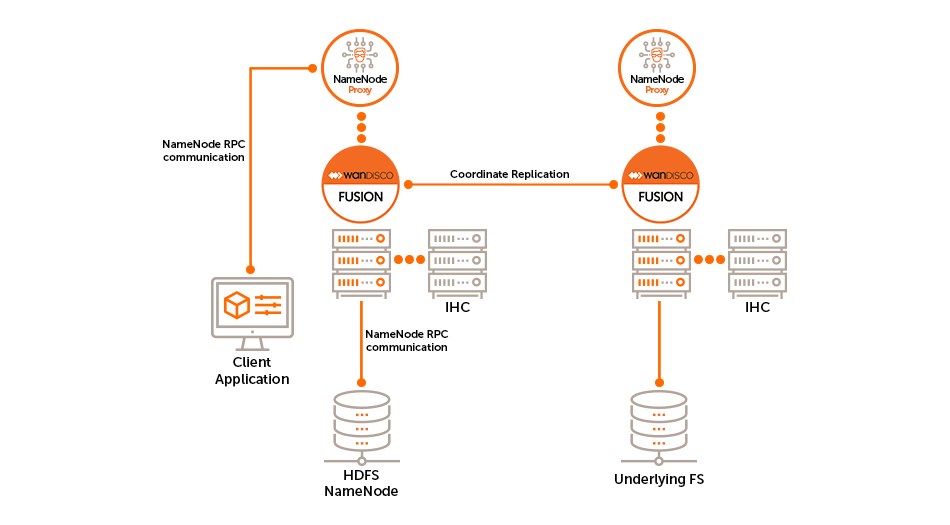

Follow the style of existing diagrams e.g. https://docs.wandisco.com/bigdata/wdfusion/2.15/images/single-namenode-proxy-per-zone.png
Save the diagrams in /docs/assets/.
Links to downloadable files that are hosted on this website can save the user from copy/pasting a large amount of text.
Example code
<a id="cloud-init.txt" href="https://github.com/WANdisco/wandisco-documentation/raw/master/docs/assets/cloud-init.txt">cloud-init.txt</a>
Example output
All files should be placed inside of /docs/assets/ on the master branch (i.e. create a feature branch from master when adding a file).
This is so that the raw link to the downloadable file does not have to be updated between different branches.
Only use if absolutely necessary, for example if you have publicly shared a link but then need to move the location of the specific document.
Add the following html to an .md file at the location you want to redirect from.
<!DOCTYPE html>
<html lang="en-US">
<head>
<meta charset="UTF-8" />
<meta
http-equiv="refresh"
content="0; url=installation/document.html"
/>
<script type="text/javascript">
window.location.href = 'installation/document.html';
</script>
<title>WANdisco Documentation</title>
</head>
<body>
If you are not redirected automatically, follow this
<a href="installation/document.html">link</a>.
</body>
</html>
Location of the redirect: /docs/quickstarts/document.md
Destination of the redirect: /docs/quickstarts/installation/document.html
