Every Beagle Web library has a very well defined process of how it fetches, process and renders a view. There's an order that must always be respected and hook points where the developer can execute some code of his own (lifecycles).

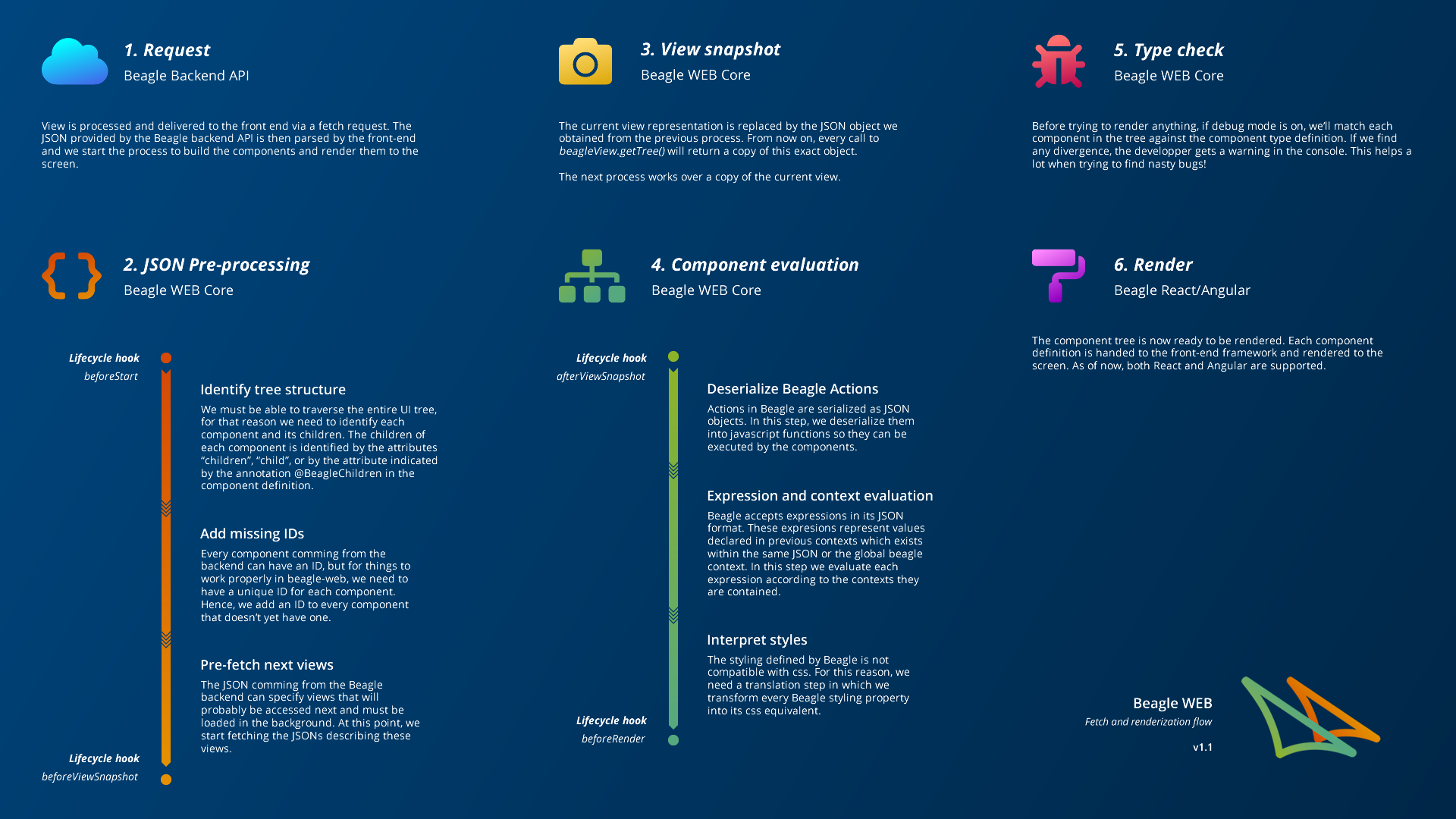

Sometimes, an image can tell more than words, the following graphic shows the full rendering process of Beagle Web:
The Beagle lifecycles are:
- BeforeStart
- BeforeViewSnapshot
- AfterViewSnapshot
- BeforeRender
They can be used as global hooks to the lifecycle:
const config = {
// ...
lifecycles: {
beforeStart: (payload) => {
// ...
},
beforeViewSnapshot: (payload) => {
// ...
},
afterViewSnapshot: (payload) => {
// ...
},
beforeRender: (payload) => {
// ...
},
}
}or local hooks to the lifecycles in a per-component basis (annotations):
@BeagleBeforeStart((textComponentPayload) => {
// ...
})
@BeagleBeforeViewSnapshot((textComponentPayload) => {
// ...
})
@BeagleAfterViewSnapshot((textComponentPayload) => {
// ...
})
@BeagleBeforeRender((textComponentPayload) => {
// ...
})
@Component({
// ...
})
class Text {
// ...
}If the children of a component comes with a different name than children or child from the
backend, the annotation @BeagleChildren can be used to fix the problem:
@BeagleChildren({ property: 'rows' })
@Component({
// ...
})
class Table {
// ...
}The payload for beagle returned by the backend can be anything, but internally Beagle must work with a tree of components. We must be able to traverse the tree and detect every component and its children. We say the payload can be anything, because we give the developer the opportunity to change it before it gets processed by Beagle.
We recommend that the backend always return a JSON representing a tree of components, as it is expected by Beagle, but if, for some reason, it is not possible, Beagle Web makes it possible to pre-process the response and build the tree in the front-end before Beagle actually works upon it.
The tree of components is the data structure used by Beagle Web. As the name suggests, it is a tree.
Each node in this tree has a type, several attributes and children. The type of the node is given by
the property _beagleComponent_ and it is mandatory. The node type tells us which UI component the
node represents. A component will, most of the time, have attributes which are specific to that
component. e.g. a button, can have attributes like text, onPress and disabled, while an input
will have attributes like value and placeholder. If a node is not a leaf, i.e. if the component
has another component or set of components inside it, the node in the tree will have a property
called "children", which is an array of nodes and represents the child nodes of a node.
Below, we show an example of a tree of components ready to be processed by Beagle:
{
"_beagleComponent_": "container",
"children": [
{
"_beagleComponent_": "image",
"url": "https://i.ibb.co/rvRN9kv/logo.png"
},
{
"_beagleComponent_": "text",
"text": "Welcome to the Beagle playground!"
},
{
"_beagleComponent_": "text",
"text": "Use the panel on the left to start coding!"
},
{
"_beagleComponent_": "button",
"text": "Access the fast guide"
}
]
}The json above is a simpler version of the welcome page of the Beagle Playground website. It renders a container to hold the rest of the elements: an image, two texts and a button. To see the full example and the UI rendered by it, access the Beagle Playground.
We recommend to always use an array named children to specify the child nodes of a component. But,
Beagle will work out of the box if instead of an array of components, a single node is passed, and
will also work if instead of children, the name child is used. In some cases, the backend
programmer will have named the child nodes as something else. For instance, in a component that
represents a table, the children might be named rows instead of children, in this case, the
front-end developer can inform Beagle that, for this specific component, the name of the property
children is different. See the example below:
@BeagleChildren({ property: 'rows' })
@Component({
// ...
})
class Table {
// ...
}The example above is for Angular, but it would work the same way in other platforms. Click
here to see the full documentation of the annotation @BeagleChildren.
Observation: lifecycles deprecates the feature middlewares. Middlewares will still be supported at least until the next major version (2.0.0) and they will be interpreted as they were part of the lifecycle
beforeRender.
Beagle Web has a very well defined process from when a new payload is received to the moment it gets rendered in the browser screen. We also have some "breakpoints" in this process where we let the developer do his own stuff if he needs to. We call these breakpoints "lifecycles". If you're familiar with frameworks like Angular and React you probably already know how lifecycles work. If not, it is pretty simple! Keep reading.
- Run the global beforeStart hook;
- Run the beforeStart hook of each component;
- Assign an id to every node that doesn't have an id yet;
- If needed, pre-fetch views that could be accessed next;
- Run the global beforeViewSnapshot hook;
- Run the beforeViewSnapshot hook of each component;
- Takes a snapshot of the current tree and stores it. From now on, any reference to the current rendered tree will be referencing a copy of this tree.
- Starts processing a copy of the snapshotted view, the next lifecycles will run over this copy.
- Run the global afterViewSnapshot hook;
- Run the afterViewSnapshot hook of each component;
- Deserialize beagle actions into javascript functions;
- Evaluate contexts and expressions;
- Interpret styles, converting the Beagle styling syntax to css;
- Run the global beforeRender hook;
- Run the beforeRender hook of each component;
- If in development mode, check the types in the JSON, validating them against the interface of each component.
- Hand the component tree to the render function, which is responsible to render each component in the tree. This function is different to each framework, Angular has a renderer and React has another.
Steps 1 to 7 are run once for every payload, they are not run on every re-render of the view. Steps
8 to 17 are run every time a re-render is triggered on the view. Re-renders are triggered by the
setContext action. When using the internal BeagleView directly, any call to updateWithFetch or
updateWithTree considers the tree passed as a parameter a new tree, i.e. the full set of steps
will be run over the new tree (or branch). The behavior is the same for the action addChildren,
since it uses updateWithTree internally.
In the previous section, we said we let the user alter the payload before Beagle gets started, this is our first lifecycle and we call it "BeforeStart". In an ideal scenario the payload would always be correct and this would never be needed, but, unfortunately, it's not always the case.
This doesn't need to be used only to alter the payload, if the developer wants to run some code every time a payload will get processed by Beagle, but before Beagle actually acts upon it, this is where he would do it.
Let's say we're developing an application that will work for WEB, iOS and Android. Sometimes a payload will make sense for the mobile platforms, but not for web and we have to transform it somehow. This will mainly happen if the components for the mobile apps were built before realizing they would also be used for web. Again, this is not the ideal scenario, but it does happen.
Even when all platforms are considered, there are scenarios where a payload won't make sense
for a particular platform, let's take the case of the default Beagle Component screen. screen
tells us things like the title of the view, the presence of a back button, and other interactivity
that will be made available in the navigation bar of a mobile app. See below an example of a JSON
defining a screen and an image corresponding to the UI it renders:
TODO
Web applications have no equivalent to the mobile navigation bar and the default implementation of
the component screen in Beagle Web ignores the json describing the navigation bar. To interpret
the navigation bar and render it in a way that makes sense in a web environment, we have two
options: replace the default implementation of the component screen or transform the original
payload taking the data of the navigation bar inside the screen component and creating a component
we can understand.
If we choose the second alternative, this would be done via the lifecycle BeforeStart. See the
example below:
const config = {
// ...
lifecycles: {
beforeStart: (payload) => {
// the screen component can only appear as the root of the component tree
if (!payload._beagleComponent_ === 'beagle:screenComponent') return
const navComponent = payload.navigationBar && {
_beagleComponent_: 'custom:navigationBar',
title: payload.navigationBar.title,
items: payload.navigationBar.navigationBarItems,
}
// in this particular component (screen), the children is a single element, is mandatory and is named child
payload.children = navComponent ? [navComponent, payload.child] : [payload.child]
delete payload.child
}
}
}The example above considers we have a custom component called custom:navigationBar that will
render a nav bar for us.
In the example above we set up a global hook to the beforeStart lifecycle. We can also use any
lifecycle in a per-component basis. Let's take the non-realistic example of renaming the property
text to value in a component called Text:
@BeagleBeforeStart((textComponentPayload) => {
textComponentPayload.value = textComponentPayload.text
delete textComponentPayload.text
})
@Component({
// ...
})
class Text {
// ...
}In this case, the payload received as parameter is not the entire tree, but the payload of the component itself.
In any of the lifecycles, if nothing is returned, the process will continue with the tree passed as parameter to the lifecycle function. If a new tree is returned by the function, the process will continue with the tree returned.
Runs just before the view snapshot, useful to alter the payload, but after the ids were already assigned.
Let's say you want to expose the internal beagle id as a property of the component. This could be done with the following code:
@BeagleBeforeViewSnapshot((myComponentPayload) => {
myComponentPayload.exposedId = id
})
@Component({
// ...
})
class MyComponent {
@Input() exposedId: string
// ...
}Just like any other lifecycle, a hook to it could also have been set globally, via the configuration:
const config = {
// ...
lifecycles: {
beforeViewSnapshot: (payload) => { /* ... */ }
// ...
},
}Differently from the two previous lifecycles, the changes done here are valid for the current render only, since any update to the view is done over a tree based on the snapshotted view, the modifications done in this lifecycle are not permanent and will be executed in every render.
This lifecycle can be used to run code that needs to run every time the view is rendered but doesn't require actions, context, expressions and styles to have already been processed.
Contexts are defined, referenced and manipulated in the JSON of the view. But what if we want to access data of the application and not the view itself? Beagle offers a feature called "Global context" that is able to deal with this scenario, but suppose there is no Global context, we can still implement this behavior by using the AfterViewSnapshot lifecycle.
Let's say we have a financial application and we want to show the user's balance. We must guarantee that, in every re-render the most recent value for the balance will be used, for this reason, it can't be done in the previous lifecycles (BeforeStart and BeforeViewSnapshot).
{
"_beagleComponent_": "container",
"context": {
"id": "user",
"value": {
"name": "",
"balance": 0
}
},
"children": [
{
"_beagleComponent_": "text",
"text": "@{user.name}, your balance is $@{user.balance}"
}
]
}In the JSON above, we use the context user, this context starts with empty values and the view
has no way of knowing the correct values. So, before processing the contexts and expressions,
we can replace the values of the context in the JSON by the values we have in our application. See
the example below:
function findContextById(payload, id) {
if (payload.context && payload.context.id === id) return payload.context
const it = Beagle.Children.iterator(payload)
while (!it.done) {
const context = findContextById(it.next(), id)
if (context) return context
}
}
const config = {
// ...
lifecycles: {
afterViewSnapshot: (payload) => {
const userContext = findContextById(payload, 'user')
const userData = getUserData() // this method gets the user data from the application
userContext.name = userData.name
userContext.balance = userData.balance
}
}
}With the code above we tell Beagle to replace the values in the context "user" by the values in the application. This piece of code cannot be placed before the view is snapshotted because we have the requirement to update the balance value in every render. It also can't be placed in the next lifecycle (BeforeRender), because the context would then be already evaluated and our values wouldn't be processed.
It is important to notice that the action setContext would not work over the context user, since
we are always replacing the values for this context before processing any expression. This is just
an example to show how this lifecycle could be used. To use application values in your beagle view,
it is always preferred to use the global context.
Just like the previous lifecycle (AfterViewSnapshot), the changes done here are valid for the current render only and is executed in every render. The difference from BeforeRender to AfterViewSnapshot, is that it is guaranteed that all actions, expressions and styles have already been processed.
Let's say the backend decided to express colors in the following format:
{ red: number, green: number, blue: number }. For example, black would be
{ red: 0, green: 0, blue: 0 }. This is not a valid color for browsers, so we decide to
convert the value of every color property to a valid RGB format. Basically, the function that could
do this work is the following:
const colorProperties: ['color', 'backgroundColor', 'borderColor']
function fixColorCodes(componentPayload) {
const style = componentPayload.style
if (!style) return
colorProperties.forEach((property) => {
if (!style[property]) return
style[property] = `rgb(${style[property].red}, ${style[property].green}, ${style[property].blue})`
})
}Now we just need to execute the function above for every component in the tree. But when exactly should we call it?
Suppose we want to have a dynamic behavior for the color by changing it via the context feature. Check the JSON below:
{
"_beagleComponent_": "beagle:container",
"context": {
"id": "bgColor",
"value": {
"red": 255,
"green": 255,
"blue": 255
},
},
"children": [
{
"_beagleComponent_": "beagle:text",
"text": "My dynamically colored text",
"style": {
"backgroundColor": "@{bgColor}"
}
},
{
"_beagleComponent_": "beagle:button",
"text": "red",
"onPress": [
{
"_beagleAction_": "setContext",
"contextId": "bgColor",
"value": {
"red": 255,
"green": 0,
"blue": 0
}
}
],
"_beagleComponent_": "beagle:button",
"text": "green",
"onPress": [
{
"_beagleAction_": "setContext",
"contextId": "bgColor",
"value": {
"red": 0,
"green": 255,
"blue": 0
}
}
],
"_beagleComponent_": "beagle:button",
"text": "blue",
"onPress": [
{
"_beagleAction_": "setContext",
"contextId": "bgColor",
"value": {
"red": 0,
"green": 0,
"blue": 255
}
}
]
}
]
}From the JSON above we can see that the text starts with a white background and as soon as the user presses a button, the background color changes.
If we call fixColorCodes before the context is evaluated, we'll be trying to execute it over the
string @{bgColor} instead of the object { red: 255, green: 255, blue: 255 } which will get
us a massive runtime error, since red, green or blue are not properties of a string.
BeforeStart, BeforeViewSnapshot and AfterViewSnapshot are all executed before the context gets
evaluated, so everything that might be affected by the context, must be executed in the last
lifecycle: BeforeRender.
function fixColorForComponentTree(tree) {
fixColorCodes(tree)
if (!tree.children) return
tree.children.forEach(fixColorForComponentTree)
}
const config = {
// ...
lifecycles: {
// ...
beforeRender: fixColorForComponentTree,
}
}
